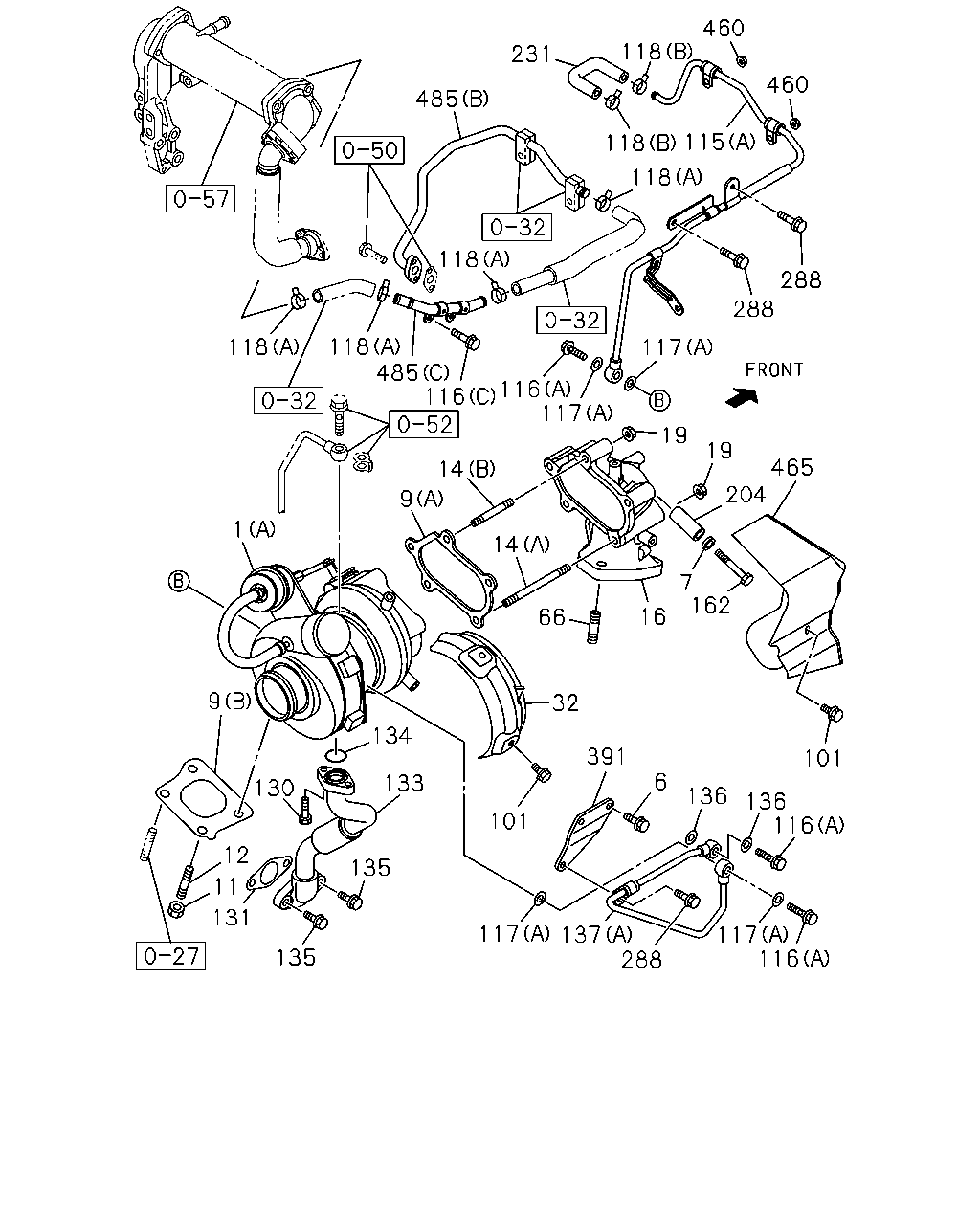

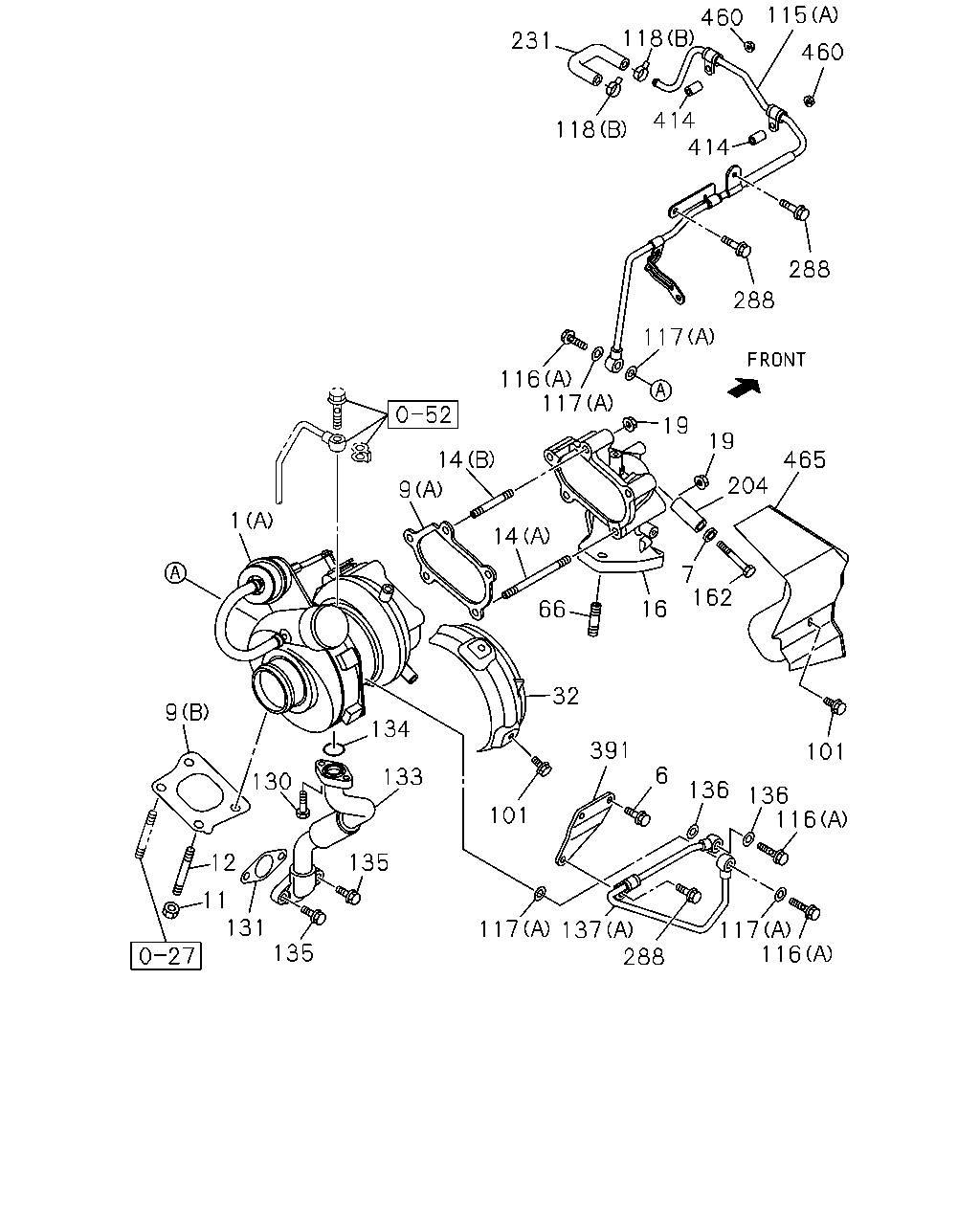

0-36 — TURBOCHARGER SYSTEM (#122625) — 237 parça

231 118 460 460 485 118 115 118 288 288 117 19 204 465 7 162 116 117 16 66 14 14 9 118 118 485 116 118 1 32 101 116 136 136 6 391 101 134 130 9 133 135 12 11 131 135 117 137 288 117 116 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (A)	8-98079-569-2	01	1	1306-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (A)	8-98000-031-2	01	1	1306-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98097-686-1	01	1	1306-1509		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98054-011-1	01	1	1510-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (B)	8-98015-115-2	01	1	1306-1509		●
6	BOLT; BRKT TO C/BL M8X16 FLANGE SOU	0-28050-816-0	02	1	1306-	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1306-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1306-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1306-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98015-116-1	02	1	1306-		●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	1306-	●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	02	1	1306-		●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1306-	●
12	STUD; TURBOCHARGER M8X25 L=36 SOU	8-97378-062-0	02	1	1306-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1306-	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1306-	●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X25 L=36 SOU	8-97378-062-0	02	1	1306-		●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	1306-	●
16	ADAPTER; EXH PIPE	8-98012-735-4	01	1	1306-		●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	1306-	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1306-	●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1306-	●
66	STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1306-		●
101	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1306-	●
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-98096-928-0	01	1	1306-	●
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98113-710-0	01	1	1306-1509		●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-98113-710-0	01	1	1510-		●
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-98113-709-0	01	1	1306-		●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1306-	●
116	BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) (B) M8X16 FLANGE SOU	0-28050-816-0	01	1	1306-	●
116	BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) (C) M8X20 FLANGE	0-28650-820-0	05	1	1306-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1306-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	02	1	1306-		●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (C)	8-97262-117-0	01	1	1306-		●
118	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	02	1	1306-	●
118	CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) (A) ID=20	1-09707-084-1	06	1	1306-	●
118	CLIP; WATER HOSE (C) ID=12.8	8-94367-943-0	04	1	1306-		●
118	CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) (D) ID=22	8-97359-141-0	06	1	1306-		●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1306-	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1306-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1306-	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1306-	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28050-820-0	02	1	1306-	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	1306-1312	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
137	PIPE; WATER,TURBOCHARGER IN (A)	8-98063-840-0	01	1	1306-	●
137	PIPE; WATER,TURBOCHARGER IN (B)	8-97381-650-0	01	1	1306-		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1306-	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1306-	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1306-	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1306-		●
288	BOLT; WATER PIPE CLIP M8X12 FLANGE	0-28050-812-0	03	1	1306-	●
391	BRACKET; WATER PIPE	8-97371-730-0	01	1	1306-	●
460	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●
465	PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1306-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1306-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-98041-637-1	01	1	1306-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1306-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (D)	8-97381-651-0	01	1	1306-		●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (E)	8-97381-652-0	01	1	1306-		●

71 143 389 143 71 143 143 11 12 1 2 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

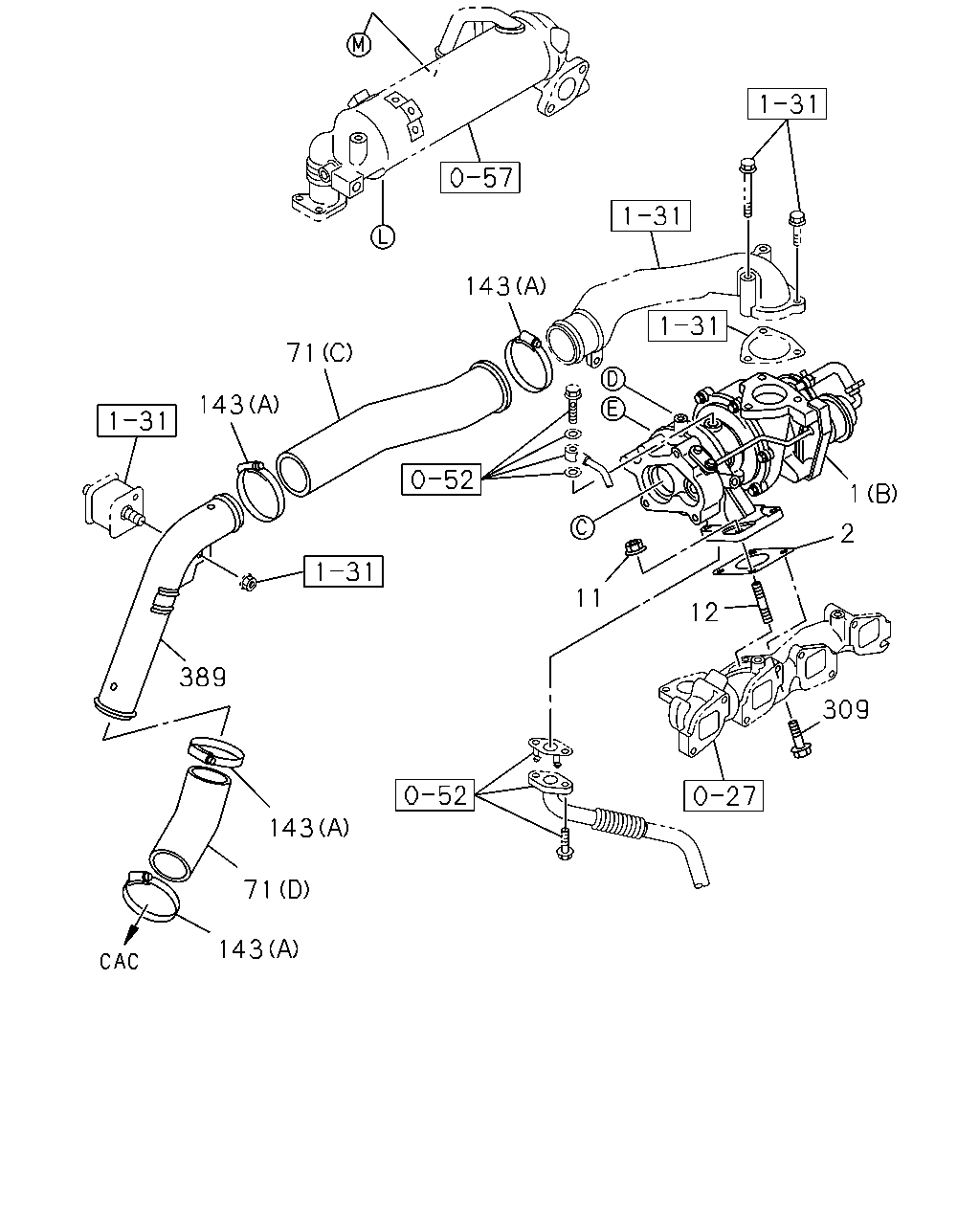

1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (A)	8-98079-569-2	01	1	1306-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (A)	8-98000-031-2	01	1	1306-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98097-686-1	01	1	1306-1509		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98054-011-1	01	1	1510-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (B)	8-98015-115-2	01	1	1306-1509		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1306-		●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	1306-	●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	02	1	1306-		●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1306-	●
12	STUD; TURBOCHARGER M8X25 L=36 SOU	8-97378-062-0	02	1	1306-		●

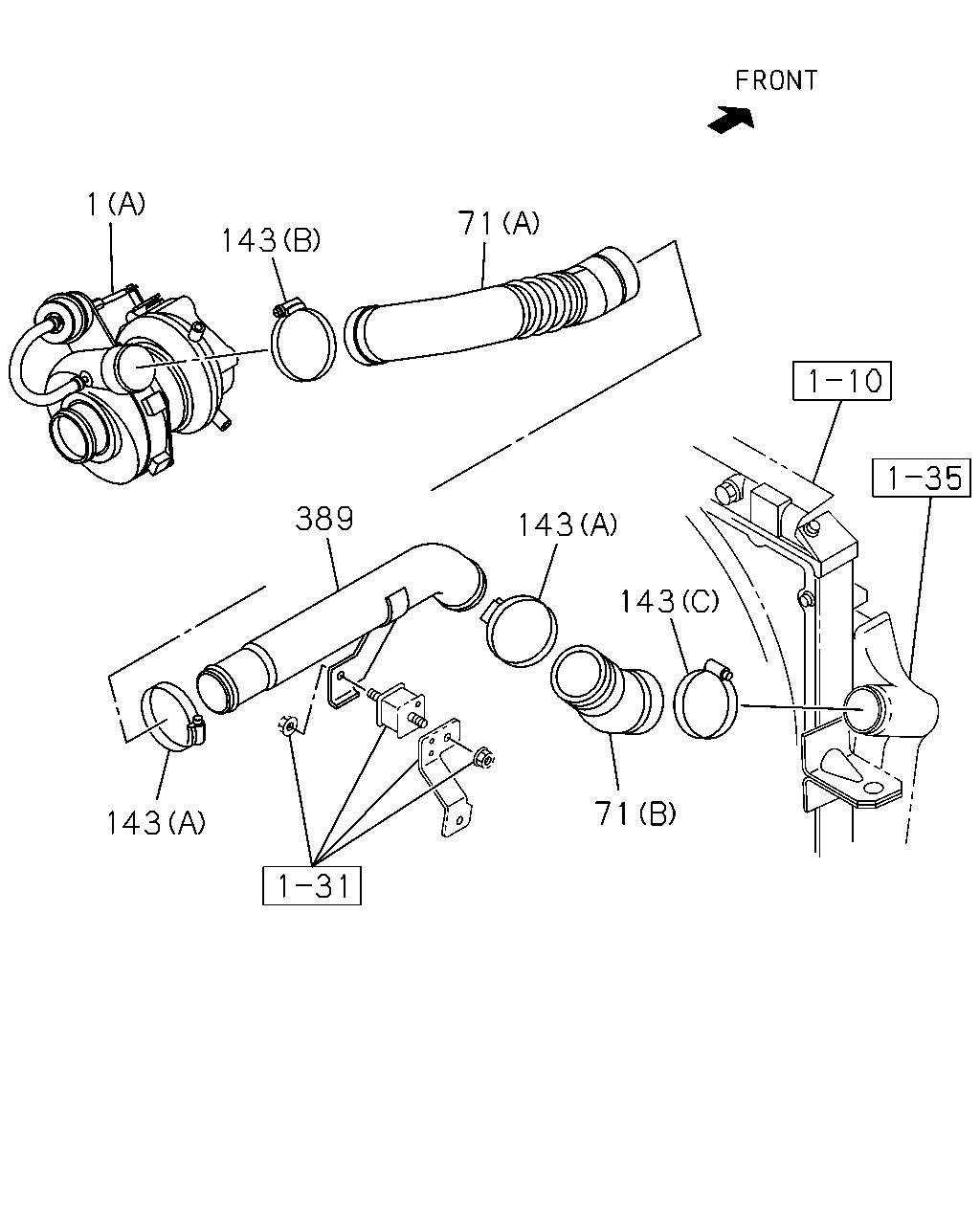

71	HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98059-964-1	01	1	1306-	●
71	HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98107-509-1	01	1	1306-	●
71	HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98036-513-2	01	1	1306-		●
71	HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98159-280-1	01	1	1306-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	1306-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	02	1	1306-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	01	1	1306-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	04	1	1306-		●
309	BOLT; TURBOCHARGER M8X28 FLANGE	8-98043-528-0	02	1	1306-		●
389	PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	1306-	●
389	PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1306-		●

138 138 117 488 525 423 117 115 118 119 118 137 231 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

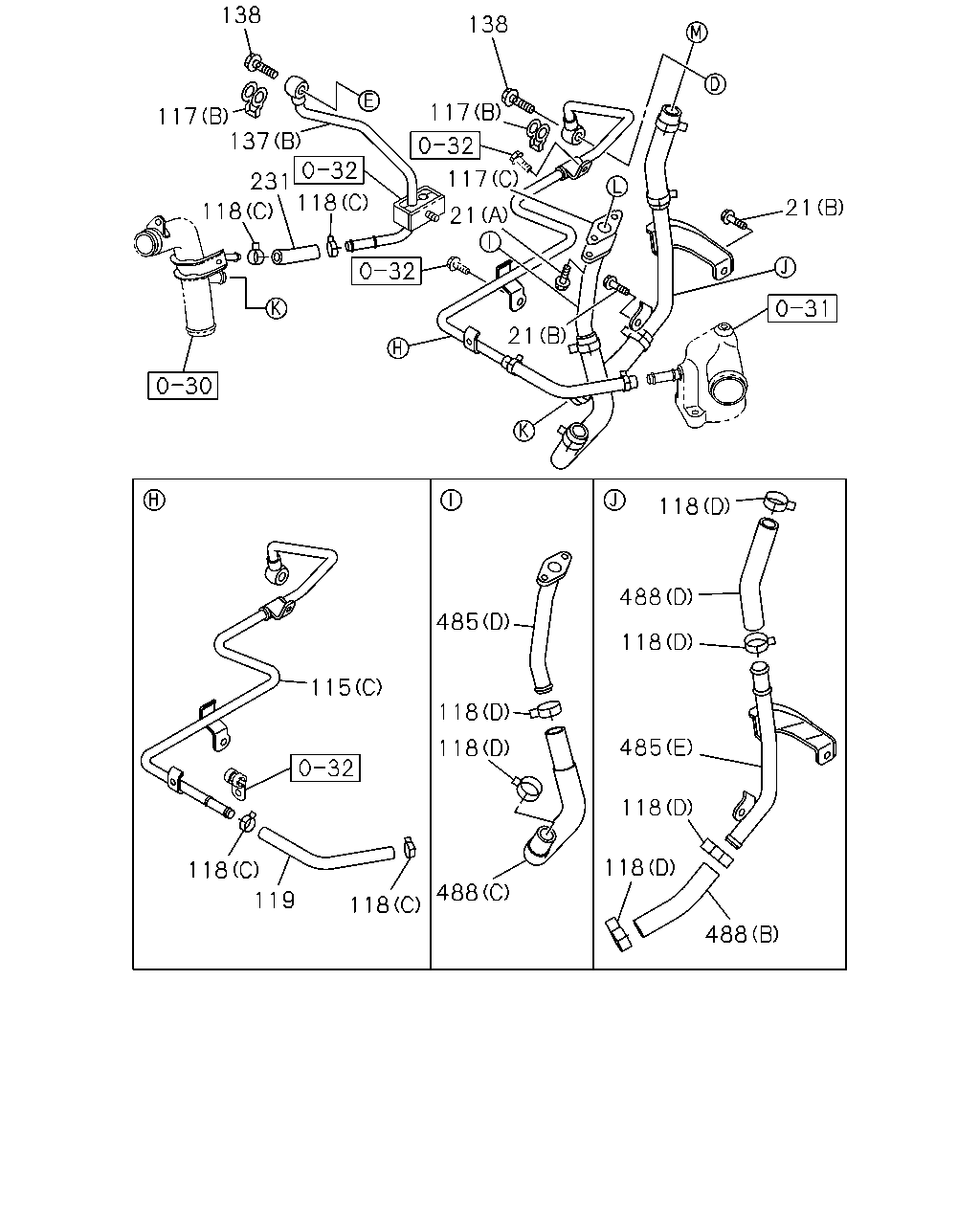

115	PIPE; WATER,TURBOCHARGER OUT (A)	8-98096-928-0	01	1	1306-	●
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98113-710-0	01	1	1306-1509		●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-98113-710-0	01	1	1510-		●
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-98113-709-0	01	1	1306-		●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1306-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	02	1	1306-		●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (C)	8-97262-117-0	01	1	1306-		●
118	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	02	1	1306-	●
118	CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) (A) ID=20	1-09707-084-1	06	1	1306-	●
118	CLIP; WATER HOSE (C) ID=12.8	8-94367-943-0	04	1	1306-		●
118	CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) (D) ID=22	8-97359-141-0	06	1	1306-		●
119	HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	1306-		●
137	PIPE; WATER,TURBOCHARGER IN (A)	8-98063-840-0	01	1	1306-	●
137	PIPE; WATER,TURBOCHARGER IN (B)	8-97381-650-0	01	1	1306-		●
138	BOLT; EYE,WATER PIPE M12X24 EYE-BOLT	1-09675-081-0	02	1	1306-		●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1306-	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1306-		●
423	STUD; WATER PIPE EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 L=25	0-41010-616-0	01	1	1306-1509		●
423	STUD; WATER PIPE M6X16 L=25	0-41010-616-0	01	1	1510-		●
488	HOSE; RUBBER EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98066-091-0	01	1	1306-1509		●
488	HOSE; RUBBER (A)	8-98066-091-0	01	1	1510-		●
488	HOSE; RUBBER EURO3 SPECIFICATION(NT3) (B) L=110 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1306-		●
488	HOSE; RUBBER EURO3 SPECIFICATION(NT3) (D) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1306-		●
488	HOSE; RUBBER EURO3 SPECIFICATION(NT3) (C)	8-98015-118-0	01	1	1306-		●
525	PLATE; WATER,TURBO EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=6.4 OD=18	9-09164-706-0	01	1	1306-1509		●
525	PLATE; WATER,TURBO ID=6.4 OD=18	9-09164-706-0	01	1	1510-		●

138 117 137 231 118 118 138 117 117 21 21 21 115 118 119 118 485 118 118 488 118 488 118 485 118 118 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	BOLT; PIPE EURO3 SPECIFICATION(NT3) (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1306-		●
21	BOLT; PIPE EURO3 SPECIFICATION(NT3) (A) M6X20 FLANGE SOU	0-28650-620-0	02	1	1306-		●

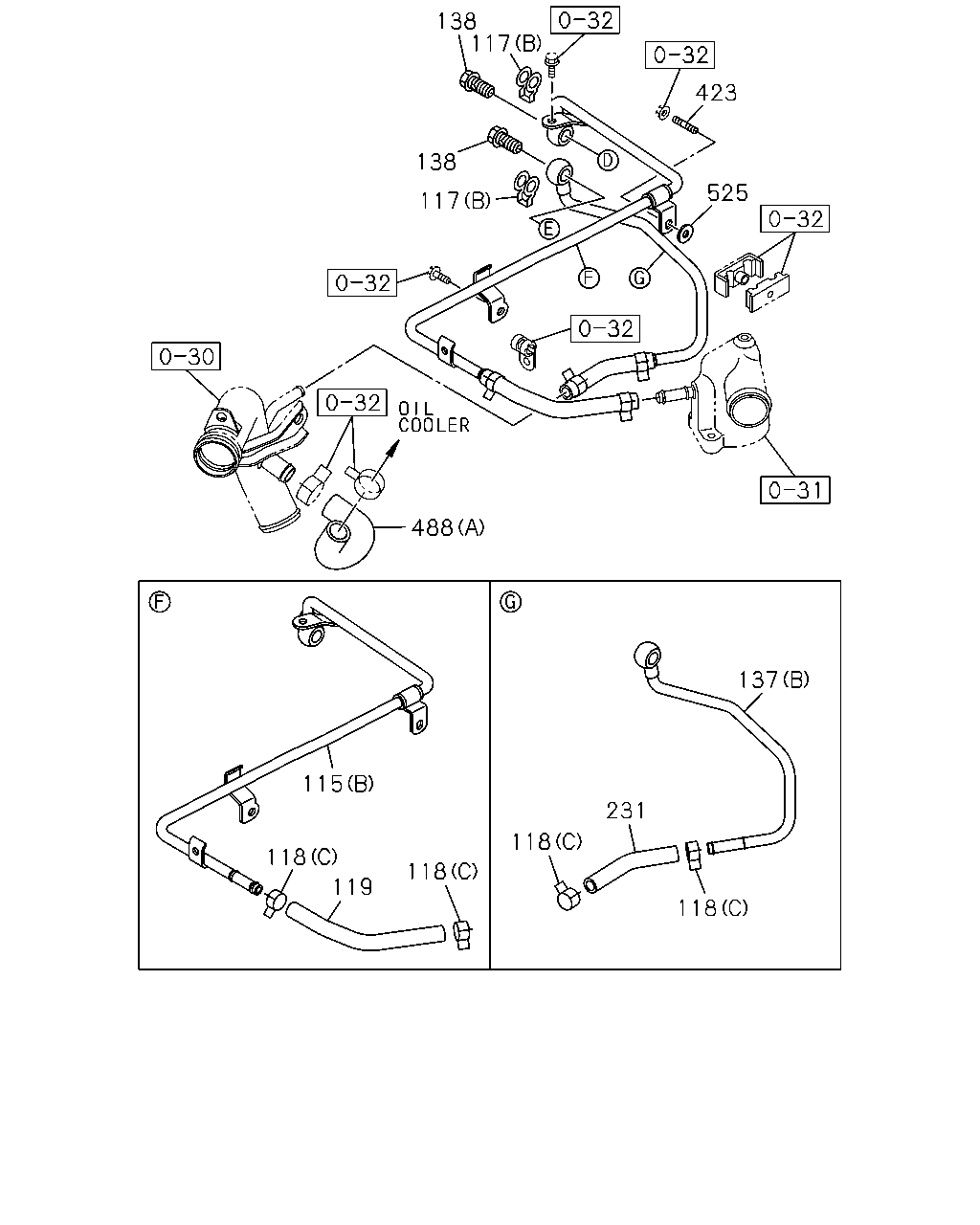

115	PIPE; WATER,TURBOCHARGER OUT (A)	8-98096-928-0	01	1	1306-	●
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98113-710-0	01	1	1306-1509		●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-98113-710-0	01	1	1510-		●
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-98113-709-0	01	1	1306-		●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1306-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	02	1	1306-		●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (C)	8-97262-117-0	01	1	1306-		●
118	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	02	1	1306-	●
118	CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) (A) ID=20	1-09707-084-1	06	1	1306-	●
118	CLIP; WATER HOSE (C) ID=12.8	8-94367-943-0	04	1	1306-		●
118	CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) (D) ID=22	8-97359-141-0	06	1	1306-		●
119	HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	1306-		●
137	PIPE; WATER,TURBOCHARGER IN (A)	8-98063-840-0	01	1	1306-	●
137	PIPE; WATER,TURBOCHARGER IN (B)	8-97381-650-0	01	1	1306-		●
138	BOLT; EYE,WATER PIPE M12X24 EYE-BOLT	1-09675-081-0	02	1	1306-		●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1306-	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1306-		●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1306-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-98041-637-1	01	1	1306-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1306-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (D)	8-97381-651-0	01	1	1306-		●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (E)	8-97381-652-0	01	1	1306-		●
488	HOSE; RUBBER EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98066-091-0	01	1	1306-1509		●
488	HOSE; RUBBER (A)	8-98066-091-0	01	1	1510-		●
488	HOSE; RUBBER EURO3 SPECIFICATION(NT3) (B) L=110 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1306-		●
488	HOSE; RUBBER EURO3 SPECIFICATION(NT3) (D) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1306-		●
488	HOSE; RUBBER EURO3 SPECIFICATION(NT3) (C)	8-98015-118-0	01	1	1306-		●

33 173 18 14 9 16 66 33 173 251 217 217 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

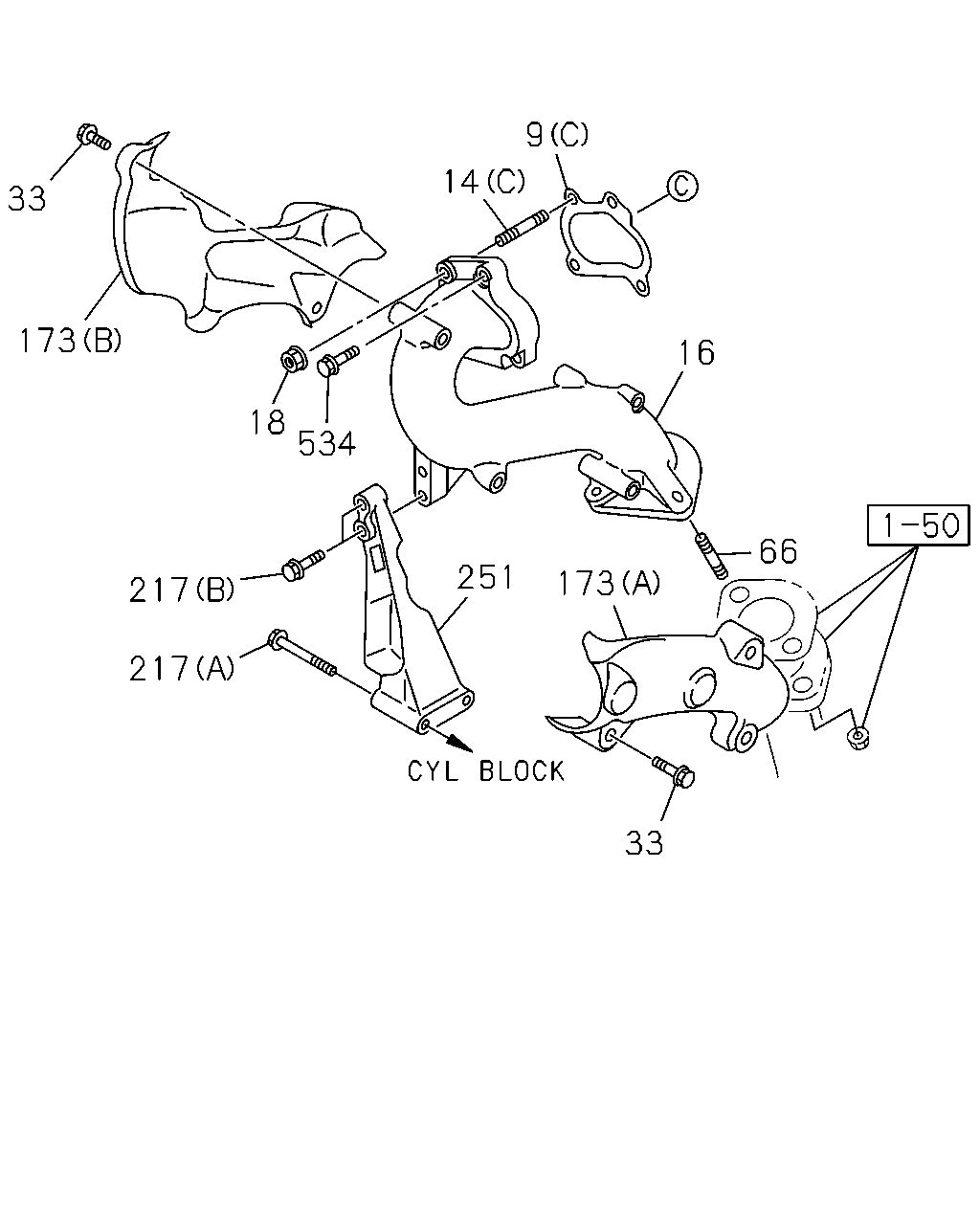

9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1306-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1306-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98015-116-1	02	1	1306-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1306-	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1306-	●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X25 L=36 SOU	8-97378-062-0	02	1	1306-		●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	1306-	●
16	ADAPTER; EXH PIPE	8-98012-735-4	01	1	1306-		●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1306-		●
33	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	06	1	1306-		●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1306-	●
66	STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1306-		●
173	PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-023-1	01	1	1306-		●
173	PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1306-		●
217	BOLT; BRKT (A) M10X70 FLANGE SOU	0-28051-070-0	02	1	1306-		●
217	BOLT; BRKT (B) M10X30 FLANGE	8-98032-158-0	02	1	1306-		●
251	BRACKET; ADAPTER	8-98009-098-1	01	1	1306-		●
534	BOLT; TURBOCHARGER TO EXH PIPE M8X35 FLANGE	8-98053-224-0	02	1	1306-		●

118 118 116 116 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

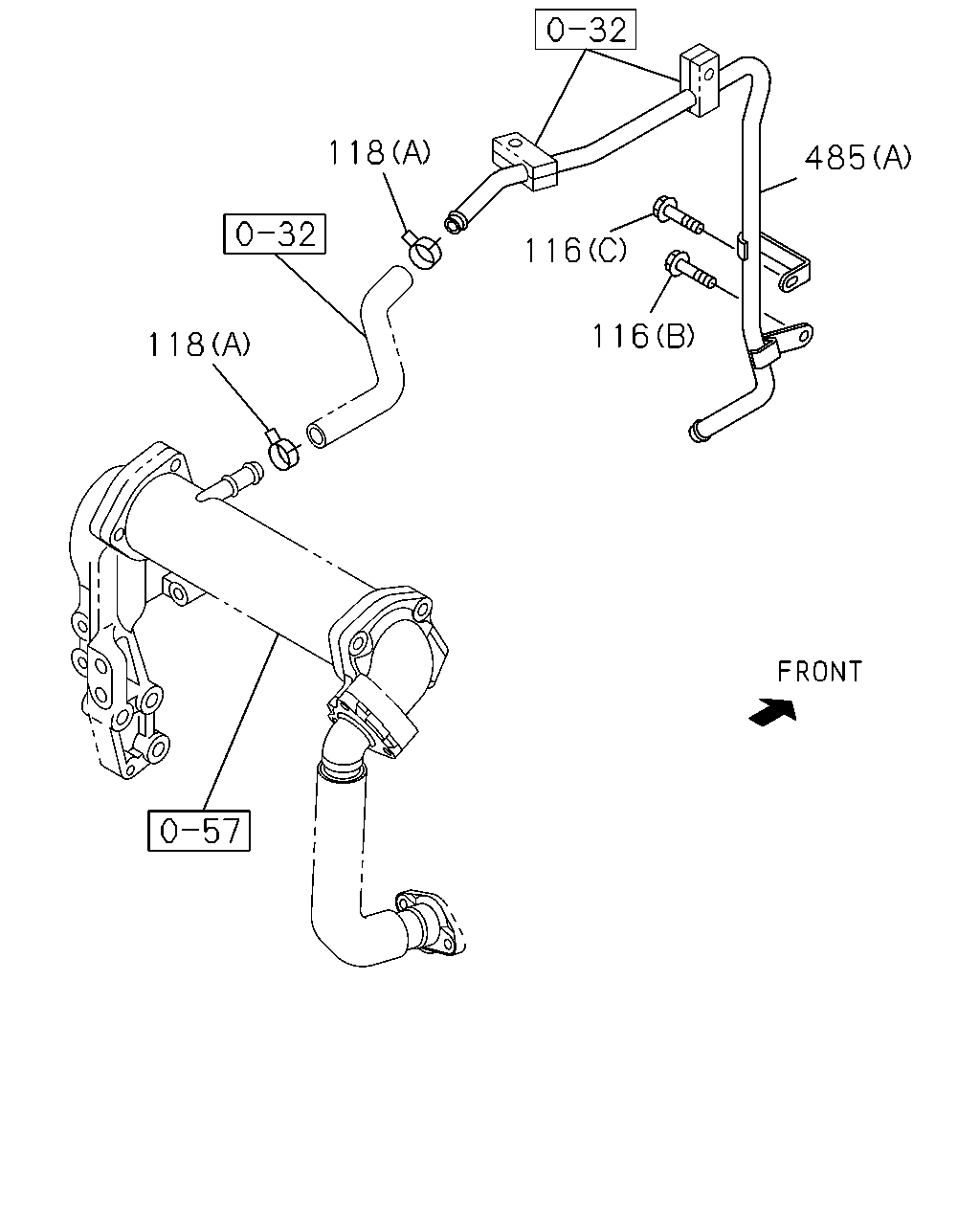

116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1306-	●
116	BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) (B) M8X16 FLANGE SOU	0-28050-816-0	01	1	1306-	●
116	BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) (C) M8X20 FLANGE	0-28650-820-0	05	1	1306-	●
118	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	02	1	1306-	●
118	CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) (A) ID=20	1-09707-084-1	06	1	1306-	●
118	CLIP; WATER HOSE (C) ID=12.8	8-94367-943-0	04	1	1306-		●
118	CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) (D) ID=22	8-97359-141-0	06	1	1306-		●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1306-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-98041-637-1	01	1	1306-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1306-	●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (D)	8-97381-651-0	01	1	1306-		●
485	PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (E)	8-97381-652-0	01	1	1306-		●

135 131 11 12 130 9 1 135 133 134 9 14 116 117 117 288 288 414 414 118 231 118 460 115 460 19 19 204 465 14 66 16 7 162 101 116 136 136 6 391 32 101 117 137 288 117 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (A)	8-98079-569-2	01	1	1306-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (A)	8-98000-031-2	01	1	1306-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98097-686-1	01	1	1306-1509		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98054-011-1	01	1	1510-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (B)	8-98015-115-2	01	1	1306-1509		●
6	BOLT; BRKT TO C/BL M8X16 FLANGE SOU	0-28050-816-0	02	1	1306-	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1306-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1306-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1306-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98015-116-1	02	1	1306-		●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	1306-	●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	02	1	1306-		●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1306-	●
12	STUD; TURBOCHARGER M8X25 L=36 SOU	8-97378-062-0	02	1	1306-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1306-	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1306-	●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X25 L=36 SOU	8-97378-062-0	02	1	1306-		●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	1306-	●
16	ADAPTER; EXH PIPE	8-98012-735-4	01	1	1306-		●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	1306-	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1306-	●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1306-	●
66	STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1306-		●
101	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1306-	●
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-98096-928-0	01	1	1306-	●
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98113-710-0	01	1	1306-1509		●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-98113-710-0	01	1	1510-		●
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-98113-709-0	01	1	1306-		●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1306-	●
116	BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) (B) M8X16 FLANGE SOU	0-28050-816-0	01	1	1306-	●
116	BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) (C) M8X20 FLANGE	0-28650-820-0	05	1	1306-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1306-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	02	1	1306-		●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (C)	8-97262-117-0	01	1	1306-		●
118	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	02	1	1306-	●
118	CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) (A) ID=20	1-09707-084-1	06	1	1306-	●
118	CLIP; WATER HOSE (C) ID=12.8	8-94367-943-0	04	1	1306-		●
118	CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) (D) ID=22	8-97359-141-0	06	1	1306-		●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1306-	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1306-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1306-	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1306-	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28050-820-0	02	1	1306-	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	1306-1312	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
137	PIPE; WATER,TURBOCHARGER IN (A)	8-98063-840-0	01	1	1306-	●
137	PIPE; WATER,TURBOCHARGER IN (B)	8-97381-650-0	01	1	1306-		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1306-	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1306-	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1306-	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1306-		●
288	BOLT; WATER PIPE CLIP M8X12 FLANGE	0-28050-812-0	03	1	1306-	●
391	BRACKET; WATER PIPE	8-97371-730-0	01	1	1306-	●
414	SPACER EURO2 SPECIFICATION(NT2) M8X10	1-11369-081-0	02	1	1306-	●
460	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●
465	PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1306-	●

1 143 71 389 143 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (A)	8-98079-569-2	01	1	1306-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (A)	8-98000-031-2	01	1	1306-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98097-686-1	01	1	1306-1509		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98054-011-1	01	1	1510-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (B)	8-98015-115-2	01	1	1306-1509		●
71	HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98059-964-1	01	1	1306-	●
71	HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98107-509-1	01	1	1306-	●
71	HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98036-513-2	01	1	1306-		●
71	HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98159-280-1	01	1	1306-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	1306-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	02	1	1306-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	01	1	1306-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	04	1	1306-		●
389	PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	1306-	●
389	PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1306-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
