◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#122619) — 20 parça

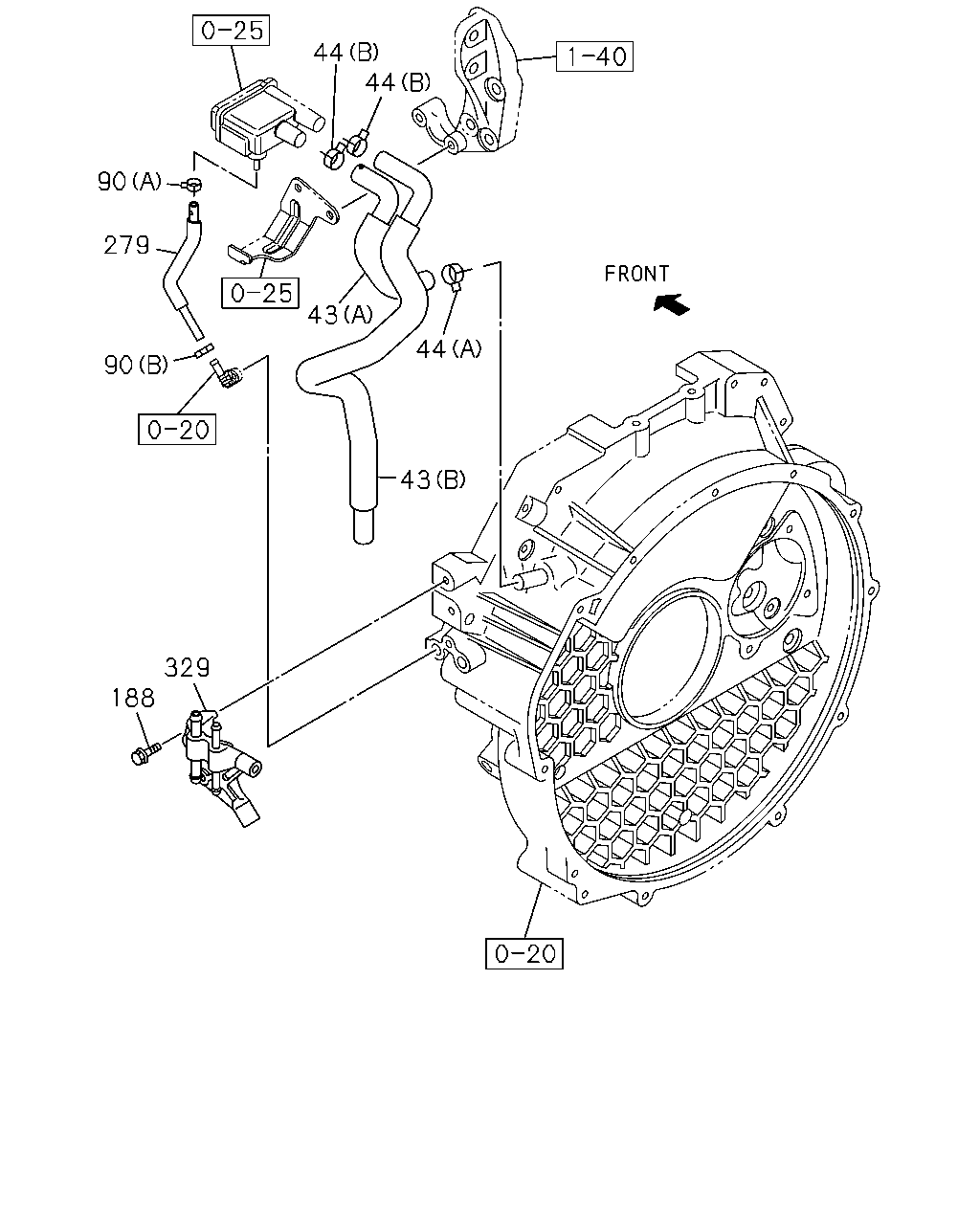

çizim 355259
44 44 90 279 90 43 44 43 329 188
BalonParca AdiParca NoAdetTipApplied Date
43 HOSE; PCV
EURO2 SPECIFICATION(NT2) (A) 		8-98075-187-2 01 1 1306-
43 HOSE; PCV
EURO2 SPECIFICATION(NT2) (B) 		8-98089-567-2 01 1 1306-
44 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) (A) ID=21 		8-94242-034-0 01 1 1306-
44 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) (B) ID=22.7 		8-94466-382-0 02 1 1306-
90 CLIP; RUBBER HOSE
EURO2 SPECIFICATION(NT2) (A) ID=11 SOU 		8-94238-570-0 01 1 1306-
90 CLIP; RUBBER HOSE
EURO2 SPECIFICATION(NT2) (B) ID=11.5 		8-97138-011-0 02 1 1306-
188 BOLT; BRKT
M8X30 FLANGE 		0-28050-830-0 02 1 1306-
188 BOLT; BRKT
EURO3 SPECIFICATION(NT3) M8X30 FLANGE 		0-28050-830-0 02 1 1306-
279 HOSE; RUBBER,OIL DRAIN
EURO2 SPECIFICATION(NT2) 		8-98075-190-1 01 1 1306-
329 BRACKET; VENTILATOR 8-98171-059-0 01 1 1306-

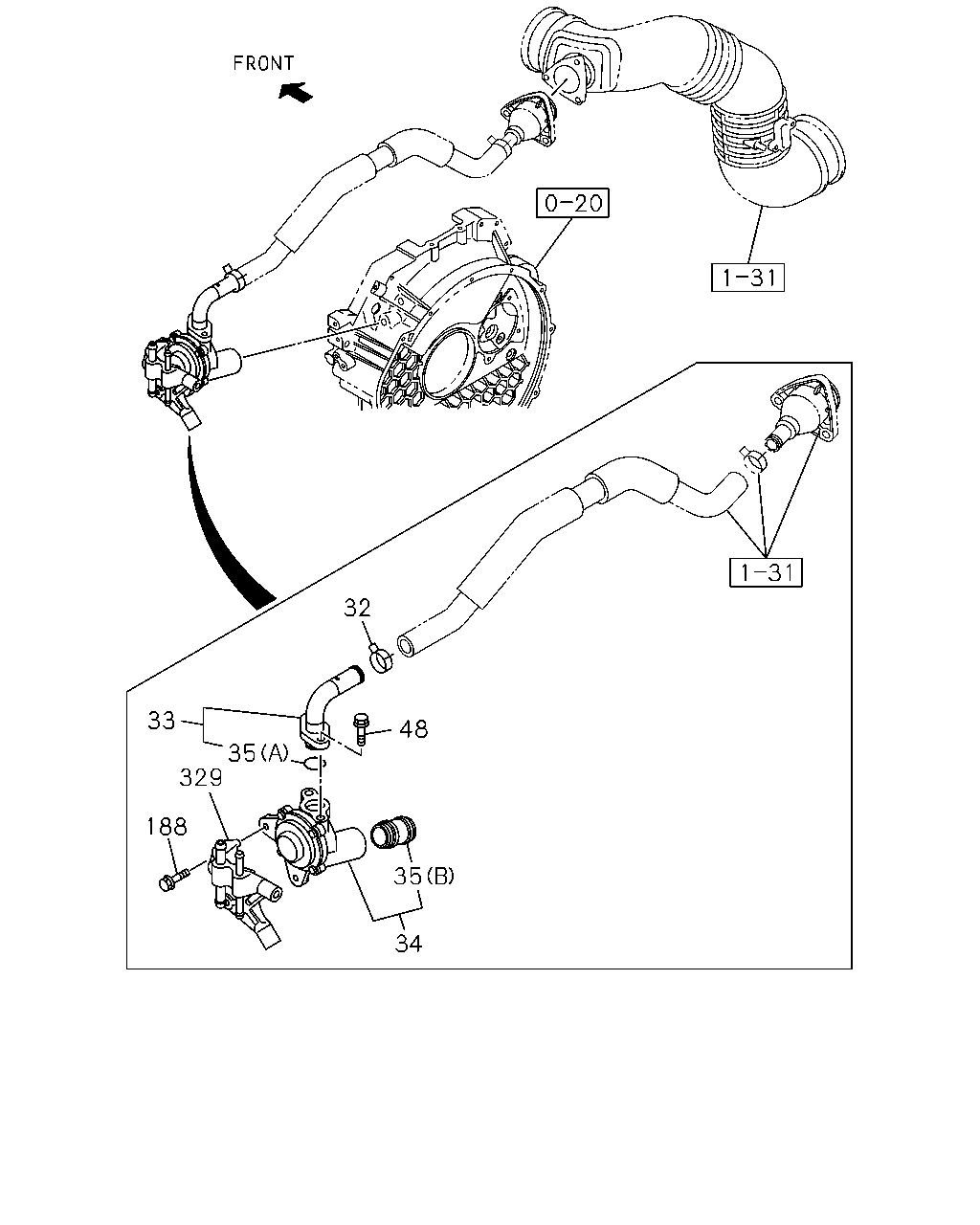

çizim 355260
32 48 35 34 35 33 329 188
BalonParca AdiParca NoAdetTipApplied Date
32 CLIP; VENT HOSE
EURO3 SPECIFICATION(NT3) ID=21.7 		8-97203-074-0 01 1 1306-
33 PIPE; VENTILATOR
EURO3 SPECIFICATION(NT3) 		8-98075-640-1 01 1 1306-
34 VENTILATOR
EURO3 SPECIFICATION(NT3) 		8-98036-808-1 01 1 1306-1310
34 VENTILATOR
EURO3 SPECIFICATION(NT3) 		8-98245-392-0 01 1 1311-
35 GASKET; VENTILATOR
EURO3 SPECIFICATION(NT3) (A) ID=17.8 		1-09623-588-0 01 1 1306-
35 GASKET; VENTILATOR
EURO3 SPECIFICATION(NT3) (B) 		8-98038-692-0 01 1 1306-
48 BOLT; PIPE
EURO3 SPECIFICATION(NT3) M6X16 FLANGE SOU 		0-28050-616-0 02 1 1306-
188 BOLT; BRKT
M8X30 FLANGE 		0-28050-830-0 02 1 1306-
188 BOLT; BRKT
EURO3 SPECIFICATION(NT3) M8X30 FLANGE 		0-28050-830-0 02 1 1306-
329 BRACKET; VENTILATOR 8-98171-059-0 01 1 1306-
