Isuzu WW
▶
TRUCKS
▶
NPR
▶
51487 - NPR/NQR(SOUTHAFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶
0-27 — EXHAUST MANIFOLD
(#122618) — 37 parça
Tümü

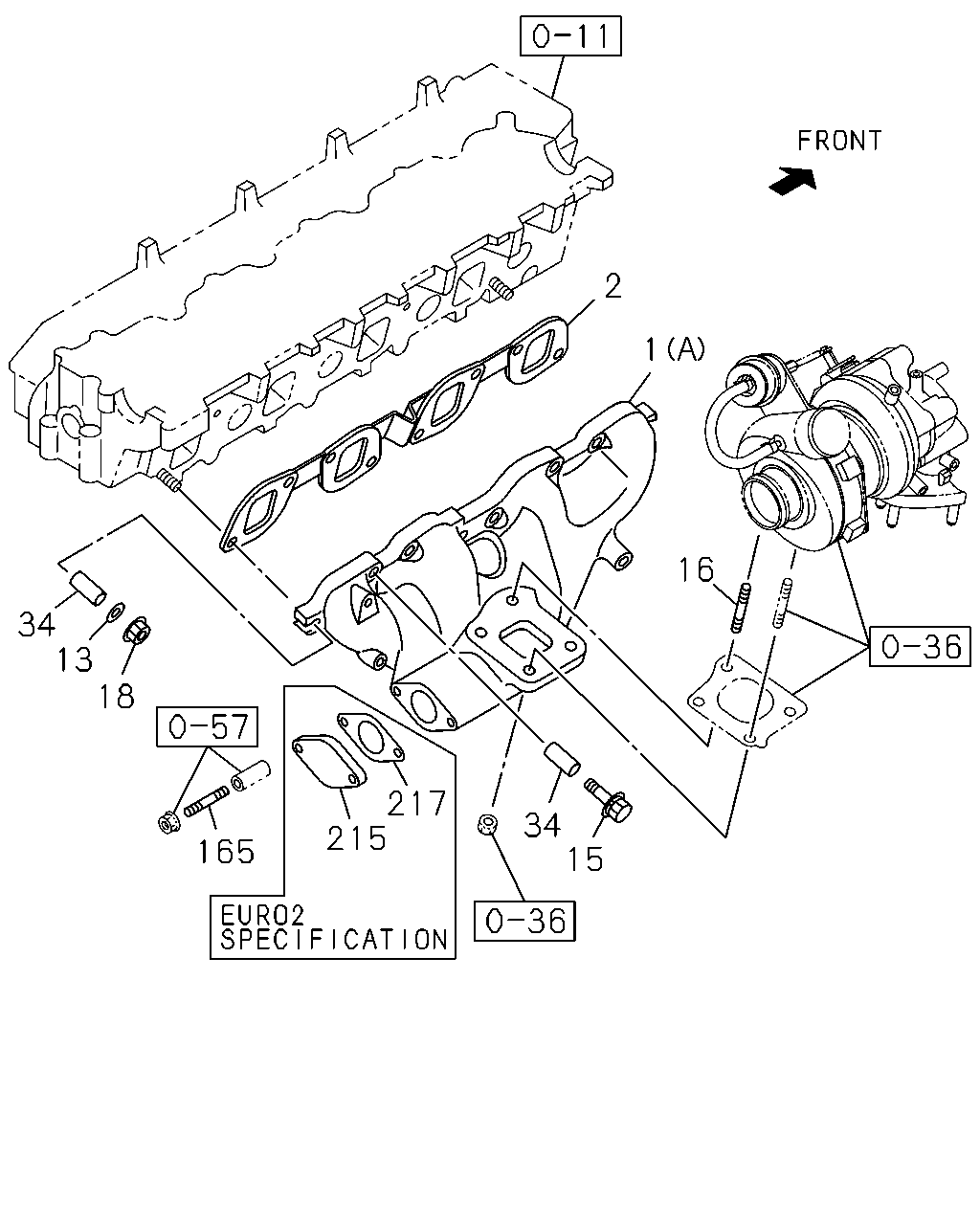

A - 4HK1-TCN ENG

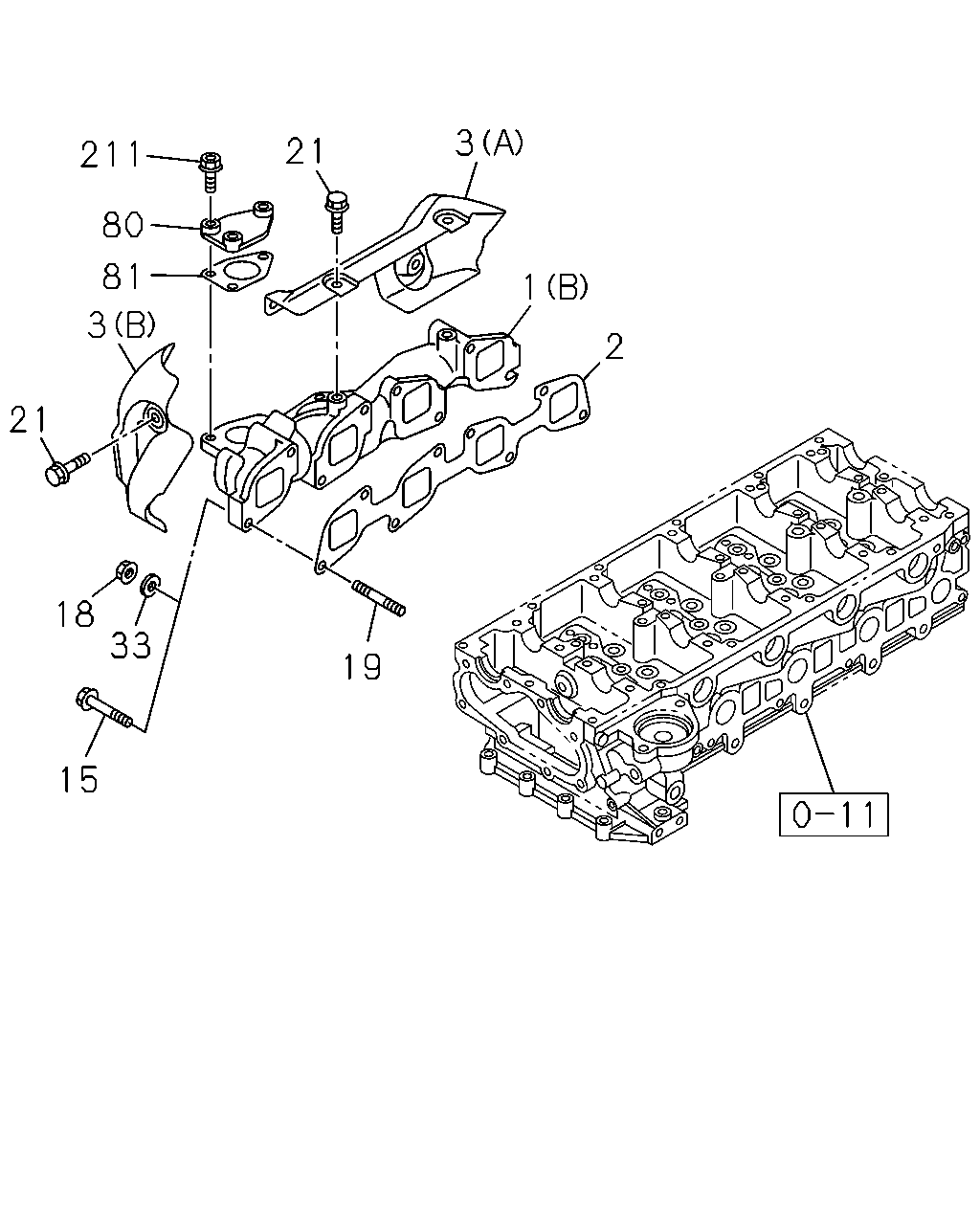

B - 4JJ1-TCC ENG
◀
[027A] 4HK1 (15 parça)
[027A] 4JJ1 (22 parça)
▶
2
1
16
15
34
217
215
165
18
13
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; EXHAUST
(A)
8-98027-968-1
01
1
1306-
●
1
MANIFOLD; EXHAUST
(B)
8-98033-941-1
01
1
1306-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
1306-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98215-752-0
01
1
1306-1312
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98229-782-0
01
1
1401-
●
13
WASHER; LK,EXH MANIF
T=2.2
1-09556-015-0
02
1
1306-
●
15
BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
1306-
●
15
BOLT; EXH MANIF
M10X30 FLANGE
8-98032-158-0
04
1
1306-
●
16
STUD; EXH PIPE TO MANIF
M10X25 L=40
9-04731-025-0
02
1
1306-
●
18
NUT; EXH MANIF
M10 SOU
0-91110-510-0
02
1
1306-
●
18
NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
04
1
1306-
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
1306-
●
165
STUD; EGR PIPE
M8X45 L=57
8-94105-162-1
02
1
1306-
●
215
PLATE; BOSS,EXH MANIF
EURO2 SPECIFICATION(NT2)
8-98170-965-0
01
1
1306-
●
217
GASKET; EXH MANIF TO PLATE
EURO2 SPECIFICATION(NT2)
8-94340-670-0
01
1
1306-
●
211
80
81
3
21
18
33
15
19
2
1
3
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; EXHAUST
(A)
8-98027-968-1
01
1
1306-
●
1
MANIFOLD; EXHAUST
(B)
8-98033-941-1
01
1
1306-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
1306-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98215-752-0
01
1
1306-1312
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98229-782-0
01
1
1401-
●
3
PROTECTOR; HEAT,EXH MANIF
(A)
8-97381-503-4
01
1
1306-
●
3
PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION(NT3) (B)
8-98011-523-0
01
1
1306-
●
15
BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
1306-
●
15
BOLT; EXH MANIF
M10X30 FLANGE
8-98032-158-0
04
1
1306-
●
18
NUT; EXH MANIF
M10 SOU
0-91110-510-0
02
1
1306-
●
18
NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
04
1
1306-
●
19
STUD; MANIF TO CYL HD
M10X70 L=83
8-98048-446-0
04
1
1306-
●
21
BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X12 FLANGE
0-28050-812-0
04
1
1306-1509
●
21
BOLT; HEAT PROTECTOR
M8X12 FLANGE
0-28050-812-0
04
1
1510-
●
21
BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION(NT3) M8X12 FLANGE
0-28050-812-0
07
1
1306-
●
33
WASHER; EXH MANIF
ID=10.5
5-09500-013-0
08
1
1306-
●
80
COVER; EXH MANIF
EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98056-984-0
01
1
1306-1509
●
80
COVER; EXH MANIF
8-98056-984-0
01
1
1510-
●
81
GASKET; COVER
EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98017-551-0
01
1
1306-1509
●
81
GASKET; COVER
8-98017-551-0
01
1
1510-
●
211
BOLT; COVER
EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X23 FLANGE
8-97378-077-0
03
1
1306-1509
●
211
BOLT; COVER
M8X23 FLANGE
8-97378-077-0
03
1
1510-
●
