0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#122615) — 139 parça

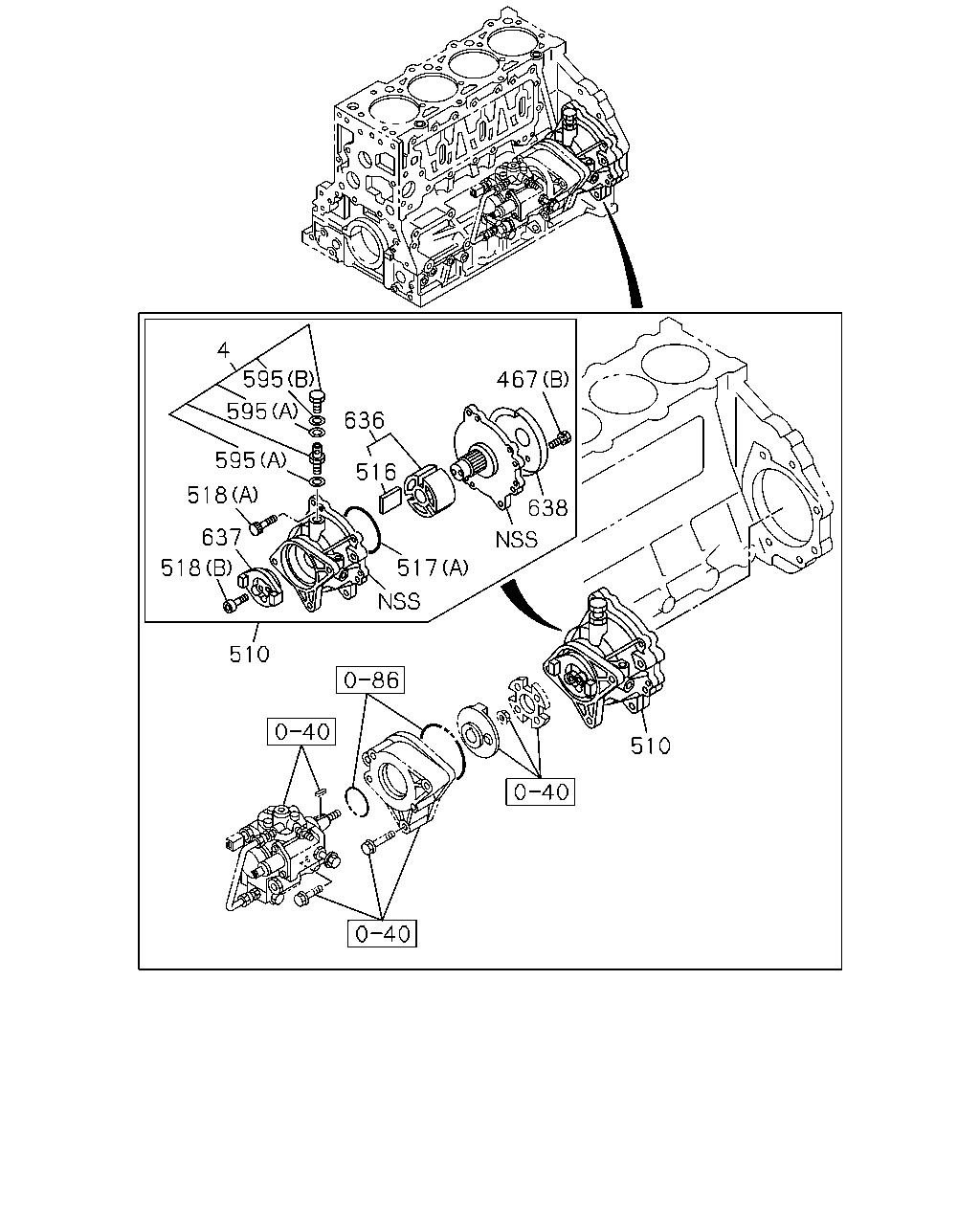

çizim 355180
4 595 595 595 518 518 637 636 516 517 638 467 510 510
BalonParca AdiParca NoAdetTipApplied Date A B
4 VALVE ASM; CHECK 8-98049-521-0 01 1 1306- ● ●
467 BOLT; PLATE
(A) M6X10 		8-98030-649-0 06 1 1306- ●
467 BOLT; PLATE
(B) 		8-98049-523-0 02 1 1306- ●
510 PUMP ASM; VACUUM 8-97388-589-6 01 1 1306- ●
510 PUMP ASM; VACUUM 8-98162-748-0 01 1 1306-1311 ●
510 PUMP ASM; VACUUM 8-98251-764-0 01 1 1312- ●
516 VANE; VAC PUMP 8-98051-279-0 03 1 1306- ●
516 VANE; VAC PUMP 8-98051-275-0 03 1 1306- ●
517 GASKET; VAC PUMP
(A) 		8-98051-280-0 01 1 1306- ●
517 GASKET; VAC PUMP
(B) 		8-98049-522-0 01 1 1306-1311 ●
517 GASKET; VAC PUMP
(B) 		8-98251-769-0 01 1 1312- ●
517 GASKET; VAC PUMP
(C) ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09566-271-0 01 1 1306- ●
518 BOLT; VAC PUMP
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 1306- ●
518 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 1306- ●
518 BOLT; VAC PUMP
(C) 		8-98049-523-0 03 1 1306- ●
595 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1306- ● ●
595 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1306- ● ●
636 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 1306- ●
636 ROTOR & VANE ASM; VAC PUMP 8-98049-520-0 01 1 1306- ●
637 COUPLING; VAC PUMP 8-98051-278-0 01 1 1306- ●
638 PLATE KIT; VAC PUMP 8-98051-276-0 01 1 1306- ●

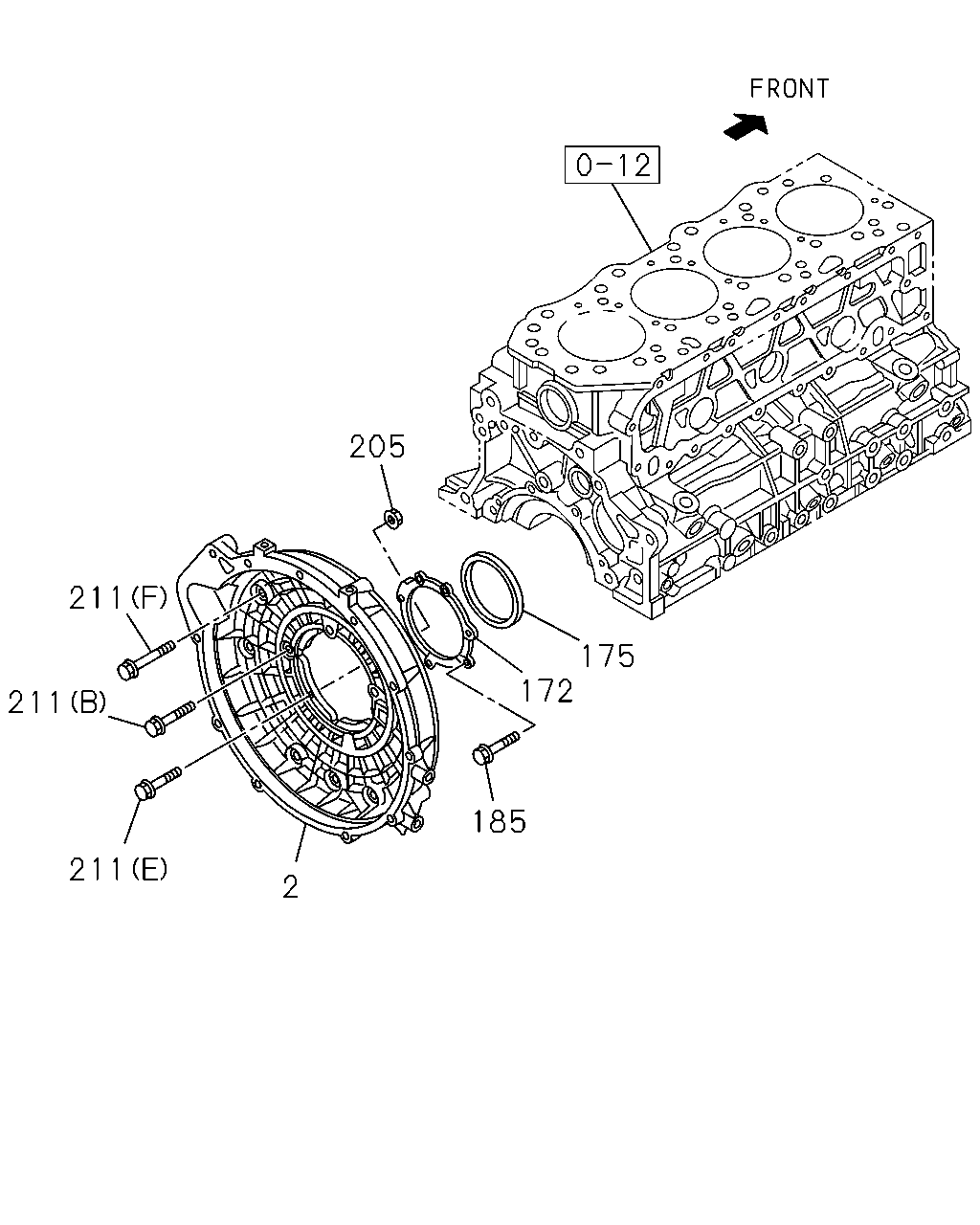

çizim 355190
185 172 175 205 211 211 211 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-97364-901-5 01 1 1306- ●
2 HOUSING; FLYWHEEL 8-97381-492-3 01 1 1306-1310 ●
2 HOUSING; FLYWHEEL 8-98252-203-0 01 1 1311- ●
172 RETAINER; CR/SHF 8-97379-826-0 01 1 1306- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1306- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1306- ●
185 BOLT; RET TO C/BL
M8X25 FLANGE SOU 		0-28650-825-0 05 1 1306- ●
205 NUT; HSG
M10 FLANGE SOU 		0-91180-210-0 01 1 1306- ●
211 BOLT; HSG
(D) M10X40 FLANGE 		0-28751-040-0 01 1 1306- ●
211 BOLT; HSG
(A) M12X30 FLANGE 		8-97135-419-0 02 1 1306- ●
211 BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1306- ●
211 BOLT; HSG
(F) M12X35 FLANGE SOU 		0-28651-235-0 06 1 1306- ●
211 BOLT; HSG
(B) M12X25 		5-09000-227-0 03 1 1306- ●
211 BOLT; HSG
(E) M10X43 		9-09606-535-0 01 1 1306- ●

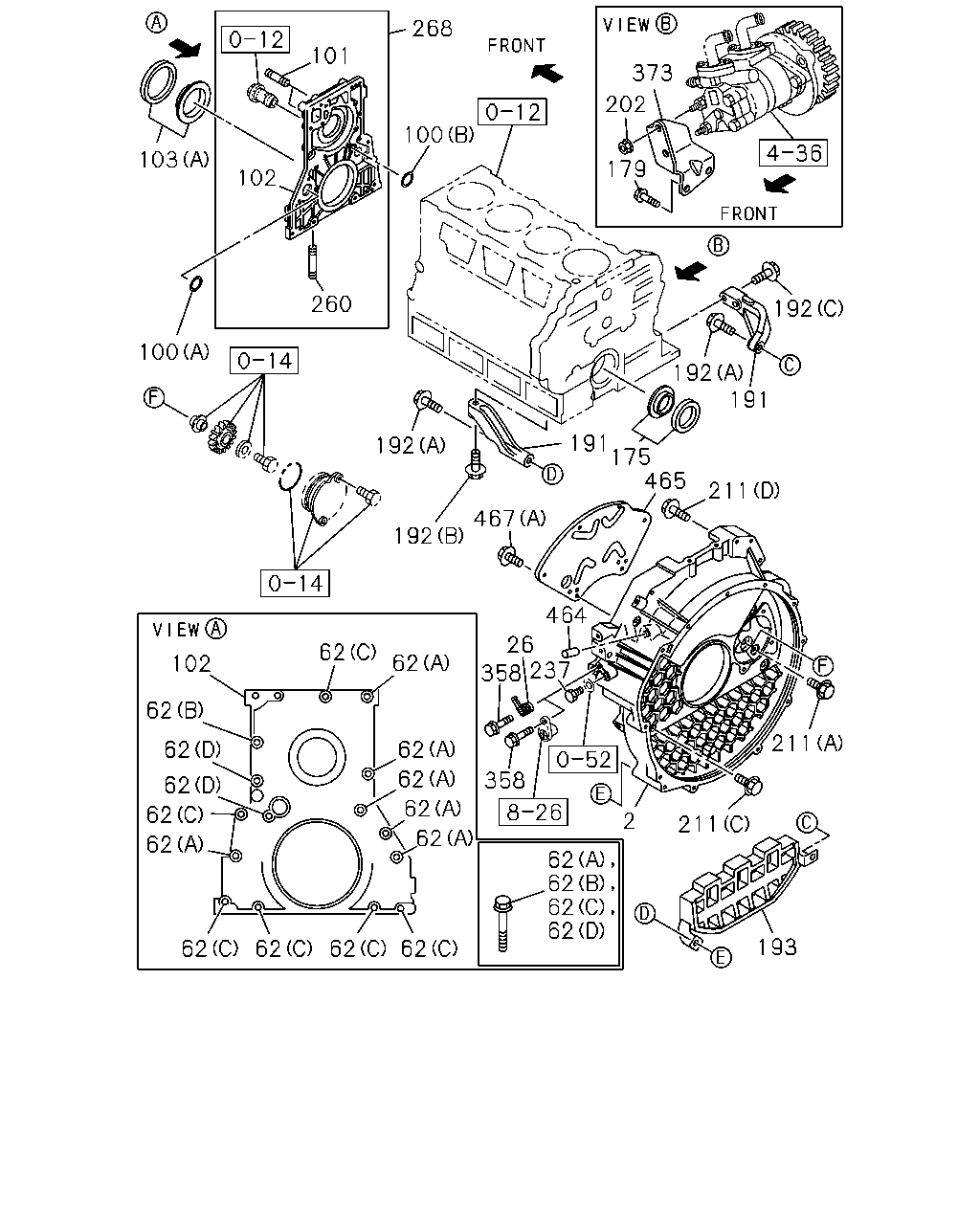

çizim 358407
102 192 192 100 103 101 102 260 100 268 373 202 179 192 192 191 211 465 175 191 467 464 26 237 358 358 2 211 211 193 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-97364-901-5 01 1 1306- ●
2 HOUSING; FLYWHEEL 8-97381-492-3 01 1 1306-1310 ●
2 HOUSING; FLYWHEEL 8-98252-203-0 01 1 1311- ●
26 ADAPTER
EURO2 SPECIFICATION(NT2) 		8-97354-819-0 01 1 1306- ●
62 BOLT; COVER
(A) M8X25 FLANGE SOU 		0-28650-825-0 06 1 1306- ●
62 BOLT; COVER
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1306- ●
62 BOLT; COVER
(C) M8X35 FLANGE SOU 		0-28650-835-0 06 1 1306- ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 1306- ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 1306- ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 1306- ●
101 STUD; WATER PUMP
ANTI EROSION SPEC<7XK> UPPER M8X18 L=30 		0-41010-818-0 01 1 1306-1501 ●
101 STUD; WATER PUMP
M8X18 L=30 		0-41010-818-0 01 1 1502- ●
101 STUD; WATER PUMP
ANTI EROSION SPEC<7XK> LOWER M8X18 L=29 		8-97028-541-0 01 1 1306-1501 ●
101 STUD; WATER PUMP
M8X18 L=29 		8-97028-541-0 01 1 1502- ●
101 STUD; WATER PUMP
EXC. ANTI EROSION SPEC<7XK> UPPER M8X18 L=30 		0-41010-818-0 02 1 1306-1501 ●
101 STUD; WATER PUMP
EXC. ANTI EROSION SPEC<7XK> LOWER M8X18 L=29 		8-97028-541-0 02 1 1306-1501 ●
102 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1306-1501 ●
102 RETAINER; FRT 8-98081-351-1 01 1 1502- ●
102 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 02 1 1306-1501 ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=109 OD=137 		8-97329-780-0 01 1 1306- ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98158-110-0 01 1 1306- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1306- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1306- ●
179 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) M10X20 FLANGE 		0-28151-020-0 02 1 1306- ●
191 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 1306- ●
191 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1306- ●
192 BOLT; STAY TO HSG
(C) M10X40 FLANGE 		0-28151-040-0 02 1 1306- ●
192 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1306- ●
192 BOLT; STAY TO HSG
(A) M12X50 FLANGE 		0-28151-250-0 02 1 1306- ●
193 SPACER; STAY TO OIL,PAN 8-97259-536-0 01 1 1306- ●
202 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
202 NUT; BRKT
M8 FLANGE SOU 		0-91180-208-0 01 1 1306- ●
211 BOLT; HSG
(D) M10X40 FLANGE 		0-28751-040-0 01 1 1306- ●
211 BOLT; HSG
(A) M12X30 FLANGE 		8-97135-419-0 02 1 1306- ●
211 BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1306- ●
211 BOLT; HSG
(F) M12X35 FLANGE SOU 		0-28651-235-0 06 1 1306- ●
211 BOLT; HSG
(B) M12X25 		5-09000-227-0 03 1 1306- ●
211 BOLT; HSG
(E) M10X43 		9-09606-535-0 01 1 1306- ●
237 PLUG; FLYWHEEL HSG
M10X12 FLANGE 		0-28051-012-0 01 1 1306- ●
260 STUD; OIL PAN
ANTI EROSION SPEC<7XK> M8X20 L=32 		0-41010-820-0 04 1 1306-1501 ●
260 STUD; OIL PAN
M8X20 L=32 		0-41010-820-0 04 1 1502- ●
268 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98096-851-1 01 1 1306-1501 ●
268 COVER; FRT 8-98096-851-1 01 1 1502- ●
268 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-97148-937-3 02 1 1306-1501 ●
358 BOLT; ADAPTER
M6X16 FLANGE SOU 		0-28050-616-0 01 1 1306- ●
373 BRACKET; PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97149-333-0 01 1 1306- ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 1306- ●
465 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 1306- ●
467 BOLT; PLATE
(A) M6X10 		8-98030-649-0 06 1 1306- ●
467 BOLT; PLATE
(B) 		8-98049-523-0 02 1 1306- ●

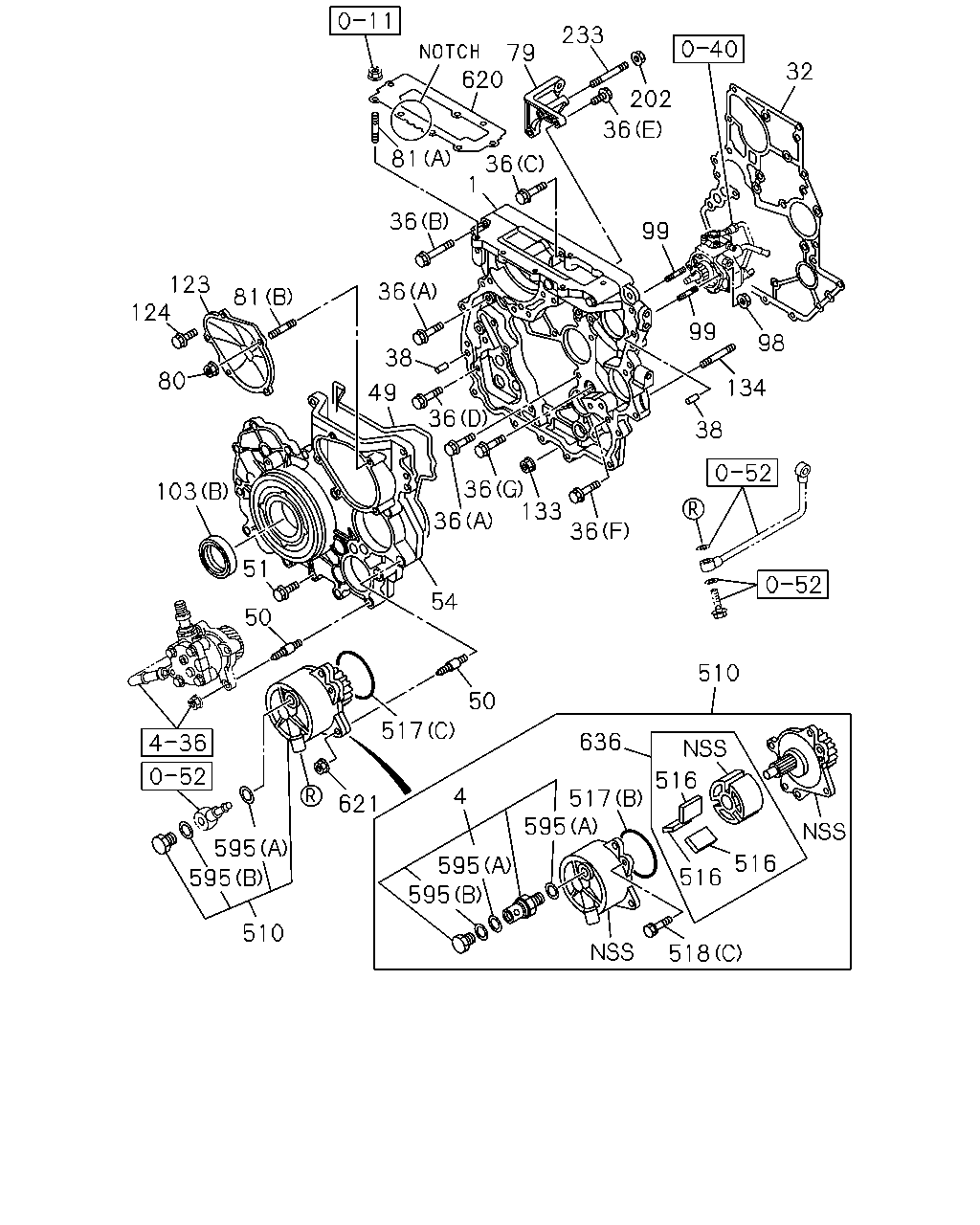

çizim 358535
620 79 233 202 36 32 36 1 81 36 36 99 99 134 98 38 133 36 36 36 36 49 38 80 81 124 123 103 51 50 54 50 517 621 595 595 510 4 510 636 517 595 595 595 516 516 518 516
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TIMING GEAR 8-98074-747-1 01 1 1306- ●
4 VALVE ASM; CHECK 8-98049-521-0 01 1 1306- ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-221-2 01 1 1306- ●
36 BOLT; GEAR CASE
EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X20 FLANGE 		0-28050-820-0 13 1 1306-1509 ●
36 BOLT; GEAR CASE
(A) M8X20 FLANGE 		0-28050-820-0 13 1 1510- ●
36 BOLT; GEAR CASE
(G) M8X16 FLANGE SOU 		0-28050-816-0 01 1 1306- ●
36 BOLT; GEAR CASE
(C) M8X35 FLANGE 		0-28050-835-0 01 1 1306- ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE SOU 		0-28050-845-0 02 1 1306- ●
36 BOLT; GEAR CASE
(B) M8X60 FLANGE SOU 		0-28050-860-0 01 1 1306- ●
36 BOLT; GEAR CASE
(D) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
36 BOLT; GEAR CASE
(E) M8X30 FLANGE 		0-28650-830-0 03 1 1306- ●
36 BOLT; GEAR CASE
EURO3 SPECIFICATION(NT3) (A) M8X20 FLANGE 		0-28050-820-0 12 1 1306- ●
38 PIN; GEAR CASE COVER
OD=10 L=20 		8-97135-423-0 02 1 1306- ●
49 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97945-298-0 01 1 1306- ●
50 STUD
M8X27,M8X14 L=64.5 		8-97354-808-2 06 1 1306- ●
51 BOLT; GEAR CASE COVER 8-97354-697-1 14 1 1306- ●
54 COVER; GEAR CASE 8-98165-119-1 01 1 1306-1405 ●
54 COVER; GEAR CASE 8-98253-700-1 01 1 1406- ●
79 BRACKET; GEAR CASE COVER 8-98107-106-0 01 1 1306- ●
80 NUT; COVER
M6 FLANGE 		0-91180-206-0 02 1 1306- ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 		0-41010-616-0 02 1 1306- ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 		0-49140-830-0 02 1 1306- ●
98 NUT; STUD,INJ PUMP
M8 FLANGE SOU 		0-91180-208-0 02 1 1306- ●
99 STUD; INJ PUMP
M8X30 L=41 		8-97369-449-0 02 1 1306-1510 ●
99 STUD; INJ PUMP
M8X30 L=41 		8-98336-983-0 02 1 1511- ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=109 OD=137 		8-97329-780-0 01 1 1306- ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98158-110-0 01 1 1306- ●
123 COVER; TIMING,LWR 8-98158-145-0 01 1 1306- ●
124 BOLT; TIMING COVER
M6X16 FLANGE SOU 		0-28050-616-0 03 1 1306- ●
133 NUT; TIMING GEAR CASE
M8 FLANGE SOU 		0-91180-208-0 02 1 1306- ●
134 STUD; TIMING GEAR CASE
M8X20 L=32 		0-41010-820-0 02 1 1306- ●
202 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
202 NUT; BRKT
M8 FLANGE SOU 		0-91180-208-0 01 1 1306- ●
233 STUD; BRKT
M8X71 L=83 		8-98017-063-0 01 1 1306- ●
510 PUMP ASM; VACUUM 8-97388-589-6 01 1 1306- ●
510 PUMP ASM; VACUUM 8-98162-748-0 01 1 1306-1311 ●
510 PUMP ASM; VACUUM 8-98251-764-0 01 1 1312- ●
516 VANE; VAC PUMP 8-98051-279-0 03 1 1306- ●
516 VANE; VAC PUMP 8-98051-275-0 03 1 1306- ●
517 GASKET; VAC PUMP
(A) 		8-98051-280-0 01 1 1306- ●
517 GASKET; VAC PUMP
(B) 		8-98049-522-0 01 1 1306-1311 ●
517 GASKET; VAC PUMP
(B) 		8-98251-769-0 01 1 1312- ●
517 GASKET; VAC PUMP
(C) ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09566-271-0 01 1 1306- ●
518 BOLT; VAC PUMP
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 1306- ●
518 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 1306- ●
518 BOLT; VAC PUMP
(C) 		8-98049-523-0 03 1 1306- ●
595 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1306- ● ●
595 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1306- ● ●
620 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH 		8-97328-828-2 01 1 1306- ●
620 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH 		8-97331-631-2 01 1 1306- ●
620 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH 		8-97331-632-2 01 1 1306- ●
621 NUT; VAC PUMP
M8 FLANGE SOU 		0-91180-208-0 03 1 1306- ●
636 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 1306- ●
636 ROTOR & VANE ASM; VAC PUMP 8-98049-520-0 01 1 1306- ●
