0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#122614) — 117 parça

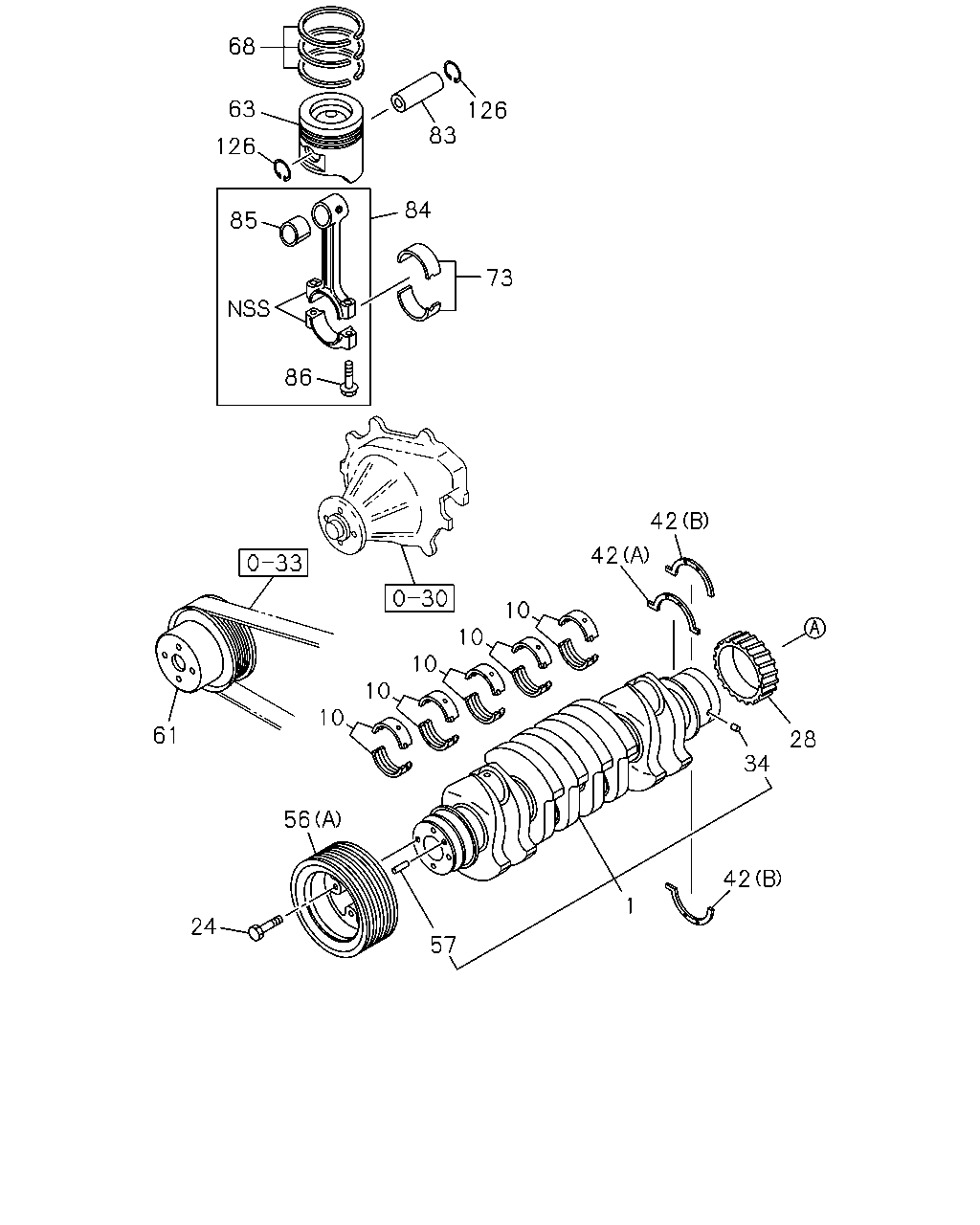

126 83 68 63 126 85 84 86 73 42 42 10 10 10 10 10 61 56 24 57 1 42 34 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-98029-270-0	01	1	1306-	●
1	CRANKSHAFT	8-98154-950-2	01	1	1306-1409		●
1	CRANKSHAFT	8-98273-590-0	01	1	1410-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1306-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1306-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1306-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1306-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1306-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1306-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1306-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1306-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1306-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1306-		●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	1306-	●
28	GEAR; CR/SHF Z=42	8-94394-342-4	01	1	1306-	●
28	GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1306-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1306-	●
34	PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1306-		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1306-	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1306-	●
42	WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1306-		●
56	PULLEY; CR/SHF DAMPER (A) 3-GROOVE	8-98004-024-3	01	1	1306-	●
56	PULLEY; CR/SHF DAMPER (B) 2-GROOVE	8-98154-943-1	01	1	1306-		●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	1306-	●
61	PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1306-	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1306-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1306-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-98043-703-0	04	1	1306-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-98043-704-0	04	1	1306-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-98043-705-0	04	1	1306-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1306-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1306-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1306-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1306-	●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1306-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1306-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1306-		●
84	ROD ASM; CONN	8-98018-425-3	04	1	1306-	●
84	ROD ASM; CONN	8-97388-921-2	04	1	1306-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1306-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1306-		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1306-	●
86	BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1306-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1306-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1306-		●

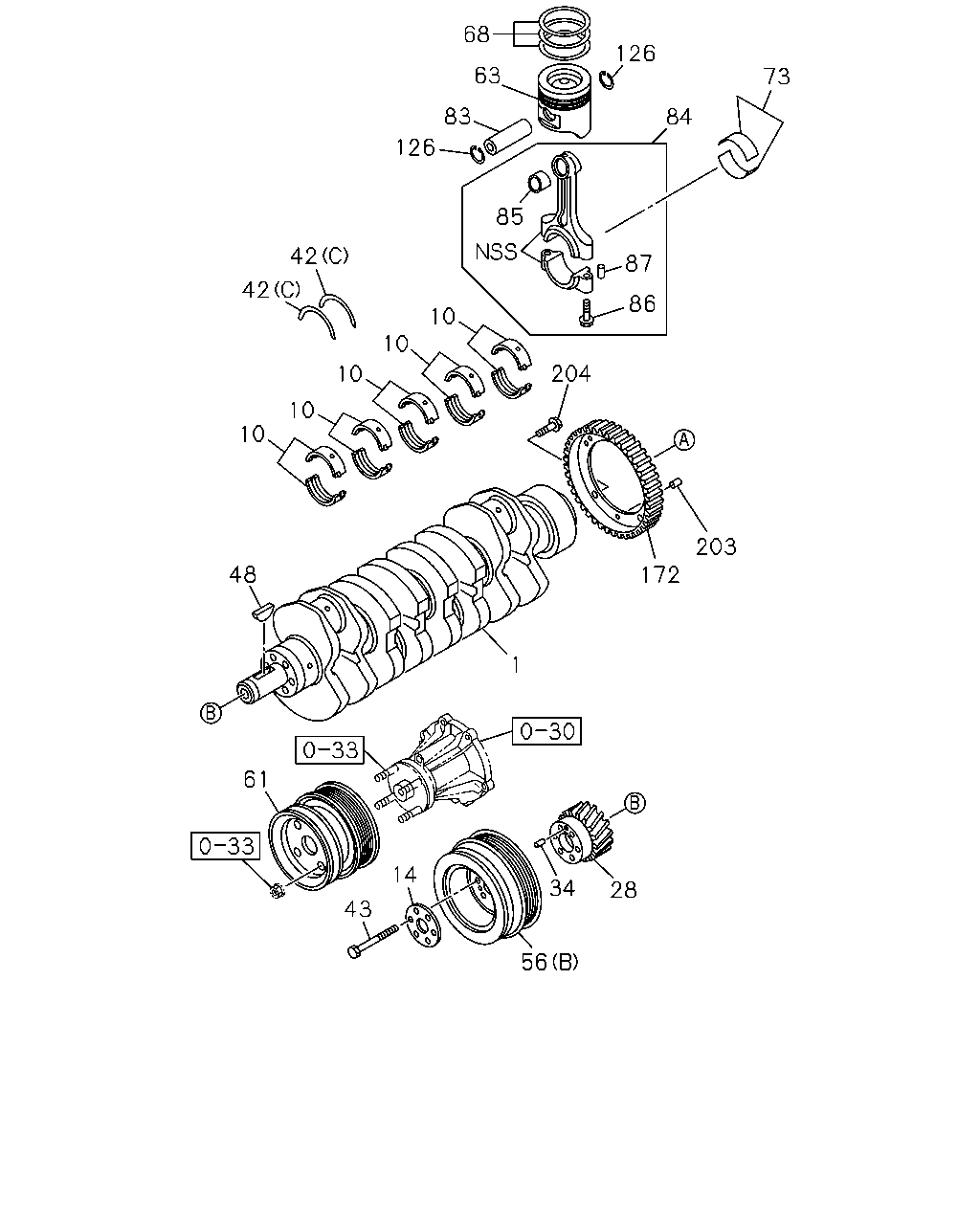

28 34 56 14 43 61 1 172 203 204 10 10 10 10 10 48 42 42 126 83 63 68 126 84 73 85 87 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-98029-270-0	01	1	1306-	●
1	CRANKSHAFT	8-98154-950-2	01	1	1306-1409		●
1	CRANKSHAFT	8-98273-590-0	01	1	1410-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1306-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1306-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1306-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1306-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1306-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1306-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1306-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1306-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1306-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1306-		●
14	WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1306-		●
28	GEAR; CR/SHF Z=42	8-94394-342-4	01	1	1306-	●
28	GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1306-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1306-	●
34	PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1306-		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1306-	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1306-	●
42	WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1306-		●
43	BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1306-		●
48	KEY; WOODRUFF,CR/SHF	8-94201-641-0	01	1	1306-		●
56	PULLEY; CR/SHF DAMPER (A) 3-GROOVE	8-98004-024-3	01	1	1306-	●
56	PULLEY; CR/SHF DAMPER (B) 2-GROOVE	8-98154-943-1	01	1	1306-		●
61	PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1306-	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1306-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1306-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-98043-703-0	04	1	1306-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-98043-704-0	04	1	1306-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-98043-705-0	04	1	1306-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1306-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1306-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1306-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1306-	●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1306-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1306-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1306-		●
84	ROD ASM; CONN	8-98018-425-3	04	1	1306-	●
84	ROD ASM; CONN	8-97388-921-2	04	1	1306-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1306-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1306-		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1306-	●
86	BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1306-		●
87	PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1306-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1306-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1306-		●
172	ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1306-		●
203	PIN; ROTOR OD=5 L=8	9-08160-508-0	01	1	1306-		●
204	BOLT; ROTOR M6X10	8-98038-343-0	03	1	1306-		●

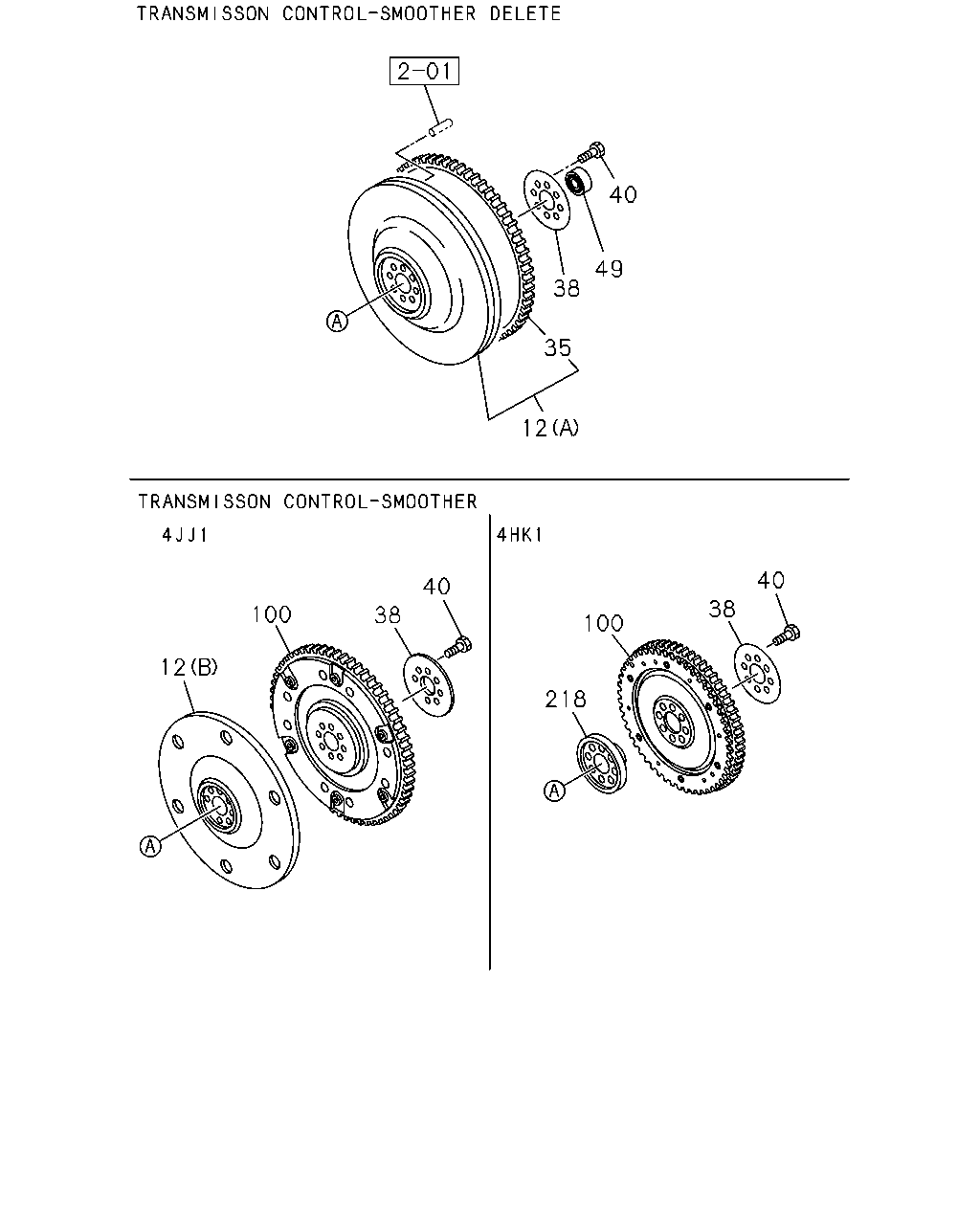

40 49 38 35 12 12 100 38 40 100 218 38 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97326-227-2	01	1	1306-	●
12	FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98148-063-1	01	1	1306-1509		●
12	FLYWHEEL (A)	8-98148-063-1	01	1	1510-		●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98029-611-0	01	1	1306-		●
35	GEAR; RING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=138	8-97046-366-1	01	1	1306-	●
35	GEAR; RING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=138	8-97046-366-1	01	1	1306-		●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=55 OD=110	8-94397-496-1	01	1	1306-	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=140	8-98176-366-0	01	1	1306-	●
38	WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50.5 OD=97	8-98171-700-0	01	1	1306-1509		●
38	WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1510-		●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-162-2	01	1	1306-		●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	1306-	●
40	BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1306-		●
49	BEARING; PILOT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97258-239-0	01	1	1306-	●
49	BEARING; PILOT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97325-153-0	01	1	1306-1509		●
49	BEARING; PILOT	8-97325-153-0	01	1	1510-		●
49	BEARING; PILOT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS	5-87610-166-0	01	1	1306-1509		●
49	BEARING; PILOT BEST VALUE PARTS	5-87610-166-0	01	1	1510-		●
49	BEARING; PILOT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-164-0	01	1	1306-	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-336-3	01	1	1306-	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-612-1	01	1	1306-		●
218	SPACER; CRANK END TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97332-858-1	01	1	1306-	●
