◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#122613) — 152 parça

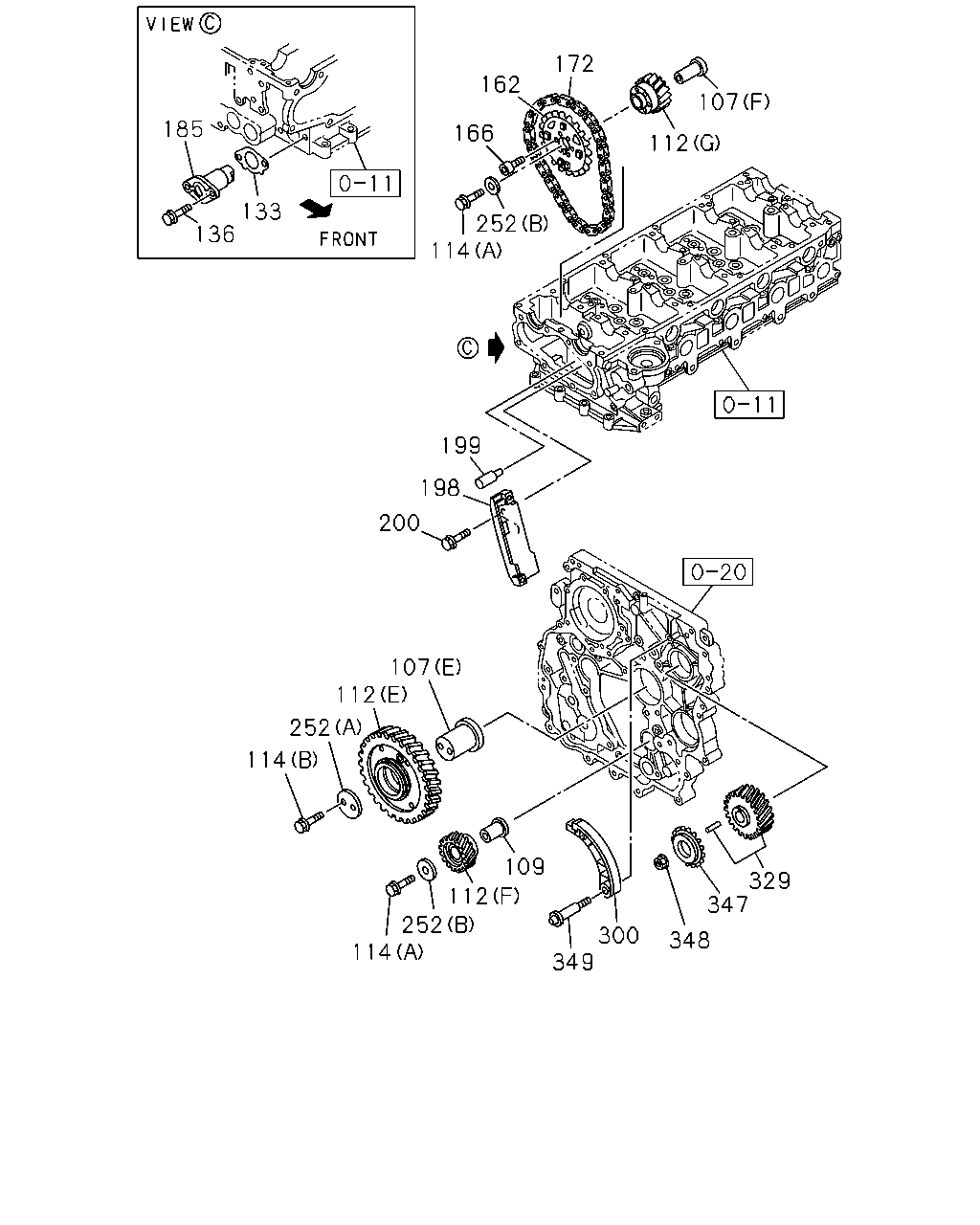

çizim 355151
329 347 348 300 349 109 112 252 114 114 112 252 107 200 198 199 114 252 166 162 172 112 107 133 136 185
BalonParca AdiParca NoAdetTipApplied Date A B
107 SHAFT; IDLE GEAR
(A) 		8-94334-682-1 01 1 1306- ●
107 SHAFT; IDLE GEAR
(B) 		8-97186-398-1 01 1 1306- ●
107 SHAFT; IDLE GEAR
(C) 		8-97350-021-0 01 1 1306- ●
107 SHAFT; IDLE GEAR
(D) 		8-98060-780-0 01 1 1306- ●
107 SHAFT; IDLE GEAR
(E) 		8-97312-315-2 01 1 1306- ●
107 SHAFT; IDLE GEAR
(F) 		8-97312-322-1 01 1 1306- ●
109 SHAFT; IDLE GEAR 8-97312-319-1 01 1 1306- ●
112 GEAR; IDLE
(B) Z=34 		8-97120-005-1 01 1 1306- ●
112 GEAR; IDLE
(A) Z=72-60-30 		8-97600-586-1 01 1 1306-1402 ●
112 GEAR; IDLE
(A) Z=72-60-30 		8-98254-970-0 01 1 1403- ●
112 GEAR; IDLE
(C) Z=61 		8-97606-767-0 01 1 1306- ●
112 GEAR; IDLE
(D) Z=41 		8-97606-929-0 01 1 1306- ●
112 GEAR; IDLE
(E) Z=80 		8-97381-516-1 01 1 1306-1311 ●
112 GEAR; IDLE
(E) Z=80 		8-98232-105-1 01 1 1312- ●
112 GEAR; IDLE
(F) Z=34 		8-97381-518-0 01 1 1306- ●
112 GEAR; IDLE
(G) Z=35 		8-97381-520-3 01 1 1306- ●
114 BOLT; IDLE GEAR
(B) M10X60 FLANGE 		0-28061-060-0 02 1 1306- ●
114 BOLT; IDLE GEAR
(A) M12X60 FLANGE 		0-28161-260-0 02 1 1306- ●
133 GASKET; CHAIN TENSIONER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97312-336-0 01 1 1306- ●
136 BOLT; TENSIONER
M6X16 FLANGE SOU 		0-28050-616-0 02 1 1306- ●
162 SPROCKET; IDLE 8-98193-179-0 01 1 1306- ●
166 BOLT; SPROCKET TO LAYSHAFT
M6X16 HEX SOCKET 		0-58330-616-0 06 1 1306- ●
172 CHAIN; TIMING,CM/SHF 8-97945-067-0 01 1 1306- ●
185 TENSIONER; CHAIN 8-98039-754-1 01 1 1306- ●
198 GUIDE; TIMING CHAIN 8-97945-069-0 01 1 1306- ●
199 JET; OIL,TIMING CHAIN 8-97356-061-1 01 1 1306- ●
200 BOLT; CHAIN GUIDE,LWR
M8X20 		1-09070-120-1 02 1 1306- ●
252 FLANGE; IDLE SHAFT
(A) 		8-98016-892-0 01 1 1306- ●
252 FLANGE; IDLE SHAFT
(B) 		8-98016-893-0 02 1 1306- ●
300 LEVER; TENSION,TIMING CHAIN 8-97945-070-0 01 1 1306- ●
329 GEAR; INJ PUMP
Z=44 		8-98017-539-1 01 1 1306- ●
347 SPROCKET; I/PUMP 8-98210-266-0 01 1 1306- ●
348 NUT; SPROCKET
M14 FLANGE 		8-97312-423-2 01 1 1306- ●
349 PIVOT; CHAIN LEVER 8-97312-328-0 01 1 1306- ●

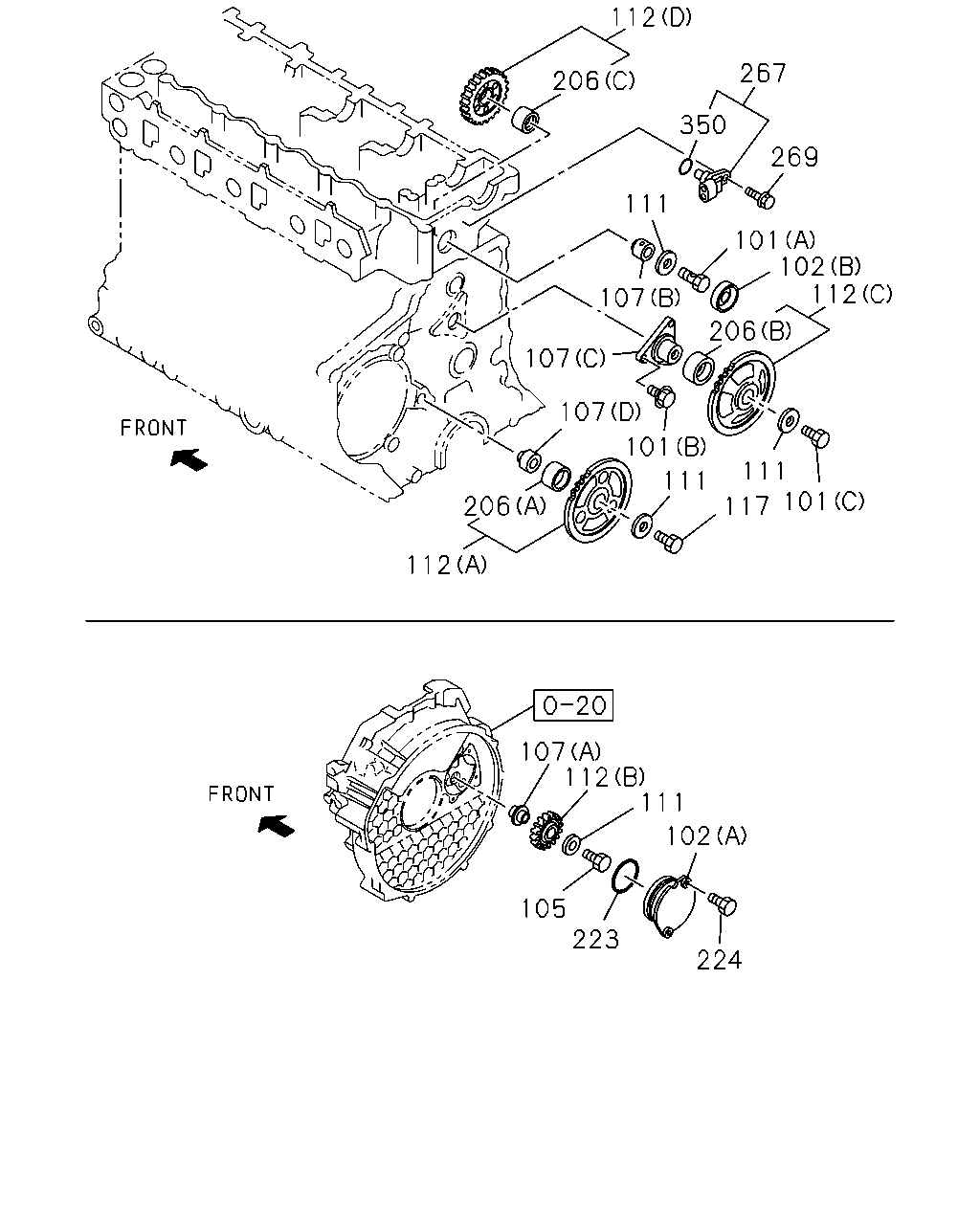

çizim 355153
112 206 267 350 111 269 101 107 107 102 206 112 107 111 111 117 101 101 206 112 107 112 111 102 105 223 224
BalonParca AdiParca NoAdetTipApplied Date A B
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 1306- ●
101 BOLT; THRUST COLLAR
(A) M14X36.5 		8-94372-221-1 01 1 1306- ●
101 BOLT; THRUST COLLAR
(C) M14X25 		9-92361-425-0 01 1 1306-1310 ●
101 BOLT; THRUST COLLAR
(C) M14X25 		0-23951-425-0 01 1 1311- ●
102 COVER; IDLE GEAR
(A) 		8-94334-681-1 01 1 1306- ●
102 COVER; IDLE GEAR
(B) OD=51 		8-97096-826-0 01 1 1306- ●
105 BOLT; IDLE GEAR SHAFT
M14X60 		0-16956-460-0 01 1 1306- ●
107 SHAFT; IDLE GEAR
(A) 		8-94334-682-1 01 1 1306- ●
107 SHAFT; IDLE GEAR
(B) 		8-97186-398-1 01 1 1306- ●
107 SHAFT; IDLE GEAR
(C) 		8-97350-021-0 01 1 1306- ●
107 SHAFT; IDLE GEAR
(D) 		8-98060-780-0 01 1 1306- ●
107 SHAFT; IDLE GEAR
(E) 		8-97312-315-2 01 1 1306- ●
107 SHAFT; IDLE GEAR
(F) 		8-97312-322-1 01 1 1306- ●
111 COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 04 1 1306- ●
112 GEAR; IDLE
(B) Z=34 		8-97120-005-1 01 1 1306- ●
112 GEAR; IDLE
(A) Z=72-60-30 		8-97600-586-1 01 1 1306-1402 ●
112 GEAR; IDLE
(A) Z=72-60-30 		8-98254-970-0 01 1 1403- ●
112 GEAR; IDLE
(C) Z=61 		8-97606-767-0 01 1 1306- ●
112 GEAR; IDLE
(D) Z=41 		8-97606-929-0 01 1 1306- ●
112 GEAR; IDLE
(E) Z=80 		8-97381-516-1 01 1 1306-1311 ●
112 GEAR; IDLE
(E) Z=80 		8-98232-105-1 01 1 1312- ●
112 GEAR; IDLE
(F) Z=34 		8-97381-518-0 01 1 1306- ●
112 GEAR; IDLE
(G) Z=35 		8-97381-520-3 01 1 1306- ●
117 BOLT; FLANGE
M14X65 FLANGE 		8-97113-167-0 01 1 1306- ●
206 BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT. 		1-12528-028-0 01 1 1306-1402 ●
206 BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT. 		8-98255-899-0 01 1 1403- ●
206 BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT. 		8-97606-768-0 01 1 1306- ●
206 BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT. 		8-97606-770-0 01 1 1306- ●
223 GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		1-09623-423-0 01 1 1306- ●
224 BOLT; COVER
M8X16 FLANGE SOU 		0-28050-816-0 02 1 1306- ●
267 SENSOR; CAM ANGLE 8-98019-024-0 01 1 1306- ●
269 BOLT; SENSOR
M6X12 FLANGE SOU 		0-28050-612-0 01 1 1306- ●
350 GASKET; SENSOR,CAM ANGLE
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1306- ●

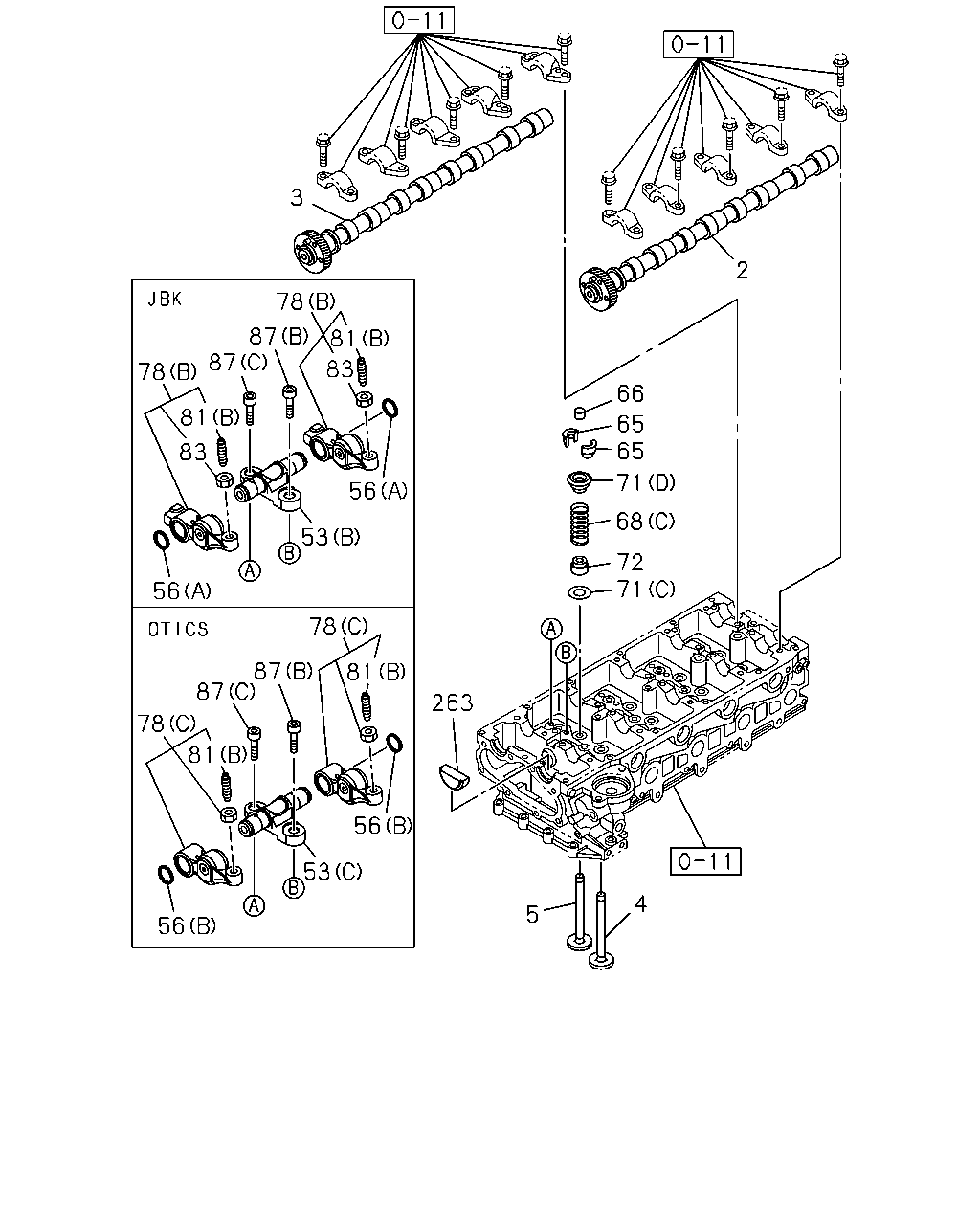

çizim 355154
3 2 66 65 65 71 68 72 71 4 5 263 78 87 81 83 56 53 87 78 81 83 56 78 81 87 87 78 56 53 81 56
BalonParca AdiParca NoAdetTipApplied Date A B
2 CAMSHAFT; INL 8-98003-129-4 01 1 1306- ●
3 CAMSHAFT; EXH 8-98003-130-4 01 1 1306- ●
4 VALVE; INL 8-94395-882-2 08 1 1306- ●
4 VALVE; INL 8-98016-973-0 08 1 1306- ●
5 VALVE; EXH 8-97209-876-4 08 1 1306- ●
5 VALVE; EXH 8-98016-974-1 08 1 1306- ●
53 SHAFT; ROCKER ARM
(A) 		8-97389-921-0 01 1 1306- ●
53 SHAFT; ROCKER ARM
(C) INLET OTICS SOU 		8-97364-809-2 04 1 1306- ●
53 SHAFT; ROCKER ARM
(C) EXHAUST OTICS SOU 		8-97364-811-2 04 1 1306- ●
53 SHAFT; ROCKER ARM
(B) INLET JBK 		8-98025-071-1 04 1 1306- ●
53 SHAFT; ROCKER ARM
(B) EXHAUST JBK 		8-98025-074-1 04 1 1306- ●
56 RING; SNAP,ROCKER ARM
(A) 		8-98025-496-0 16 1 1306- ●
56 RING; SNAP,ROCKER ARM
(B) SOU 		8-98109-470-0 16 1 1306- ●
65 COLLAR; SPLIT 5-12565-004-0 32 1 1306- ●
65 COLLAR; SPLIT 8-94239-501-0 32 1 1306- ●
66 CAP; VLV STEM END
SOU 		8-98147-945-0 16 1 1306- ●
68 SPRING; VLV
(A) MARK RED 		8-97210-682-0 08 1 1306- ●
68 SPRING; VLV
(B) MARK BLUE 		8-97352-888-0 08 1 1306- ●
68 SPRING; VLV
(C) INLET H=49 NATURAL 		8-97311-669-0 08 1 1306- ●
68 SPRING; VLV
(C) EXHAUST H=57.5 MARK YELLOW 		8-97311-675-1 08 1 1306- ●
71 SEAT; SPR
(A) OD=32.8 T=12.75 		8-94390-783-2 16 1 1306- ●
71 SEAT; SPR
(B) ID=14.3 T=1.0 		8-94391-468-0 16 1 1306- ●
71 SEAT; SPR
(C) OD=31 		8-97144-584-0 16 1 1306- ●
71 SEAT; SPR
(D) 		8-98017-067-0 16 1 1306- ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97376-720-0 16 1 1306- ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97328-647-0 16 1 1306- ●
78 ARM; ROCKER
(A) INLET 		8-97306-421-3 04 1 1306- ●
78 ARM; ROCKER
(A) EXHAUST 		8-97306-424-3 04 1 1306- ●
78 ARM; ROCKER
(B) JBK 		8-98025-059-4 16 1 1306- ●
78 ARM; ROCKER
(C) OTICS 		8-98029-537-6 16 1 1306- ●
81 SCREW; ADJ,ROCKER ARM
(A) M10 L=32 		8-94395-024-0 08 1 1306- ●
81 SCREW; ADJ,ROCKER ARM
(B) JBK M8 L=22 SOU 		8-98025-497-0 16 1 1306- ●
81 SCREW; ADJ,ROCKER ARM
(B) OTICS M8 L=22 		8-98029-893-0 16 1 1306- ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 08 1 1306- ●
83 NUT; ADJ SCREW,LK
M8 FLANGE SOU 		9-09844-574-0 16 1 1306- ●
87 BOLT; ROCKER SHAFT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 1306- ●
87 BOLT; ROCKER SHAFT
(B) M8X25 HEX SOCKET 		0-58330-825-0 08 1 1306- ●
87 BOLT; ROCKER SHAFT
(C) M8X40 HEX SOCKET 		0-58330-840-0 08 1 1306- ●
263 GASKET; CAM END
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98216-269-0 04 1 1306- ●

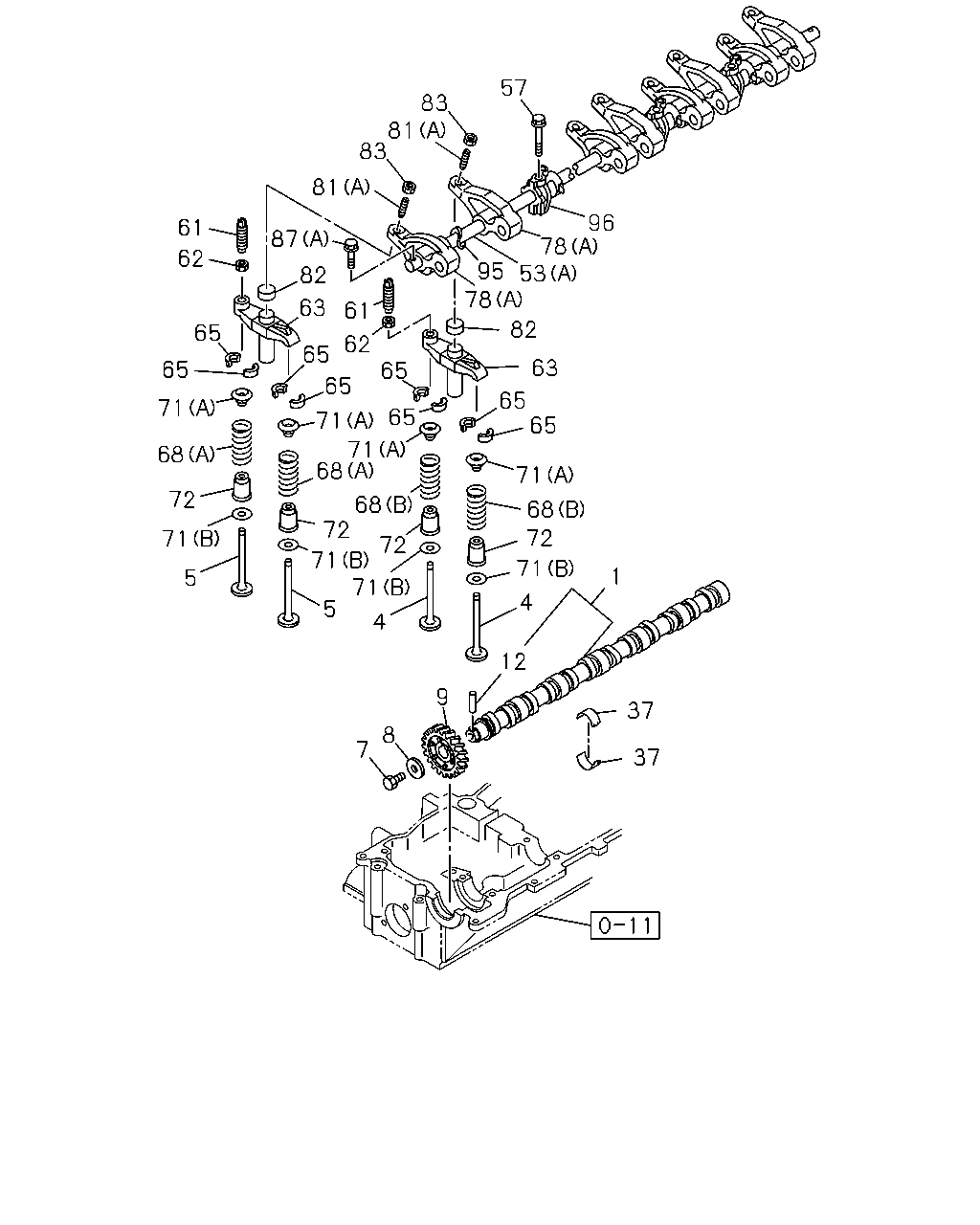

çizim 357824
57 83 81 83 81 87 82 63 61 62 65 65 71 71 68 68 72 72 71 5 71 4 5 71 72 68 71 65 65 62 61 65 65 78 95 53 78 96 82 63 65 65 71 68 72 71 1 4 12 37 37 9 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAMSHAFT 8-97262-166-0 01 1 1306- ●
4 VALVE; INL 8-94395-882-2 08 1 1306- ●
4 VALVE; INL 8-98016-973-0 08 1 1306- ●
5 VALVE; EXH 8-97209-876-4 08 1 1306- ●
5 VALVE; EXH 8-98016-974-1 08 1 1306- ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 1306- ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 1306- ●
9 GEAR; CM/SHF
Z=35 		8-98018-935-3 01 1 1306- ●
12 KEY; CAM GEAR SET
OD=7 L=7.5 		8-94399-487-0 02 1 1306- ●
37 METAL; CM/SHF
B=16 		8-97386-189-0 10 1 1306- ●
53 SHAFT; ROCKER ARM
(A) 		8-97389-921-0 01 1 1306- ●
53 SHAFT; ROCKER ARM
(C) INLET OTICS SOU 		8-97364-809-2 04 1 1306- ●
53 SHAFT; ROCKER ARM
(C) EXHAUST OTICS SOU 		8-97364-811-2 04 1 1306- ●
53 SHAFT; ROCKER ARM
(B) INLET JBK 		8-98025-071-1 04 1 1306- ●
53 SHAFT; ROCKER ARM
(B) EXHAUST JBK 		8-98025-074-1 04 1 1306- ●
57 BOLT; ROCKER ARM BRKT
M10X62 FLANGE 		8-94393-131-0 03 1 1306- ●
61 SCREW; ADJ,BRIDGE
M8X21 		8-94394-803-0 08 1 1306- ●
62 NUT; ADJ SCREW LK BRIDGE
M8 FLANGE SOU 		9-09844-574-0 08 1 1306- ●
63 BRIDGE 8-94392-002-3 08 1 1306- ●
65 COLLAR; SPLIT 5-12565-004-0 32 1 1306- ●
65 COLLAR; SPLIT 8-94239-501-0 32 1 1306- ●
68 SPRING; VLV
(A) MARK RED 		8-97210-682-0 08 1 1306- ●
68 SPRING; VLV
(B) MARK BLUE 		8-97352-888-0 08 1 1306- ●
68 SPRING; VLV
(C) INLET H=49 NATURAL 		8-97311-669-0 08 1 1306- ●
68 SPRING; VLV
(C) EXHAUST H=57.5 MARK YELLOW 		8-97311-675-1 08 1 1306- ●
71 SEAT; SPR
(A) OD=32.8 T=12.75 		8-94390-783-2 16 1 1306- ●
71 SEAT; SPR
(B) ID=14.3 T=1.0 		8-94391-468-0 16 1 1306- ●
71 SEAT; SPR
(C) OD=31 		8-97144-584-0 16 1 1306- ●
71 SEAT; SPR
(D) 		8-98017-067-0 16 1 1306- ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97376-720-0 16 1 1306- ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97328-647-0 16 1 1306- ●
78 ARM; ROCKER
(A) INLET 		8-97306-421-3 04 1 1306- ●
78 ARM; ROCKER
(A) EXHAUST 		8-97306-424-3 04 1 1306- ●
78 ARM; ROCKER
(B) JBK 		8-98025-059-4 16 1 1306- ●
78 ARM; ROCKER
(C) OTICS 		8-98029-537-6 16 1 1306- ●
81 SCREW; ADJ,ROCKER ARM
(A) M10 L=32 		8-94395-024-0 08 1 1306- ●
81 SCREW; ADJ,ROCKER ARM
(B) JBK M8 L=22 SOU 		8-98025-497-0 16 1 1306- ●
81 SCREW; ADJ,ROCKER ARM
(B) OTICS M8 L=22 		8-98029-893-0 16 1 1306- ●
82 CAP; ROCKER SHAFT 8-94396-015-2 08 1 1306- ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 08 1 1306- ●
83 NUT; ADJ SCREW,LK
M8 FLANGE SOU 		9-09844-574-0 16 1 1306- ●
87 BOLT; ROCKER SHAFT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 1306- ●
87 BOLT; ROCKER SHAFT
(B) M8X25 HEX SOCKET 		0-58330-825-0 08 1 1306- ●
87 BOLT; ROCKER SHAFT
(C) M8X40 HEX SOCKET 		0-58330-840-0 08 1 1306- ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 04 1 1306- ●
96 BRACKET; ROCKER ARM SHAFT 8-97334-414-0 03 1 1306- ●
