0-12 — CYLINDER BLOCK (#122611) — 118 parça

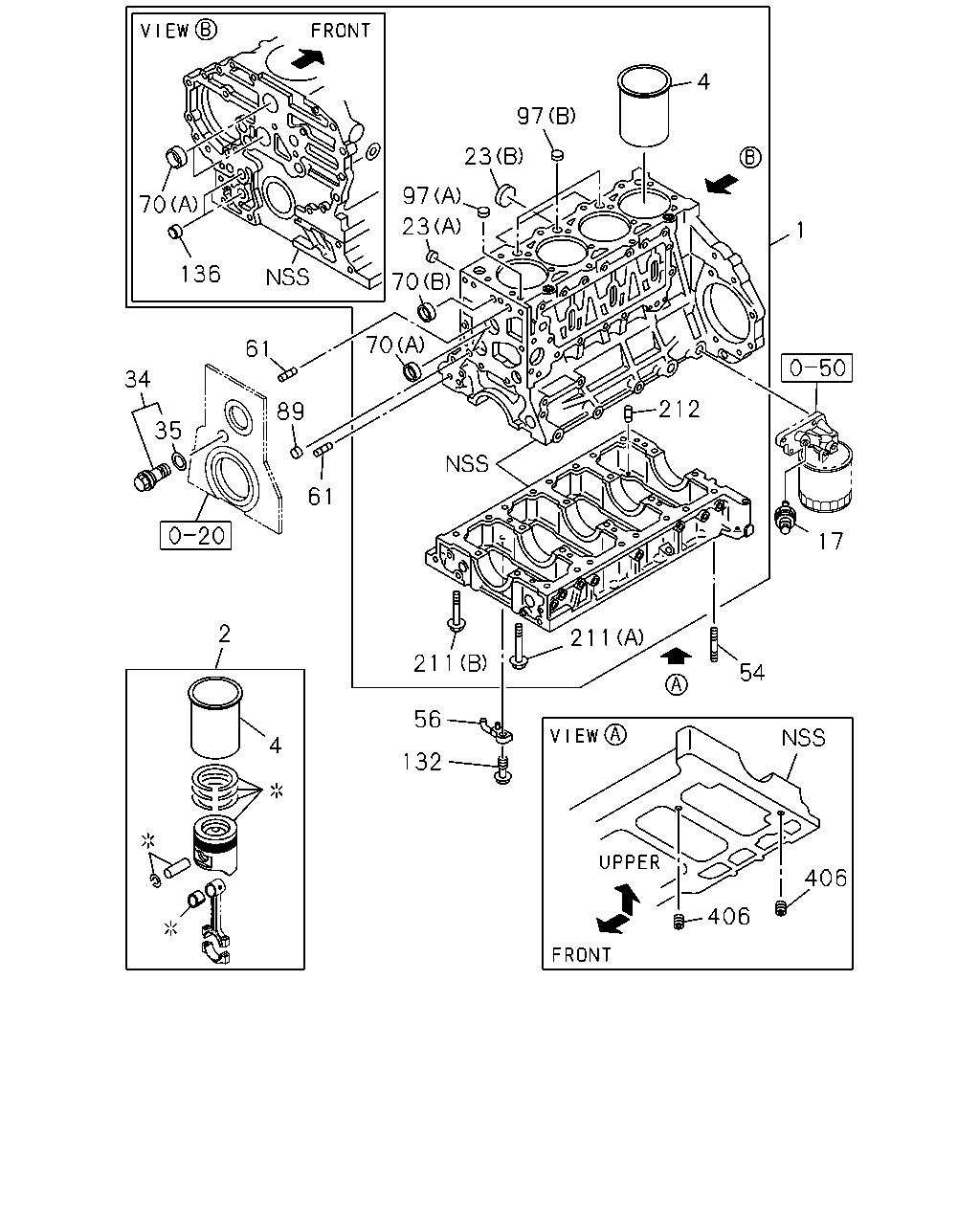

406 406 54 17 211 211 56 132 212 1 4 97 23 97 70 70 23 61 89 61 35 34 4 2 136 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98240-635-1	01	1	1409-	●
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1306-1405		●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-		●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	04	1	1306-1405		●
2	LINER SET; ENG CYL GRADE=1X	1-87814-726-0	04	1	1406-		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	04	1	1306-1405		●
2	LINER SET; ENG CYL GRADE=3X	1-87814-727-0	04	1	1406-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1306-1405		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1306-1405		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-		●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1306-		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1511-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1306-1510	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1511-		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	1306-		●
23	CUP; SEALING,C/BL FRT & RR (C) OD=18	5-11219-008-0	02	1	1306-	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	1306-	●
23	CUP; SEALING,C/BL FRT & RR (E) OD=36	5-11219-018-0	02	1	1306-	●
34	VALVE; OIL RELIEF ANTI EROSION SPEC<7XK>	8-97328-859-0	01	1	1306-1501		●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	1502-		●
34	VALVE; OIL RELIEF EXC. ANTI EROSION SPEC<7XK>	8-97328-859-0	01	1	1306-1501		●
35	GASKET; RELIEF VLV ANTI EROSION SPEC<7XK> ID=23.3	8-94173-412-0	01	1	1306-1501		●
35	GASKET; RELIEF VLV ID=23.3	8-94173-412-0	01	1	1502-		●
35	GASKET; RELIEF VLV EXC. ANTI EROSION SPEC<7XK> ID=23.3	8-94173-412-0	02	1	1306-1501		●
54	STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	1306-		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1306-		●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	1306-		●
61	PIN; STRAIGHT L=31	9-09878-597-0	02	1	1306-	●
70	CUP; SEALING,FRT & RR (B) OD=25	1-09600-016-0	01	1	1306-		●
70	CUP; SEALING,FRT & RR (A) OD=40	8-97096-824-0	04	1	1306-		●
70	CUP; SEALING,FRT & RR (C) OD=16	5-11129-006-0	06	1	1306-	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1306-		●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	1306-		●
97	CUP; SEALING (C) OD=12	8-97036-335-1	01	1	1306-		●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	1306-		●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1306-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1306-		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	1306-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	1306-		●
211	BOLT; CRANKCASE (C) M8X25 FLANGE SOU	0-28650-825-0	19	1	1306-	●
211	BOLT; CRANKCASE (D) M8X40 FLANGE SOU	0-28650-840-0	01	1	1306-	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1306-		●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	1306-		●

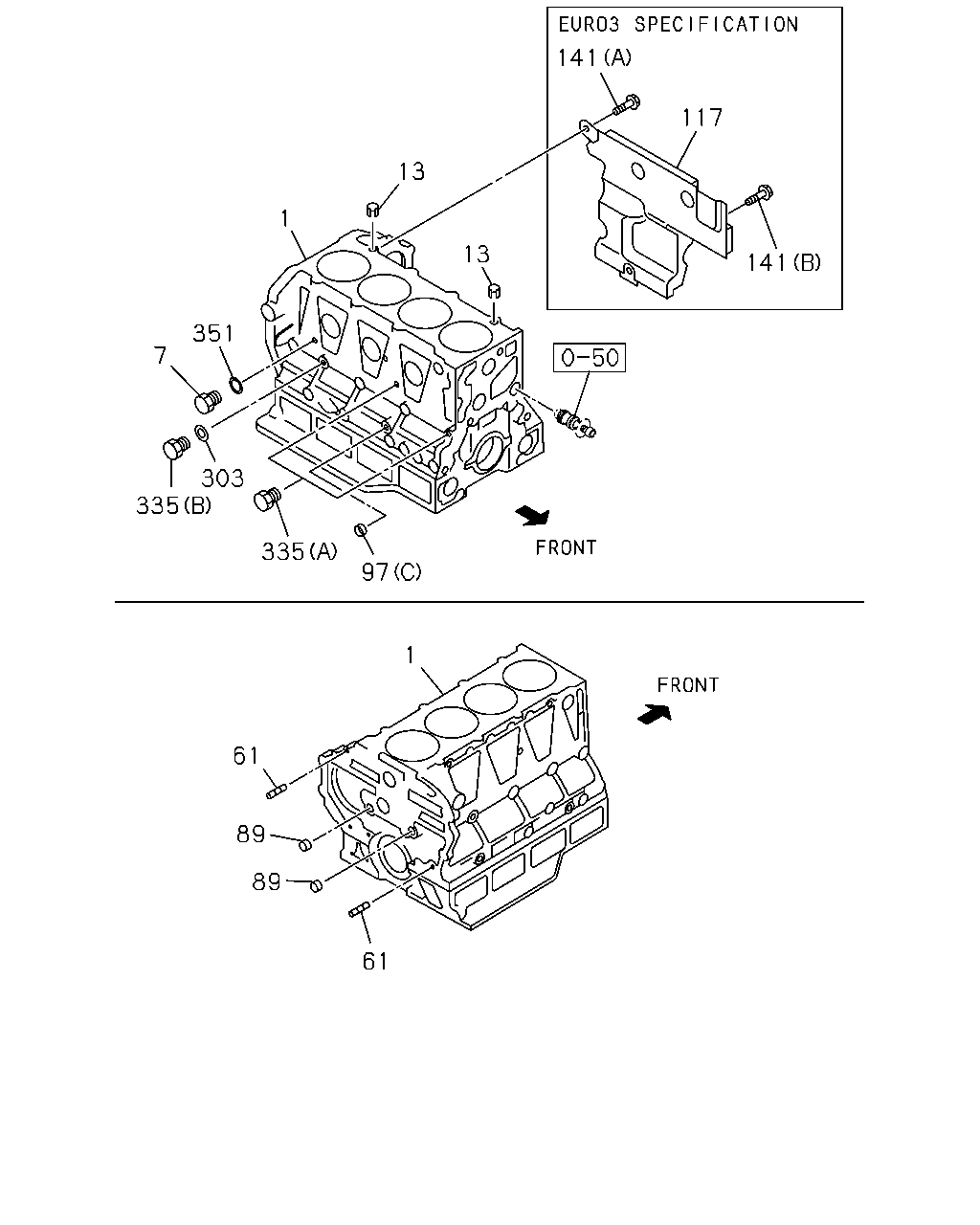

141 117 141 13 13 1 351 7 303 335 335 97 1 61 89 89 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98240-635-1	01	1	1409-	●
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1306-1405		●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-		●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	1306-		●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1306-	●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	1306-		●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1306-	●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	1306-		●
61	PIN; STRAIGHT L=31	9-09878-597-0	02	1	1306-	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1306-		●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	1306-		●
97	CUP; SEALING (C) OD=12	8-97036-335-1	01	1	1306-		●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	1306-		●
117	COVER ASM; C/BL EURO3 SPECIFICATION(NT3)	8-98039-564-0	01	1	1306-		●
141	BOLT; COVER EURO3 SPECIFICATION(NT3) (A) M8X12 FLANGE	0-28050-812-0	01	1	1306-		●
141	BOLT; COVER EURO3 SPECIFICATION(NT3) (B) M10X16 FLANGE	0-28151-016-0	01	1	1306-		●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	01	1	1306-1312		●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1306-		●
335	PLUG; C/BL,SIDE (B) M14X18	8-98038-403-0	01	1	1306-		●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	1306-		●

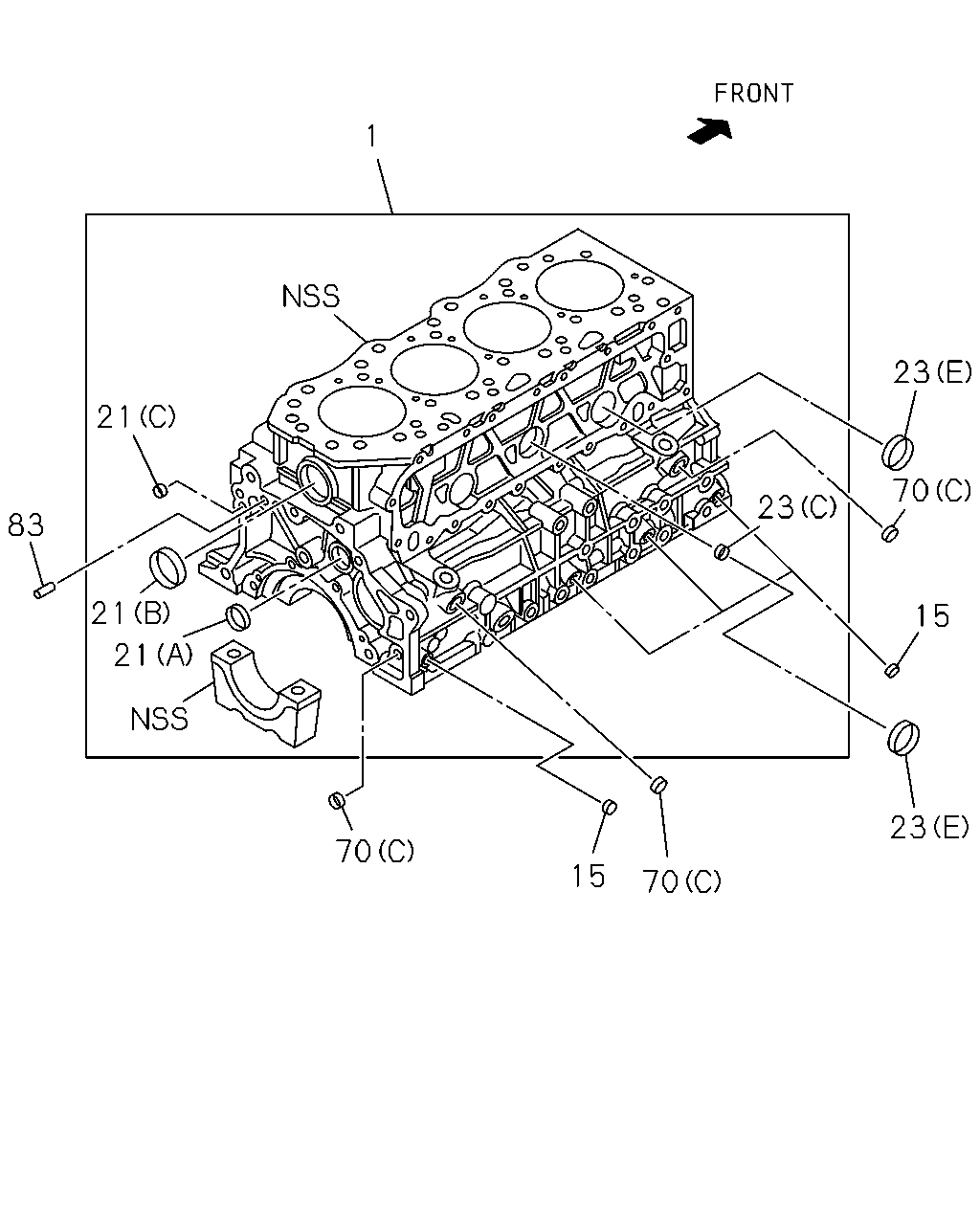

1 21 21 21 23 23 70 15 23 70 15 70 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98240-635-1	01	1	1409-	●
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1306-1405		●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-		●
15	PLUG; OIL GALLERY PT1/8 SOU	1-09605-050-0	04	1	1306-	●
21	CUP; SEALING,RR (C) OD=12.3	5-09600-013-0	01	1	1306-	●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1306-	●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1306-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1511-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1306-1510	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1511-		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	1306-		●
23	CUP; SEALING,C/BL FRT & RR (C) OD=18	5-11219-008-0	02	1	1306-	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	1306-	●
23	CUP; SEALING,C/BL FRT & RR (E) OD=36	5-11219-018-0	02	1	1306-	●
70	CUP; SEALING,FRT & RR (B) OD=25	1-09600-016-0	01	1	1306-		●
70	CUP; SEALING,FRT & RR (A) OD=40	8-97096-824-0	04	1	1306-		●
70	CUP; SEALING,FRT & RR (C) OD=16	5-11129-006-0	06	1	1306-	●
83	PIN; FLYWHEEL HSG OD=10 L=32	9-08161-032-0	01	1	1306-	●

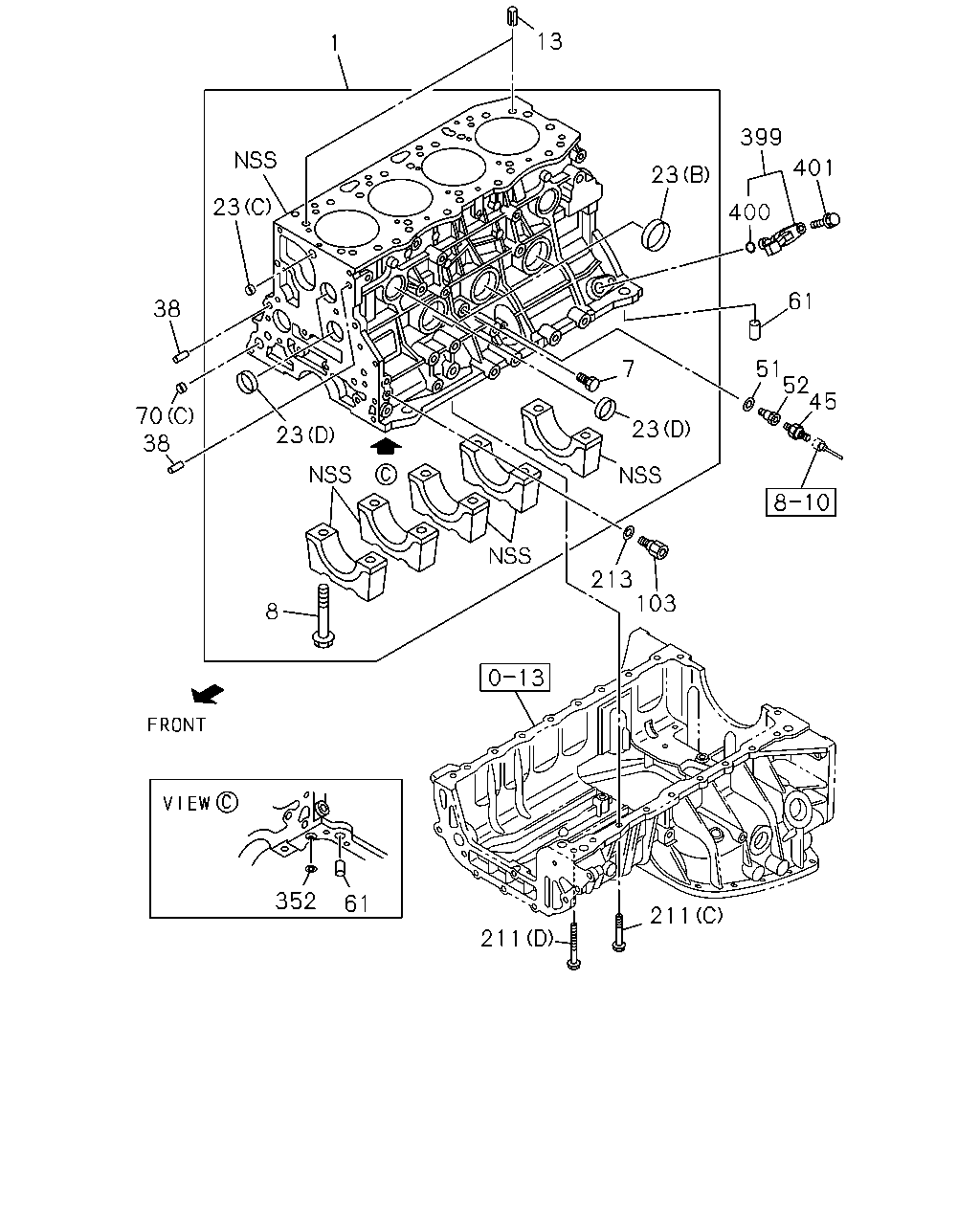

1 13 23 399 400 61 51 401 52 45 7 23 213 103 211 211 61 352 8 23 38 70 38 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98240-635-1	01	1	1409-	●
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1306-1405		●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-		●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	1306-		●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1306-	●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1306-	●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	1306-		●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1306-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1511-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1306-1510	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1511-		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	1306-		●
23	CUP; SEALING,C/BL FRT & RR (C) OD=18	5-11219-008-0	02	1	1306-	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	1306-	●
23	CUP; SEALING,C/BL FRT & RR (E) OD=36	5-11219-018-0	02	1	1306-	●
38	PIN; TIMING GEAR CASE OD=10 L=20	8-97135-423-0	02	1	1306-	●
45	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1306-	●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1306-	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-98089-872-0	01	1	1306-1501	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	1502-	●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	1306-		●
61	PIN; STRAIGHT L=31	9-09878-597-0	02	1	1306-	●
70	CUP; SEALING,FRT & RR (B) OD=25	1-09600-016-0	01	1	1306-		●
70	CUP; SEALING,FRT & RR (A) OD=40	8-97096-824-0	04	1	1306-		●
70	CUP; SEALING,FRT & RR (C) OD=16	5-11129-006-0	06	1	1306-	●
103	NIPPLE; OIL FEED	8-94469-596-0	01	1	1306-	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	1306-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	1306-		●
211	BOLT; CRANKCASE (C) M8X25 FLANGE SOU	0-28650-825-0	19	1	1306-	●
211	BOLT; CRANKCASE (D) M8X40 FLANGE SOU	0-28650-840-0	01	1	1306-	●
213	GASKET; NIPPLE,OIL FEED ID=10.2 OD=16.0	9-09571-410-0	01	1	1306-	●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	1306-	●
399	SENSOR; CRANKSHAFT POSITION	8-97312-108-1	01	1	1306-	●
400	GASKET; CRANKSHAFT POSITION SENSOR ID=14.2 OD=18.8	8-97369-404-0	01	1	1306-	●
401	BOLT; SENSOR M6X16 FLANGE SOU	0-28050-616-0	01	1	1306-	●
