0-11 — CYLINDER HEAD (#122610) — 109 parça

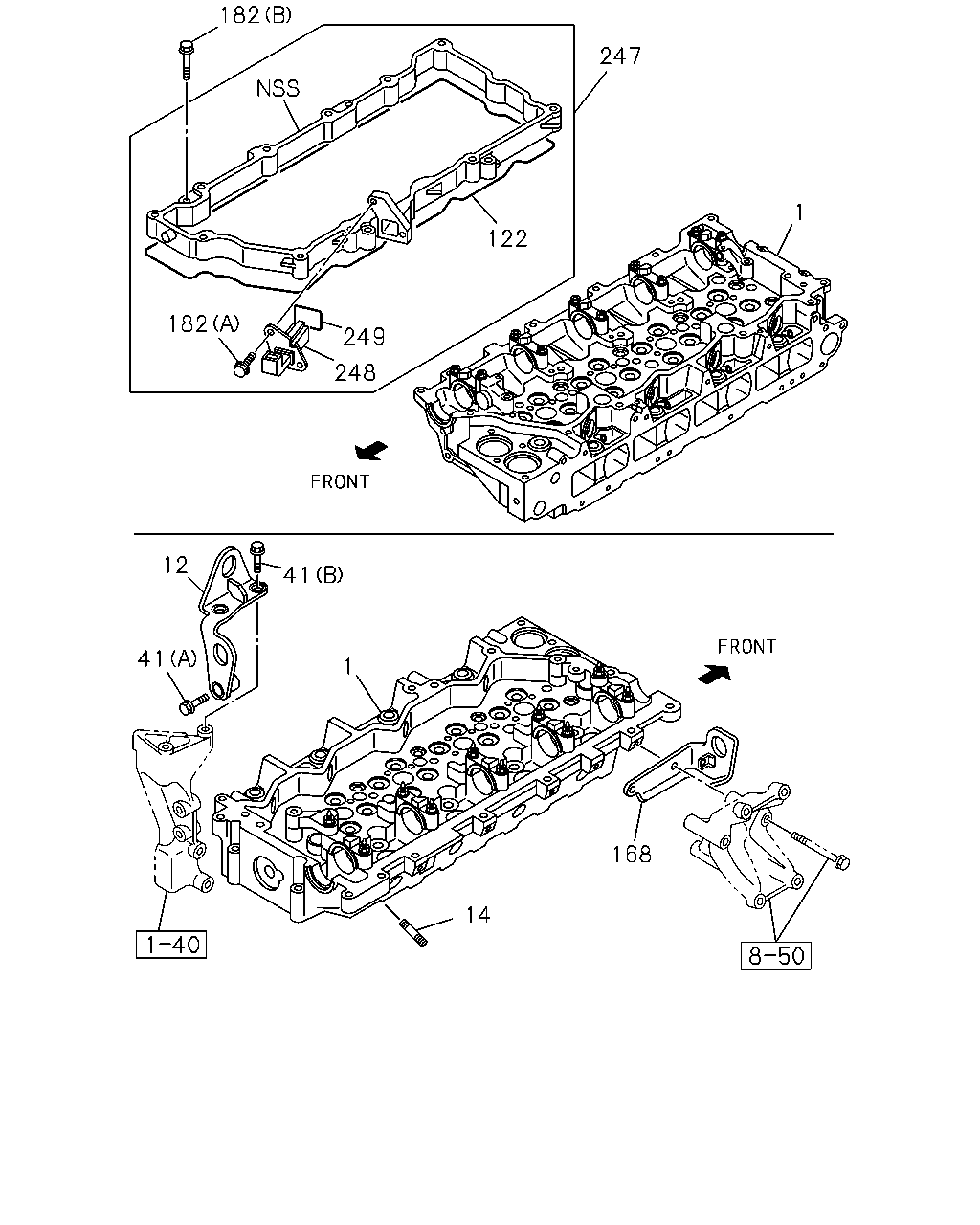

çizim 355082
182 182 249 248 122 247 1 12 41 41 14 168 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98170-619-0 01 1 1306- ●
1 HEAD ASM; CYL 8-98223-019-2 01 1 1306- ●
12 HANGER; ENG,RR 8-98074-691-1 01 1 1306- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 1306- ●
41 BOLT; ENG HANGER
(B) M12X20 FLANGE 		0-28151-220-0 02 1 1306- ●
41 BOLT; ENG HANGER
(A) M12X80 		0-28151-280-0 01 1 1306- ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-360-1 01 1 1306- ●
168 HANGER; ENG,FRT 8-98032-250-1 01 1 1306- ●
182 BOLT; CASE
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1306- ●
182 BOLT; CASE
(B) M8X45 FLANGE SOU 		0-28050-845-0 04 1 1306- ●
247 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 1306- ●
248 CONNECTOR 8-94390-858-1 01 1 1306- ●
249 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 01 1 1306- ●

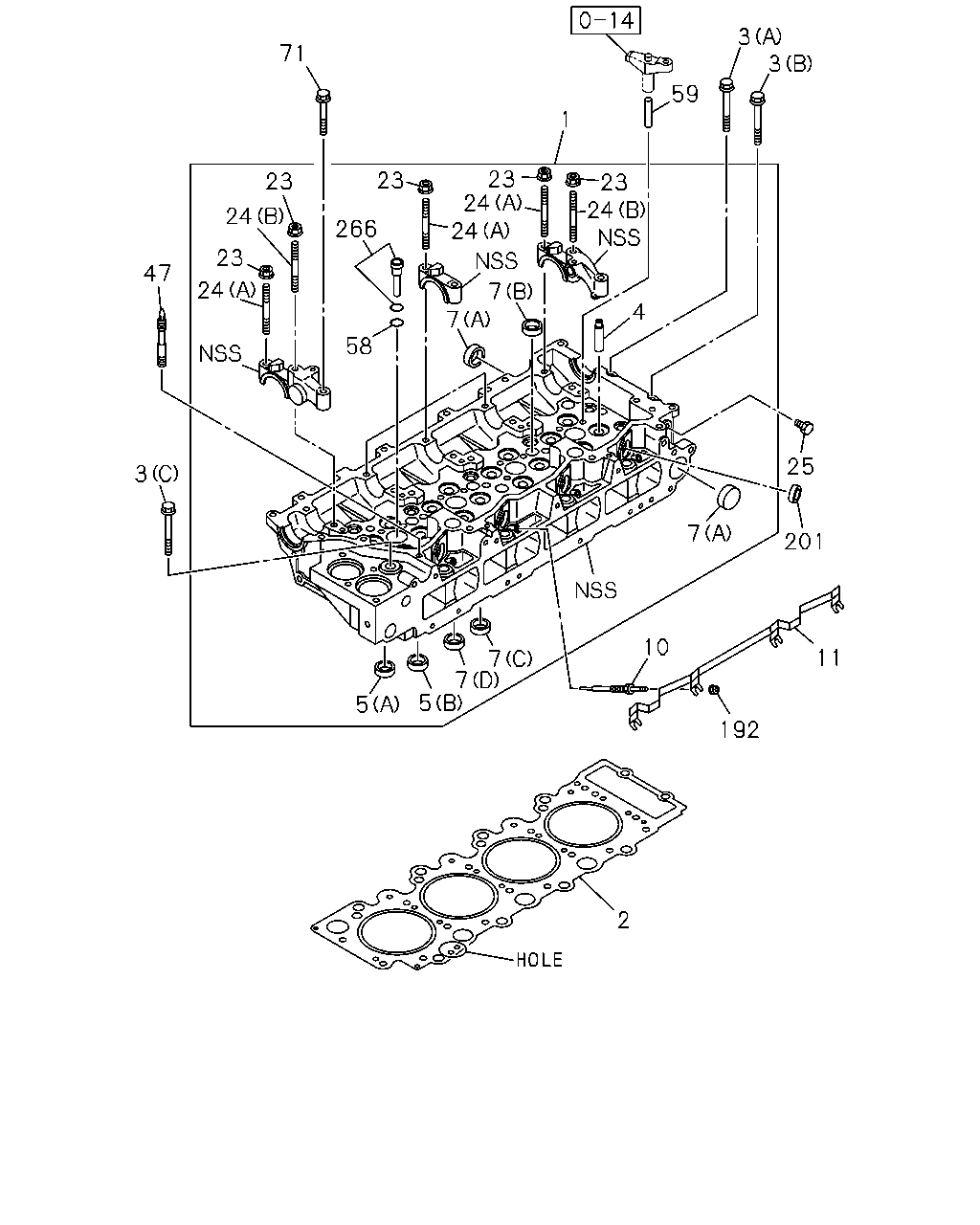

çizim 358512
47 23 24 24 23 71 3 58 266 23 23 24 24 7 7 7 7 5 5 24 23 1 59 3 3 25 201 11 192 10 2 4 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98170-619-0 01 1 1306- ●
1 HEAD ASM; CYL 8-98223-019-2 01 1 1306- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1306-1411 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.14 1-NOTCH 		8-98291-683-0 01 1 1412- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1306-1411 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.19 2-NOTCH 		8-98291-684-0 01 1 1412- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1306-1411 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.24 3-NOTCH 		8-98291-685-0 01 1 1412- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 1306-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98288-501-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 1306-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98288-502-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 1306-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98288-503-0 01 1 1506- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1306- ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1306- ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1306-1503 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ●
3 BOLT; CYL HD TO BLOCK
(D) M11X114 W/WASHER 		8-98201-019-0 18 1 1306- ●
4 GUIDE; VLV
L=57 		8-97376-719-2 16 1 1306- ●
4 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1306- ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 08 1 1306- ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 1306- ●
5 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 		8-97311-378-0 08 1 1306- ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1306- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 04 1 1306- ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 05 1 1306- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 1306- ●
7 CUP; SEALING,CYL HEAD
(D) OD=20 		9-11129-128-0 07 1 1306- ●
7 CUP; SEALING,CYL HEAD
(F) OD=32 		1-09600-012-2 02 1 1306- ●
7 CUP; SEALING,CYL HEAD
(G) OD=18 		5-11219-008-0 13 1 1306- ●
7 CUP; SEALING,CYL HEAD
(E) OD=14 		5-11219-011-0 07 1 1306- ●
10 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1306- ● ●
11 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 1306- ●
11 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 1306- ●
23 NUT; CAM BRKT
M8 FLANGE SOU 		0-91180-208-0 10 1 1306- ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 1306- ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 1306- ●
25 PLUG; CYL HD
M8X10 		8-98003-416-0 01 1 1306- ●
47 STUD; CYL HD
M8X60 L=72 		0-49140-860-0 02 1 1306- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 04 1 1306- ●
59 GUIDE; BRIDGE 8-97381-603-1 08 1 1306- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 1306- ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 04 1 1306- ● ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 04 1 1306- ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 04 1 1306- ●

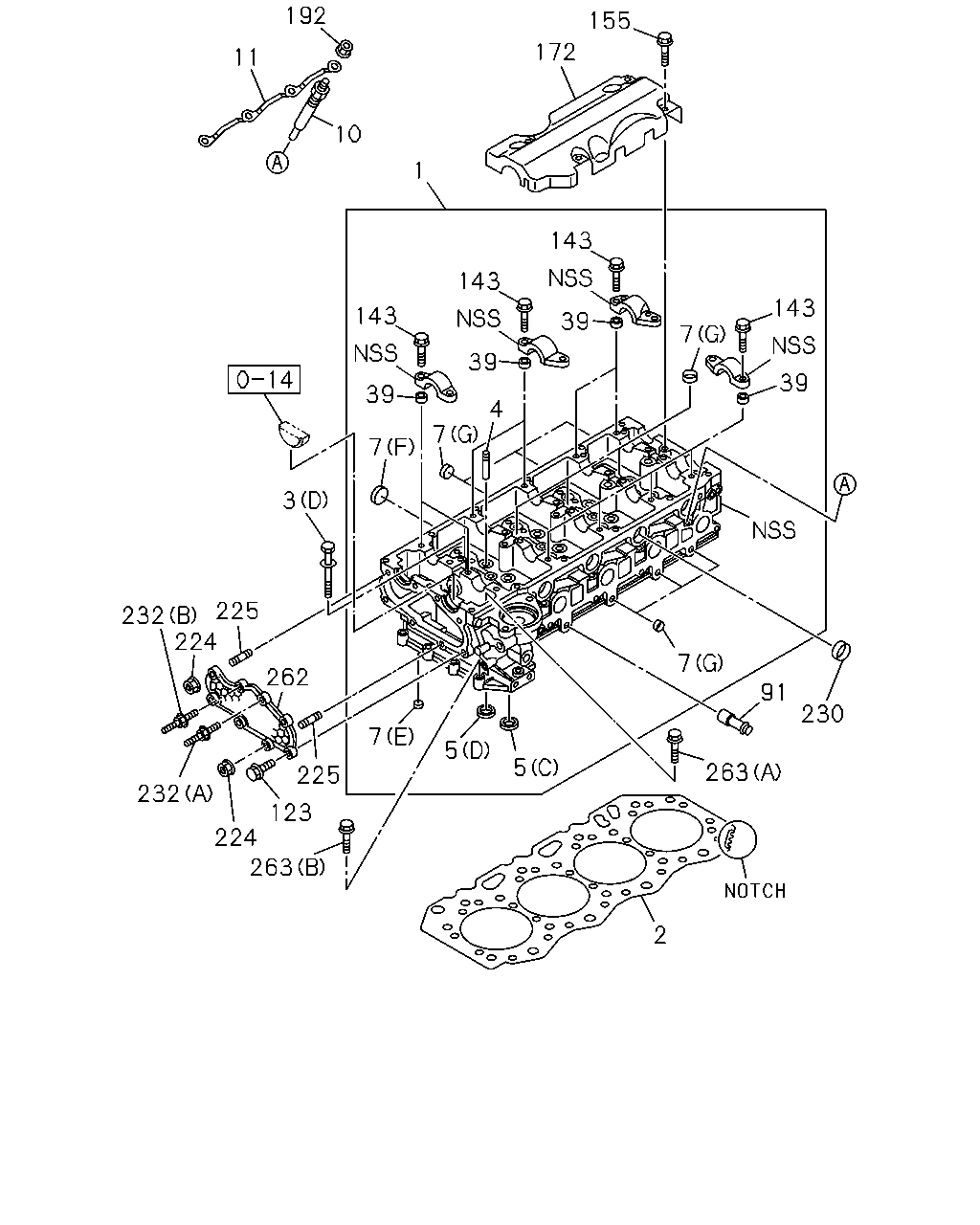

çizim 358850
192 11 10 172 155 1 3 232 225 224 262 232 225 123 224 263 143 39 7 7 143 39 7 5 5 7 39 143 7 143 39 91 230 263 2 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98170-619-0 01 1 1306- ●
1 HEAD ASM; CYL 8-98223-019-2 01 1 1306- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1306-1411 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.14 1-NOTCH 		8-98291-683-0 01 1 1412- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1306-1411 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.19 2-NOTCH 		8-98291-684-0 01 1 1412- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1306-1411 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.24 3-NOTCH 		8-98291-685-0 01 1 1412- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 1306-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98288-501-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 1306-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98288-502-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 1306-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98288-503-0 01 1 1506- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1306- ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1306- ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1306-1503 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ●
3 BOLT; CYL HD TO BLOCK
(D) M11X114 W/WASHER 		8-98201-019-0 18 1 1306- ●
4 GUIDE; VLV
L=57 		8-97376-719-2 16 1 1306- ●
4 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1306- ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 08 1 1306- ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 1306- ●
5 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 		8-97311-378-0 08 1 1306- ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1306- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 04 1 1306- ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 05 1 1306- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 1306- ●
7 CUP; SEALING,CYL HEAD
(D) OD=20 		9-11129-128-0 07 1 1306- ●
7 CUP; SEALING,CYL HEAD
(F) OD=32 		1-09600-012-2 02 1 1306- ●
7 CUP; SEALING,CYL HEAD
(G) OD=18 		5-11219-008-0 13 1 1306- ●
7 CUP; SEALING,CYL HEAD
(E) OD=14 		5-11219-011-0 07 1 1306- ●
10 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1306- ● ●
11 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 1306- ●
11 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 1306- ●
39 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 1306- ●
91 PIPE; HTR 8-94343-211-1 01 1 1306- ●
123 BOLT; COVER
M8X20 FLANGE 		8-97366-632-0 04 1 1306- ●
143 BOLT; FIX
M8X40 FLANGE SOU 		0-28650-840-0 20 1 1306- ●
155 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 1306- ●
172 PLATE; BAFFLE,CYL HD 8-98016-865-0 01 1 1306- ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 04 1 1306- ● ●
224 NUT; COVER
M8 FLANGE SOU 		0-91180-208-0 04 1 1306- ●
225 STUD; COVER
M8X15.5 L=33.5 		8-98017-062-0 02 1 1306- ●
230 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 04 1 1306- ●
232 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 1306- ●
232 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-98166-373-0 01 1 1306- ●
262 COVER; CYL HEAD 8-97355-516-4 01 1 1306- ●
263 BOLT; CYL HD
(A) M8X60 FLANGE SOU 		0-28050-860-0 01 1 1306- ●
263 BOLT; CYL HD
(B) M8X35 FLANGE SOU 		0-28650-835-0 03 1 1306- ●
