◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#122608) — 60 parça

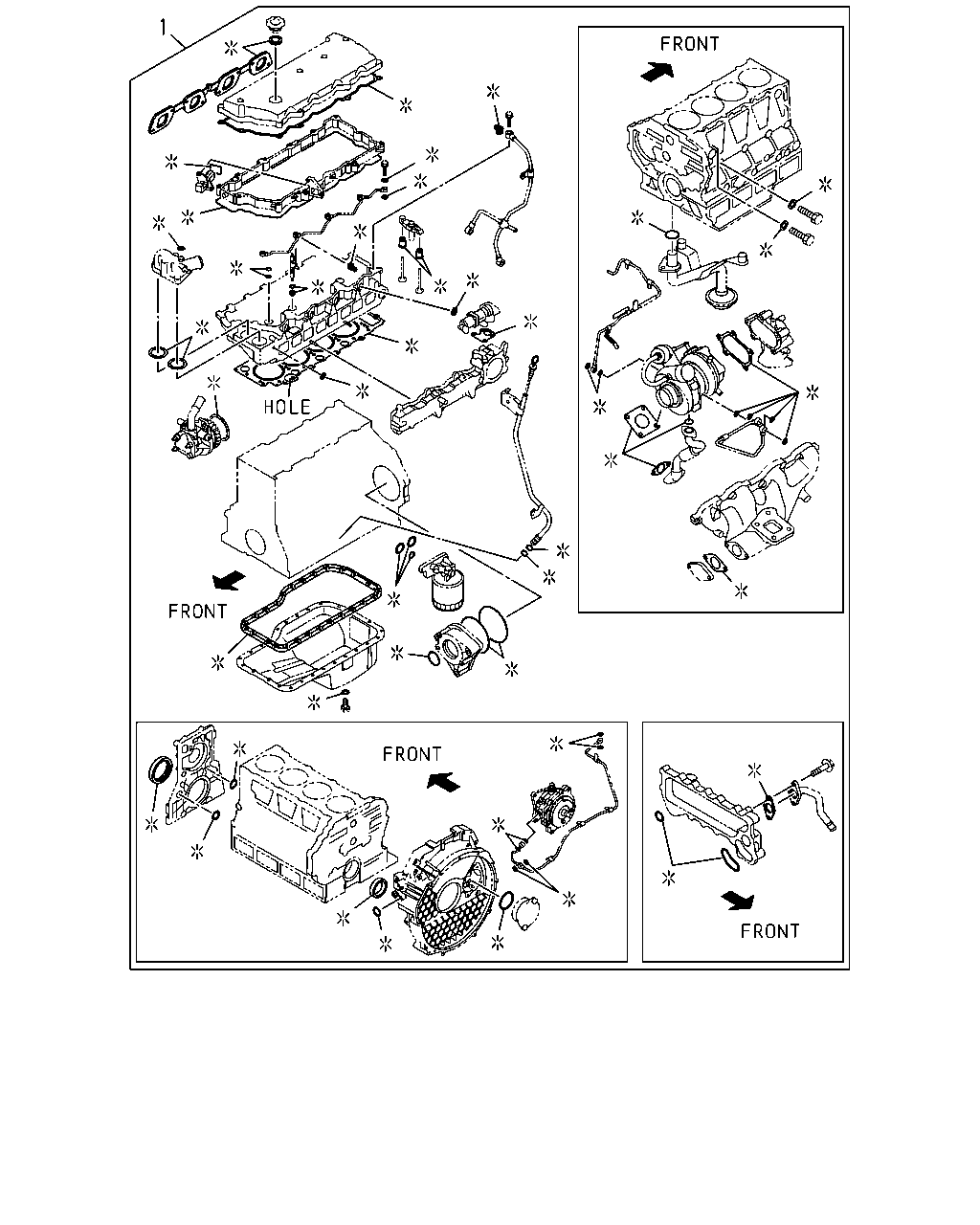

çizim 357872
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-877-1 01 1 1306-1411 ●
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-878-1 01 1 1306-1411 ●
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-879-1 01 1 1306-1411 ●
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-952-2 01 1 1306-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-044-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-762-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-957-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-953-2 01 1 1306-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-045-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-763-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-958-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-954-2 01 1 1306-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-046-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-764-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-959-0 01 1 1506- ●

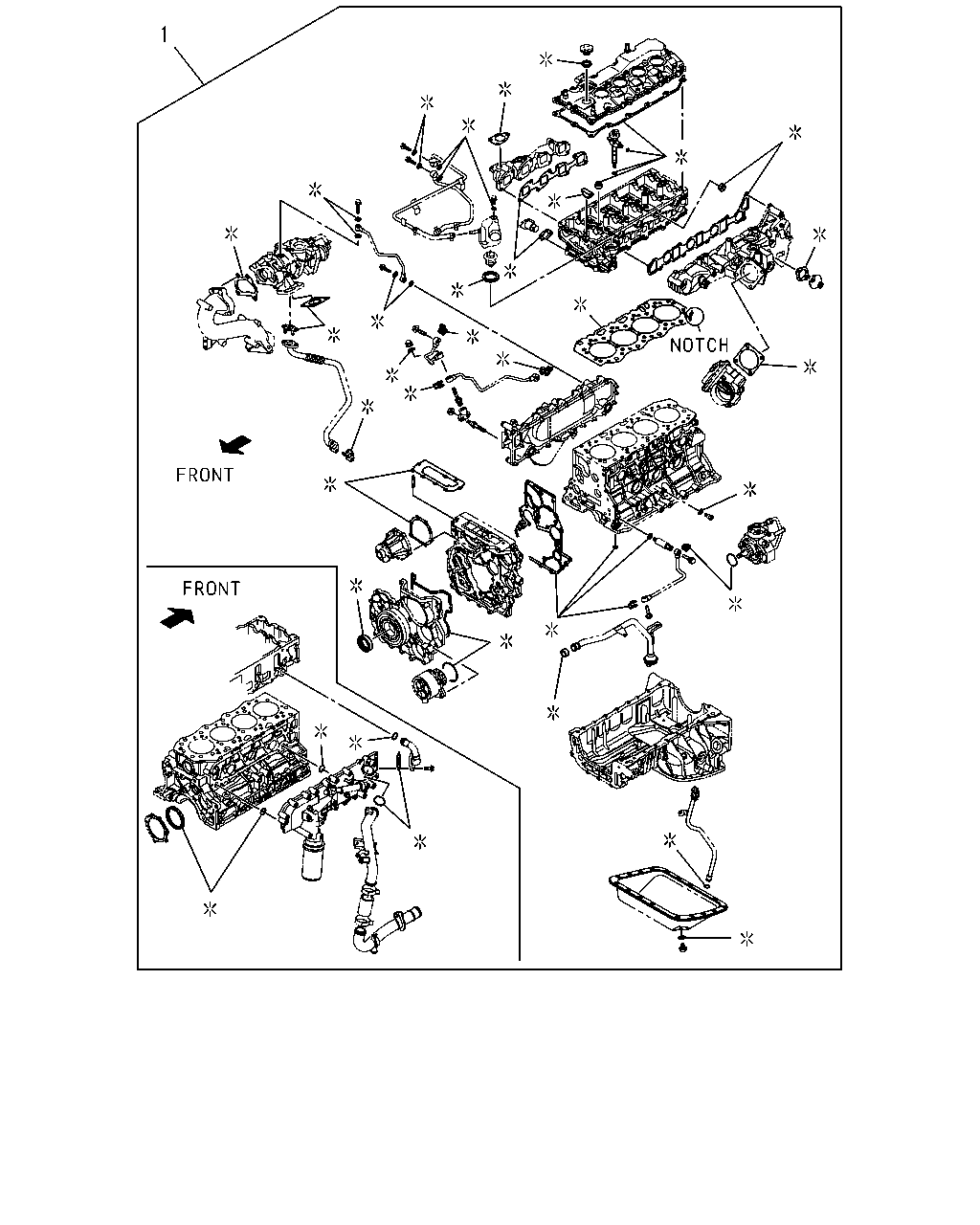

çizim 358274
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-877-1 01 1 1306-1411 ●
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-878-1 01 1 1306-1411 ●
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-879-1 01 1 1306-1411 ●
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-952-2 01 1 1306-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-044-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-762-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-957-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-953-2 01 1 1306-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-045-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-763-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-958-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-954-2 01 1 1306-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-046-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-764-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-959-0 01 1 1506- ●
çizim 358856
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-886-1 01 1 1306-1411 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-887-1 01 1 1306-1411 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-888-1 01 1 1306-1411 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-532-3 01 1 1306-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-993-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-533-3 01 1 1306-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-994-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-534-3 01 1 1306-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-995-0 01 1 1506- ●

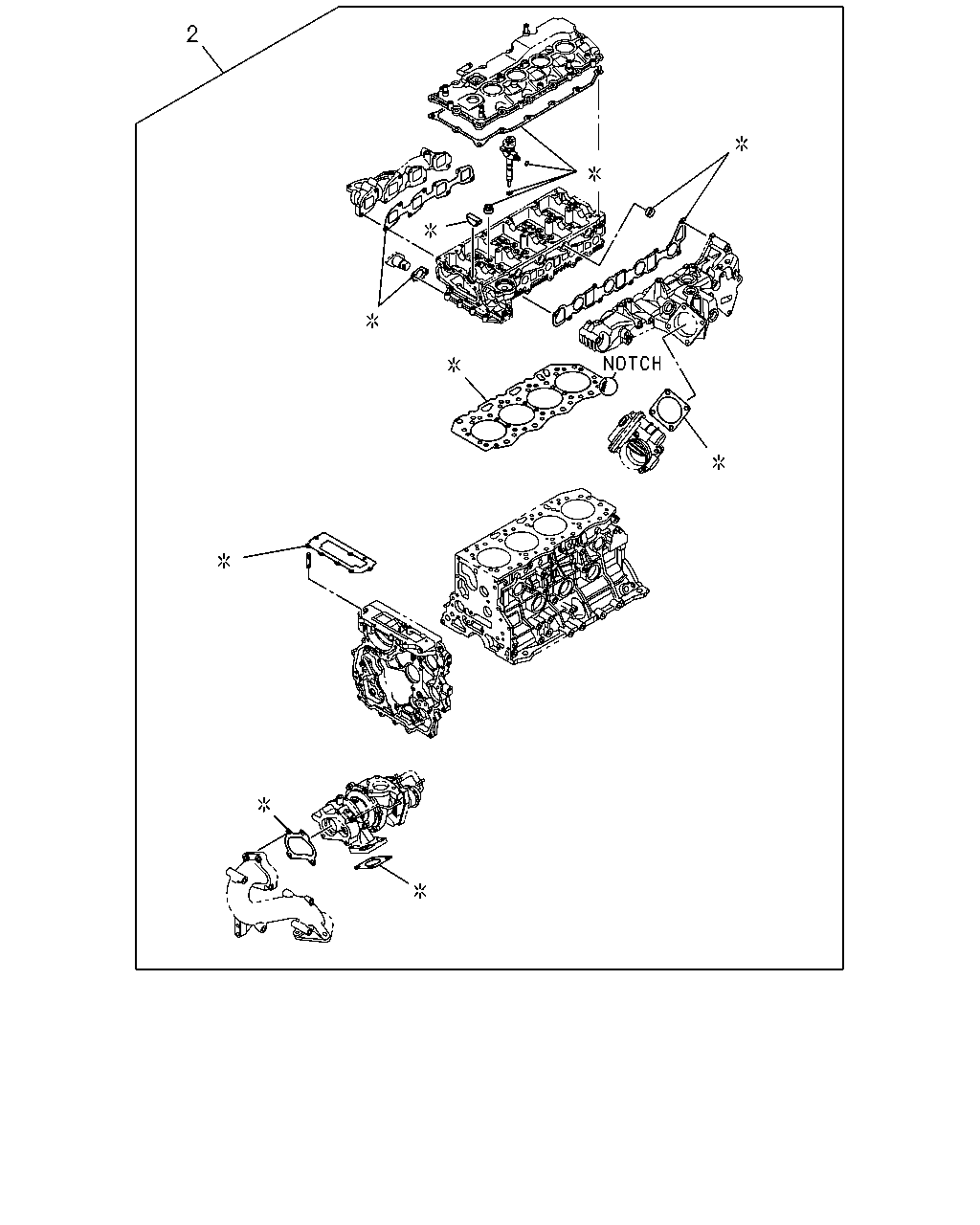

çizim 358896
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-886-1 01 1 1306-1411 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-887-1 01 1 1306-1411 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-888-1 01 1 1306-1411 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-532-3 01 1 1306-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-993-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-533-3 01 1 1306-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-994-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-534-3 01 1 1306-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-995-0 01 1 1506- ●
