◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51486 - NLR/NMR(SOUTHAFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#122603) — 66 parça

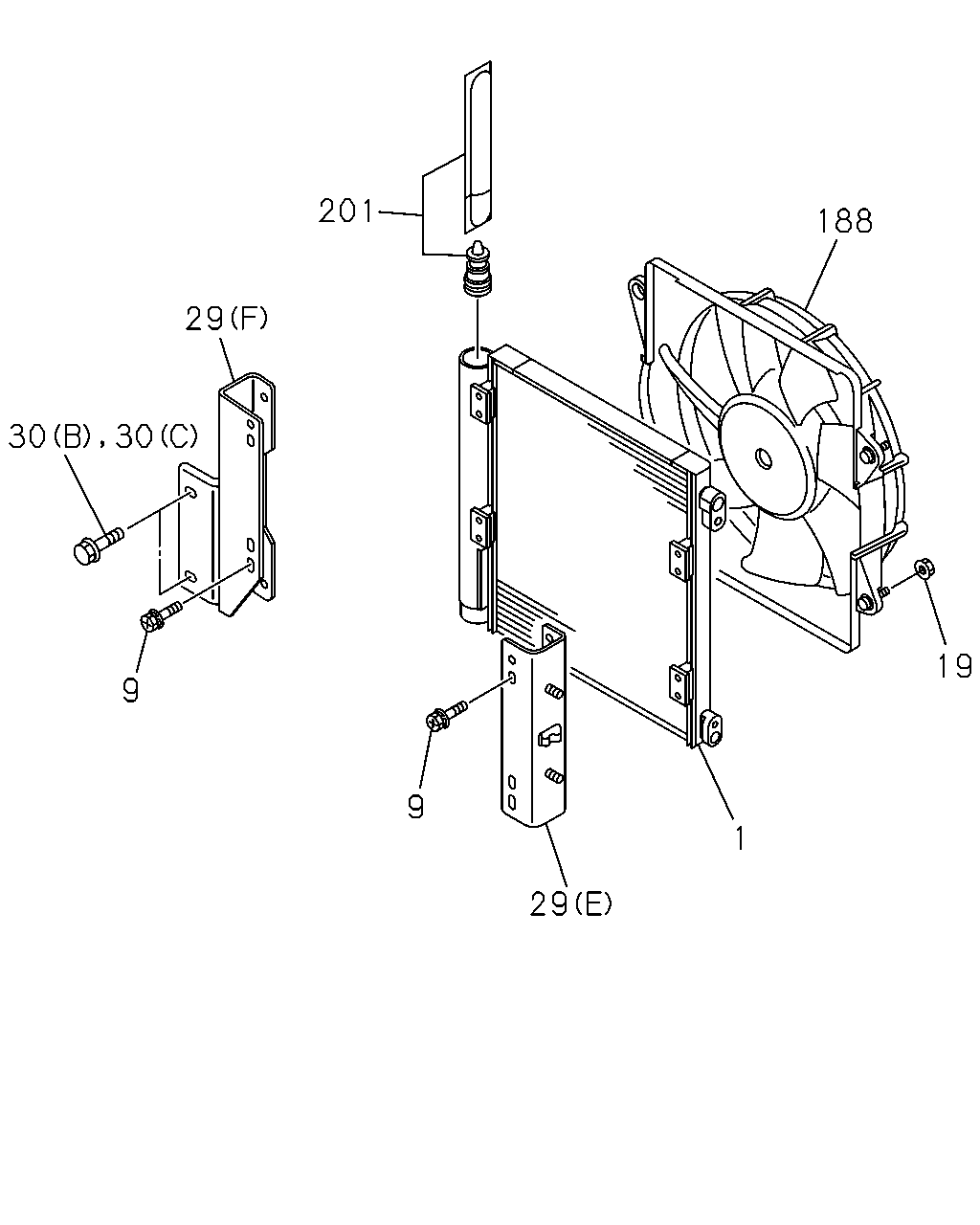

çizim 357216
201 29 30 30 9 188 19 1 9 29
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-884-0 01 1 1306- ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98041-884-0 01 1 1306- ● ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98133-042-1 01 1 1306- ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14 		1-83539-382-0 08 1 1306- ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X14 		1-83539-382-0 08 1 1306- ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) M6X14 		8-98041-899-0 08 1 1306- ● ●
19 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) M6 		1-83539-354-0 04 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98041-893-0 01 1 1306- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98041-893-0 01 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98041-895-0 01 1 1306- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98041-895-0 01 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98041-896-1 01 1 1306- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98041-896-1 01 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98041-897-1 01 1 1306- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-897-1 01 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98133-044-0 01 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98164-999-0 01 1 1306- ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) M8X35 FLANGE SOU 		0-28650-835-0 04 1 1306- ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X35 FLANGE SOU 		0-28650-835-0 04 1 1306- ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X30 FLANGE SOU 		0-28651-030-0 03 1 1306- ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-889-0 01 1 1306- ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98041-889-0 01 1 1306- ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98133-043-0 01 1 1306- ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-83535-097-0 01 1 1306-1409 ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98282-482-0 01 1 1410- ● ●

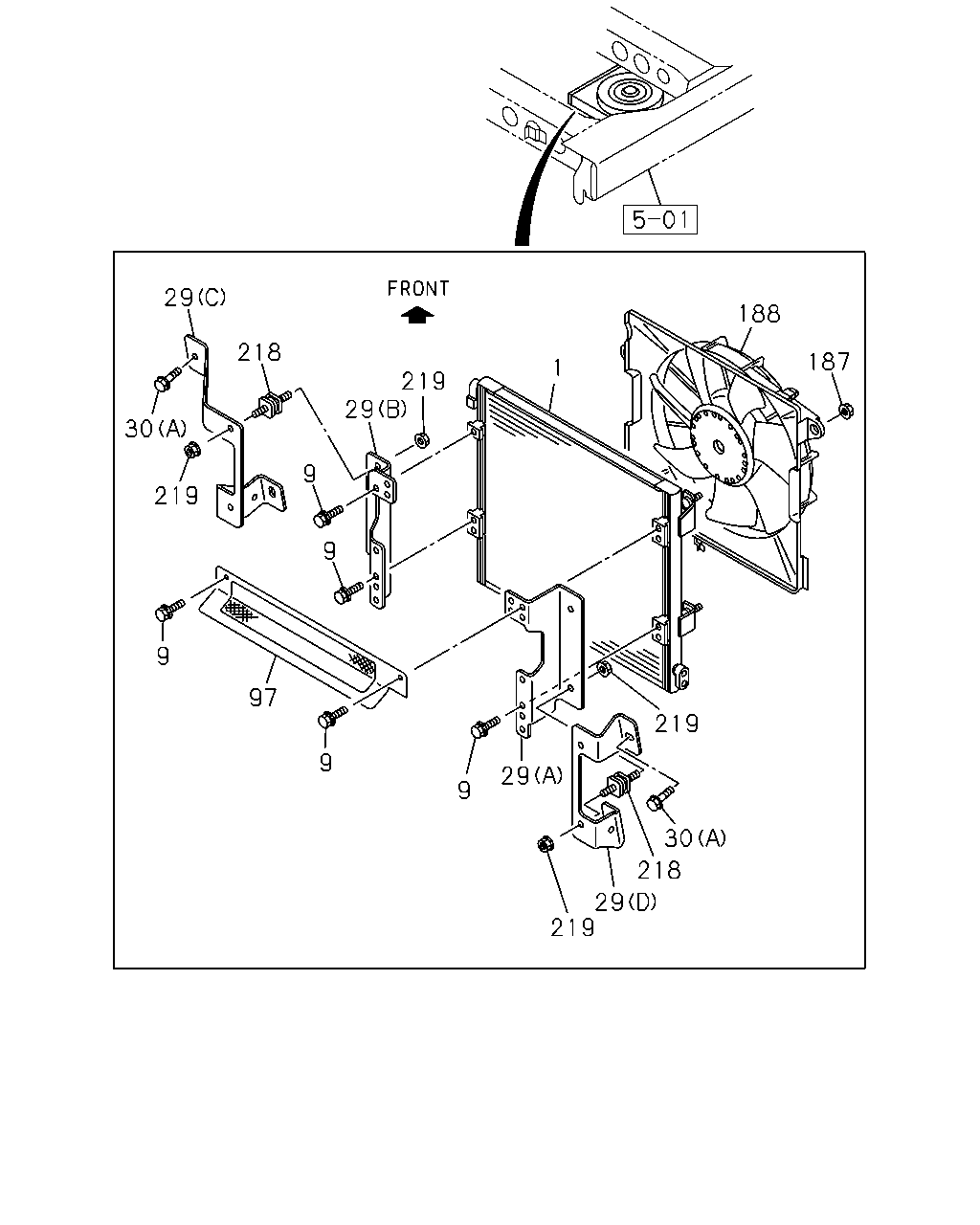

çizim 357631
29 30 219 9 97 9 218 9 9 29 219 9 29 219 29 218 30 219 1 188 187
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-884-0 01 1 1306- ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98041-884-0 01 1 1306- ● ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98133-042-1 01 1 1306- ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14 		1-83539-382-0 08 1 1306- ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X14 		1-83539-382-0 08 1 1306- ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) M6X14 		8-98041-899-0 08 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98041-893-0 01 1 1306- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98041-893-0 01 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98041-895-0 01 1 1306- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98041-895-0 01 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98041-896-1 01 1 1306- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98041-896-1 01 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98041-897-1 01 1 1306- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-897-1 01 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98133-044-0 01 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98164-999-0 01 1 1306- ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) M8X35 FLANGE SOU 		0-28650-835-0 04 1 1306- ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X35 FLANGE SOU 		0-28650-835-0 04 1 1306- ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X30 FLANGE SOU 		0-28651-030-0 03 1 1306- ● ●
97 NET; CONDENSER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-900-0 01 1 1306- ●
97 NET; CONDENSER UNIT
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98041-900-0 01 1 1306- ● ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONT(C60) M6 		1-83539-354-0 04 1 1306- ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 		1-83539-354-0 04 1 1306- ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-889-0 01 1 1306- ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98041-889-0 01 1 1306- ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98133-043-0 01 1 1306- ● ●
218 CUSHION; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-898-0 04 1 1306- ●
218 CUSHION; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98041-898-0 04 1 1306- ● ●
219 NUT; CUSHION
AIR CONDITIONER MANUAL CONT(C60) M8 		1-83539-319-0 08 1 1306- ●
219 NUT; CUSHION
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 		1-83539-319-0 08 1 1306- ● ●

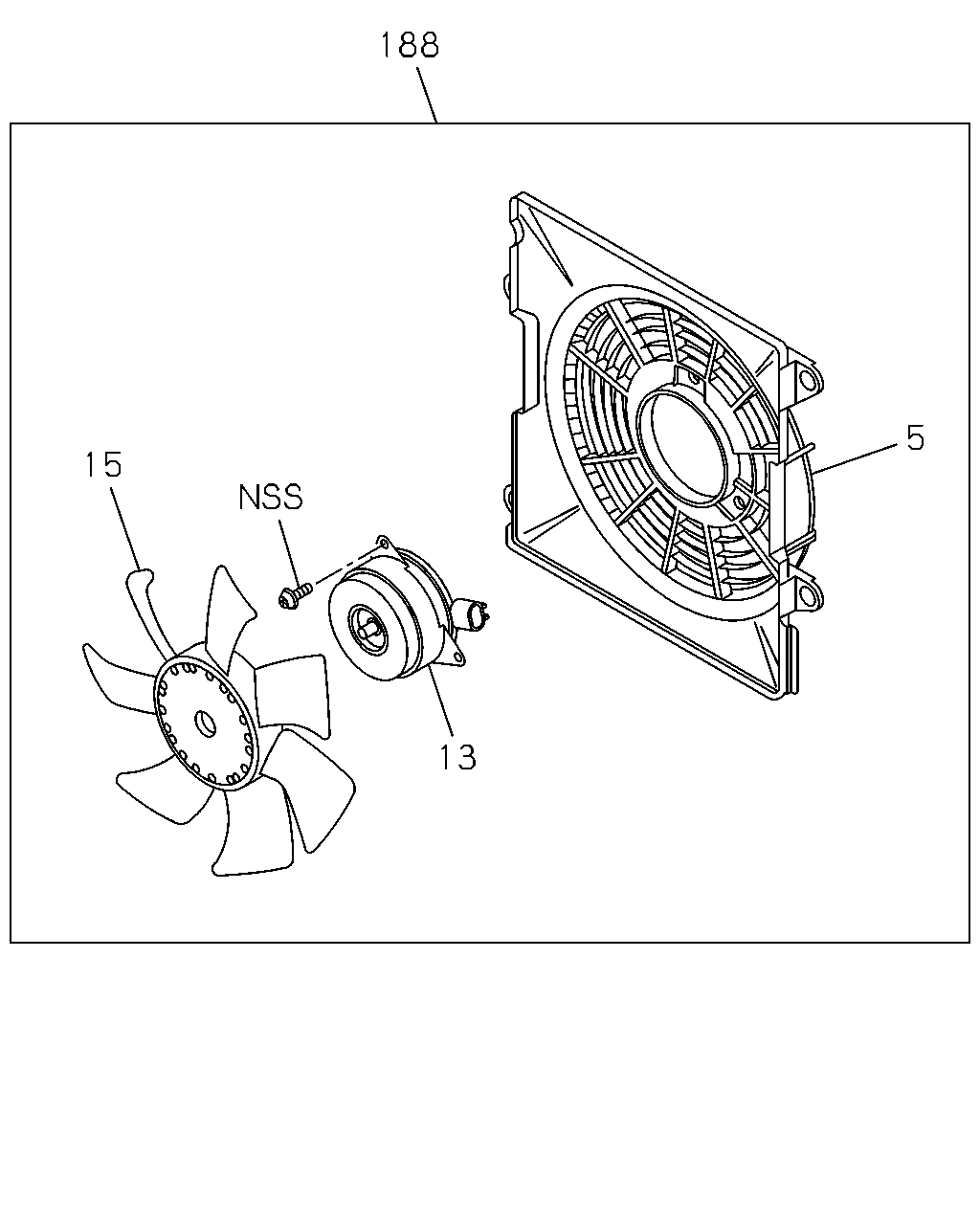

çizim 358188
188 5 13 15
BalonParca AdiParca NoAdetTipApplied Date A B C
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98152-865-0 01 1 1306- ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98152-865-0 01 1 1306- ● ●
13 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-044-0 01 1 1306- ●
13 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98157-044-0 01 1 1306- ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98152-860-0 01 1 1306- ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98152-860-0 01 1 1306- ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-889-0 01 1 1306- ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98041-889-0 01 1 1306- ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98133-043-0 01 1 1306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
