◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#1226) — 31 parça

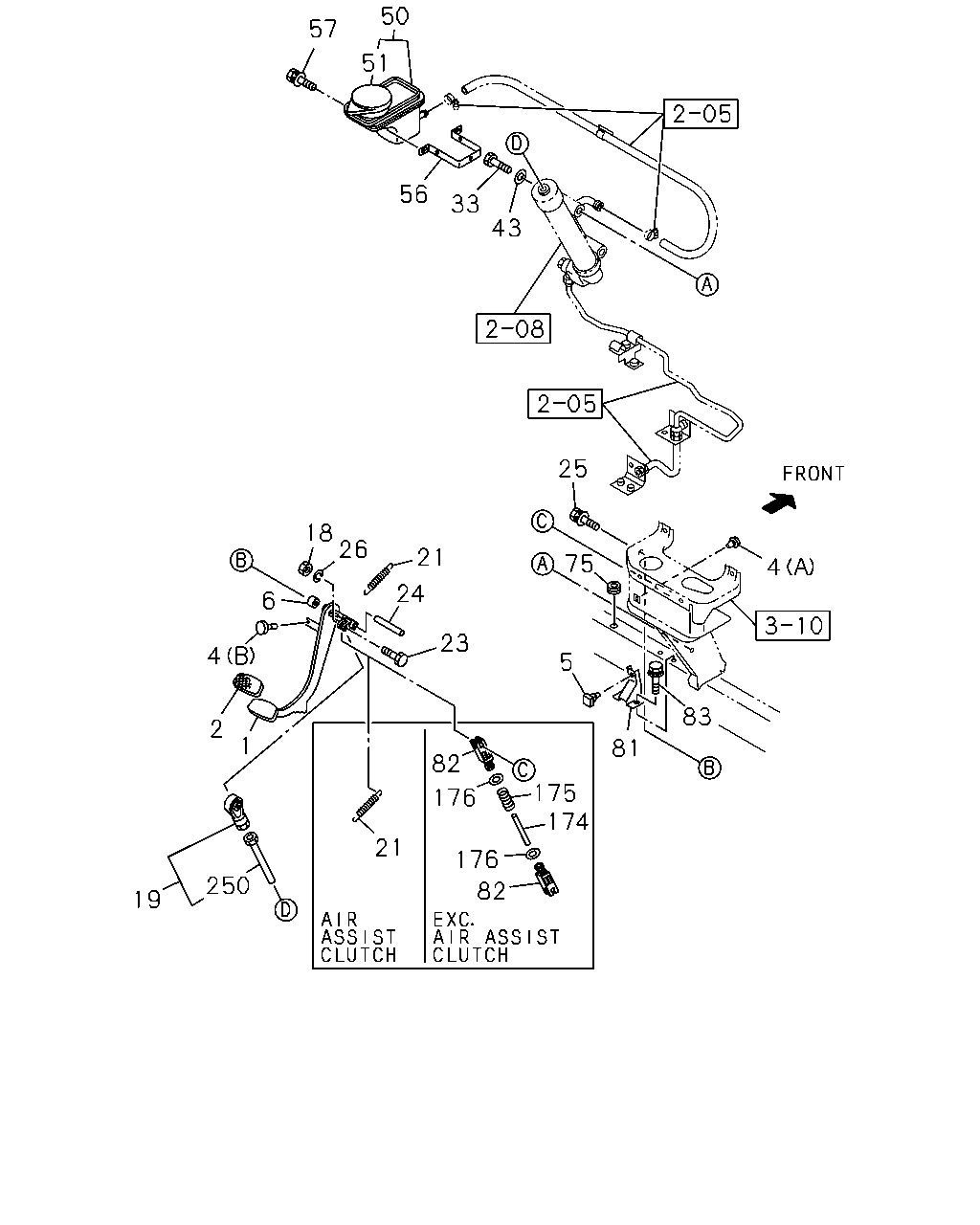

çizim 92671
50 57 51 56 33 43 25 18 26 21 75 4 24 6 23 4 5 83 2 1 81 82 175 174 176 21 176 250 82 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 1-31411-161-0 01 1 9202- ●
1 PEDAL; CLU
AIR ASSIST CLUTCH<PK1> 		1-31411-161-0 01 1 9202- ●
1 PEDAL; CLU
EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-561-0 01 1 9202- ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 9202- ● ●
4 STOPPER; CLU PEDAL
(B) 		1-47319-014-1 01 1 9202- ● ●
4 STOPPER; CLU PEDAL
(A) 		5-31419-003-0 01 1 9202- ● ●
5 STOPPER; PEDAL SHAFT 1-09983-074-0 01 1 9202- ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 9202- ● ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 9202- ● ●
19 ROD ASM; PUSH,CLU 1-31422-009-2 01 1 9202- ● ●
21 SPRING; RETURN,CLU PEDAL 1-73998-820-0 01 1 9202- ●
21 SPRING; RETURN,CLU PEDAL
AIR ASSIST CLUTCH<PK1> 		1-73998-820-0 01 1 9202- ●
23 BOLT; PUSH ROD
M8X35 		9-01060-835-0 01 1 9202- ● ●
24 SHAFT; CLU PEDAL 1-31415-007-0 01 1 9202- ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		9-01931-025-0 02 1 9202- ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 9202- ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		9-01046-065-0 02 1 9202-9204 ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		0-10806-065-0 02 1 9205- ● ●
43 WASHER; LK,CLU M/CYL
ID=10.2 		9-09150-510-0 02 1 9202- ● ●
50 TANK; OIL,CLU 1-47530-140-1 01 1 9202- ● ●
51 CAP; OIL TANK,CLU 1-47525-023-0 01 1 9202- ● ●
56 BRACKET; OIL TANK,CLU CONT 1-73997-915-0 01 1 9202- ● ●
57 BOLT; OIL TANK BRKT,CLU
M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9202- ● ●
75 GROMMET; CLU CABLE
OD=28 		9-09575-497-0 01 1 9202- ● ●
81 BRACKET; STOPPER,CLU PEDAL 1-73997-773-2 01 1 9202- ● ●
82 CLEVIS; HELPER,CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-472-1 02 1 9202- ●
83 BOLT; STOPPER BRKT,CLU PEDAL
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9202- ● ●
174 PIN; STRAIGHT,CLU PEDAL
EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-474-0 01 1 9202- ●
175 SPRING; HELPER
EXC. AIR ASSIST CLUTCH<PK1> 		1-09985-192-0 01 1 9202- ●
176 SEAT; SPRING
EXC. AIR ASSIST CLUTCH<PK1> 		1-09503-114-0 02 1 9202- ●
250 ROD; PUSH,CLU
M8X31 L=128 		1-31422-010-2 01 1 9202- ● ●
