Sayfa 8-52 - Isuzu EPC

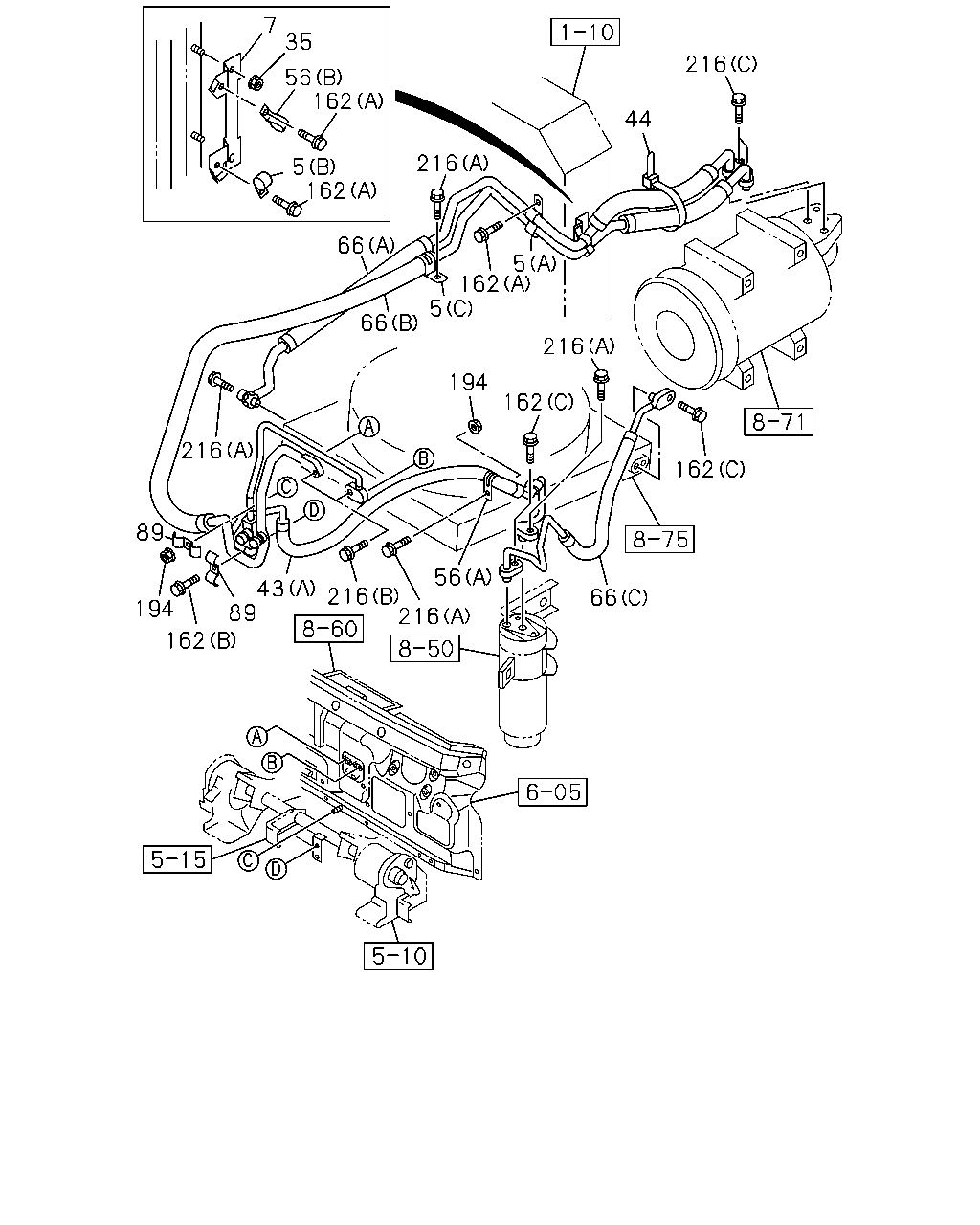

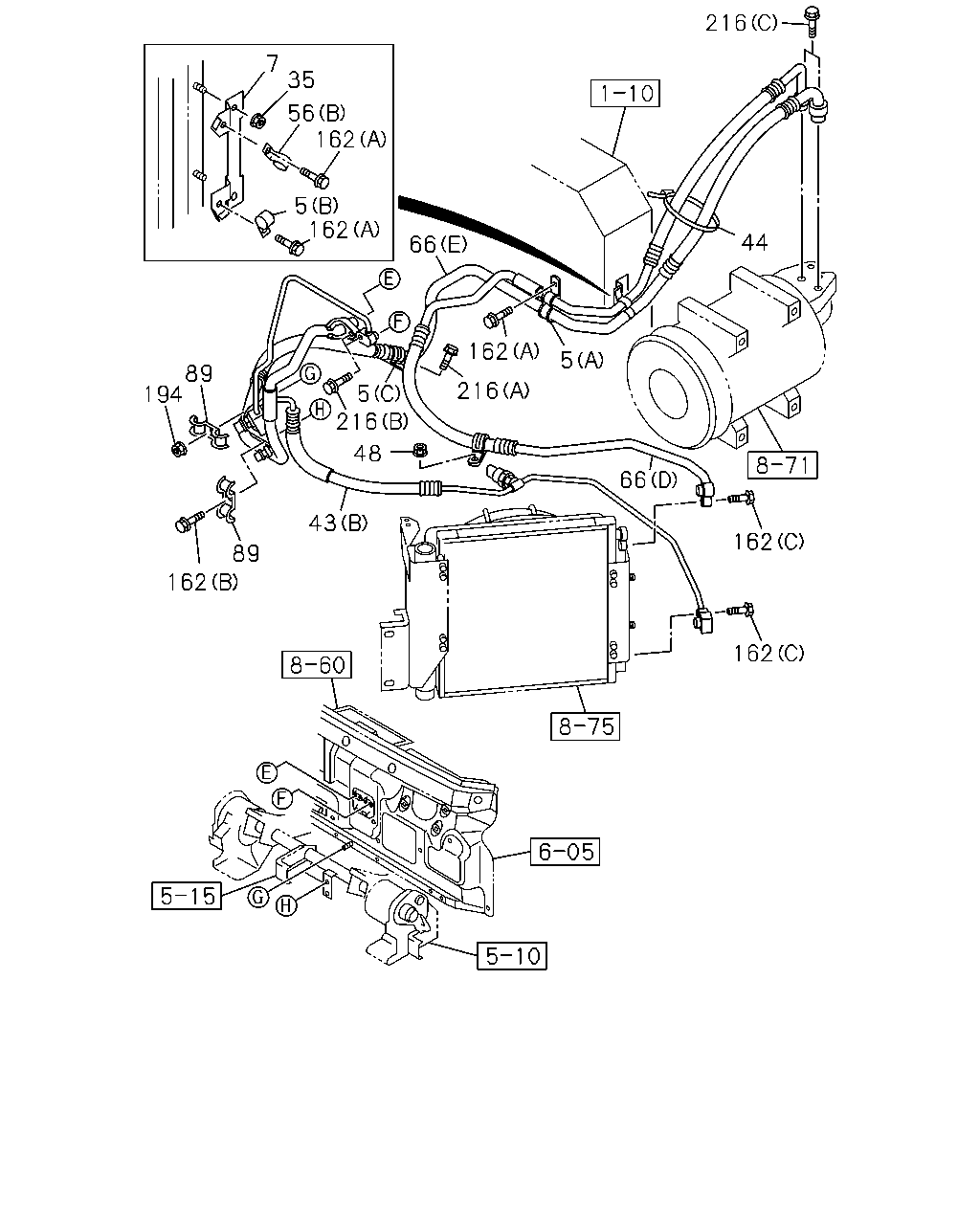

8-52 — PIPING; AIR CONDITIONING (#122598) — 132 parça

216 44 5 162 5 66 66 162 5 216 162 56 35 7 216 89 194 162 43 216 216 56 66 162 162 216 194 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=16 L=20	0-95235-532-0	01	1	1306-1311	●	●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=16 L=20	0-95235-532-0	01	1	1312-	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=16 L=20	0-95235-532-0	01	1	1312-		●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98038-798-0	01	1	1306-	●	●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98052-857-0	01	1	1306-	●	●	●
7	BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1306-	●	●	●
35	NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98088-340-0	01	1	1306-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) HIGH PRESSURE	8-98088-340-0	01	1	1306-		●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98177-563-0	01	1	1306-		●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 SOU	5-09707-030-1	01	1	1306-	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=140 SOU	5-09707-031-1	01	1	1306-	●	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1306-1311	●	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1312-	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1312-		●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98032-641-0	01	1	1306-	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98032-641-0	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-205-2	01	1	1306-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) HIGH PRESSURE	8-98001-205-2	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98038-579-3	01	1	1306-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) HIGH PRESSURE	8-98038-579-3	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-611-1	01	1	1306-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) LOW PRESSURE	8-98159-611-1	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98159-997-0	01	1	1306-1311		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) HIGH PRESSURE	8-98248-640-0	01	1	1312-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) LOW PRESSURE	8-98178-841-0	01	1	1306-1311		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) LOW PRESSURE	8-98248-636-0	01	1	1312-		●	●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1306-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE SOU	0-28050-612-0	03	1	1306-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 FLANGE SOU	0-28650-620-0	01	1	1306-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) M6X25 FLANGE SOU	0-28650-625-0	02	1	1306-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X25 FLANGE SOU	0-28650-625-0	01	1	1306-		●	●
194	NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●
194	NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE SOU	0-91180-106-0	02	1	1306-		●	●
194	NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) M6 FLANGE SOU	0-91180-106-0	01	1	1306-		●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X25 FLANGE SOU	0-28650-625-0	02	1	1306-	●	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X25 FLANGE SOU	0-28650-625-0	02	1	1306-	●	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (B) M6X30 FLANGE	0-28650-630-0	02	1	1306-	●	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (C) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X25 FLANGE SOU	0-28650-625-0	01	1	1306-		●	●

43 66 66 66 67 67 67 67 148 147 67 67 50 50 148 147 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98088-340-0	01	1	1306-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) HIGH PRESSURE	8-98088-340-0	01	1	1306-		●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98177-563-0	01	1	1306-		●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1306-	●	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-205-2	01	1	1306-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) HIGH PRESSURE	8-98001-205-2	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98038-579-3	01	1	1306-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) HIGH PRESSURE	8-98038-579-3	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-611-1	01	1	1306-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) LOW PRESSURE	8-98159-611-1	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98159-997-0	01	1	1306-1311		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) HIGH PRESSURE	8-98248-640-0	01	1	1312-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) LOW PRESSURE	8-98178-841-0	01	1	1306-1311		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) LOW PRESSURE	8-98248-636-0	01	1	1312-		●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1306-	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5	8-97095-908-0	01	1	1306-	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1306-	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (D) ID=7.5	1-83539-316-0	02	1	1306-	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=7.5	1-83539-316-0	02	1	1306-		●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1306-	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1306-	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1306-	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1306-	●	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1306-	●	●	●

216 44 66 162 162 216 162 216 5 48 43 89 162 66 7 56 35 162 5 162 5 89 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=16 L=20	0-95235-532-0	01	1	1306-1311	●	●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=16 L=20	0-95235-532-0	01	1	1312-	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=16 L=20	0-95235-532-0	01	1	1312-		●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98038-798-0	01	1	1306-	●	●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98052-857-0	01	1	1306-	●	●	●
7	BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1306-	●	●	●
35	NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98088-340-0	01	1	1306-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) HIGH PRESSURE	8-98088-340-0	01	1	1306-		●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98177-563-0	01	1	1306-		●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 SOU	5-09707-030-1	01	1	1306-	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=140 SOU	5-09707-031-1	01	1	1306-	●	●	●
48	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) M6 FLANGE SOU	0-91180-106-0	01	1	1306-		●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1306-1311	●	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1312-	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1312-		●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98032-641-0	01	1	1306-	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98032-641-0	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-205-2	01	1	1306-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) HIGH PRESSURE	8-98001-205-2	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98038-579-3	01	1	1306-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) HIGH PRESSURE	8-98038-579-3	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-611-1	01	1	1306-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) LOW PRESSURE	8-98159-611-1	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98159-997-0	01	1	1306-1311		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) HIGH PRESSURE	8-98248-640-0	01	1	1312-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) LOW PRESSURE	8-98178-841-0	01	1	1306-1311		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) LOW PRESSURE	8-98248-636-0	01	1	1312-		●	●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1306-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE SOU	0-28050-612-0	03	1	1306-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 FLANGE SOU	0-28650-620-0	01	1	1306-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) M6X25 FLANGE SOU	0-28650-625-0	02	1	1306-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X25 FLANGE SOU	0-28650-625-0	01	1	1306-		●	●
194	NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●
194	NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE SOU	0-91180-106-0	02	1	1306-		●	●
194	NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) M6 FLANGE SOU	0-91180-106-0	01	1	1306-		●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X25 FLANGE SOU	0-28650-625-0	02	1	1306-	●	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X25 FLANGE SOU	0-28650-625-0	02	1	1306-	●	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (B) M6X30 FLANGE	0-28650-630-0	02	1	1306-	●	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (C) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X25 FLANGE SOU	0-28650-625-0	01	1	1306-		●	●

43 66 66 147 148 50 202 50 67 67 49 67 148 147 67 49 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98088-340-0	01	1	1306-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) HIGH PRESSURE	8-98088-340-0	01	1	1306-		●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98177-563-0	01	1	1306-		●	●
49	CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98257-461-0	01	1	1312-		●	●
49	CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98257-462-0	01	1	1312-		●	●
49	CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-83574-249-0	01	1	1306-		●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1306-	●	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-205-2	01	1	1306-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) HIGH PRESSURE	8-98001-205-2	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98038-579-3	01	1	1306-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) HIGH PRESSURE	8-98038-579-3	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-611-1	01	1	1306-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) LOW PRESSURE	8-98159-611-1	01	1	1306-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98159-997-0	01	1	1306-1311		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) HIGH PRESSURE	8-98248-640-0	01	1	1312-		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) LOW PRESSURE	8-98178-841-0	01	1	1306-1311		●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) LOW PRESSURE	8-98248-636-0	01	1	1312-		●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1306-	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5	8-97095-908-0	01	1	1306-	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1306-	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (D) ID=7.5	1-83539-316-0	02	1	1306-	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=7.5	1-83539-316-0	02	1	1306-		●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1306-	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1306-	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1306-	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1306-	●	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1306-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
