◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51486 - NLR/NMR(SOUTHAFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#122597) — 25 parça
çizim 357475
17 25 387 32 47 46 47 14
BalonParca AdiParca NoAdetTipApplied Date A B C
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M8X100 FLANGE 		0-28050-800-0 04 1 1306- ● ● ●
17 NUT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE SOU 		0-91180-208-0 01 1 1306- ● ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1306- ● ● ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1306- ● ● ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-103-0 01 1 1306- ● ● ●
46 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-98037-322-0 01 1 1306- ● ● ●
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE SOU 		0-28050-845-0 01 1 1306- ● ● ●
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ● ● ●
387 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE 		0-28650-820-0 01 1 1306- ● ● ●
çizim 358036
70 1 70 262
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98146-843-0 01 1 1306- ● ●
70 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) M6 FLANGE SOU 		0-91180-106-0 01 1 1306- ● ●
70 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ●
262 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98174-735-0 01 1 1306- ● ●

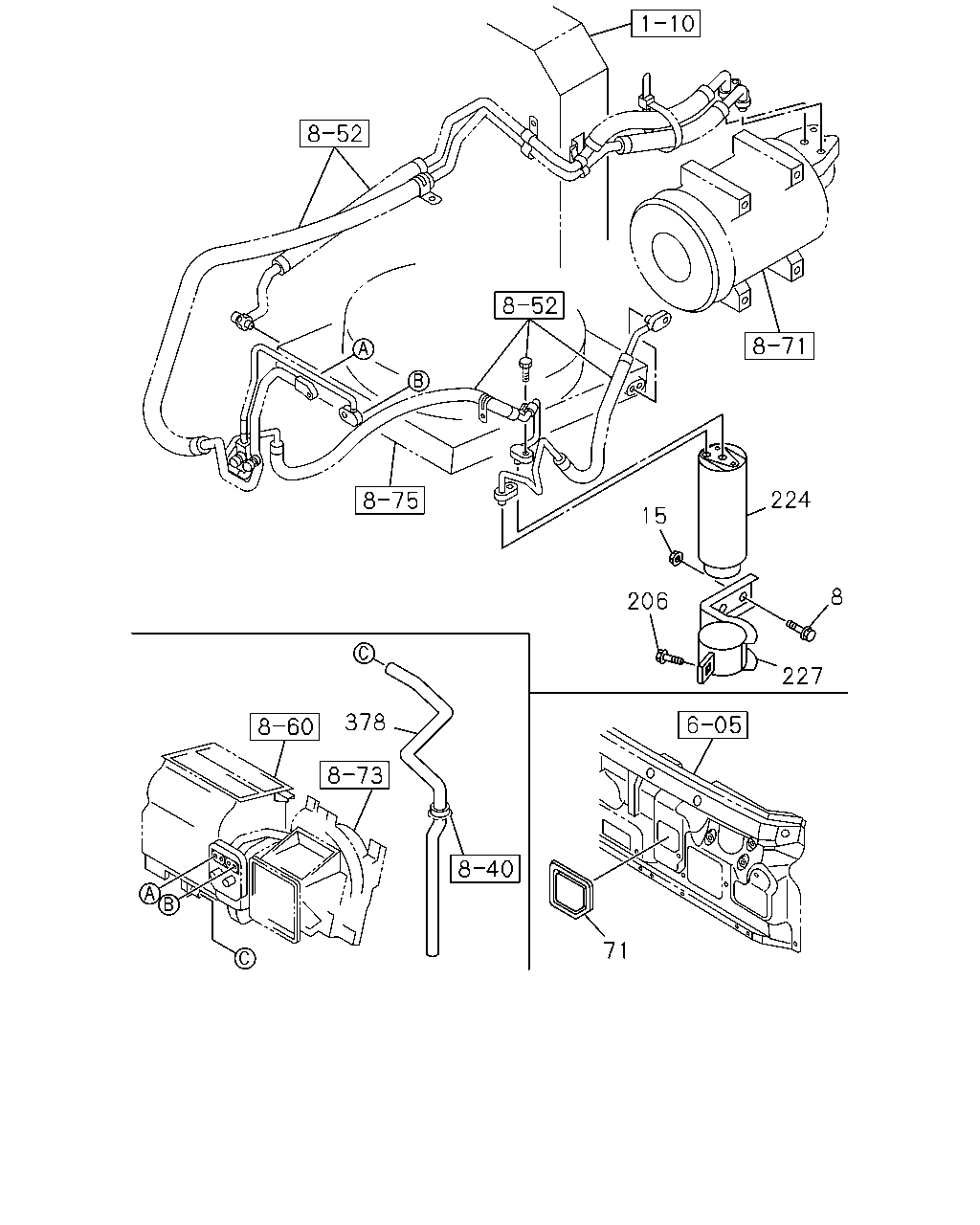

çizim 358388
15 224 8 227 206 71 378
BalonParca AdiParca NoAdetTipApplied Date A B C
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ●
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ● ●
15 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ●
15 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98017-234-1 01 1 1306- ● ● ●
206 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X16 		8-97096-525-0 01 1 1306- ●
206 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 		8-97096-525-0 01 1 1306- ● ●
224 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97096-593-0 01 1 1306- ●
224 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97096-593-0 01 1 1306- ● ●
227 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-566-0 01 1 1306- ●
227 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98042-566-0 01 1 1306- ● ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98001-241-2 01 1 1306- ● ● ●
