◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51486 - NLR/NMR(SOUTHAFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#122594) — 19 parça

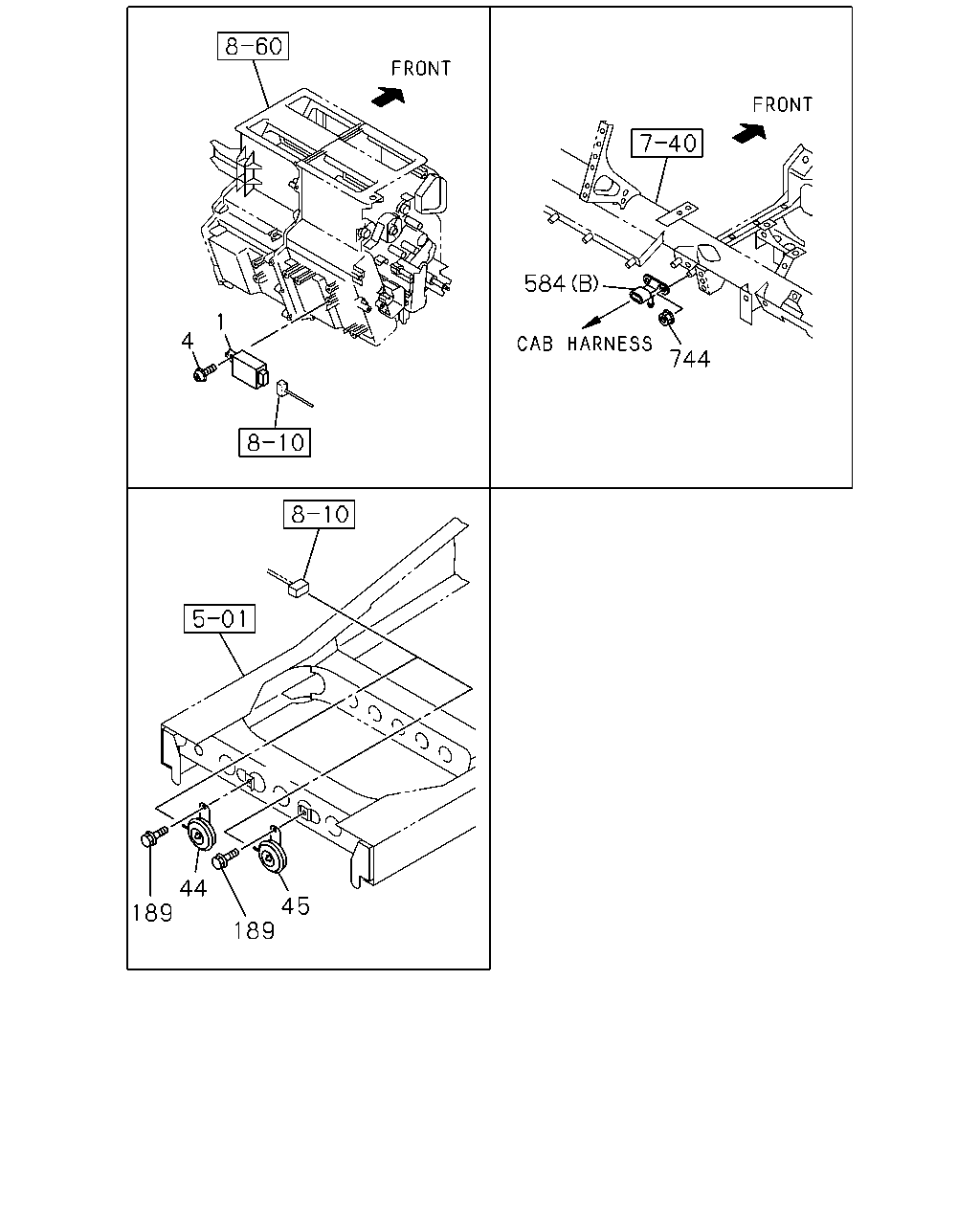

çizim 357099
4 1 744 584 44 45 189 189
BalonParca AdiParca NoAdetTipApplied Date A B C
1 UNIT; FLASHER 8-98025-533-1 01 1 1306- ● ● ●
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1306- ● ● ●
44 HORN; HIGH NOTE 8-98022-022-0 01 1 1306- ● ● ●
45 HORN; LOW NOTE 8-98022-023-0 01 1 1306- ● ● ●
189 BOLT; HORN
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1306- ● ● ●
189 BOLT; HORN
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1306- ● ● ●
584 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 1306- ● ● ●
584 SENSOR; PRESSURE
(B) 		8-98020-514-0 01 1 1306- ● ● ●
744 NUT; SENSOR
M6 FLANGE SOU 		0-91180-106-0 02 1 1306- ● ● ●

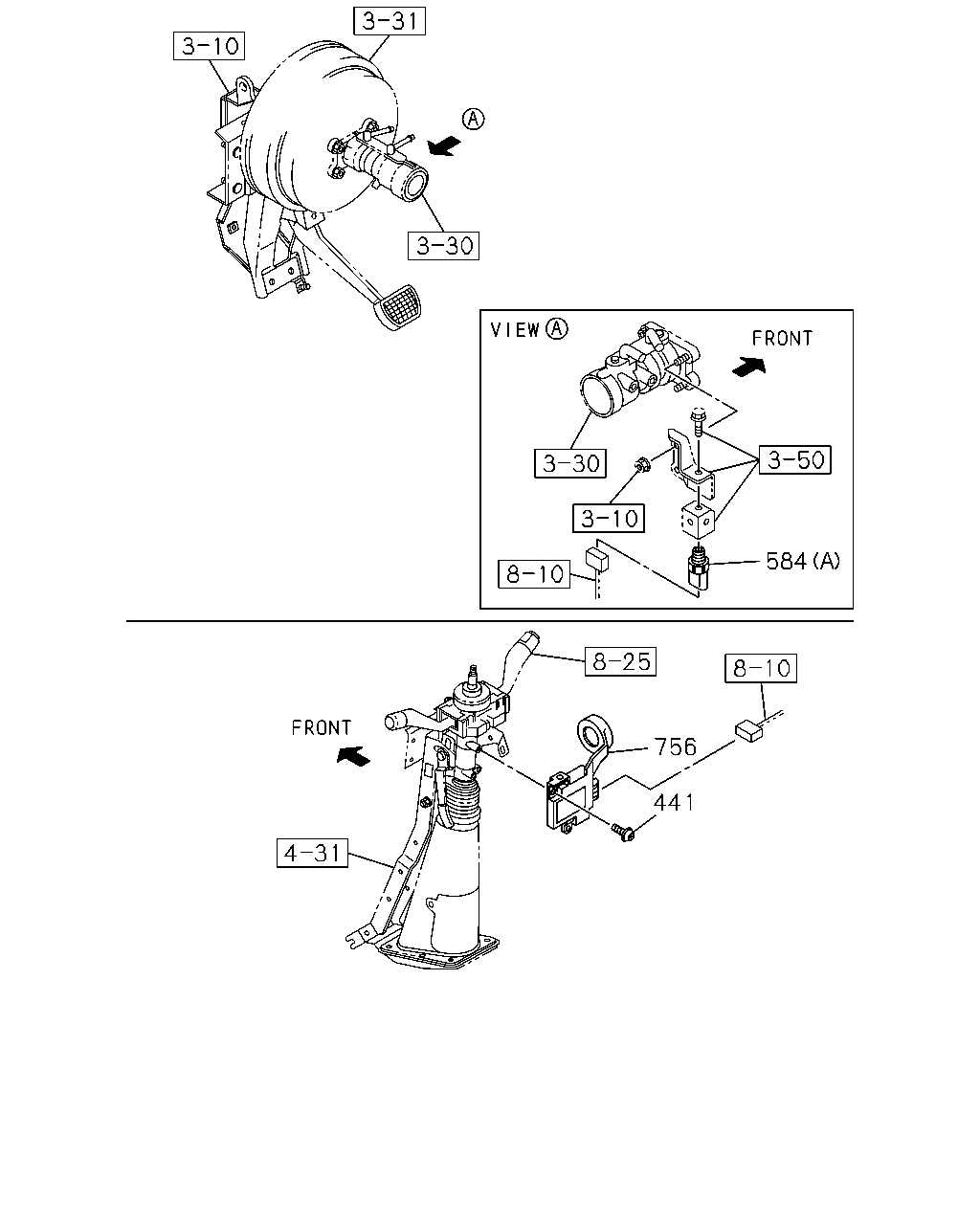

çizim 357207
756 441 584
BalonParca AdiParca NoAdetTipApplied Date A B C
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1306- ● ● ●
584 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 1306- ● ● ●
584 SENSOR; PRESSURE
(B) 		8-98020-514-0 01 1 1306- ● ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1306- ● ● ●
çizim 358220
540
BalonParca AdiParca NoAdetTipApplied Date A B C
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 1306-1308 ● ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ● ●

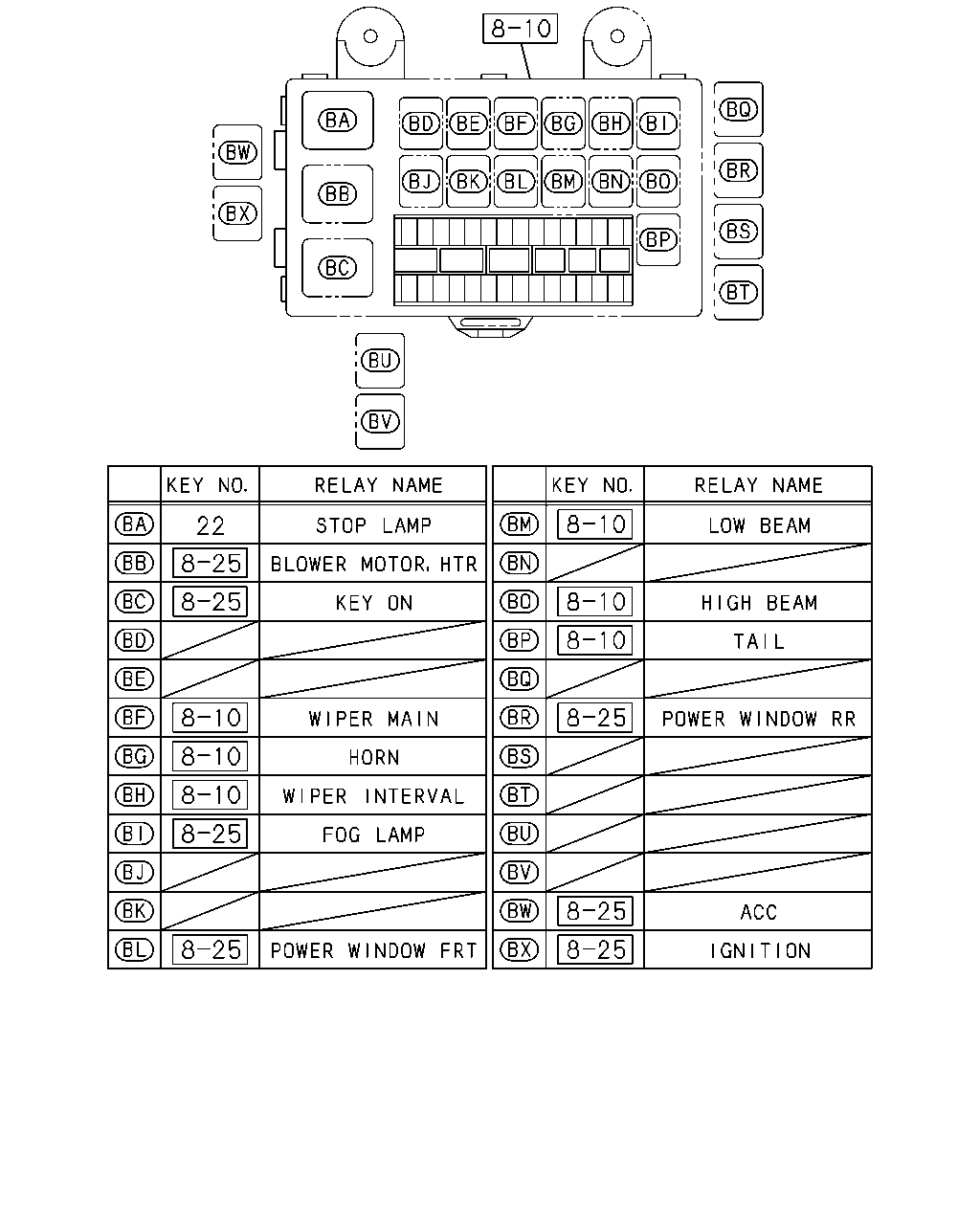

çizim 358532
22
BalonParca AdiParca NoAdetTipApplied Date A B C
22 RELAY; STOP LAMP
24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1306- ● ● ●
çizim 358751
666 531
BalonParca AdiParca NoAdetTipApplied Date A B C
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1306-1402 ● ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ● ●
666 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1306- ● ● ●
