◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51486 - NLR/NMR(SOUTHAFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#122592) — 22 parça

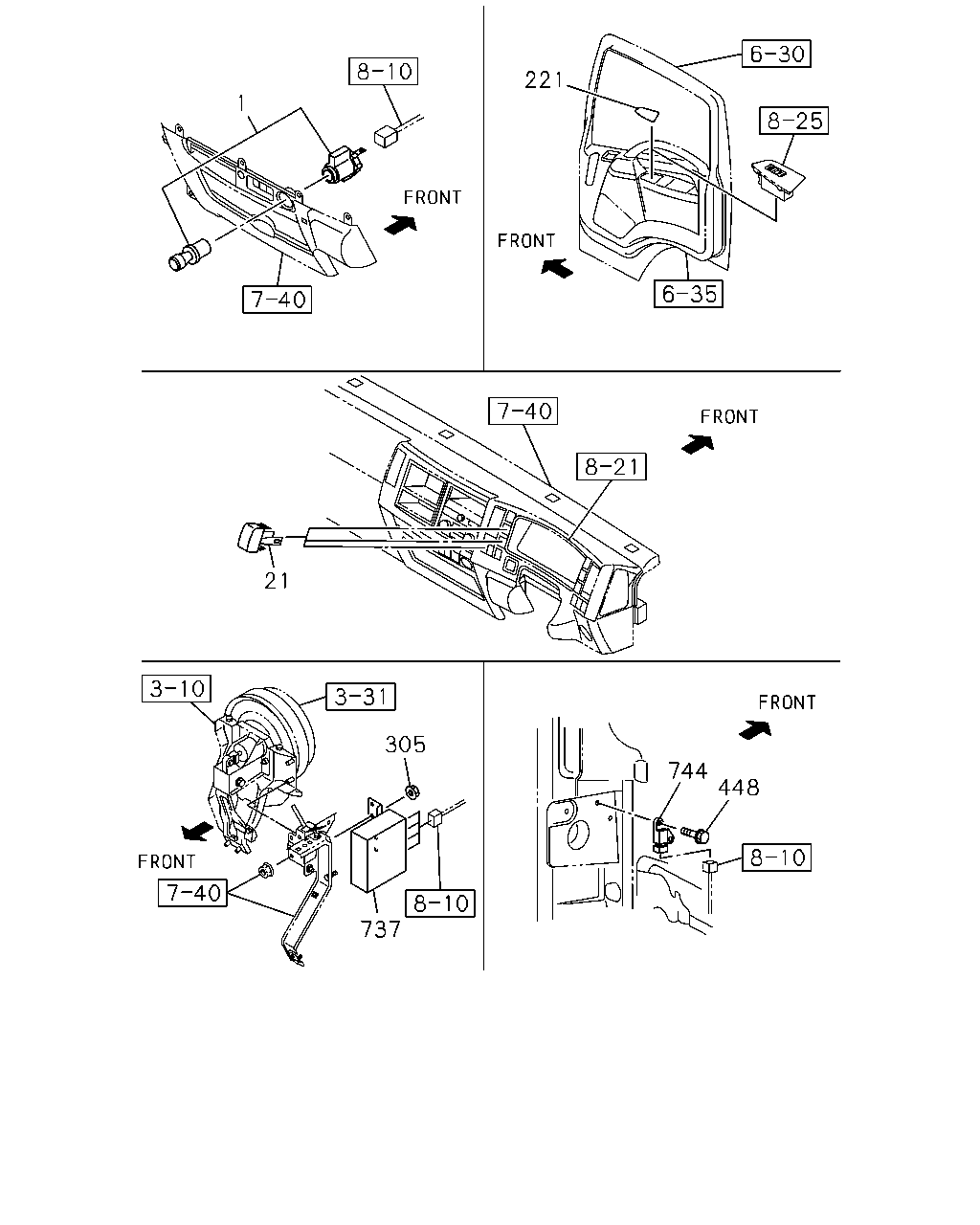

çizim 357470
1 221 21 305 737 744 448
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1306- ● ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1306-1511 ● ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1512- ● ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1512- ● ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1512- ● ● ●
21 COVER; HOLE 8-98025-954-1 02 1 1306-1511 ● ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1306- ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-915-2 01 1 1306- ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1306- ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-916-2 01 1 1306- ●
305 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/LK WASHER SOU 		8-94279-050-0 02 1 1306- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> M6X18 W/PL WASHER 		8-97105-796-1 02 1 1306- ● ● ●
737 CONTROL UNIT; TRANSMISSION
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98246-646-0 01 1 1306-1308 ● ●
737 CONTROL UNIT; TRANSMISSION
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98249-919-0 01 1 1309-1309 ● ●
737 CONTROL UNIT; TRANSMISSION
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98254-378-0 01 1 1310-1403 ● ●
737 CONTROL UNIT; TRANSMISSION
EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98255-495-0 01 1 1404- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 1306- ● ● ●

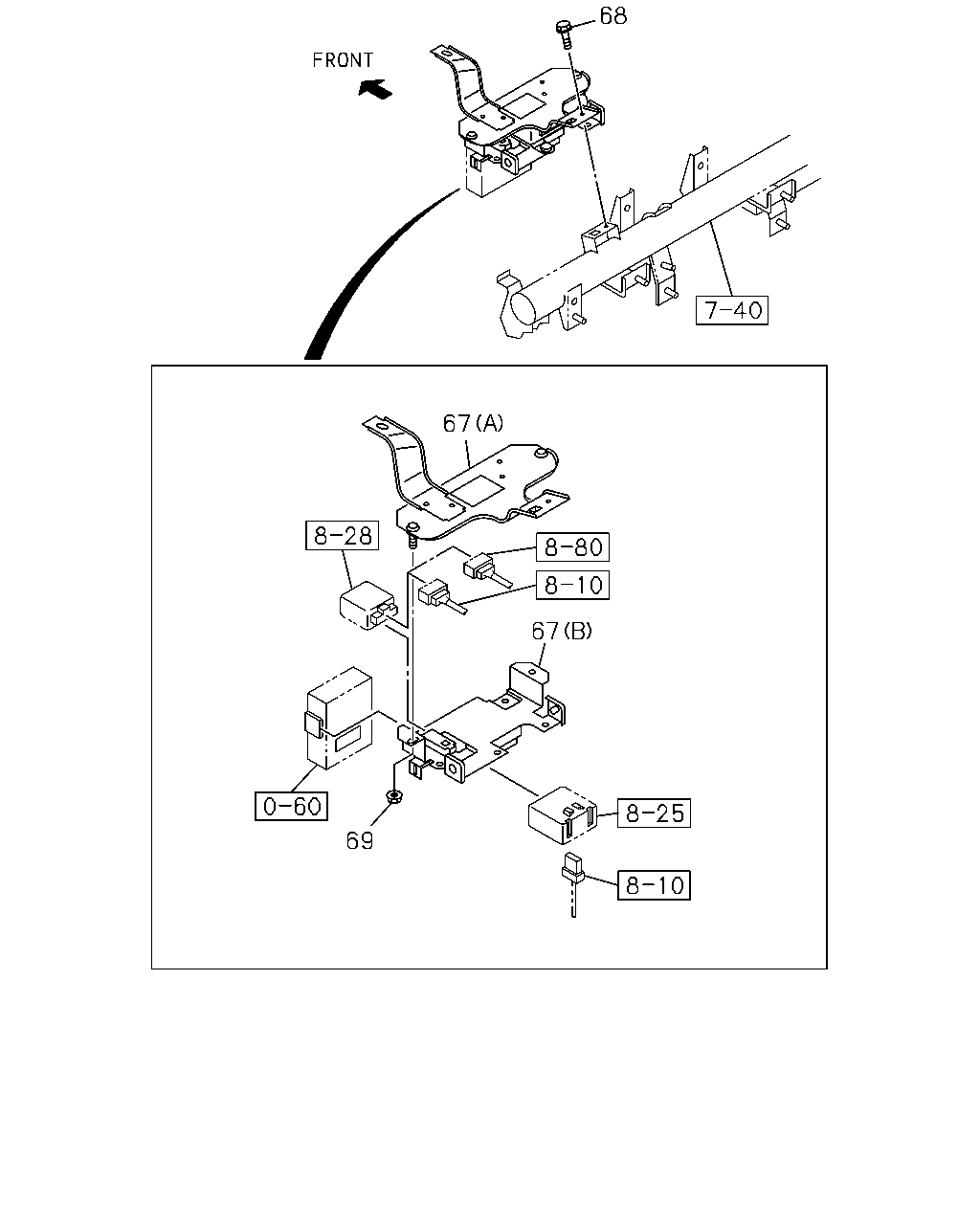

çizim 358307
68 67 67 69
BalonParca AdiParca NoAdetTipApplied Date A B C
67 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1306- ● ● ●
67 BRACKET; CONT UNIT
(B) 		8-98237-555-0 01 1 1306-1404 ● ● ●
67 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1405- ● ● ●
68 BOLT; BRKT
M6X12 FLANGE 		0-28450-612-0 01 1 1306- ● ● ●
69 NUT; BRKT
M6 FLANGE SOU 		0-91180-106-0 02 1 1306- ● ● ●
