◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51486 - NLR/NMR(SOUTHAFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#122590) — 16 parça
çizim 357616
1 2 110 81 480
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER 8-98113-282-3 01 1 1306- ●
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98113-282-3 01 1 1306- ● ●
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98225-380-0 01 1 1306- ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 1306- ● ● ●
81 METER SUB ASM 8-98113-316-0 01 1 1306- ●
81 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98113-316-0 01 1 1306- ● ●
81 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98236-756-0 01 1 1306- ● ●
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 1306- ● ● ●
480 COVER; METER
BLACK 		8-98054-433-0 01 1 1306- ● ● ●

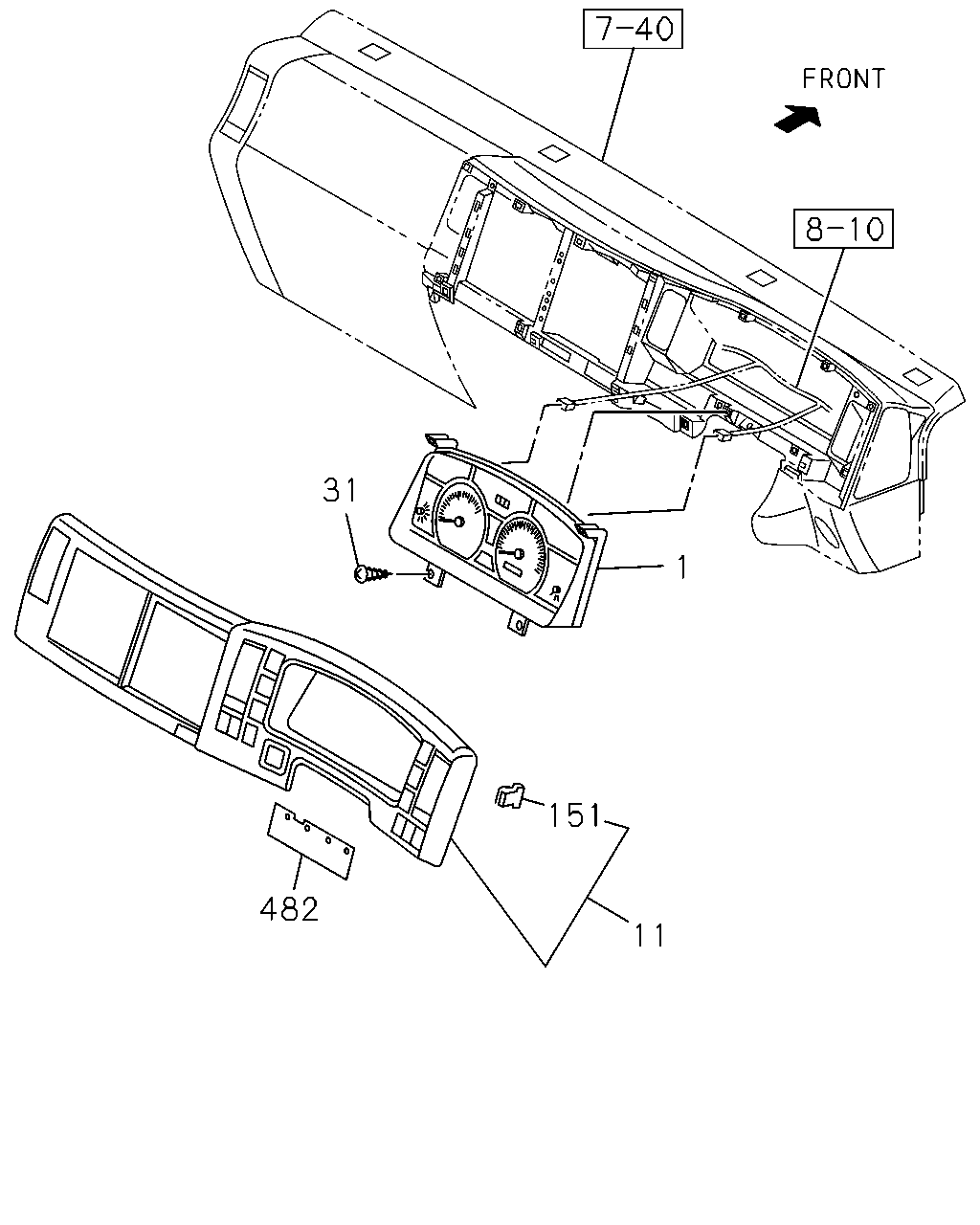

çizim 358770
1 11 151 31 482
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER 8-98113-282-3 01 1 1306- ●
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98113-282-3 01 1 1306- ● ●
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98225-380-0 01 1 1306- ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1306- ● ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1306- ● ● ●
151 CLIP; METER CLUSTER 8-98021-271-0 13 1 1306- ● ● ●
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 1306- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
