Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#122589) — 200 parça

313 480 481 139 38 242 529 480 386 386 377 377 139 515 24 577 219 294 515 524 552 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	NUT; HARNESS M6 FLANGE SOU	0-91180-106-0	01	1	1306-1409	●	●	●
24	NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●	●
38	BOLT; CLIP,HARNESS M8X12 FLANGE	0-28050-812-0	01	1	1306-1509	●	●	●
38	BOLT; CLIP,HARNESS KD PREPARATORY PACK<6HF> M8X12 FLANGE	0-28050-812-0	01	1	1510-	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> M8X12 FLANGE	0-28050-812-0	01	1	1510-		●	●
38	BOLT; CLIP,HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) M8X12 FLANGE	0-28050-812-0	01	1	1510-		●	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1306-	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1306-	●	●	●
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
242	BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE SOU	0-28650-835-0	02	1	1306-		●	●
294	NUT M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●
313	BOLT; BRKT M6X16 FLANGE SOU	0-28450-616-0	01	1	1306-	●	●	●
377	BOLT; CAB EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1306-	●	●	●
377	BOLT; CAB EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1306-	●	●	●
377	BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1306-	●	●	●
386	BOLT; GRAND HARNESS (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1306-	●	●	●
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1306-	●	●	●
480	BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●	●
480	BOLT; BRKT (A) M6X25 FLANGE SOU	0-28650-625-0	01	1	1306-	●	●	●
481	BOLT; CABLE HARNESS M8X10 W/LK WASHER	8-98029-928-0	02	1	1306-1407	●	●	●
481	BOLT; CABLE HARNESS M8X10 W/LK WASHER	8-98029-928-0	02	1	1408-1511	●		●
481	BOLT; CABLE HARNESS REAR WIDE TREAD(V4T) M8X10 W/LK WASHER	8-98029-928-0	02	1	1408-1511		●
481	BOLT; CABLE HARNESS M8X10 W/LK WASHER	8-98029-928-0	02	1	1512-	●	●	●
515	NUT; BRKT (A) M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●	●	●
515	NUT; BRKT (C) M8 FLANGE	8-98040-024-0	01	1	1306-	●	●	●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-1309	●		●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-1309		●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B) M10 FLANGE SOU	0-91180-110-0	01	1	1310-	●	●	●
524	NUT; HARNESS M8 FLANGE SOU	0-91180-108-0	01	1	1306-1407	●	●	●
524	NUT; HARNESS M8 FLANGE SOU	0-91180-108-0	01	1	1408-1511	●		●
524	NUT; HARNESS REAR WIDE TREAD(V4T) M8 FLANGE SOU	0-91180-108-0	01	1	1408-1511		●
524	NUT; HARNESS M8 FLANGE SOU	0-91180-108-0	01	1	1512-	●	●	●
529	BOLT; RELAY BOX M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1306-	●	●	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-		●	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-		●	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE SOU	0-91180-108-0	02	1	1306-		●	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●	●
577	NUT; FUSE BOX M6 FLANGE SOU	0-91180-106-0	04	1	1306-	●	●	●

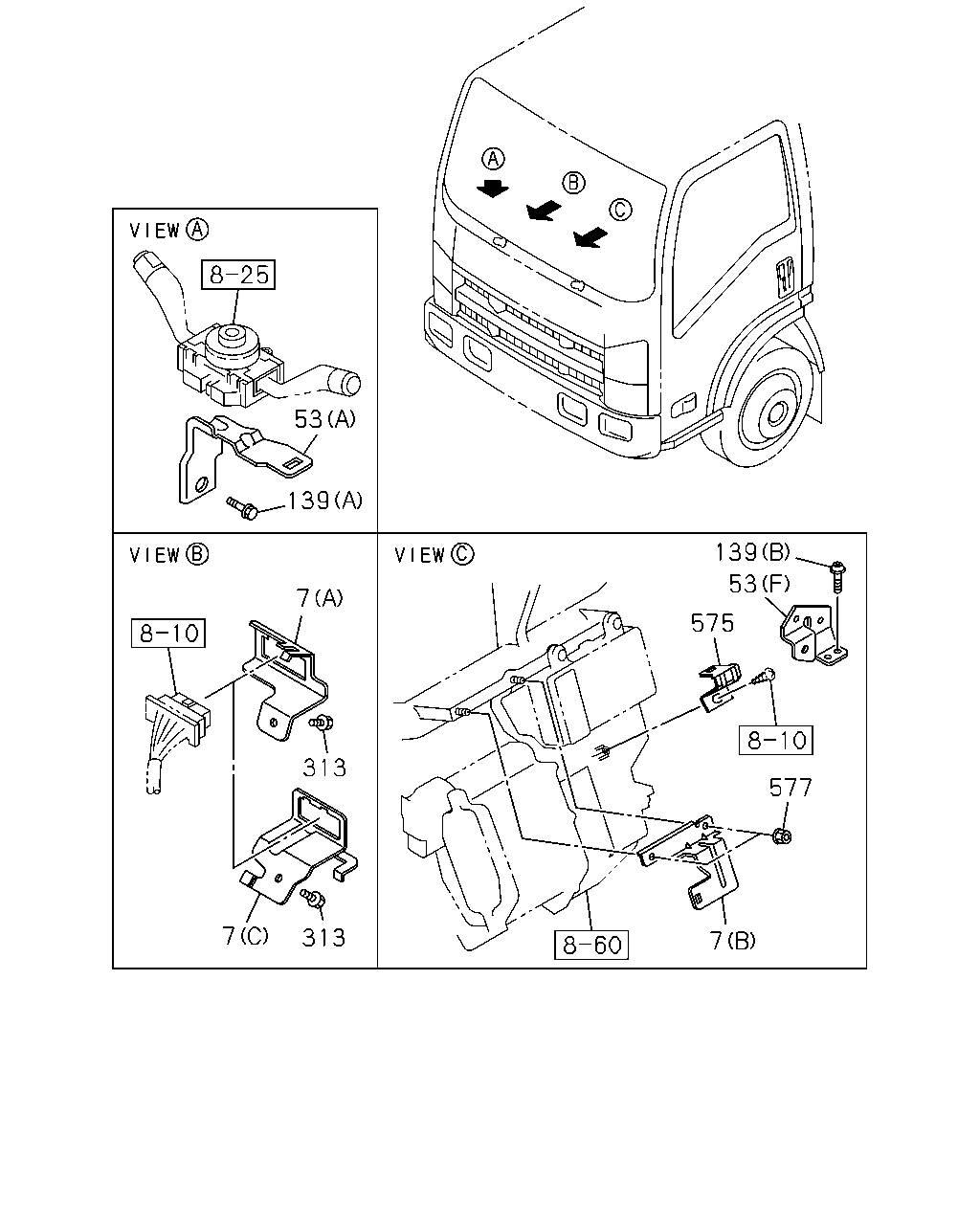

53 139 7 313 7 313 7 577 575 53 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98114-514-0	01	1	1306-		●	●
7	BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	1306-	●
7	BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98043-070-1	01	1	1306-		●	●
7	BRACKET; CONNECTOR (B)	8-98029-762-4	01	1	1306-	●	●	●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1306-	●	●	●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1306-	●	●	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	1306-	●	●	●
53	BRACKET; HARNESS (E)	8-98039-984-2	01	1	1306-	●	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1306-	●	●	●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	1306-1309	●		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1306-1309		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-	●	●	●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G)	8-98107-111-1	01	1	1306-1309	●		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (G)	8-98107-111-1	01	1	1306-1309		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (G)	8-98107-111-1	01	1	1310-	●	●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98084-590-0	01	1	1306-	●	●	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1306-	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1306-	●	●	●
313	BOLT; BRKT M6X16 FLANGE SOU	0-28450-616-0	01	1	1306-	●	●	●
575	BRACKET; FUSE BOX	8-98042-656-2	01	1	1306-	●	●	●
577	NUT; FUSE BOX M6 FLANGE SOU	0-91180-106-0	04	1	1306-	●	●	●

16 22 22 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1306-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=40.6	8-97229-357-0	02	1	1306-			●
16	CLIP; HARNESS (J) L=250 SOU	5-09707-030-1	01	1	1306-	●	●	●
16	CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	1306-	●	●	●
16	CLIP; HARNESS (D) ID=10 & 16 SOU	8-94413-325-0	01	1	1306-	●	●	●
16	CLIP; HARNESS (B) ID=6 & 10-13 SOU	8-97069-515-0	02	1	1306-	●	●	●
16	CLIP; HARNESS (A) L=155 SOU	8-97173-307-0	14	1	1306-	●	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1306-	●	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (F) ID=6 & 10 SOU	8-94154-844-0	01	1	1306-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	1306-			●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	1306-			●
22	CLIP; ENG HARNESS (A) L=140 SOU	5-09707-031-1	01	1	1306-1311	●	●	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) L=140 SOU	5-09707-031-1	01	1	1306-1311		●	●
22	CLIP; ENG HARNESS (A) L=140 SOU	5-09707-031-1	01	1	1312-1509	●	●	●
22	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (A) L=140 SOU	5-09707-031-1	01	1	1510-	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (A) L=140 SOU	5-09707-031-1	01	1	1510-		●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	01	1	1510-		●	●
22	CLIP; ENG HARNESS (E) ID=6 & 8.3	8-94167-742-0	01	1	1306-1509	●	●	●
22	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3	8-94167-742-0	01	1	1510-	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3	8-94167-742-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=6 & 8.3	8-94167-742-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1306-1509	●	●	●
22	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1510-	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS (G) ID=12 & 6.8	8-97125-842-0	01	1	1306-1509	●	●	●
22	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (G) ID=12 & 6.8	8-97125-842-0	01	1	1510-	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (G) ID=12 & 6.8	8-97125-842-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=12 & 6.8	8-97125-842-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS (D) L=119.5	1-09707-197-0	01	1	1306-	●	●	●
22	CLIP; ENG HARNESS (B) L=100 SOU	5-09707-036-1	01	1	1306-	●	●	●
22	CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1306-	●	●	●

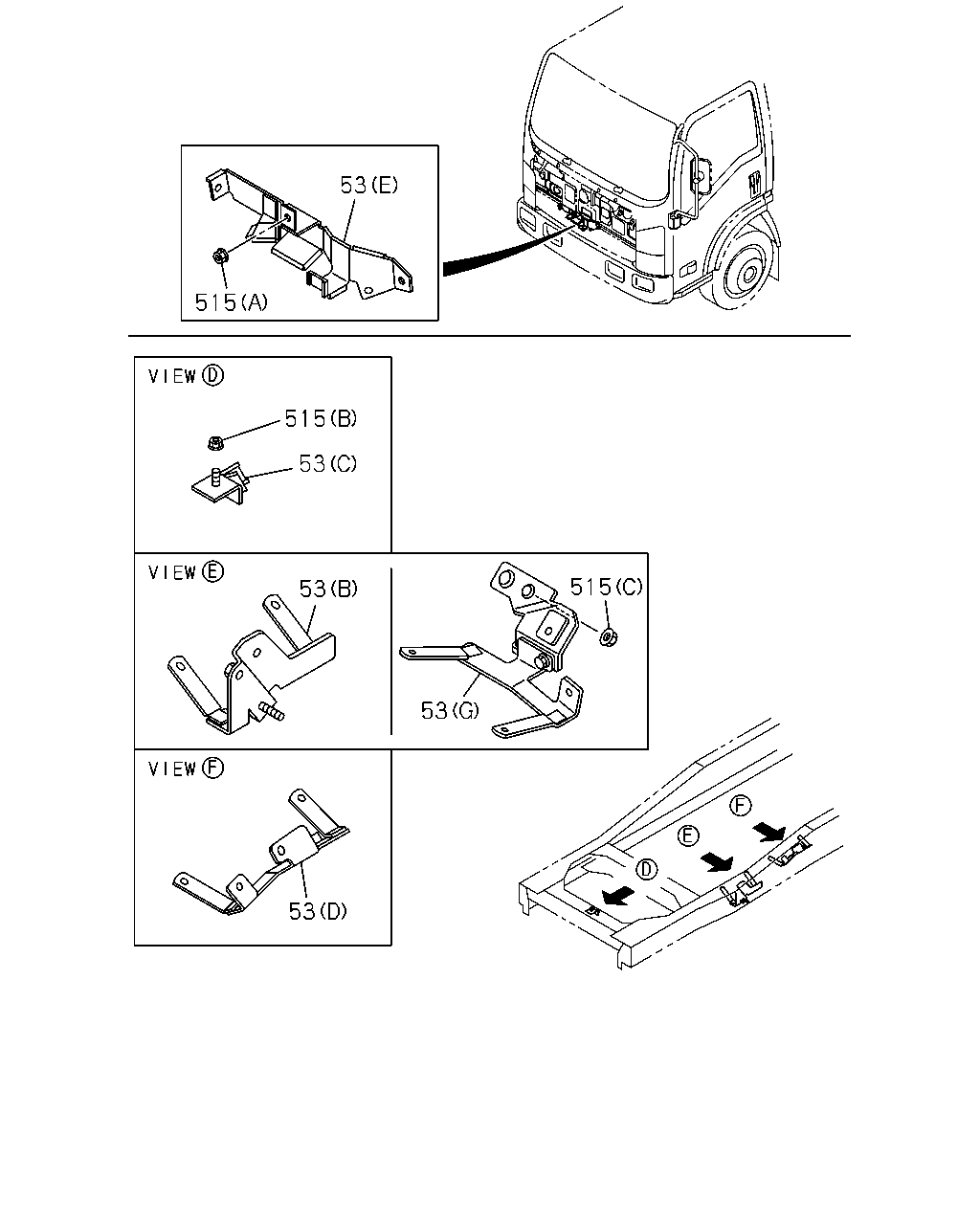

53 515 515 53 53 53 53 515

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1306-	●	●	●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1306-	●	●	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	1306-	●	●	●
53	BRACKET; HARNESS (E)	8-98039-984-2	01	1	1306-	●	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1306-	●	●	●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	1306-1309	●		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1306-1309		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-	●	●	●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G)	8-98107-111-1	01	1	1306-1309	●		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (G)	8-98107-111-1	01	1	1306-1309		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (G)	8-98107-111-1	01	1	1310-	●	●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98084-590-0	01	1	1306-	●	●	●
515	NUT; BRKT (A) M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●	●	●
515	NUT; BRKT (C) M8 FLANGE	8-98040-024-0	01	1	1306-	●	●	●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-1309	●		●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-1309		●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B) M10 FLANGE SOU	0-91180-110-0	01	1	1310-	●	●	●

16 16 16 16 48 16 22 513

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1306-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=40.6	8-97229-357-0	02	1	1306-			●
16	CLIP; HARNESS (J) L=250 SOU	5-09707-030-1	01	1	1306-	●	●	●
16	CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	1306-	●	●	●
16	CLIP; HARNESS (D) ID=10 & 16 SOU	8-94413-325-0	01	1	1306-	●	●	●
16	CLIP; HARNESS (B) ID=6 & 10-13 SOU	8-97069-515-0	02	1	1306-	●	●	●
16	CLIP; HARNESS (A) L=155 SOU	8-97173-307-0	14	1	1306-	●	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1306-	●	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (F) ID=6 & 10 SOU	8-94154-844-0	01	1	1306-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	1306-			●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	1306-			●
22	CLIP; ENG HARNESS (A) L=140 SOU	5-09707-031-1	01	1	1306-1311	●	●	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) L=140 SOU	5-09707-031-1	01	1	1306-1311		●	●
22	CLIP; ENG HARNESS (A) L=140 SOU	5-09707-031-1	01	1	1312-1509	●	●	●
22	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (A) L=140 SOU	5-09707-031-1	01	1	1510-	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (A) L=140 SOU	5-09707-031-1	01	1	1510-		●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	01	1	1510-		●	●
22	CLIP; ENG HARNESS (E) ID=6 & 8.3	8-94167-742-0	01	1	1306-1509	●	●	●
22	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3	8-94167-742-0	01	1	1510-	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3	8-94167-742-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=6 & 8.3	8-94167-742-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1306-1509	●	●	●
22	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1510-	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS (G) ID=12 & 6.8	8-97125-842-0	01	1	1306-1509	●	●	●
22	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (G) ID=12 & 6.8	8-97125-842-0	01	1	1510-	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (G) ID=12 & 6.8	8-97125-842-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=12 & 6.8	8-97125-842-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS (D) L=119.5	1-09707-197-0	01	1	1306-	●	●	●
22	CLIP; ENG HARNESS (B) L=100 SOU	5-09707-036-1	01	1	1306-	●	●	●
22	CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1306-	●	●	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47 SOU	5-09700-319-0	07	1	1306-	●
48	CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) (B) ID=14 L=47 SOU	5-09700-319-0	07	1	1306-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) ID=14 L=47 SOU	5-09700-319-0	09	1	1306-		●
48	CLIP; FRAME HARNESS (B) ID=14 L=47 SOU	5-09700-319-0	09	1	1306-			●
48	CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1306-			●
513	TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 SOU	8-97304-373-0	01	1	1306-	●	●	●

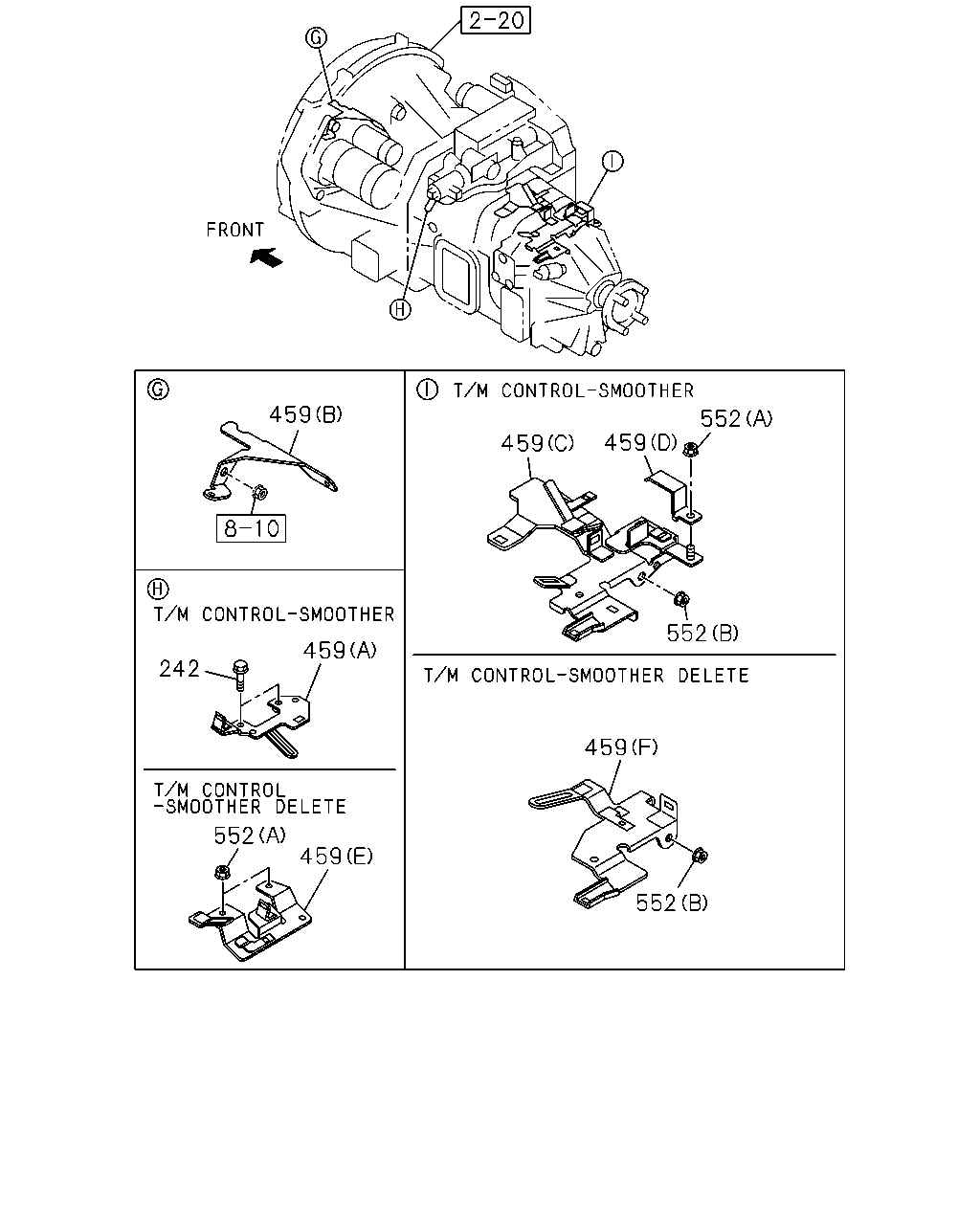

459 242 459 459 552 459 459 552 552 459 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
242	BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE SOU	0-28650-835-0	02	1	1306-		●	●
459	BRACKET; SUPPORT,HARNESS (E)	8-98020-227-3	01	1	1306-	●
459	BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1306-		●	●
459	BRACKET; SUPPORT,HARNESS (F)	8-98196-974-0	01	1	1306-	●
459	BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98196-974-0	01	1	1306-		●	●
459	BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	1306-		●	●
459	BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	1306-		●	●
459	BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	1306-		●	●
459	BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	1306-		●	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-		●	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-		●	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE SOU	0-91180-108-0	02	1	1306-		●	●
552	NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●	●

22 22 16 22 48 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1306-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=40.6	8-97229-357-0	02	1	1306-			●
16	CLIP; HARNESS (J) L=250 SOU	5-09707-030-1	01	1	1306-	●	●	●
16	CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	1306-	●	●	●
16	CLIP; HARNESS (D) ID=10 & 16 SOU	8-94413-325-0	01	1	1306-	●	●	●
16	CLIP; HARNESS (B) ID=6 & 10-13 SOU	8-97069-515-0	02	1	1306-	●	●	●
16	CLIP; HARNESS (A) L=155 SOU	8-97173-307-0	14	1	1306-	●	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1306-	●	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (F) ID=6 & 10 SOU	8-94154-844-0	01	1	1306-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	1306-			●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	1306-			●
22	CLIP; ENG HARNESS (A) L=140 SOU	5-09707-031-1	01	1	1306-1311	●	●	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) L=140 SOU	5-09707-031-1	01	1	1306-1311		●	●
22	CLIP; ENG HARNESS (A) L=140 SOU	5-09707-031-1	01	1	1312-1509	●	●	●
22	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (A) L=140 SOU	5-09707-031-1	01	1	1510-	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (A) L=140 SOU	5-09707-031-1	01	1	1510-		●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU	5-09707-031-1	01	1	1510-		●	●
22	CLIP; ENG HARNESS (E) ID=6 & 8.3	8-94167-742-0	01	1	1306-1509	●	●	●
22	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3	8-94167-742-0	01	1	1510-	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3	8-94167-742-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=6 & 8.3	8-94167-742-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1306-1509	●	●	●
22	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1510-	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS (G) ID=12 & 6.8	8-97125-842-0	01	1	1306-1509	●	●	●
22	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (G) ID=12 & 6.8	8-97125-842-0	01	1	1510-	●
22	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (G) ID=12 & 6.8	8-97125-842-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=12 & 6.8	8-97125-842-0	01	1	1510-		●	●
22	CLIP; ENG HARNESS (D) L=119.5	1-09707-197-0	01	1	1306-	●	●	●
22	CLIP; ENG HARNESS (B) L=100 SOU	5-09707-036-1	01	1	1306-	●	●	●
22	CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1306-	●	●	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47 SOU	5-09700-319-0	07	1	1306-	●
48	CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) (B) ID=14 L=47 SOU	5-09700-319-0	07	1	1306-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) ID=14 L=47 SOU	5-09700-319-0	09	1	1306-		●
48	CLIP; FRAME HARNESS (B) ID=14 L=47 SOU	5-09700-319-0	09	1	1306-			●
48	CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1306-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
