Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#122588) — 223 parça

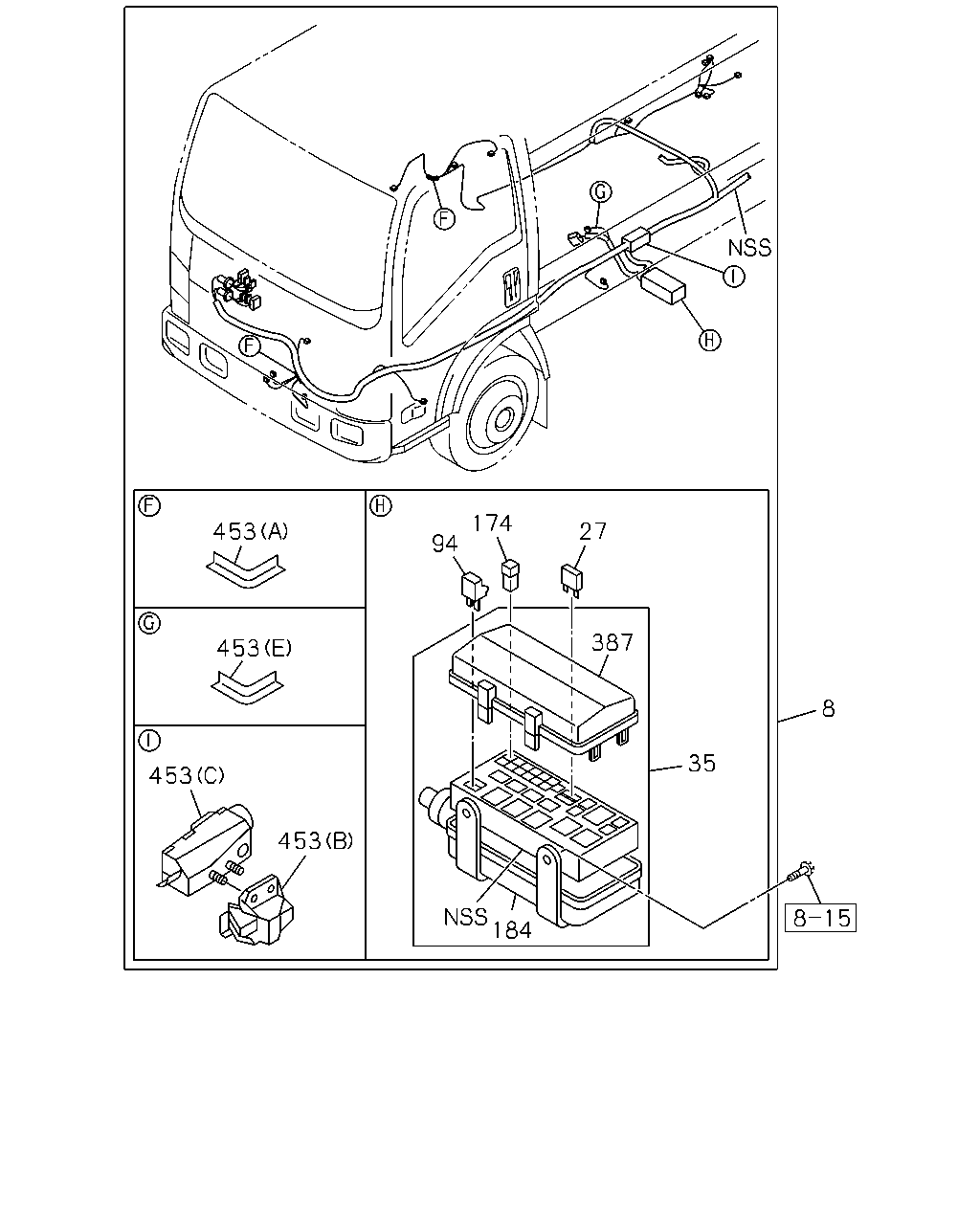

453 453 453 453 184 35 8 387 27 174 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98117-809-2	01	1	1306-1309	●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>	8-98117-809-2	01	1	1306-1309		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-809-2	01	1	1306-1309		●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98117-809-2	01	1	1310-1409	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB>	8-98117-809-2	01	1	1310-1409	●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>	8-98117-809-2	01	1	1310-1409		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-809-2	01	1	1310-1409		●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98293-833-0	01	1	1410-	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB>	8-98293-833-0	01	1	1410-	●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>	8-98293-833-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98293-833-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98117-807-2	01	1	1306-1309	●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98117-807-2	01	1	1306-1309		●
8	HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98117-807-2	01	1	1310-1409	●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98117-807-2	01	1	1310-1409		●
8	HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98293-831-0	01	1	1410-	●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98293-831-0	01	1	1410-		●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>	8-98220-881-0	01	1	1306-1409		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98220-881-0	01	1	1306-1409		●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>	8-98293-840-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98293-840-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98220-879-0	01	1	1306-1409		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98293-838-0	01	1	1410-		●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98220-882-0	01	1	1306-1309			●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>	8-98220-882-0	01	1	1310-1409			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98220-882-0	01	1	1310-1409			●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>	8-98293-841-0	01	1	1410-			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98293-841-0	01	1	1410-			●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-810-3	01	1	1306-1309			●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>	8-98117-810-3	01	1	1310-1409			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-810-3	01	1	1310-1409			●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>	8-98293-834-0	01	1	1410-			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98293-834-0	01	1	1410-			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98220-880-0	01	1	1306-1309			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98220-880-0	01	1	1310-1409			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98293-839-0	01	1	1410-			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98117-808-3	01	1	1306-1309			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98117-808-3	01	1	1310-1409			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98293-832-0	01	1	1410-			●
27	FUSE UNIT 10A RED SOU	8-98054-257-0	AR	1	1306-	●	●	●
35	BOX; RELAY & FUSE	8-98030-763-0	01	1	1306-	●	●	●
94	DIODE; FRAME HARNESS BLACK 2P-1.5A SOU	8-94422-639-1	01	1	1306-	●	●	●
174	FUSE; SLOW BLOW 30A PINK SOU	8-98079-191-0	AR	1	1306-	●	●	●
174	FUSE; SLOW BLOW 40A GREEN SOU	8-98079-192-0	AR	1	1306-	●	●	●
174	FUSE; SLOW BLOW 50A RED SOU	8-98079-193-0	AR	1	1306-	●	●	●
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	AR	1	1306-	●	●	●
184	COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1306-	●	●	●
387	COVER; RELAY BOX	8-98081-367-0	01	1	1306-	●	●	●
453	PROTECTOR; HARNESS (A)	8-94417-716-0	03	1	1410-			●
453	PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	1306-1409	●	●	●
453	PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	1410-	●	●
453	PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	1306-	●	●	●
453	PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1306-	●	●	●
453	PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1306-	●	●	●
453	PROTECTOR; HARNESS (D)	8-98034-039-1	01	1	1306-	●	●	●

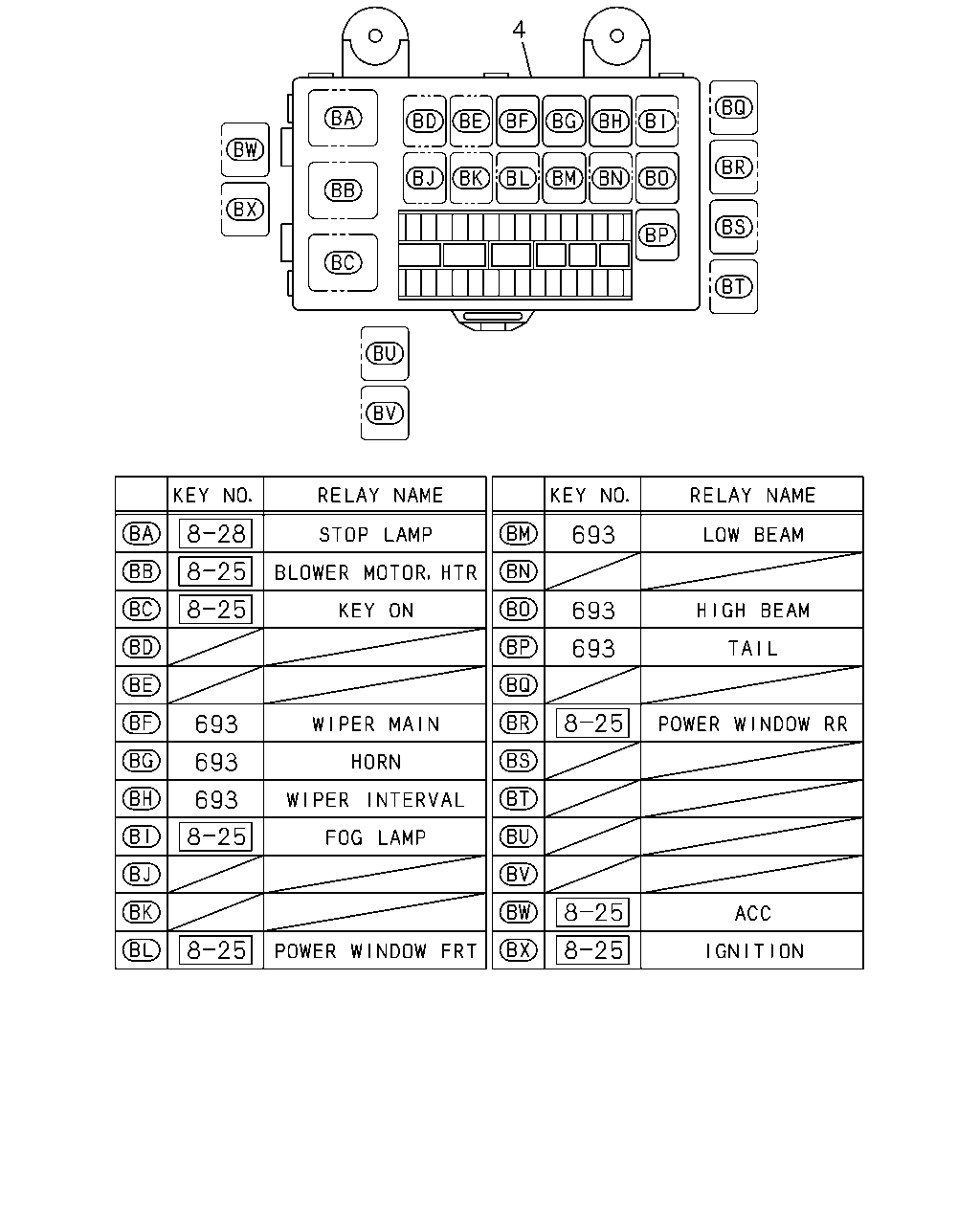

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1306-	●	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1306-	●	●	●

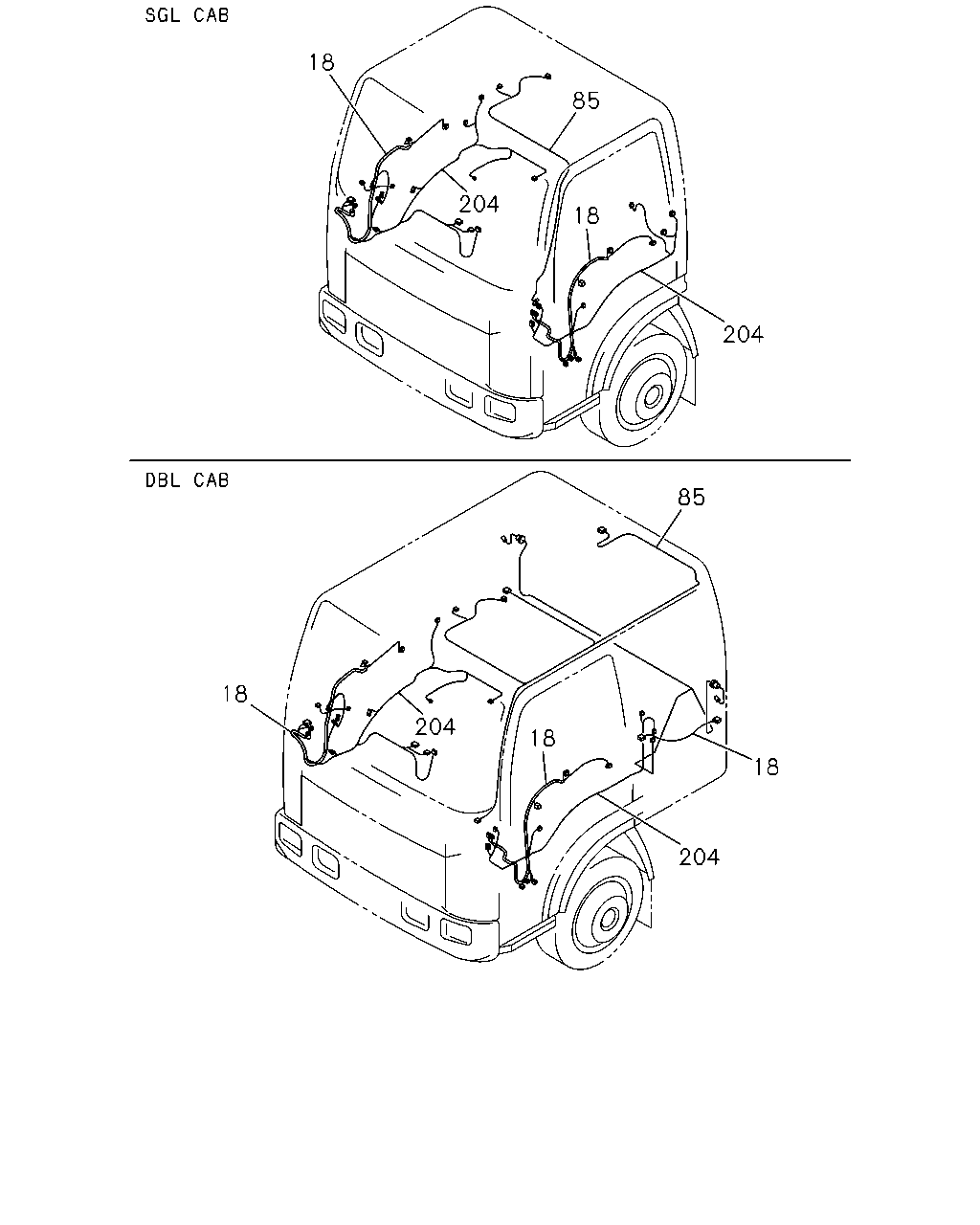

18 204 18 85 18 204 204 85 18 204 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98071-076-2	01	1	1306-	●	●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-076-2	01	1	1306-			●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98071-084-3	01	1	1306-	●	●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-084-3	01	1	1306-			●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98071-075-2	01	1	1306-	●	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-075-2	01	1	1306-			●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98071-083-2	01	1	1306-	●	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-083-2	01	1	1306-			●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> REAR	8-98202-555-0	02	1	1306-			●
85	HARNESS; ROOM LAMP	8-98049-963-3	01	1	1306-	●	●
85	HARNESS; ROOM LAMP	8-98033-823-4	01	1	1306-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98047-157-6	01	1	1306-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98047-157-6	01	1	1306-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98075-612-3	01	1	1306-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF)	8-98075-612-3	01	1	1306-		●
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-787-4	01	1	1306-	●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-787-4	01	1	1306-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98047-156-6	01	1	1306-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF)	8-98074-592-3	01	1	1306-		●
204	HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	1306-		●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-789-4	01	1	1306-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-727-6	01	1	1306-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98029-726-6	01	1	1306-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98070-797-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98070-793-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31>	8-98074-594-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98074-593-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-796-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-792-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-810-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98070-795-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98070-791-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOWFRT&REAR DOOR<A31>	8-98070-809-3	01	1	1306-			●

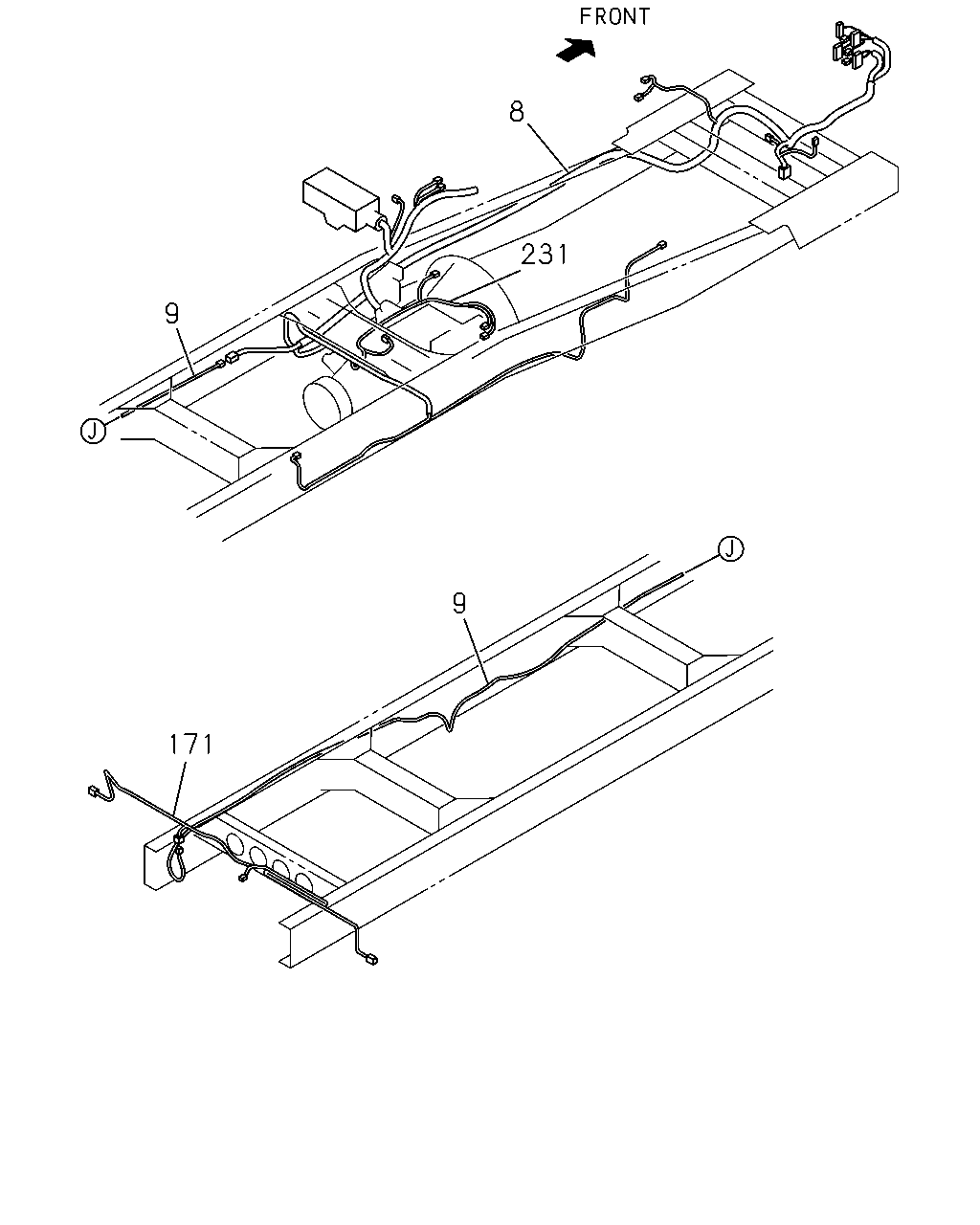

8 231 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98117-809-2	01	1	1306-1309	●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>	8-98117-809-2	01	1	1306-1309		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-809-2	01	1	1306-1309		●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98117-809-2	01	1	1310-1409	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB>	8-98117-809-2	01	1	1310-1409	●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>	8-98117-809-2	01	1	1310-1409		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-809-2	01	1	1310-1409		●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98293-833-0	01	1	1410-	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB>	8-98293-833-0	01	1	1410-	●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>	8-98293-833-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98293-833-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98117-807-2	01	1	1306-1309	●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98117-807-2	01	1	1306-1309		●
8	HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98117-807-2	01	1	1310-1409	●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98117-807-2	01	1	1310-1409		●
8	HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98293-831-0	01	1	1410-	●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98293-831-0	01	1	1410-		●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>	8-98220-881-0	01	1	1306-1409		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98220-881-0	01	1	1306-1409		●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>	8-98293-840-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98293-840-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98220-879-0	01	1	1306-1409		●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98293-838-0	01	1	1410-		●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98220-882-0	01	1	1306-1309			●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>	8-98220-882-0	01	1	1310-1409			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98220-882-0	01	1	1310-1409			●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>	8-98293-841-0	01	1	1410-			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98293-841-0	01	1	1410-			●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-810-3	01	1	1306-1309			●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>	8-98117-810-3	01	1	1310-1409			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-810-3	01	1	1310-1409			●
8	HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>	8-98293-834-0	01	1	1410-			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98293-834-0	01	1	1410-			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98220-880-0	01	1	1306-1309			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98220-880-0	01	1	1310-1409			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98293-839-0	01	1	1410-			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98117-808-3	01	1	1306-1309			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98117-808-3	01	1	1310-1409			●
8	HARNESS; FRAME,FRT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98293-832-0	01	1	1410-			●
9	HARNESS; FRAME,RR	8-98048-414-2	01	1	1306-	●
9	HARNESS; FRAME,RR WHEEL BASE 2400MM(24W)	8-98048-414-2	01	1	1306-		●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98048-424-1	01	1	1306-		●
9	HARNESS; FRAME,RR	8-98048-424-1	01	1	1306-			●
171	HARNESS; CABLE,TAIL LAMP	8-98156-027-0	01	1	1306-	●	●	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-598-1	01	1	1306-		●	●

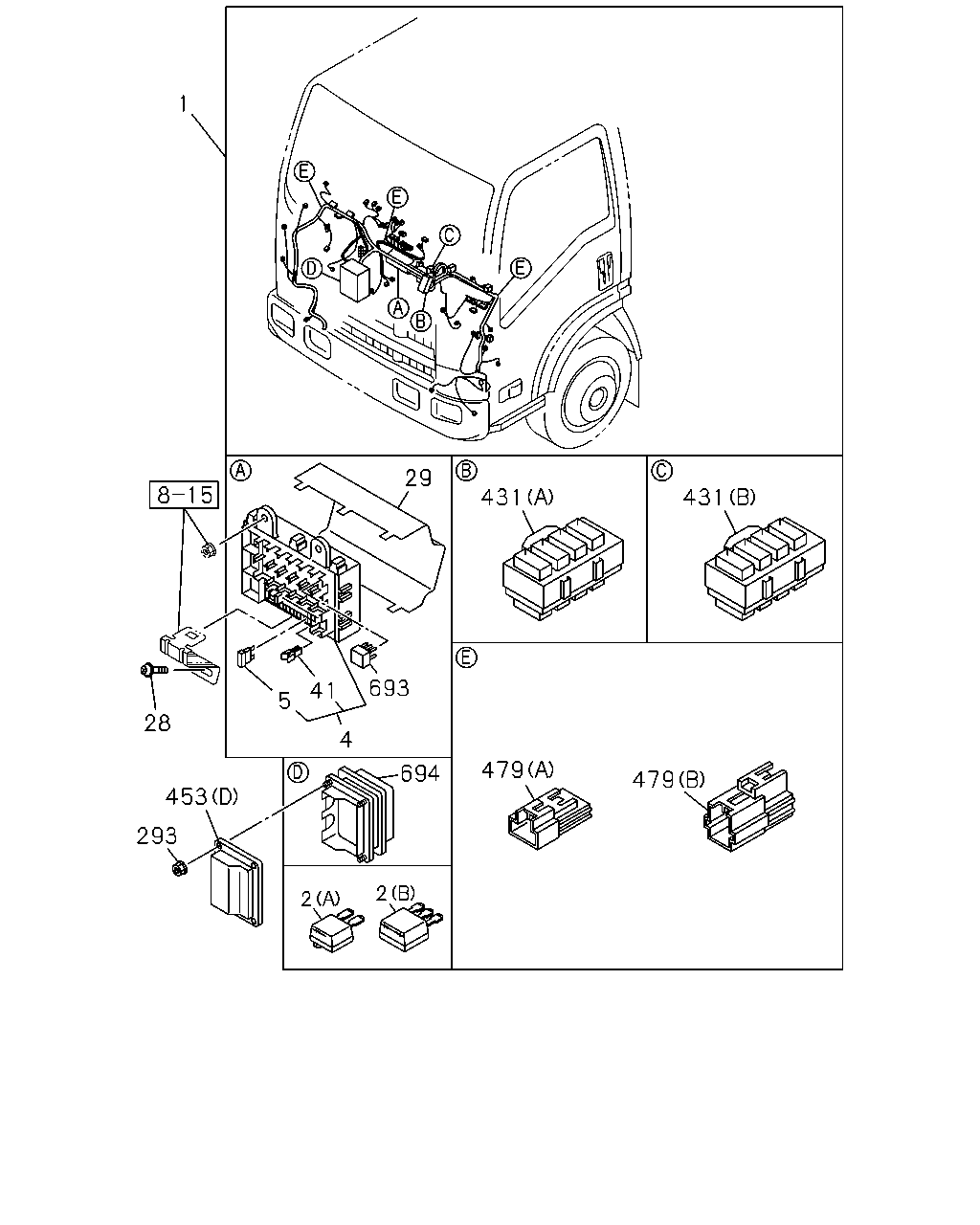

1 29 693 4 41 5 28 453 293 2 694 2 479 479 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-643-0	01	1	1306-	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-643-0	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98207-643-0	01	1	1306-			●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-642-0	01	1	1306-	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-642-0	01	1	1306-		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-642-0	01	1	1306-			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98228-702-2	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98228-702-2	01	1	1306-			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98228-701-2	01	1	1306-		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98228-701-2	01	1	1306-			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98228-704-2	01	1	1306-			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-648-0	01	1	1306-			●
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98228-703-2	01	1	1306-			●
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-647-0	01	1	1306-			●
2	DIODE; CABLE HARNESS (A) BLACK 2P-1.5A SOU	8-94422-639-1	AR	1	1306-	●	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A SOU	8-94422-640-1	AR	1	1306-	●	●	●
4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1306-	●	●	●
5	FUSE; FACIA HARNESS 10A RED SOU	8-98054-257-0	AR	1	1306-	●	●	●
5	FUSE; FACIA HARNESS 15A BLUE SOU	8-98054-258-0	AR	1	1306-	●	●	●
5	FUSE; FACIA HARNESS 20A YELLOW SOU	8-98054-259-0	AR	1	1306-	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1306-	●	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1306-	●	●	●
41	PULLER; FUSE SOU	8-98054-260-0	01	1	1306-	●	●	●
293	NUT M6 FLANGE SOU	0-91180-106-0	04	1	1306-	●	●	●
431	CONNECTOR; JOINT (A)	8-98046-205-0	01	1	1306-	●	●	●
431	CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1306-	●	●	●
453	PROTECTOR; HARNESS (A)	8-94417-716-0	03	1	1410-			●
453	PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	1306-1409	●	●	●
453	PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	1410-	●	●
453	PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	1306-	●	●	●
453	PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1306-	●	●	●
453	PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1306-	●	●	●
453	PROTECTOR; HARNESS (D)	8-98034-039-1	01	1	1306-	●	●	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	1306-	●	●	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	1306-	●	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1306-	●	●	●
694	BOX ASM; CONNECTOR	8-98057-772-0	01	1	1306-	●	●	●

101 290 691 1 290 101 290 101 101 267 101 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-643-0	01	1	1306-	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-643-0	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98207-643-0	01	1	1306-			●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-642-0	01	1	1306-	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-642-0	01	1	1306-		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-642-0	01	1	1306-			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98228-702-2	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98228-702-2	01	1	1306-			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98228-701-2	01	1	1306-		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98228-701-2	01	1	1306-			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98228-704-2	01	1	1306-			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-648-0	01	1	1306-			●
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98228-703-2	01	1	1306-			●
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-647-0	01	1	1306-			●
101	BRACKET; HARNESS CONNECTOR (A)	8-98030-725-1	01	1	1306-	●
101	BRACKET; HARNESS CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98030-725-1	01	1	1306-		●	●
101	BRACKET; HARNESS CONNECTOR (C)	8-98078-070-1	01	1	1306-	●	●	●
101	BRACKET; HARNESS CONNECTOR (D)	8-98078-071-1	01	1	1306-	●	●	●
101	BRACKET; HARNESS CONNECTOR (B)	8-98093-465-1	01	1	1306-	●	●	●
101	BRACKET; HARNESS CONNECTOR (E)	8-98217-757-0	01	1	1306-	●	●	●
267	BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●	●	●
267	BOLT; BRKT (A) M6X25 FLANGE SOU	0-28650-625-0	01	1	1306-	●	●	●
290	NUT; BRKT (B) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
290	NUT; BRKT (A) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
290	NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10 FLANGE SOU	0-91180-110-0	01	1	1306-		●	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1306-	●	●	●

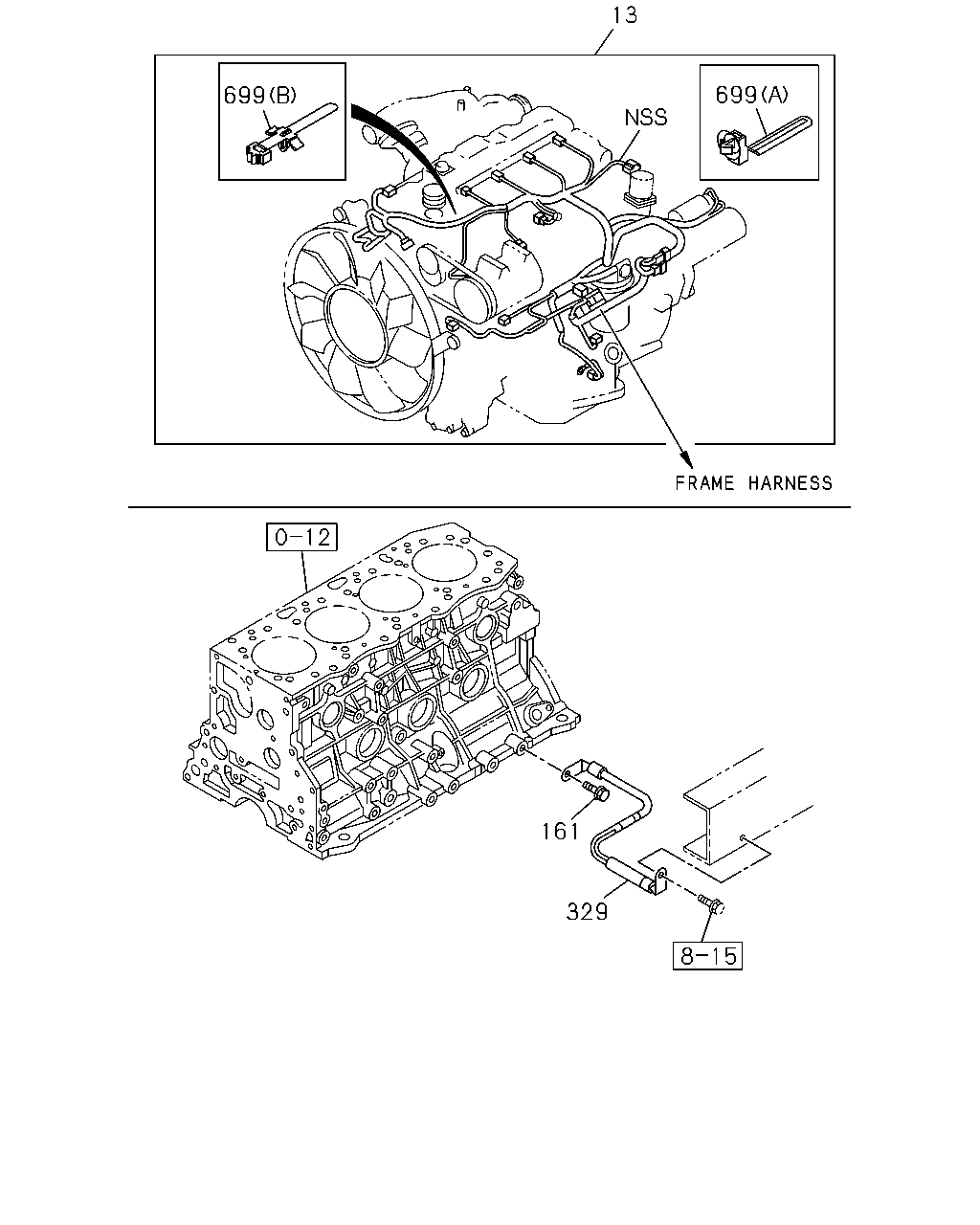

13 699 161 329 699

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	HARNESS; ENG	8-98172-159-1	01	1	1306-1509	●
13	HARNESS; ENG EURO2 SPECIFICATION(NT2)	8-98172-159-1	01	1	1306-1509		●	●
13	HARNESS; ENG KD PREPARATORY PACK<6HF>	8-98172-159-1	01	1	1510-	●
13	HARNESS; ENG EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF>	8-98172-159-1	01	1	1510-		●	●
13	HARNESS; ENG EURO3 SPECIFICATION(NT3)	8-98182-850-1	01	1	1306-1509		●	●
13	HARNESS; ENG EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98182-850-1	01	1	1510-		●	●
161	BOLT; GROUND,HARNESS M10X16 FLANGE	0-28051-016-0	01	1	1306-	●	●	●
329	CABLE; ENG TO FRAME	8-98039-854-1	01	1	1306-	●	●	●
699	CLIP; ENG HARNESS (A) L=140	8-97122-360-0	03	1	1306-1509	●
699	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) L=140	8-97122-360-0	03	1	1306-1509		●	●
699	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (A) L=140	8-97122-360-0	03	1	1510-	●
699	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (A) L=140	8-97122-360-0	03	1	1510-		●	●
699	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1510-		●	●
699	CLIP; ENG HARNESS (B)	8-98088-438-0	01	1	1306-1509	●
699	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98088-438-0	01	1	1306-1509		●	●
699	CLIP; ENG HARNESS KD PREPARATORY PACK<6HF> (B)	8-98088-438-0	01	1	1510-	●
699	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> (B)	8-98088-438-0	01	1	1510-		●	●
699	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1510-		●	●

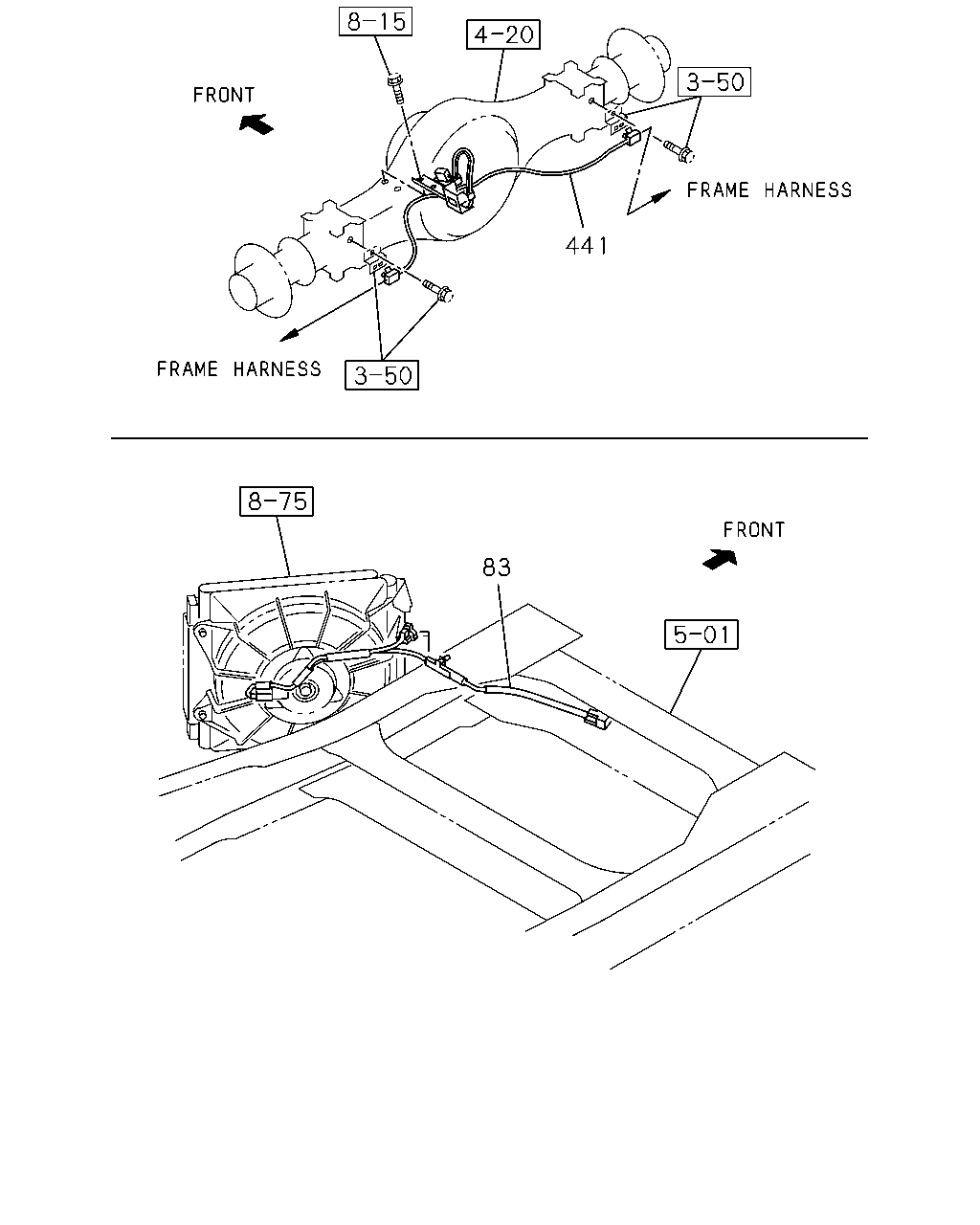

441 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
83	HARNESS; AIR CONDITIONER AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98140-333-2	01	1	1306-		●	●
441	HARNESS; CABLE,SPEED SENSOR	8-97308-213-3	01	1	1306-	●
441	HARNESS; CABLE,SPEED SENSOR REAR WIDE TREAD(V4T)	8-97308-220-4	01	1	1306-		●
441	HARNESS; CABLE,SPEED SENSOR	8-97308-220-4	01	1	1306-			●

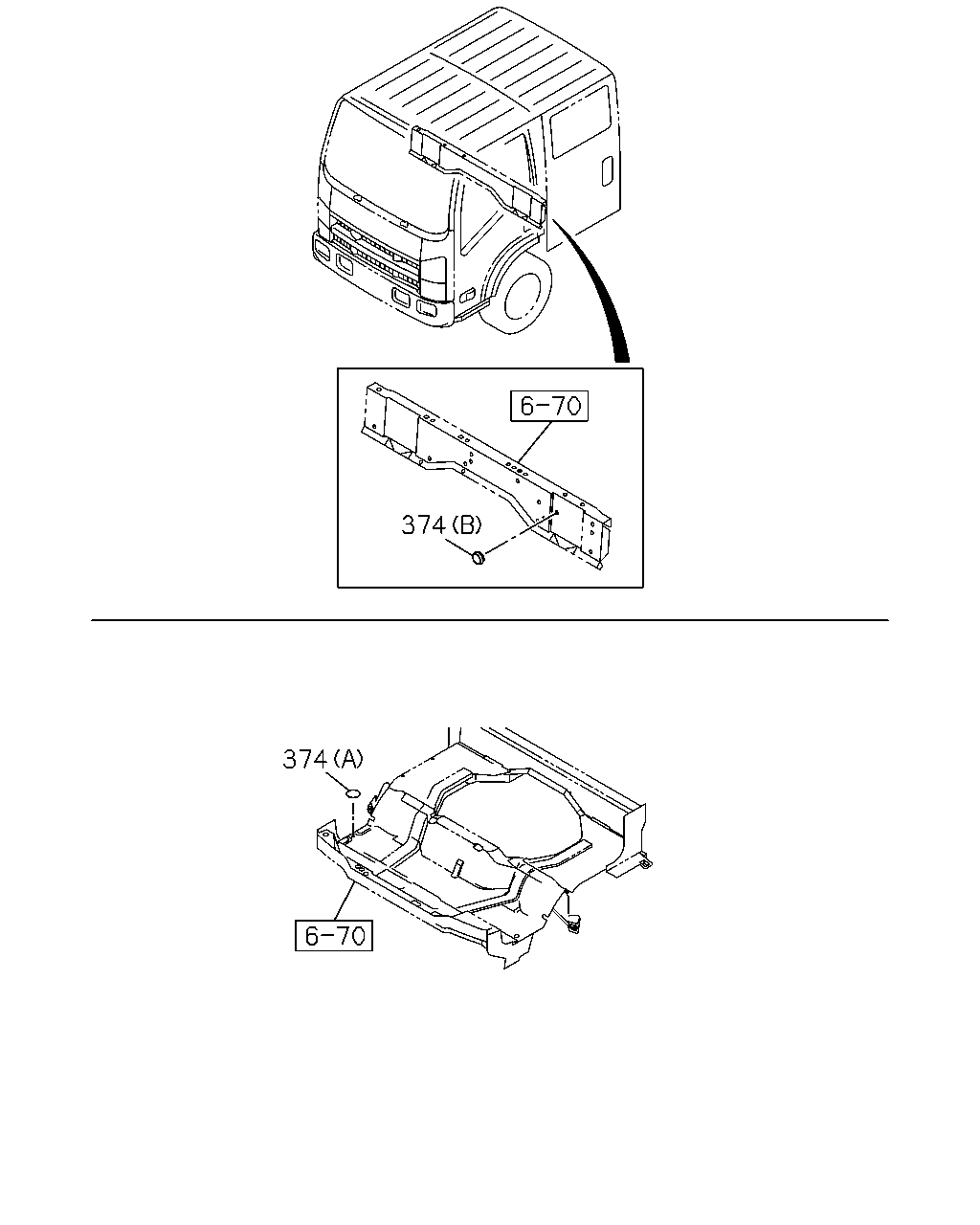

374 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
374	PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) OD=32 BLACK	8-98031-126-0	01	1	1306-	●
374	PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>,ROOM LAMP W/ALL DOORS SW(SDF) (A) OD=32 BLACK	8-98031-126-0	01	1	1306-		●
374	PLUG; HARNESS CONNECTOR (B) OD=24.5 T=7.5	8-97224-683-0	01	1	1306-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
