◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51486 - NLR/NMR(SOUTHAFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#122582) — 114 parça

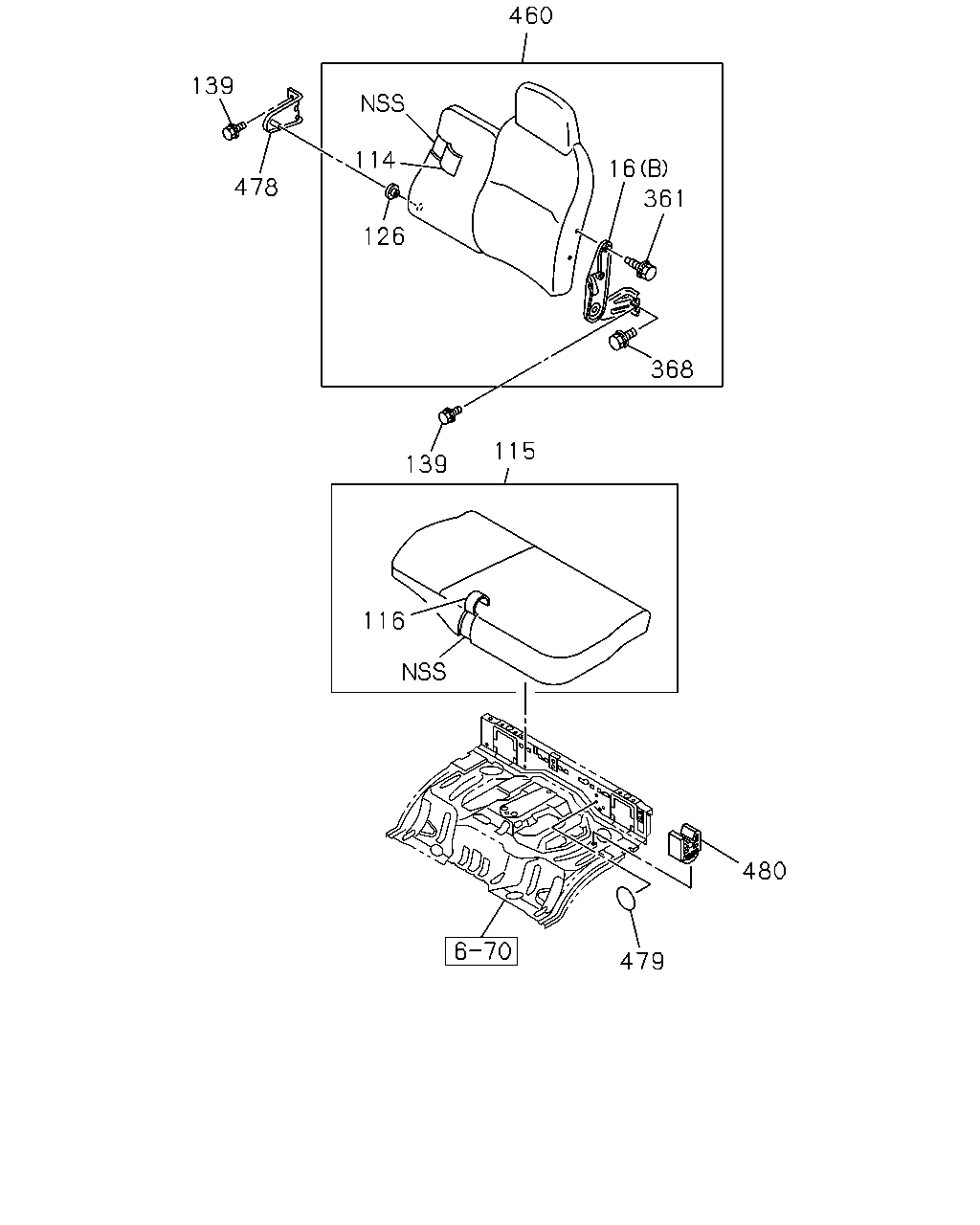

çizim 357077
460 139 478 114 126 16 361 368 115 139 116 480 479
BalonParca AdiParca NoAdetTipApplied Date A B C
16 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB SOU 		8-97859-273-3 01 1 1306- ● ●
16 ADJUSTER ASM; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK W/KNOB SOU 		8-97859-273-3 01 1 1306- ●
16 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1306- ● ●
16 ADJUSTER ASM; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1306- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-279-1 01 1 1306- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97409-279-1 01 1 1306- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-718-0 01 1 1306- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-288-1 01 1 1306- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-288-1 01 1 1306- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-289-1 01 1 1306- ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97406-358-6 01 1 1306- ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97406-358-6 01 1 1306- ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-703-1 01 1 1306- ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-317-3 01 1 1306- ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-317-3 01 1 1306- ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-316-2 01 1 1306- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-307-3 01 1 1306- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97409-307-3 01 1 1306- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-732-1 01 1 1306- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-337-2 01 1 1306- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-337-2 01 1 1306- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-336-2 01 1 1306- ● ●
126 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 1306- ● ●
126 BUSHING; HINGE,RECLINING
EXC. INSPECTION ENGINE COVER<8GA> 		8-98069-558-0 01 1 1306- ●
139 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 03 1 1306- ● ● ●
361 BOLT; ADJ,RECLINING
M8X18 SOU 		8-94279-109-1 02 1 1306- ● ●
361 BOLT; ADJ,RECLINING
EXC. INSPECTION ENGINE COVER<8GA> M8X18 SOU 		8-94279-109-1 02 1 1306- ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER SOU 		8-94279-217-0 01 1 1306- ● ●
368 BOLT; SEAT
EXC. INSPECTION ENGINE COVER<8GA> M8X24.5 W/LK&PL WASHER SOU 		8-94279-217-0 01 1 1306- ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97406-334-6 01 1 1306- ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97406-334-6 01 1 1306- ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-689-1 01 1 1306- ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-275-2 01 1 1306- ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-275-2 01 1 1306- ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-276-2 01 1 1306- ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
SOU 		8-97868-186-0 01 1 1306- ● ● ●
479 PLUG; HINGE
OD=25 BLACK SOU 		1-76798-019-0 02 1 1306- ● ● ●
480 CLIP; CUSHION
SOU 		8-94279-977-0 05 1 1306- ● ● ●

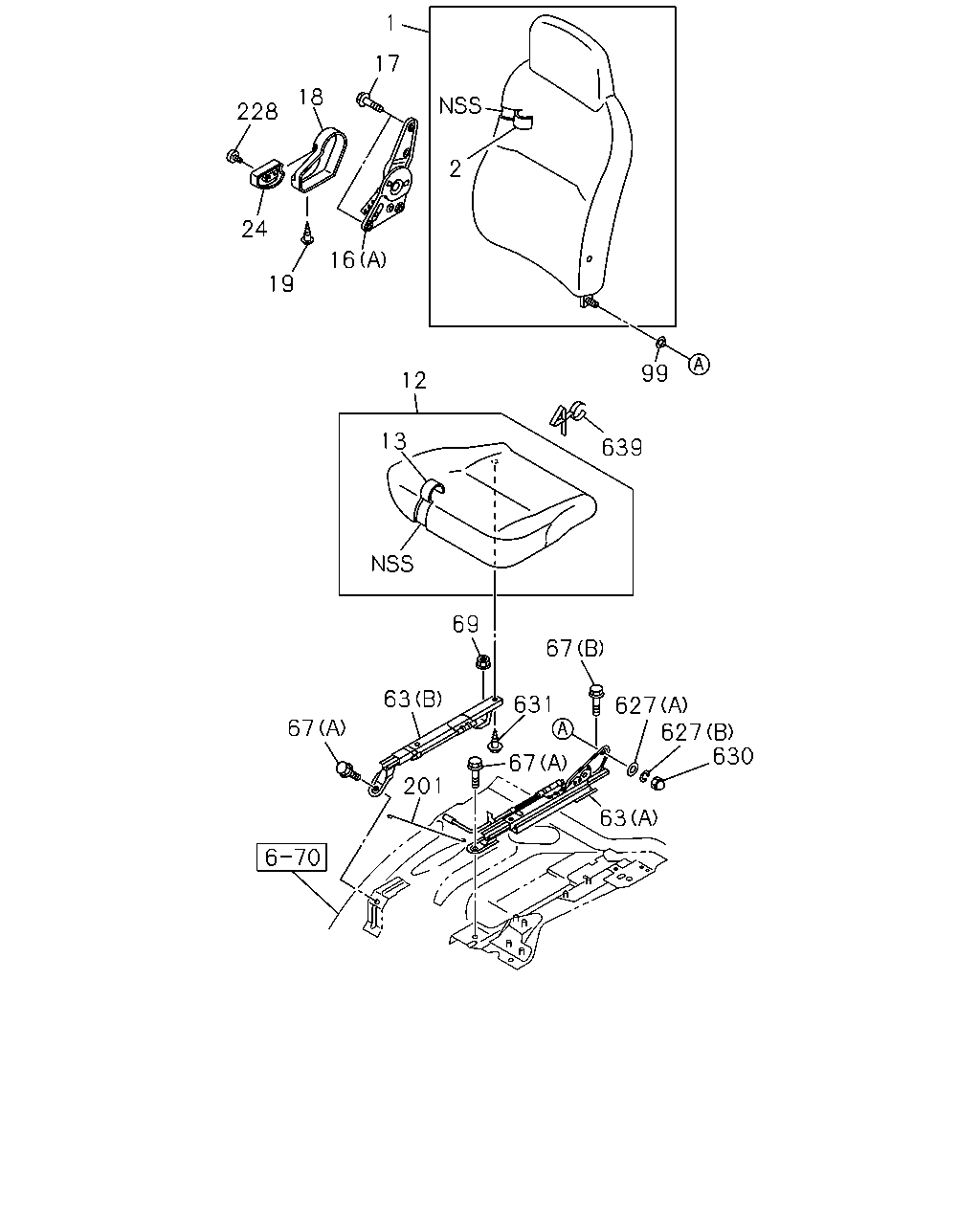

çizim 357563
1 17 2 18 228 24 19 16 12 13 639 99 67 627 627 630 63 67 631 69 63 201 67
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-142-7 01 1 1306- ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-142-7 01 1 1306- ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-312-7 01 1 1306- ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-312-7 01 1 1306- ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-235-1 01 1 1306- ● ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-235-1 01 1 1306- ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-234-1 01 1 1306- ● ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-234-1 01 1 1306- ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97411-910-2 01 1 1306- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97411-910-2 01 1 1306- ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-318-2 01 1 1306- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-318-2 01 1 1306- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-254-0 01 1 1306- ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-254-0 01 1 1306- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-253-0 01 1 1306- ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-253-0 01 1 1306- ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-149-0 01 1 1306- ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-149-0 01 1 1306- ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-143-4 01 1 1306- ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-706-0 01 1 1306- ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-706-0 01 1 1306- ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-322-4 01 1 1306- ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-248-2 01 1 1306- ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-248-2 01 1 1306- ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-2 01 1 1306- ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-247-2 01 1 1306- ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-247-2 01 1 1306- ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-240-2 01 1 1306- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-860-0 01 1 1306- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-860-0 01 1 1306- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-144-2 01 1 1306- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-707-0 01 1 1306- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-707-0 01 1 1306- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-328-2 01 1 1306- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-268-2 01 1 1306- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-268-2 01 1 1306- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-260-2 01 1 1306- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-267-2 01 1 1306- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-267-2 01 1 1306- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-259-2 01 1 1306- ● ●
16 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB SOU 		8-97859-273-3 01 1 1306- ● ●
16 ADJUSTER ASM; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK W/KNOB SOU 		8-97859-273-3 01 1 1306- ●
16 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1306- ● ●
16 ADJUSTER ASM; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1306- ●
17 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1306- ● ●
17 BOLT; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1306- ●
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1306- ● ●
18 COVER; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-332-0 01 1 1306- ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1306- ● ●
19 SCREW; COVER
EXC. INSPECTION ENGINE COVER<8GA> M5 		8-98062-663-0 01 1 1306- ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1306- ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1306- ●
63 ADJUSTER; SEAT SLIDE
(A) INNER 		8-97382-800-2 01 1 1306- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. INSPECTION ENGINE COVER<8GA> (A) INNER 		8-97382-800-2 01 1 1306- ●
63 ADJUSTER; SEAT SLIDE
(B) OUTER 		8-97382-801-1 01 1 1306- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. INSPECTION ENGINE COVER<8GA> (B) OUTER 		8-97382-801-1 01 1 1306- ●
67 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 1306- ● ● ●
67 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 1306- ● ● ●
69 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 1306- ● ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1306- ● ●
99 BUSHING; SEAT BACK
EXC. INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1306- ●
201 CABLE; ADJ 8-98003-086-1 01 1 1306- ● ●
201 CABLE; ADJ
EXC. INSPECTION ENGINE COVER<8GA> 		8-98003-086-1 01 1 1306- ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1306- ● ●
228 SCREW; KNOB
EXC. INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1306- ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1306- ● ●
627 WASHER; FRT SEAT
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98063-223-0 01 1 1306- ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1306- ● ●
627 WASHER; FRT SEAT
EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98063-224-0 01 1 1306- ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1306- ● ●
630 NUT; CAP
EXC. INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1306- ●
631 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 1306- ● ●
631 BOLT; ADJ,SEAT
EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1306- ●
631 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 1306- ● ●
631 BOLT; ADJ,SEAT
EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1306- ●
639 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> 		8-98097-693-0 01 1 1306- ● ●
