7-40 — INSTRUMENT PANEL AND BOX (#122579) — 125 parça

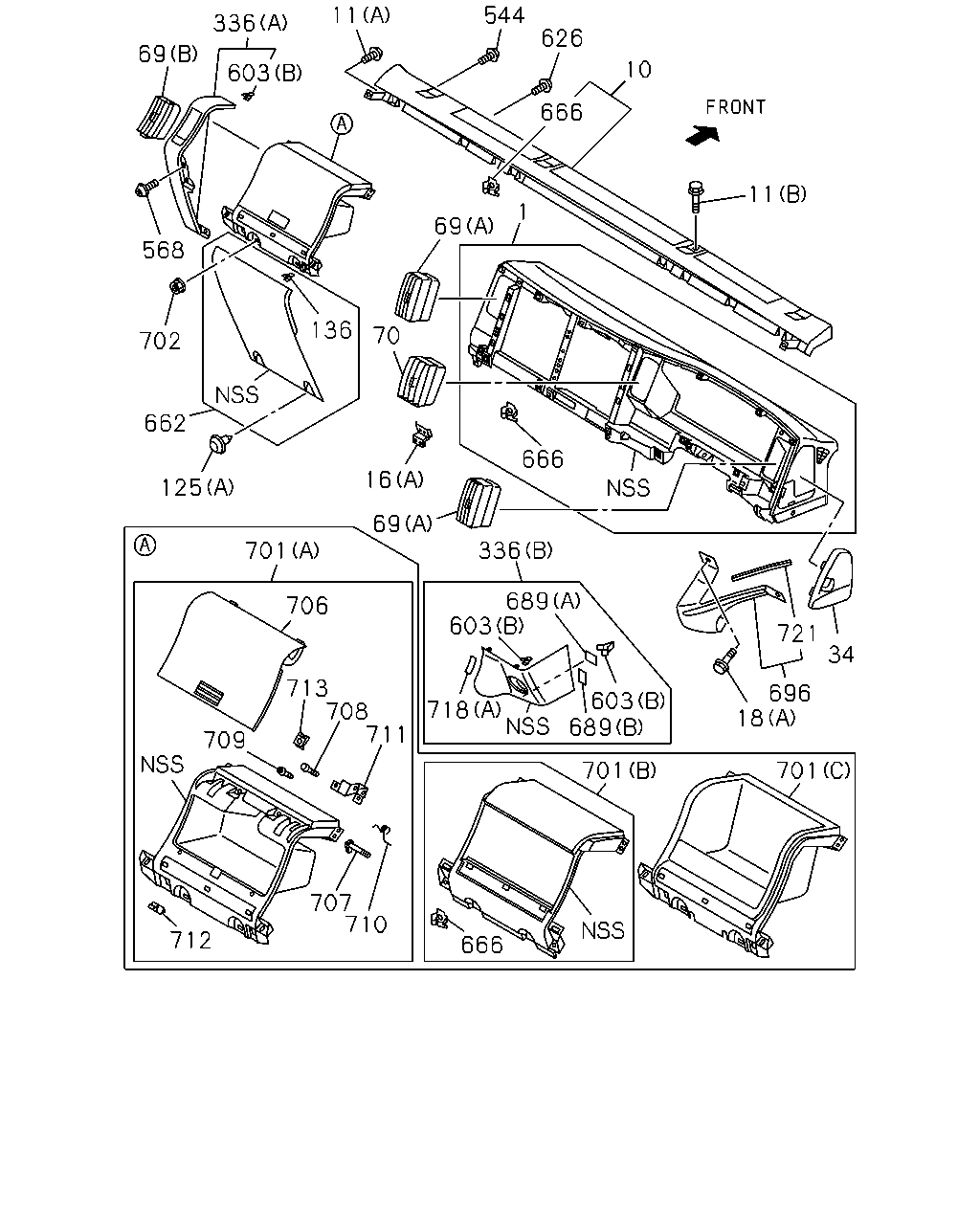

çizim 357749
11 336 69 603 568 702 662 136 125 544 626 666 69 10 11 1 70 16 69 666 336 701 706 713 708 711 709 707 710 712 603 689 718 603 689 701 666 701 18 721 34 696
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; INST
GRAY 		8-97405-253-8 01 1 1306- ● ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1306- ● ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1306- ● ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1306- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1306- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1306- ● ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1306- ● ● ●
16 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 1306- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE SOU 		0-28050-816-0 04 1 1306- ● ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1306- ● ● ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1306- ● ● ●
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1306- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1306- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1306- ● ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1306- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 1306- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 1306- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1306- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1306- ● ● ●
136 CLIP; INST COVER 8-98021-271-0 05 1 1306- ● ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1306- ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 1306- ● ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1306- ● ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1306- ● ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1306- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1306- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1306- ● ● ●
626 RETAINER
OD=15 BLACK SOU 		8-94279-804-0 02 1 1306- ● ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 1306- ● ● ●
666 INSERT; INST PANEL 8-98037-629-0 15 1 1306- ● ● ●
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1306- ● ● ●
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1306- ● ● ●
696 BRACKET; KNEE 8-98199-366-0 01 1 1306- ● ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> EXC. COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>, COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97416-907-0 01 1 1306- ● ● ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97406-268-4 01 1 1306- ● ● ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> EXC. AIR BAG DRIVER & PASSENGER<AK5> (C) GRAY 		8-97422-090-1 01 1 1306- ● ● ●
702 NUT; TRAY
M6 FLANGE SOU 		0-91180-106-0 02 1 1306- ● ● ●
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97409-510-0 01 1 1306- ● ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1306-1311 ● ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1306- ● ● ●
709 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1306- ● ● ●
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1306-1311 ● ● ●
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-398-0 01 1 1312- ● ● ●
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1306-1311 ● ● ●
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-399-0 01 1 1312- ● ● ●
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1306-1311 ● ● ●
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ● ●
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1306-1311 ● ● ●
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ● ●
712 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1306- ● ● ●
713 NUT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> M5 SOU 		1-09984-196-0 04 1 1306-1311 ● ● ●
713 NUT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> M5 		8-97926-400-0 04 1 1312- ● ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1306- ● ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1306- ● ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1306- ● ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1306- ● ● ●
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1306- ● ● ●

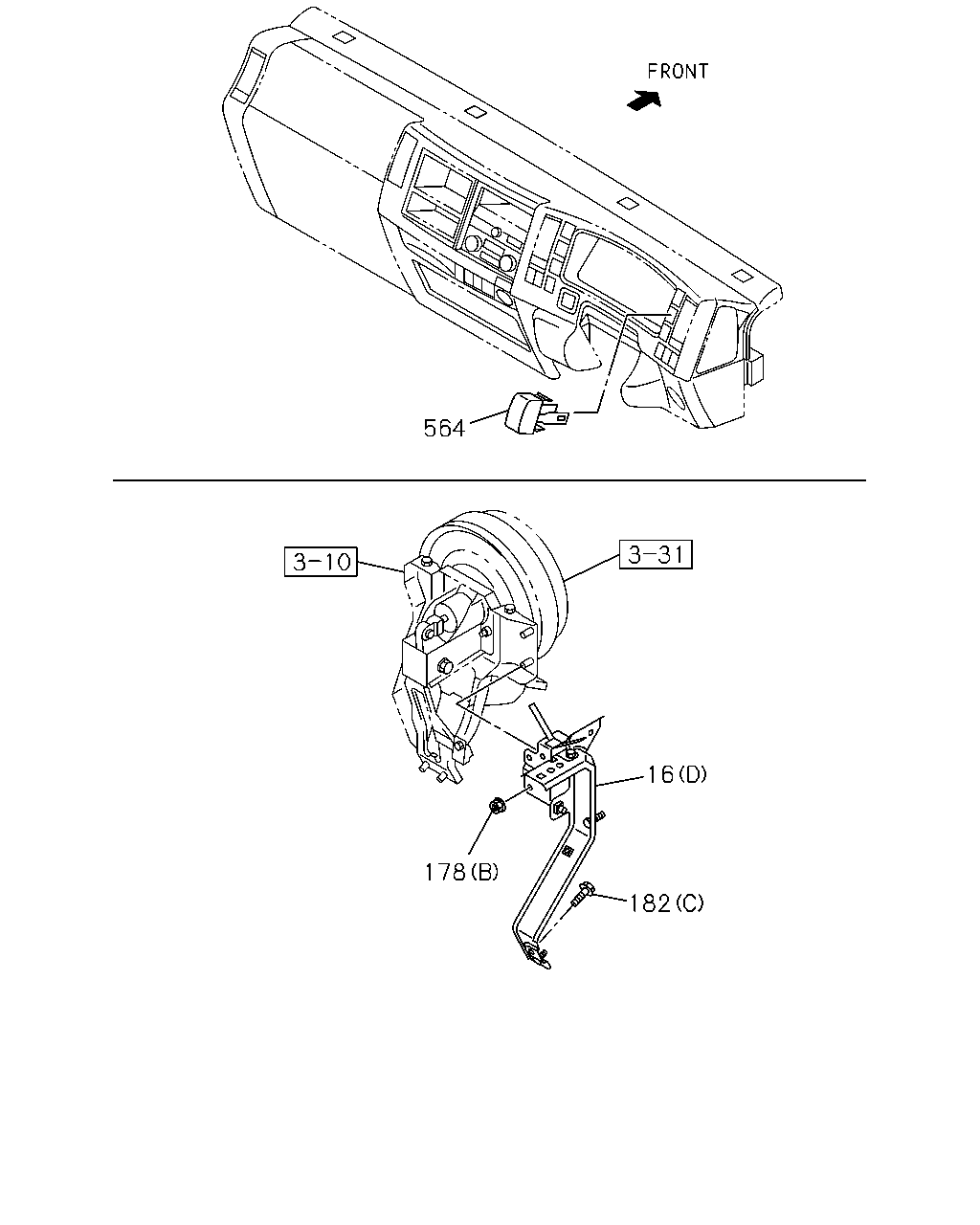

çizim 358008
564 16 178 182
BalonParca AdiParca NoAdetTipApplied Date A B C
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1306- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1306- ● ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1306- ● ● ●
16 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 1306- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1306- ● ● ●
178 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8 W/LK WASHER SOU 		8-94279-050-0 02 1 1306- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1306- ● ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1306- ● ● ●
182 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M10X22 W/PL WASHER SOU 		8-97313-188-0 01 1 1306- ● ●
564 COVER; SW 8-98025-954-1 03 1 1306- ● ● ●

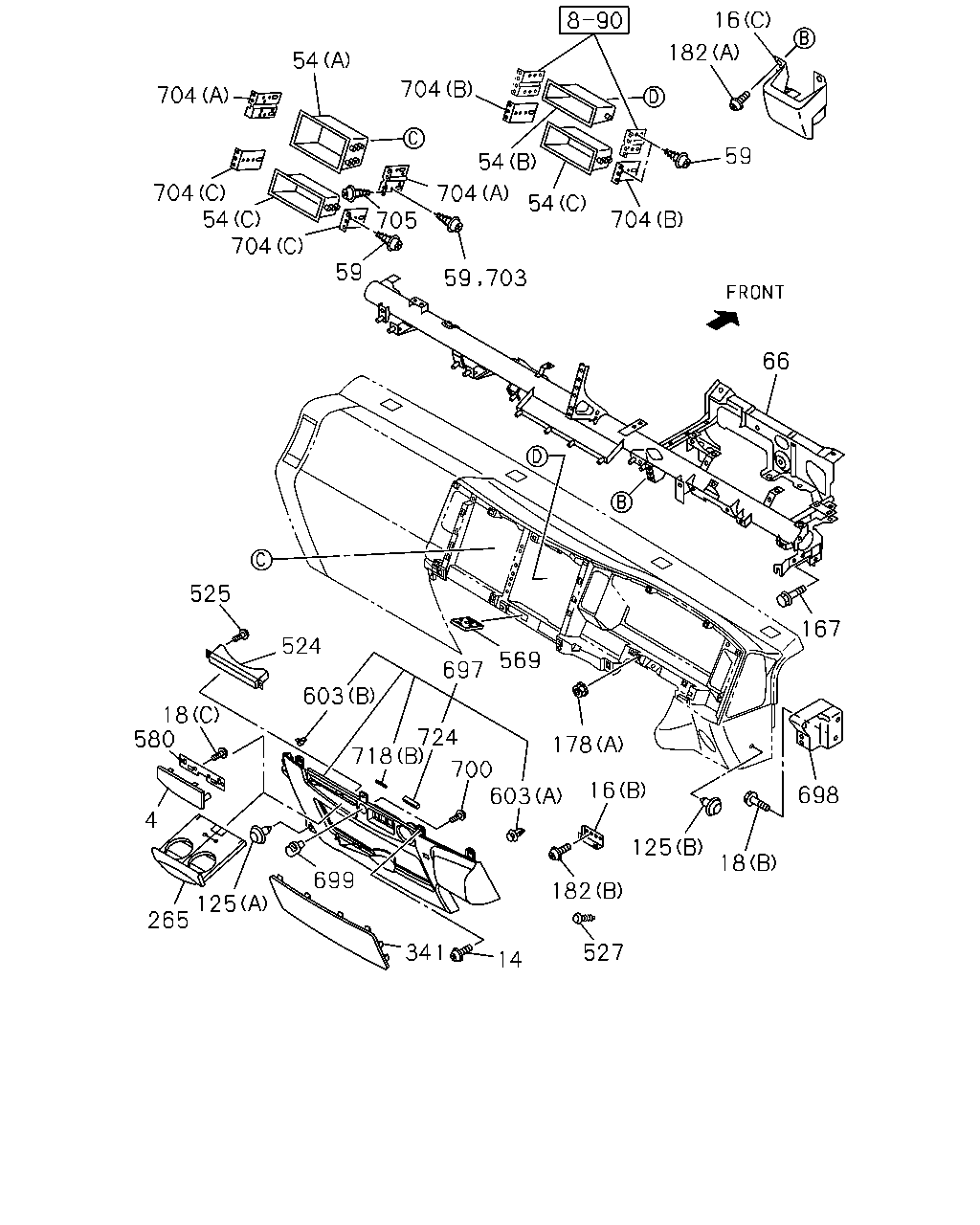

çizim 358230
125 265 4 580 18 525 524 603 718 699 724 697 700 603 341 14 527 182 569 178 16 125 18 698 167 66 59 703 59 704 54 704 704 54 704 54 704 705 54 704 59 182 16
BalonParca AdiParca NoAdetTipApplied Date A B C
4 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1306- ● ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1306- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1306- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1306- ● ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1306- ● ● ●
16 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 1306- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE SOU 		0-28050-816-0 04 1 1306- ● ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1306- ● ● ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1306- ● ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1306- ● ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1306- ● ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1306- ● ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1306- ● ●
54 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1306- ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1306- ● ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1306- ● ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1306- ● ●
59 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1306- ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-365-1 01 1 1306- ● ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-364-1 01 1 1306- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 1306- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 1306- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1306- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1306- ● ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE SOU 		8-97264-766-0 04 1 1306- ● ● ●
178 NUT; INST PANEL
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1306- ● ● ●
178 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8 W/LK WASHER SOU 		8-94279-050-0 02 1 1306- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1306- ● ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1306- ● ● ●
182 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M10X22 W/PL WASHER SOU 		8-97313-188-0 01 1 1306- ● ●
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1306- ● ● ●
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1306- ● ● ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1306- ● ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1306- ● ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97098-326-0 01 1 1306- ● ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1306- ● ● ●
580 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1306- ● ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1306- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1306- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1306- ● ● ●
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1306- ● ● ●
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1306- ● ● ●
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1306- ● ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1306- ● ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1306- ● ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1306- ● ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1306- ● ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1306- ● ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 1306- ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1306- ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1306- ● ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1306- ● ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1306- ● ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1306- ● ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1306- ● ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1306- ● ● ●
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1306- ● ● ●
