Isuzu WW
▶
TRUCKS
▶
NLR
▶
51486 - NLR/NMR(SOUTHAFRICA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-80 - BACK PANEL
▶
6-80 — BACK PANEL
(#122571) — 48 parça
Tümü
A - NMR5SE
B - NMR5SN
C - NMR5WN
◀

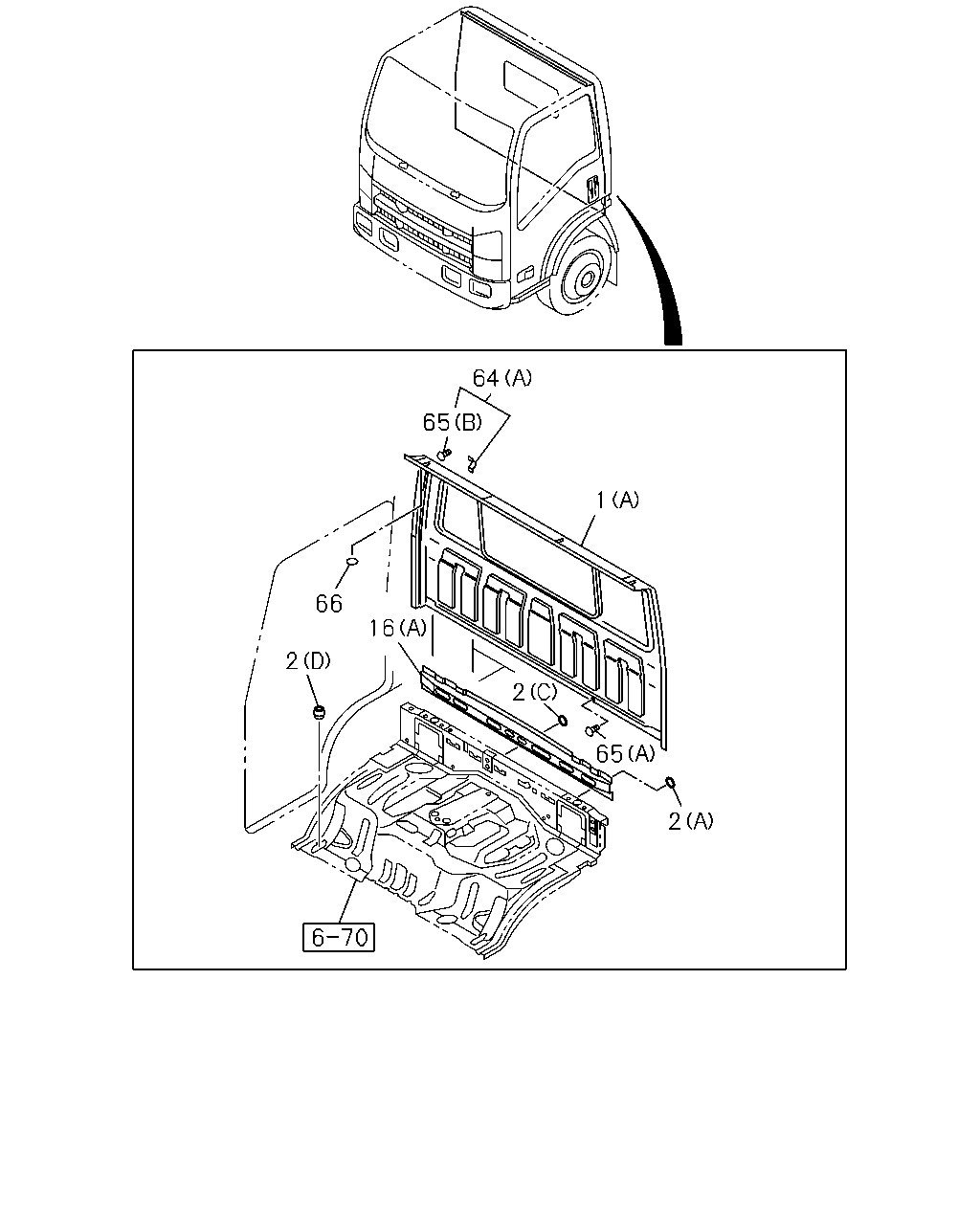

[680A] SGL CAB (25 parça)

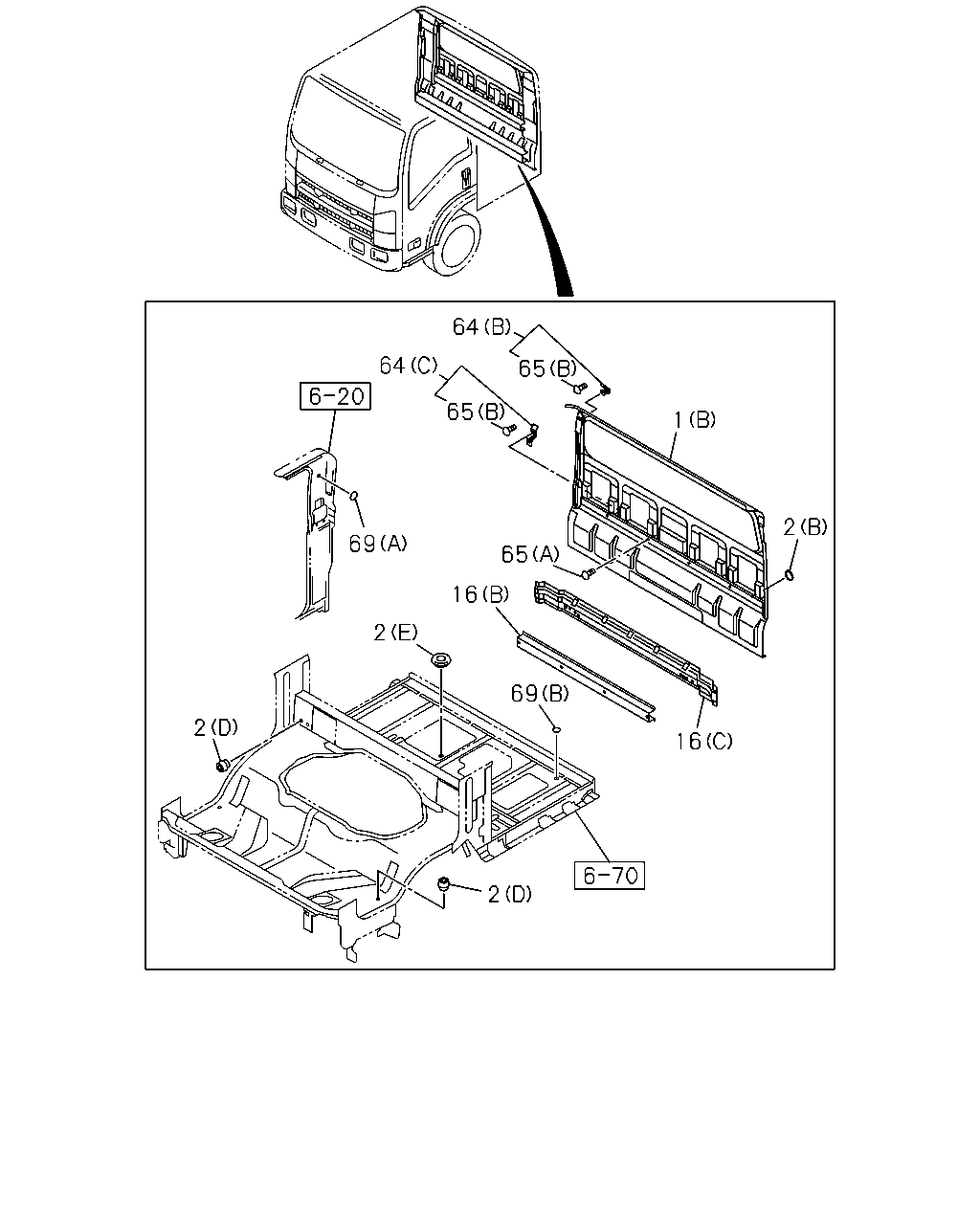

[680A] DBL CAB (23 parça)
▶
64
65
1
2
65
2
16
66
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PANEL; BACK OUTER
WINDOW RR<8LF> (A)
8-97584-300-3
01
1
1306-
●
●
1
PANEL; BACK OUTER
EXC. WINDOW RR<8LF> (A)
8-97584-303-4
01
1
1306-
●
●
1
PANEL; BACK OUTER
(B)
8-97583-731-4
01
1
1306-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK
8-98031-126-0
09
1
1306-
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK SOU
1-76798-019-0
02
1
1306-
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=32 BLACK
8-98031-126-0
02
1
1306-
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=12.1
8-97898-423-0
04
1
1306-
●
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
EXC. INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK
8-98031-126-0
06
1
1306-
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=35
8-94122-971-0
04
1
1306-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=15.0 SOU
8-94279-040-0
02
1
1306-
●
16
REINFORCEMENT; BACK OUTER PNL
EXC. WINDOW RR<8LF> (A)
8-98313-204-0
01
1
1505-
●
●
16
REINFORCEMENT; BACK OUTER PNL
(A)
8-97584-607-3
01
1
1306-1504
●
●
16
REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> (A)
8-97584-607-3
01
1
1505-
●
●
16
REINFORCEMENT; BACK OUTER PNL
(C)
8-97410-667-0
01
1
1306-
●
16
REINFORCEMENT; BACK OUTER PNL
(B)
8-98006-213-0
01
1
1306-
●
64
BRACKET; AIR INTAKE DUCT
(A)
8-97584-611-1
01
1
1306-
●
●
64
BRACKET; AIR INTAKE DUCT
(B)
8-98054-615-0
01
1
1306-
●
64
BRACKET; AIR INTAKE DUCT
(C)
8-98054-617-0
01
1
1306-
●
65
STUD; BACK PANEL
(B) SOU
8-94389-701-0
01
1
1306-
●
●
65
STUD; BACK PANEL
(B) SOU
8-94389-701-0
02
1
1306-
●
65
STUD; BACK PANEL
(A) M6X12 SOU
8-98013-112-0
03
1
1306-
●
66
SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE
8-98059-421-0
03
1
1306-
●
●
66
SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> OD=20 T=0.05 WHITE
8-98059-421-0
04
1
1306-
●
●
66
SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> OD=20 T=0.05 BLACK
5-76777-036-0
03
1
1306-
●
●
66
SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> OD=20 T=0.05 BLACK
5-76777-036-0
04
1
1306-
●
●
1
2
16
69
16
65
65
64
64
69
2
2
2
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PANEL; BACK OUTER
WINDOW RR<8LF> (A)
8-97584-300-3
01
1
1306-
●
●
1
PANEL; BACK OUTER
EXC. WINDOW RR<8LF> (A)
8-97584-303-4
01
1
1306-
●
●
1
PANEL; BACK OUTER
(B)
8-97583-731-4
01
1
1306-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK
8-98031-126-0
09
1
1306-
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK SOU
1-76798-019-0
02
1
1306-
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=32 BLACK
8-98031-126-0
02
1
1306-
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=12.1
8-97898-423-0
04
1
1306-
●
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
EXC. INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK
8-98031-126-0
06
1
1306-
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=35
8-94122-971-0
04
1
1306-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=15.0 SOU
8-94279-040-0
02
1
1306-
●
16
REINFORCEMENT; BACK OUTER PNL
EXC. WINDOW RR<8LF> (A)
8-98313-204-0
01
1
1505-
●
●
16
REINFORCEMENT; BACK OUTER PNL
(A)
8-97584-607-3
01
1
1306-1504
●
●
16
REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> (A)
8-97584-607-3
01
1
1505-
●
●
16
REINFORCEMENT; BACK OUTER PNL
(C)
8-97410-667-0
01
1
1306-
●
16
REINFORCEMENT; BACK OUTER PNL
(B)
8-98006-213-0
01
1
1306-
●
64
BRACKET; AIR INTAKE DUCT
(A)
8-97584-611-1
01
1
1306-
●
●
64
BRACKET; AIR INTAKE DUCT
(B)
8-98054-615-0
01
1
1306-
●
64
BRACKET; AIR INTAKE DUCT
(C)
8-98054-617-0
01
1
1306-
●
65
STUD; BACK PANEL
(B) SOU
8-94389-701-0
01
1
1306-
●
●
65
STUD; BACK PANEL
(B) SOU
8-94389-701-0
02
1
1306-
●
65
STUD; BACK PANEL
(A) M6X12 SOU
8-98013-112-0
03
1
1306-
●
69
SEAL; LOCATION HOLE
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,SEAT BELT TENSIONER FRT<A70> (A) OD=36 WHITE
1-76778-007-0
02
1
1306-
●
69
SEAL; LOCATION HOLE
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,SEAT BELT TENSIONER FRT<A70> (B) OD=32 BLACK
8-98031-126-0
02
1
1306-
●
