Sayfa 6-70 - Isuzu EPC

6-70 — FLOOR PANEL (#122567) — 140 parça

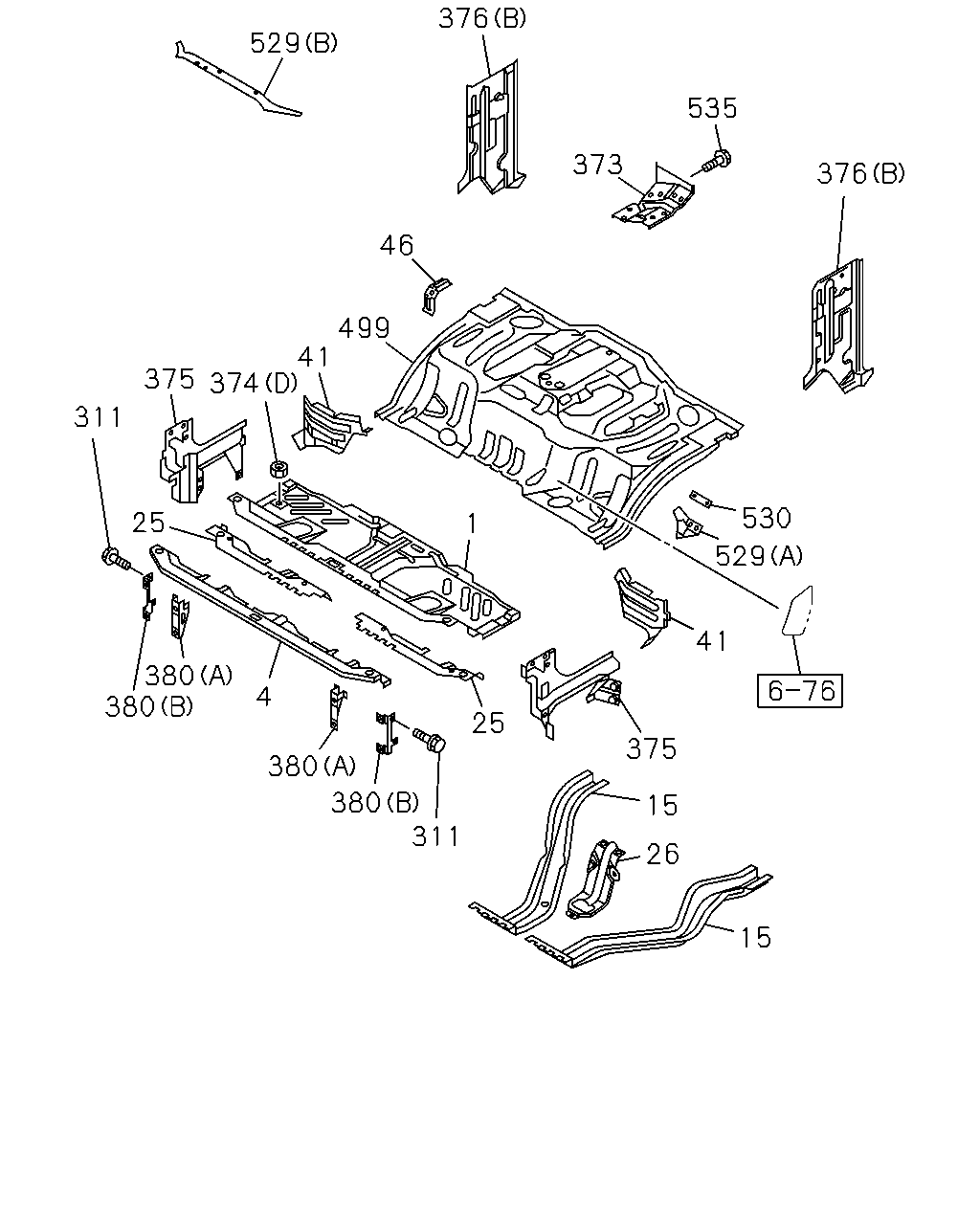

529 376 373 535 376 530 529 41 375 15 26 15 25 1 311 380 380 4 380 380 25 311 375 374 41 499 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-910-5	01	1	1306-	●	●
1	PANEL; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97583-910-5	01	1	1306-			●
4	FRAME; FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> SOU	8-98059-496-0	01	1	1306-	●	●
4	FRAME; FLOOR,FRT TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-98059-496-0	01	1	1306-			●
15	FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> SOU	8-98061-277-1	01	1	1306-	●	●
15	FRAME; UNDER TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-98061-277-1	01	1	1306-			●
15	FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> SOU	8-98061-278-1	01	1	1306-	●	●
15	FRAME; UNDER TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-98061-278-1	01	1	1306-			●
25	REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97588-030-1	01	1	1306-	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97588-030-1	01	1	1306-			●
25	REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97588-031-1	01	1	1306-	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97588-031-1	01	1	1306-			●
26	PANEL; GEAR CONT REINF MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-382-1	01	1	1306-	●	●
26	PANEL; GEAR CONT REINF TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97589-382-1	01	1	1306-			●
41	SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-935-2	01	1	1306-	●	●
41	SUPPORT; STEP,RR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97583-935-2	01	1	1306-			●
41	SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-936-2	01	1	1306-	●	●
41	SUPPORT; STEP,RR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97583-936-2	01	1	1306-			●
46	BRACKET; FRT SEAT,RR OUTER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-834-0	01	1	1306-	●	●
46	BRACKET; FRT SEAT,RR OUTER TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97583-834-0	01	1	1306-			●
311	BOLT; BRKT M6X16 FLANGE SOU	0-28650-616-0	04	1	1306-	●	●	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-521-2	01	1	1306-	●	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-522-2	01	1	1306-	●	●
373	REINFORCEMENT; SEAT BELT TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98015-215-2	01	1	1306-			●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1306-	●	●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	1306-	●	●
374	NUT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M6	1-09984-110-0	02	1	1306-			●
374	NUT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8	1-09984-111-0	04	1	1306-			●
374	NUT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M6 POP NUT	8-98013-752-0	01	1	1306-			●
374	NUT; FLOOR (D) M8	9-09114-068-0	04	1	1306-	●	●	●
375	CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-882-3	01	1	1306-	●	●
375	CLOSING; PILLAR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97583-882-3	01	1	1306-			●
375	CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-883-2	01	1	1306-	●	●
375	CLOSING; PILLAR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97583-883-2	01	1	1306-			●
376	CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97583-888-2	01	1	1306-	●	●
376	CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97584-618-2	01	1	1306-	●	●
376	CLOSING; PILLAR,LWR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98024-544-7	01	1	1306-			●
376	CLOSING; PILLAR,LWR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98024-545-6	01	1	1306-			●
380	BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) SOU	8-97589-384-4	01	1	1306-	●	●
380	BRACKET; HEAD LAMP TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SOU	8-97589-384-4	01	1	1306-			●
380	BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) SOU	8-97589-385-3	01	1	1306-	●	●
380	BRACKET; HEAD LAMP TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SOU	8-97589-385-3	01	1	1306-			●
380	BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1306-	●	●	●
380	BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1306-	●	●	●
499	PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-912-4	01	1	1306-	●	●
499	PANEL; FLOOR,RR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97584-630-1	01	1	1306-			●
529	RETAINER; FLOOR PANEL TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97589-307-1	01	1	1306-			●
529	RETAINER; FLOOR PANEL TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98030-358-0	01	1	1306-			●
530	BRACKET; COVER TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97589-255-0	01	1	1306-			●
535	BOLT; REINFORCEMENT TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE	0-28650-820-0	04	1	1306-			●

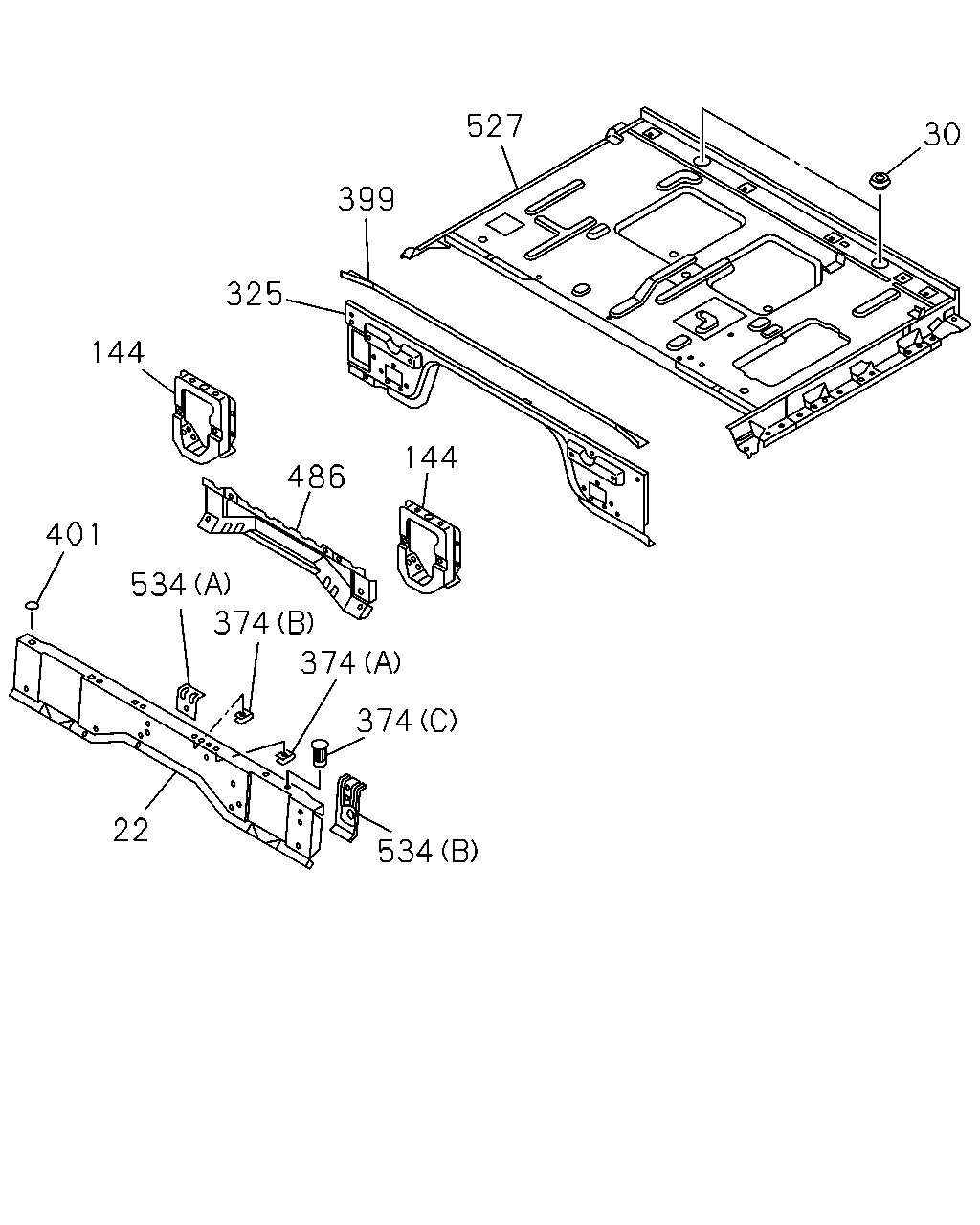

144 325 399 527 30 144 486 374 374 374 534 22 534 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-925-3	01	1	1306-	●	●
22	FRAME; FLOOR REAR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97589-306-4	01	1	1306-			●
30	GROMMET; CAB MTG RAIL OD=74	8-94279-731-0	02	1	1306-			●
144	BRACKET; MTG,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-3	02	1	1306-	●	●
144	BRACKET; MTG,RR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98112-244-2	02	1	1306-			●
325	REINFORCEMENT ASM; RR MTG TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-97588-942-2	01	1	1306-			●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1306-	●	●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	1306-	●	●
374	NUT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M6	1-09984-110-0	02	1	1306-			●
374	NUT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8	1-09984-111-0	04	1	1306-			●
374	NUT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M6 POP NUT	8-98013-752-0	01	1	1306-			●
374	NUT; FLOOR (D) M8	9-09114-068-0	04	1	1306-	●	●	●
399	PANEL; EXTENSION,RR MTG RAIL TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-97588-952-1	01	1	1306-			●
401	GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	1306-	●	●	●
486	REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-610-2	01	1	1306-	●	●
486	REINFORCEMENT; FRAME FLOOR,REAR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98030-611-2	01	1	1306-			●
527	FLOOR; RR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-588-5	01	1	1306-			●
527	FLOOR; RR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98081-408-4	01	1	1306-			●
534	REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98007-678-2	01	1	1306-	●	●
534	REINFORCEMENT; SEAT BACK TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98007-678-2	01	1	1306-			●
534	REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98019-181-2	01	1	1306-	●	●
534	REINFORCEMENT; SEAT BACK TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98019-181-2	01	1	1306-			●

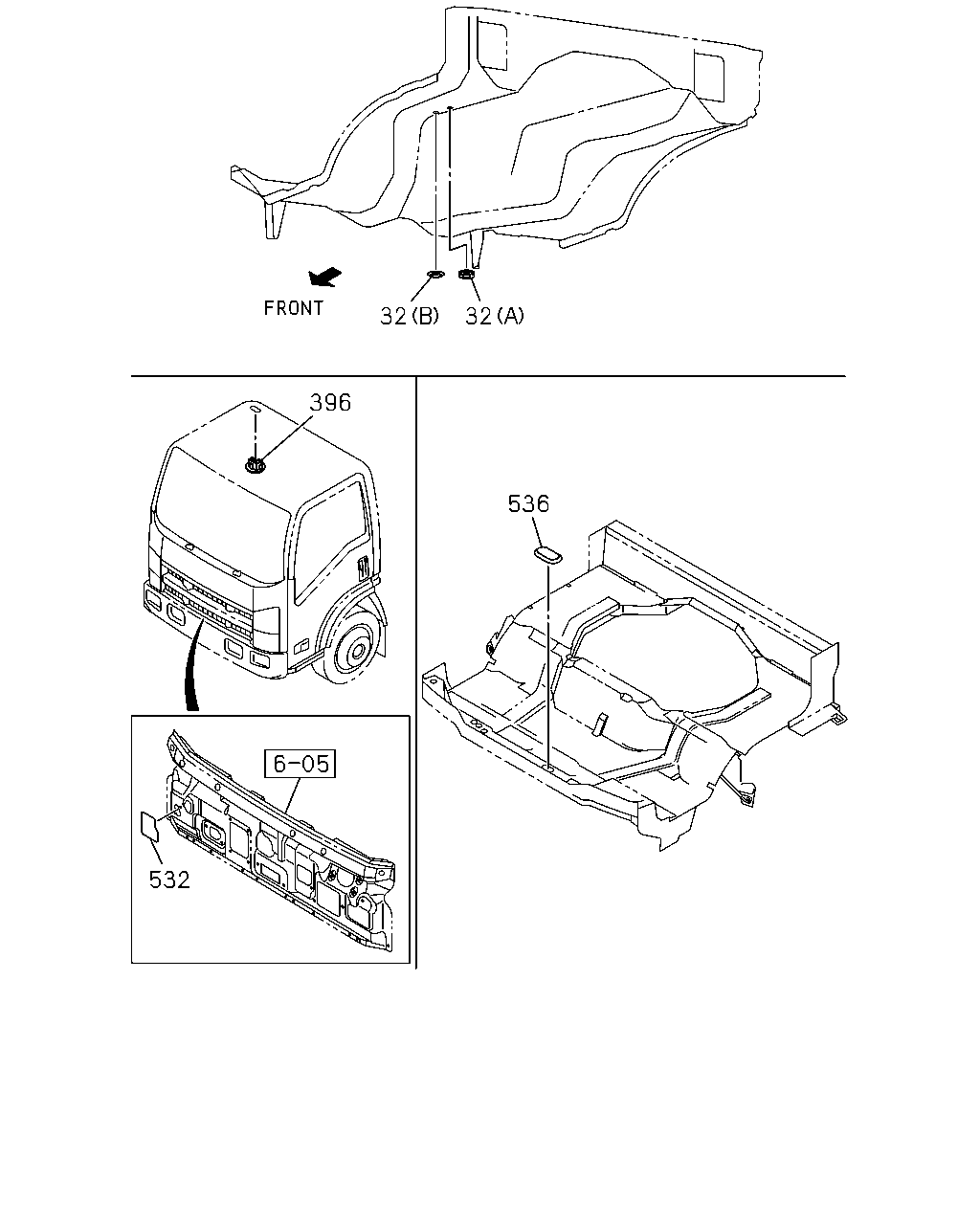

396 536 532 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	GROMMET; FLOOR PANEL,LOCATION HOLE (A) OD=15.0 SOU	8-94279-040-0	02	1	1306-	●	●	●
32	GROMMET; FLOOR PANEL,LOCATION HOLE (B) OD=12.1	8-97898-423-0	02	1	1306-	●	●	●
396	GROMMET; LOCATION HOLE	8-98054-990-0	02	1	1306-	●	●
532	SEAL; CABLE EXC. PTO MANUAL CONTROL(6WC)	8-98042-432-1	01	1	1306-	●	●	●
536	PLUG; CABLE,PTO	8-98029-219-1	01	1	1306-	●	●	●

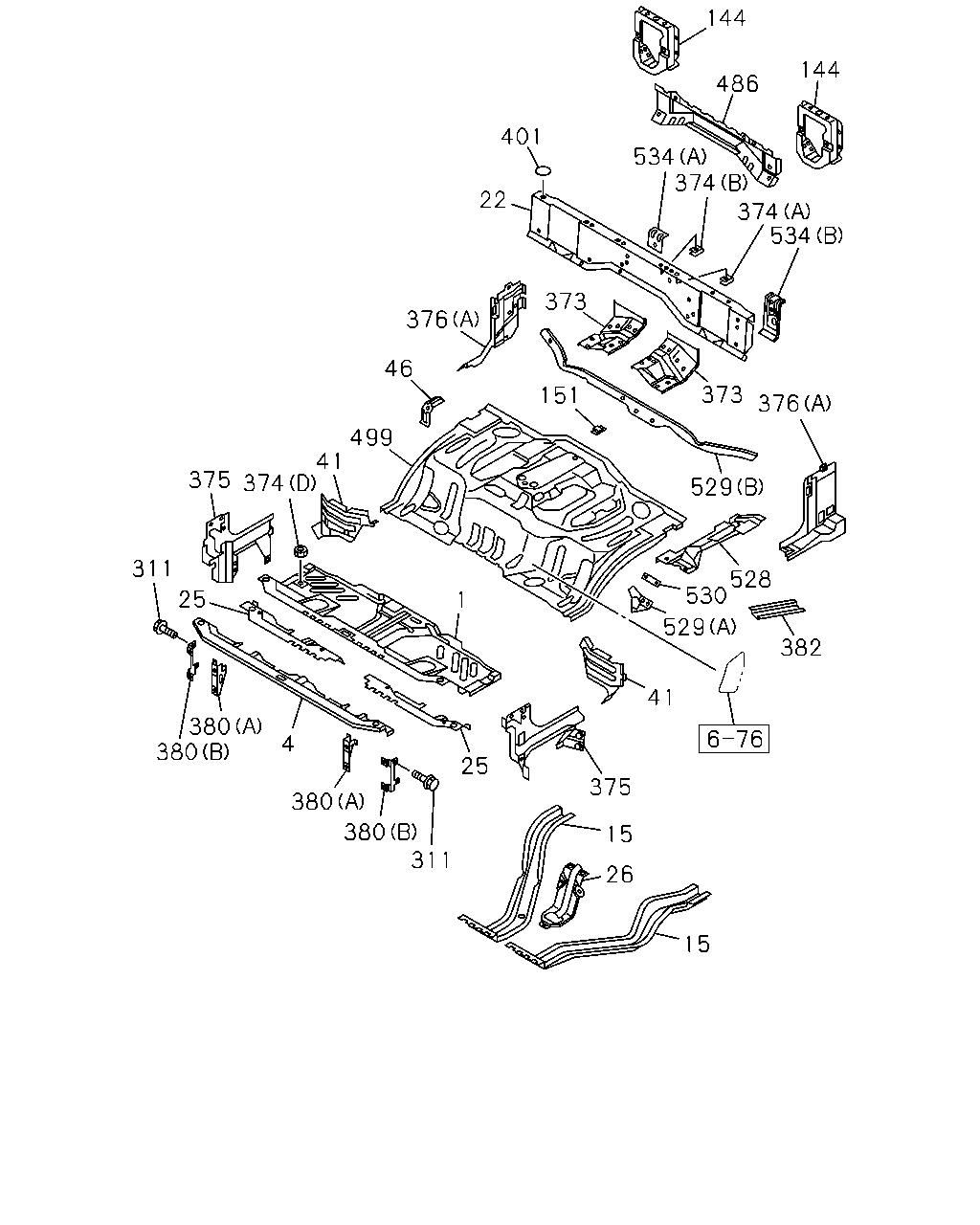

144 144 486 534 374 374 534 376 373 373 401 22 376 151 529 528 530 529 382 41 375 15 26 15 311 25 380 380 4 380 380 25 311 375 374 41 1 499 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-910-5	01	1	1306-	●	●
1	PANEL; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97583-910-5	01	1	1306-			●
4	FRAME; FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> SOU	8-98059-496-0	01	1	1306-	●	●
4	FRAME; FLOOR,FRT TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-98059-496-0	01	1	1306-			●
15	FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> SOU	8-98061-277-1	01	1	1306-	●	●
15	FRAME; UNDER TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-98061-277-1	01	1	1306-			●
15	FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> SOU	8-98061-278-1	01	1	1306-	●	●
15	FRAME; UNDER TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-98061-278-1	01	1	1306-			●
22	FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-925-3	01	1	1306-	●	●
22	FRAME; FLOOR REAR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97589-306-4	01	1	1306-			●
25	REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97588-030-1	01	1	1306-	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97588-030-1	01	1	1306-			●
25	REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97588-031-1	01	1	1306-	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97588-031-1	01	1	1306-			●
26	PANEL; GEAR CONT REINF MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-382-1	01	1	1306-	●	●
26	PANEL; GEAR CONT REINF TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97589-382-1	01	1	1306-			●
41	SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-935-2	01	1	1306-	●	●
41	SUPPORT; STEP,RR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97583-935-2	01	1	1306-			●
41	SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-936-2	01	1	1306-	●	●
41	SUPPORT; STEP,RR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97583-936-2	01	1	1306-			●
46	BRACKET; FRT SEAT,RR OUTER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-834-0	01	1	1306-	●	●
46	BRACKET; FRT SEAT,RR OUTER TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97583-834-0	01	1	1306-			●
144	BRACKET; MTG,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-3	02	1	1306-	●	●
144	BRACKET; MTG,RR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98112-244-2	02	1	1306-			●
151	BRACKET; SEAT CUSHION STOPPER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-833-0	01	1	1306-	●	●
311	BOLT; BRKT M6X16 FLANGE SOU	0-28650-616-0	04	1	1306-	●	●	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-521-2	01	1	1306-	●	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-522-2	01	1	1306-	●	●
373	REINFORCEMENT; SEAT BELT TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98015-215-2	01	1	1306-			●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1306-	●	●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	1306-	●	●
374	NUT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M6	1-09984-110-0	02	1	1306-			●
374	NUT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8	1-09984-111-0	04	1	1306-			●
374	NUT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M6 POP NUT	8-98013-752-0	01	1	1306-			●
374	NUT; FLOOR (D) M8	9-09114-068-0	04	1	1306-	●	●	●
375	CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-882-3	01	1	1306-	●	●
375	CLOSING; PILLAR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97583-882-3	01	1	1306-			●
375	CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-883-2	01	1	1306-	●	●
375	CLOSING; PILLAR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97583-883-2	01	1	1306-			●
376	CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97583-888-2	01	1	1306-	●	●
376	CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97584-618-2	01	1	1306-	●	●
376	CLOSING; PILLAR,LWR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98024-544-7	01	1	1306-			●
376	CLOSING; PILLAR,LWR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98024-545-6	01	1	1306-			●
380	BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) SOU	8-97589-384-4	01	1	1306-	●	●
380	BRACKET; HEAD LAMP TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SOU	8-97589-384-4	01	1	1306-			●
380	BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) SOU	8-97589-385-3	01	1	1306-	●	●
380	BRACKET; HEAD LAMP TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SOU	8-97589-385-3	01	1	1306-			●
380	BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1306-	●	●	●
380	BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1306-	●	●	●
382	STIFFENER; RR FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98041-232-0	01	1	1306-	●	●
401	GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	1306-	●	●	●
486	REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-610-2	01	1	1306-	●	●
486	REINFORCEMENT; FRAME FLOOR,REAR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98030-611-2	01	1	1306-			●
499	PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-912-4	01	1	1306-	●	●
499	PANEL; FLOOR,RR TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97584-630-1	01	1	1306-			●
528	REINFORCEMENT; PARKING BRAKE MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-829-4	01	1	1306-	●	●
529	RETAINER; FLOOR PANEL TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97589-307-1	01	1	1306-			●
529	RETAINER; FLOOR PANEL TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98030-358-0	01	1	1306-			●
530	BRACKET; COVER TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97589-255-0	01	1	1306-			●
534	REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98007-678-2	01	1	1306-	●	●
534	REINFORCEMENT; SEAT BACK TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98007-678-2	01	1	1306-			●
534	REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98019-181-2	01	1	1306-	●	●
534	REINFORCEMENT; SEAT BACK TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98019-181-2	01	1	1306-			●
