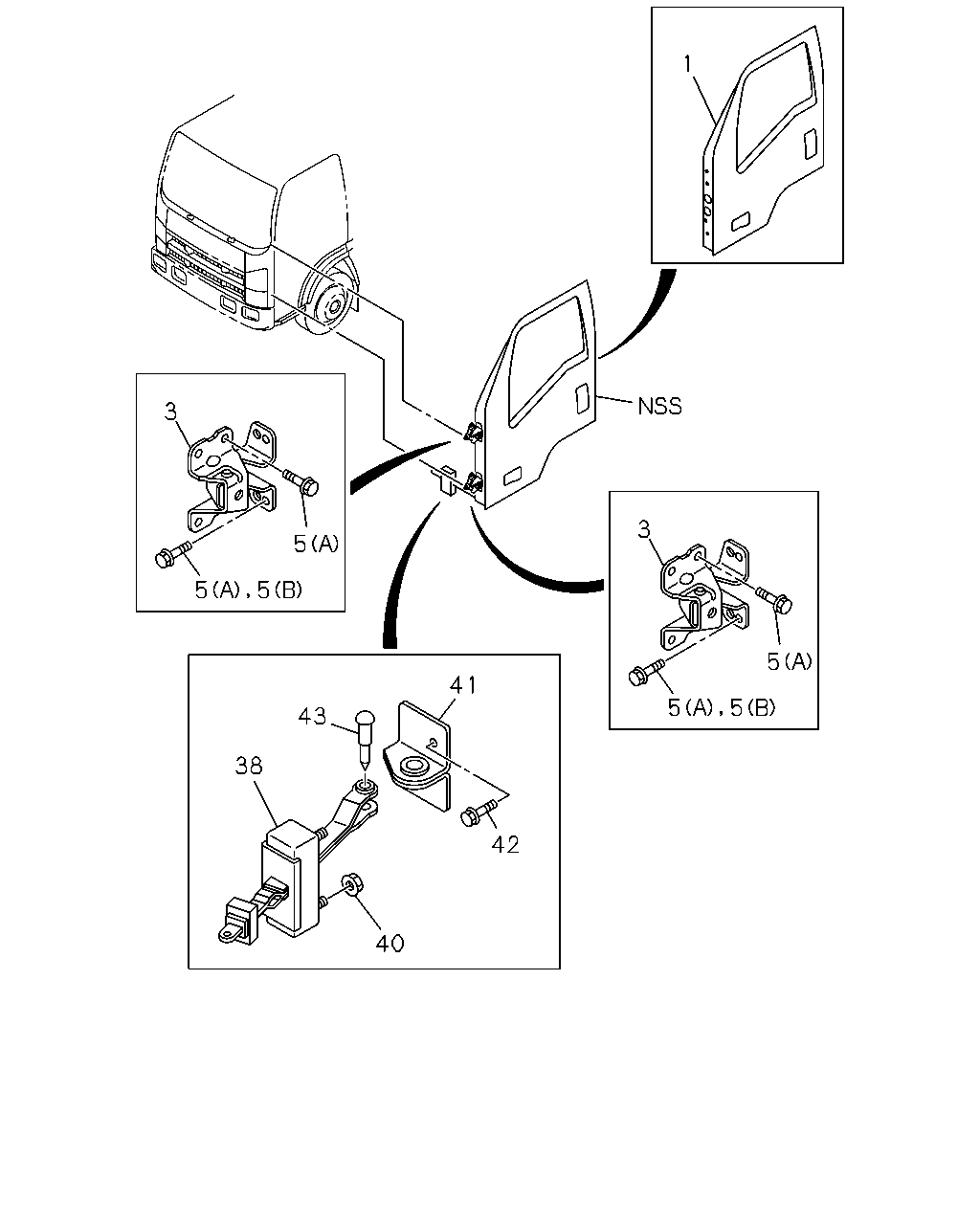

6-30 — FRONT DOOR AND HINGE
(#122555) — 14 parça
Tümü
A - NMR5SE
B - NMR5SN
C - NMR5WN
1
3
5
5
5
3
5
5
5
41
43
38
40
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
DOOR ASM; FRT,WO/TRIM
8-98171-225-0
01
1
1306-1411
●
●
●
1
DOOR ASM; FRT,WO/TRIM
8-98260-601-0
01
1
1412-
●
●
●
1
DOOR ASM; FRT,WO/TRIM
8-98171-233-0
01
1
1306-1411
●
●
●
1
DOOR ASM; FRT,WO/TRIM
8-98260-602-0
01
1
1412-
●
●
●
3
HINGE; DOOR FRT
8-98191-302-0
04
1
1306-
●
●
●
5
BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV> (A) M8X20 FLANGE
8-98049-756-0
08
1
1306-
●
●
●
5
BOLT; HINGE
(A) M8X20 FLANGE
8-98049-756-0
12
1
1306-
●
●
●
5
BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE
8-98029-440-0
08
1
1306-
●
●
●
38
CHECKER ASM; DOOR
8-98031-730-6
02
1
1306-1508
●
●
●
38
CHECKER ASM; DOOR
8-98296-602-0
02
1
1509-
●
●
●
40
NUT; CHECKER
M8 W/DISHED WASHER
8-97329-625-0
04
1
1306-
●
●
●
41
BRACKET; CHECKER
8-98029-290-3
02
1
1306-
●
●
●
42
BOLT; BRKT
M6X20 W/PL WASHER
8-98032-159-2
04
1
1306-
●
●
●
43
PIN
8-98037-152-2
02
1
1306-
●
●
●
