◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51486 - NLR/NMR(SOUTHAFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#122550) — 21 parça

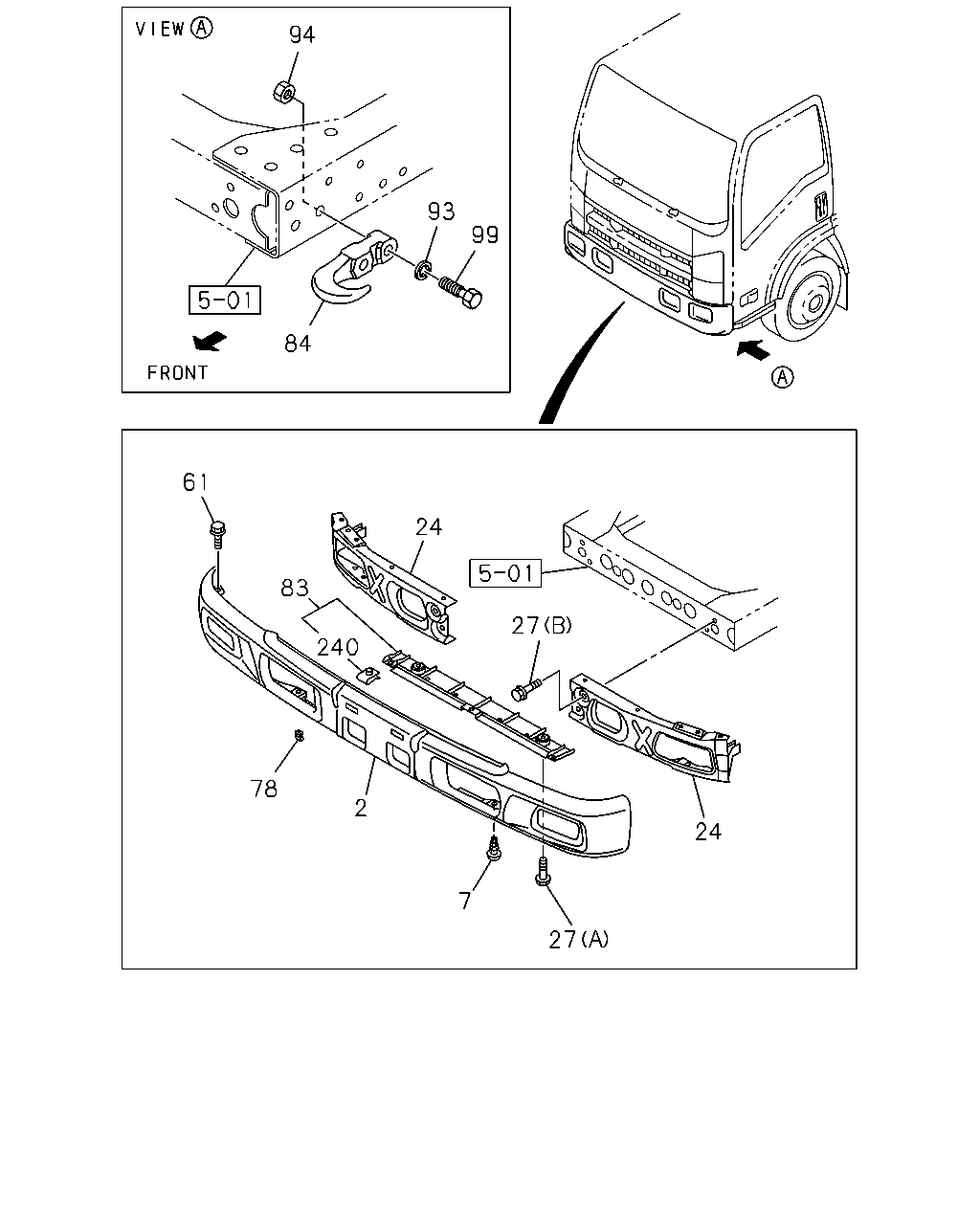

çizim 356643
94 93 99 84 24 27 240 83 61 2 78 7 27 24
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BUMPER; FRT,CENTER
FOG LAMP<T96> FRT BUMPER PAINTED<VB5> PRIMER 		8-98055-077-2 01 1 1306- ● ● ●
2 BUMPER; FRT,CENTER
FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97406-813-4 01 1 1306- ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRT BUMPER PAINTED<VB5> WHITE 		8-97406-814-4 01 1 1306- ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRT BUMPER PAINTED<VB5> BLUE 		8-97406-815-4 01 1 1306- ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER 		8-98055-078-2 01 1 1306- ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97406-819-4 01 1 1306- ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRT BUMPER PAINTED<VB5> WHITE 		8-97406-820-4 01 1 1306- ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRT BUMPER PAINTED<VB5> BLUE 		8-97406-821-4 01 1 1306- ● ● ●
7 SCREW; FRT BUMPER
M6X20 TAPPING 		8-98082-975-0 03 1 1306- ● ● ●
24 BAR; FRT BUMPER 8-98025-211-4 01 1 1306- ● ● ●
24 BAR; FRT BUMPER 8-98025-212-4 01 1 1306- ● ● ●
27 BOLT; BUMPER TO BACK BAR
(A) M8X20 W/PL WASHER 		8-98031-841-0 02 1 1306- ● ● ●
27 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES 		8-98092-250-0 04 1 1306- ● ● ●
61 BOLT; BACK BAR
M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 1306- ● ● ●
78 NUT; SPIRE
M6 		8-98029-416-0 02 1 1306- ● ● ●
83 GUIDE; AIR,FRT BUMPER 8-98045-450-0 01 1 1306- ● ● ●
84 HOOK
SOU 		8-97387-665-0 01 1 1306- ● ● ●
93 WASHER; LK,HOOK
ID=14.2 SOU 		0-91510-814-0 02 1 1306- ● ● ●
94 NUT; HOOK
M14 SOU 		0-91110-514-0 01 1 1306- ● ● ●
99 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1306- ● ● ●
240 NUT; AIR GUIDE,FRT BUMPER
SOU 		1-71996-035-1 03 1 1306- ● ● ●
