Isuzu WW
▶
TRUCKS
▶
NLR
▶
51486 - NLR/NMR(SOUTHAFRICA)
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#122546) — 83 parça
Tümü
A - NMR5SE
B - NMR5SN
C - NMR5WN
◀
[510A] CAB MTG BRKT FRONT (13 parça)
[510A] CAB MTG BRKT REAR;SGL CAB(NO.1) (24 parça)
[510A] CAB MTG BRKT REAR;SGL CAB(NO.2) (22 parça)
[510A] CAB MTG BRKT REAR;DBL CAB (24 parça)
▶

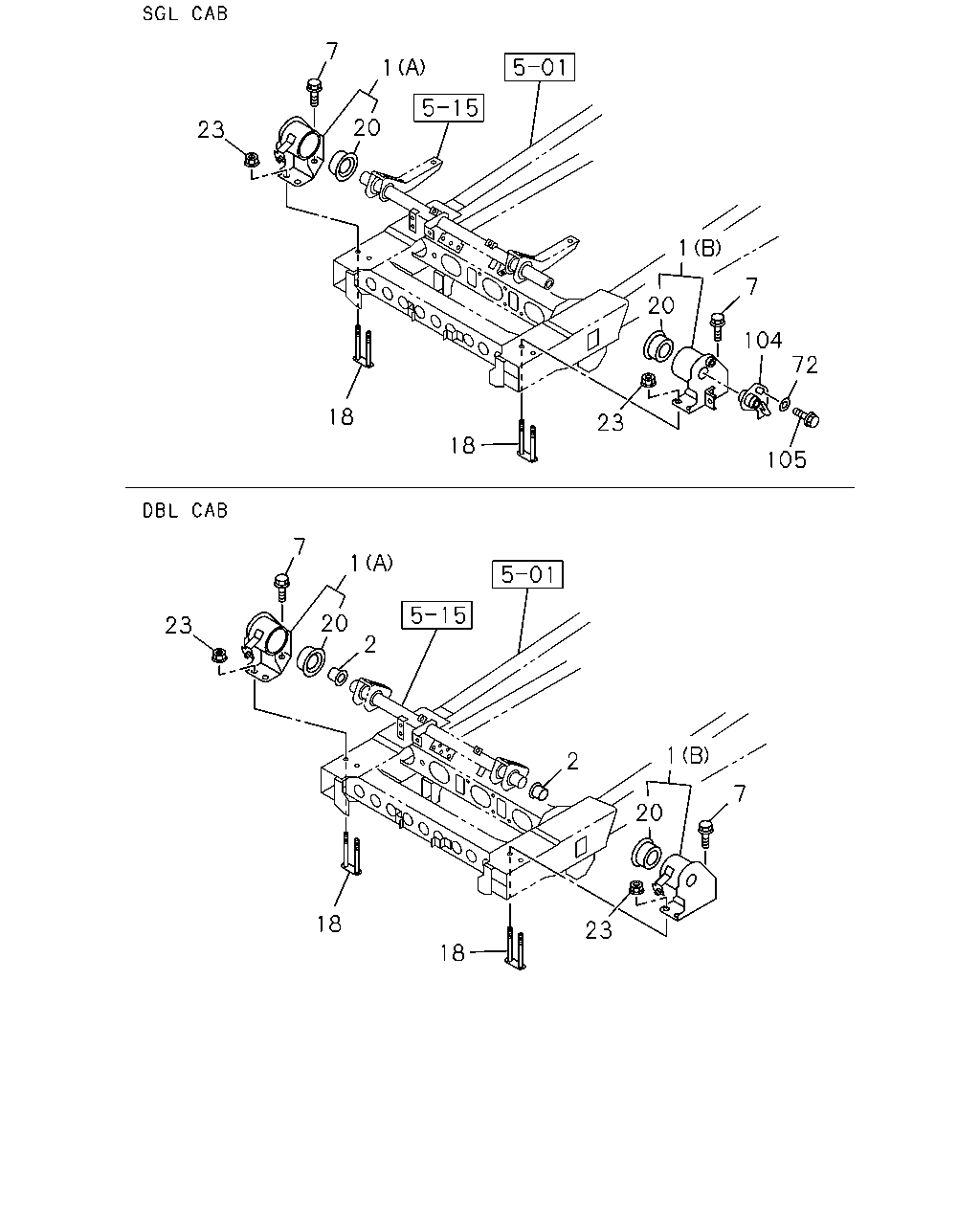

23
7
1
20
18
18
23
20
1
7
104
72
105
7
1
20
2
23
2
1
20
7
23
18
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BRACKET; CAB MTG
MANUAL TILT CAB<RWZ> (B)
8-98021-410-5
01
1
1306-
●
●
1
BRACKET; CAB MTG
(A)
8-98021-407-6
01
1
1306-
●
●
●
1
BRACKET; CAB MTG
EXC. MANUAL TILT CAB<RWZ> (B)
8-98021-408-5
01
1
1306-
●
●
1
BRACKET; CAB MTG
(B)
8-98021-408-5
01
1
1306-
●
2
BUSHING; TORSION BAR
EXC. MANUAL TILT CAB<RWZ>
8-97061-514-0
02
1
1306-
●
●
2
BUSHING; TORSION BAR
8-97061-514-0
02
1
1306-
●
7
BOLT; BRKT,CAB TILT
M14X40 FLANGE
0-28661-440-0
02
1
1306-
●
●
●
18
PLATE; MTG BRKT FIX
8-98029-285-1
02
1
1306-
●
●
●
20
RUBBER; MTG,CAB BRKT
8-98007-037-1
02
1
1306-
●
●
●
23
NUT; MTG BRKT
M14
8-98039-989-0
04
1
1306-
●
●
●
72
WASHER; PL,BRKT TO FRAME
MANUAL TILT CAB<RWZ> ID=15 OD=36
0-91614-714-0
01
1
1306-
●
●
104
BRACKET; CAB FRAME,CAB FRT MTG
MANUAL TILT CAB<RWZ>
8-97383-788-1
01
1
1306-
●
●
105
BOLT; BRKT TO CAB FRAME
MANUAL TILT CAB<RWZ> M14X35 FLANGE
0-28661-435-0
01
1
1306-
●
●

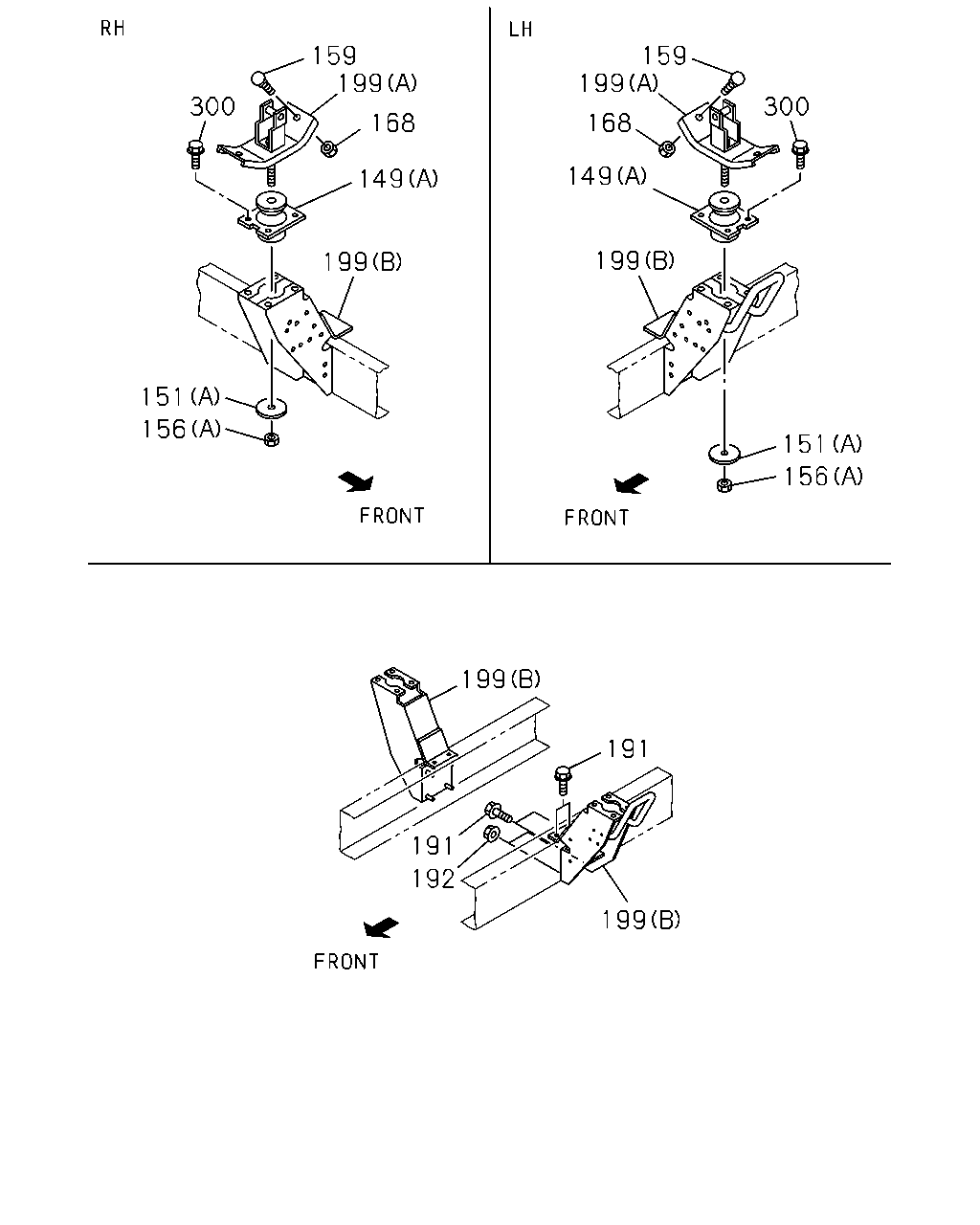

159
199
168
149
199
300
151
156
159
199
168
149
199
151
156
199
191
199
191
192
300
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
149
RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ> (A) H=62
8-98021-561-1
02
1
1306-
●
●
149
RUBBER; MTG,CAB,UPR RR
EXC. MANUAL TILT CAB<RWZ> (C) H=94
8-98038-868-0
02
1
1306-
●
●
149
RUBBER; MTG,CAB,UPR RR
(C) H=94
8-98038-868-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(D) H=26.5
5-53459-041-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(B) H=30.6
8-94128-501-0
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
MANUAL TILT CAB<RWZ> (A) ID=17 OD=62
8-97359-042-1
02
1
1306-
●
●
151
WASHER; CAB MTG,RR UPR
EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58
8-97359-040-1
02
1
1306-
●
●
151
WASHER; CAB MTG,RR UPR
(B) ID=16.5 OD=58
8-97359-040-1
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(C) OD=33 ID=10.2 T=3.2
8-98004-321-0
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(D) ID=14 OD=60
8-98004-322-0
02
1
1306-
●
156
NUT; CAB MTG RR
MANUAL TILT CAB<RWZ> (A) M16 SOU
0-91111-516-0
02
1
1306-
●
●
156
NUT; CAB MTG RR
EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE
0-91180-114-0
02
1
1306-
●
●
156
NUT; CAB MTG RR
(B) M14 FLANGE
0-91180-114-0
02
1
1306-
●
156
NUT; CAB MTG RR
(C) M10 SOU
0-91110-510-0
04
1
1306-
●
159
RUBBER; CUSHION,CAB MTG
MANUAL TILT CAB<RWZ>
8-97113-340-0
04
1
1306-
●
●
168
NUT; CUSHION RUBBER,BODY MTG
MANUAL TILT CAB<RWZ> M8 FLANGE SOU
0-91180-108-0
04
1
1306-
●
●
191
BOLT; BRKT FIX
M12X35 FLANGE SOU
0-28651-235-0
08
1
1306-
●
●
●
192
NUT; BRKT FIX
M12 FLANGE
0-91180-112-0
04
1
1306-
●
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B)
8-98001-443-4
01
1
1306-
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B)
8-98001-444-2
01
1
1306-
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (A)
8-98036-883-0
02
1
1306-
●
●
199
BRACKET; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> (C)
8-98001-443-4
02
1
1306-
●
●
199
BRACKET; CAB RR MTG
(C)
8-98001-443-4
02
1
1306-
●
300
BOLT; MTG RUBBER
M10X20 FLANGE
0-28651-020-0
08
1
1306-
●
●
●
156
151
300
149
191
199
192
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
149
RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ> (A) H=62
8-98021-561-1
02
1
1306-
●
●
149
RUBBER; MTG,CAB,UPR RR
EXC. MANUAL TILT CAB<RWZ> (C) H=94
8-98038-868-0
02
1
1306-
●
●
149
RUBBER; MTG,CAB,UPR RR
(C) H=94
8-98038-868-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(D) H=26.5
5-53459-041-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(B) H=30.6
8-94128-501-0
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
MANUAL TILT CAB<RWZ> (A) ID=17 OD=62
8-97359-042-1
02
1
1306-
●
●
151
WASHER; CAB MTG,RR UPR
EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58
8-97359-040-1
02
1
1306-
●
●
151
WASHER; CAB MTG,RR UPR
(B) ID=16.5 OD=58
8-97359-040-1
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(C) OD=33 ID=10.2 T=3.2
8-98004-321-0
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(D) ID=14 OD=60
8-98004-322-0
02
1
1306-
●
156
NUT; CAB MTG RR
MANUAL TILT CAB<RWZ> (A) M16 SOU
0-91111-516-0
02
1
1306-
●
●
156
NUT; CAB MTG RR
EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE
0-91180-114-0
02
1
1306-
●
●
156
NUT; CAB MTG RR
(B) M14 FLANGE
0-91180-114-0
02
1
1306-
●
156
NUT; CAB MTG RR
(C) M10 SOU
0-91110-510-0
04
1
1306-
●
191
BOLT; BRKT FIX
M12X35 FLANGE SOU
0-28651-235-0
08
1
1306-
●
●
●
192
NUT; BRKT FIX
M12 FLANGE
0-91180-112-0
04
1
1306-
●
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B)
8-98001-443-4
01
1
1306-
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B)
8-98001-444-2
01
1
1306-
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (A)
8-98036-883-0
02
1
1306-
●
●
199
BRACKET; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> (C)
8-98001-443-4
02
1
1306-
●
●
199
BRACKET; CAB RR MTG
(C)
8-98001-443-4
02
1
1306-
●
300
BOLT; MTG RUBBER
M10X20 FLANGE
0-28651-020-0
08
1
1306-
●
●
●

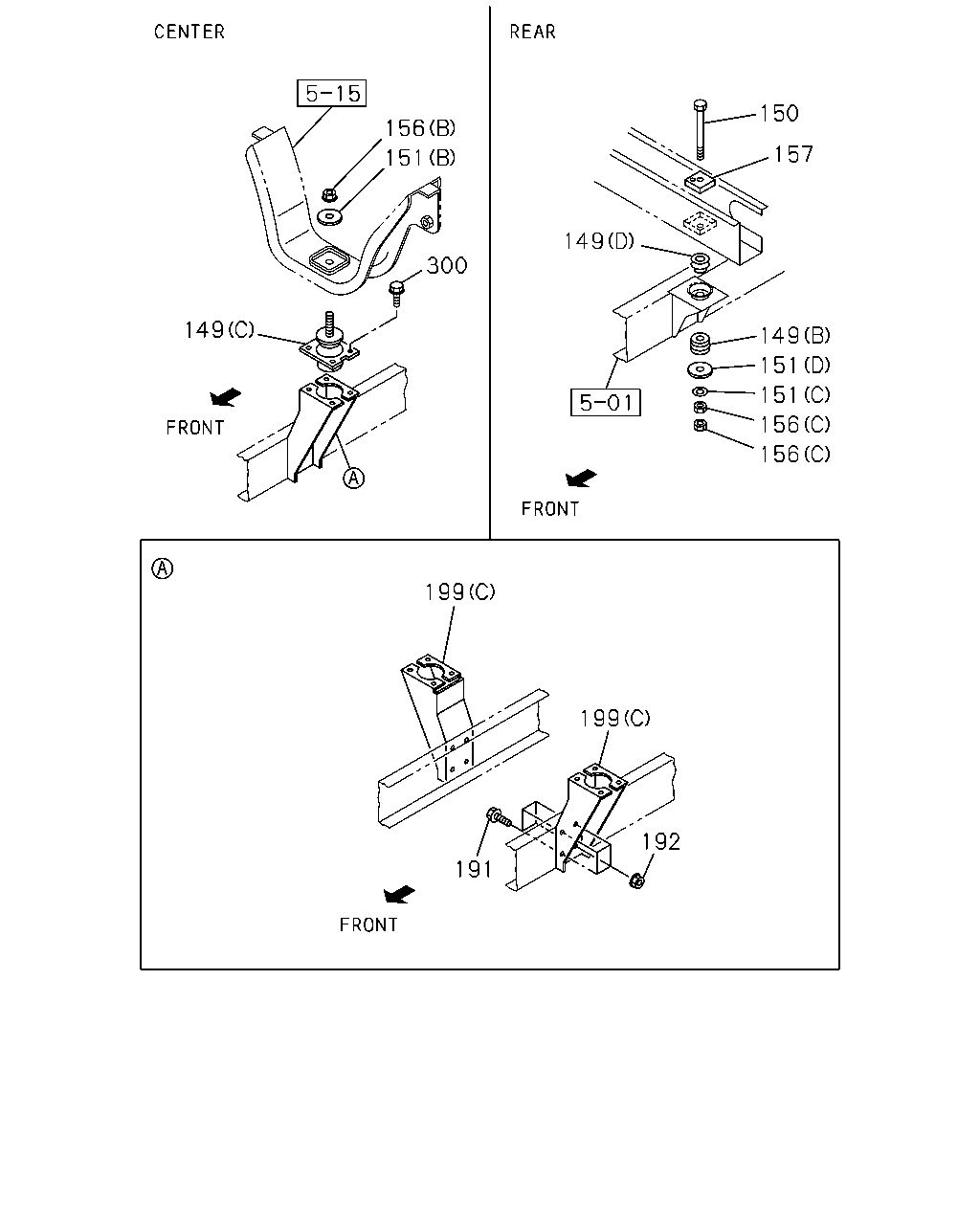

150
157
149
151
151
156
156
149
151
156
149
199
199
192
191
300
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
149
RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ> (A) H=62
8-98021-561-1
02
1
1306-
●
●
149
RUBBER; MTG,CAB,UPR RR
EXC. MANUAL TILT CAB<RWZ> (C) H=94
8-98038-868-0
02
1
1306-
●
●
149
RUBBER; MTG,CAB,UPR RR
(C) H=94
8-98038-868-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(D) H=26.5
5-53459-041-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(B) H=30.6
8-94128-501-0
02
1
1306-
●
150
BOLT; CAB MTG RR
M10X105
8-98004-320-0
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
MANUAL TILT CAB<RWZ> (A) ID=17 OD=62
8-97359-042-1
02
1
1306-
●
●
151
WASHER; CAB MTG,RR UPR
EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58
8-97359-040-1
02
1
1306-
●
●
151
WASHER; CAB MTG,RR UPR
(B) ID=16.5 OD=58
8-97359-040-1
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(C) OD=33 ID=10.2 T=3.2
8-98004-321-0
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(D) ID=14 OD=60
8-98004-322-0
02
1
1306-
●
156
NUT; CAB MTG RR
MANUAL TILT CAB<RWZ> (A) M16 SOU
0-91111-516-0
02
1
1306-
●
●
156
NUT; CAB MTG RR
EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE
0-91180-114-0
02
1
1306-
●
●
156
NUT; CAB MTG RR
(B) M14 FLANGE
0-91180-114-0
02
1
1306-
●
156
NUT; CAB MTG RR
(C) M10 SOU
0-91110-510-0
04
1
1306-
●
157
RUBBER; MTG,CAB,TOP RR
9-53459-603-0
02
1
1306-
●
191
BOLT; BRKT FIX
M12X35 FLANGE SOU
0-28651-235-0
08
1
1306-
●
●
●
192
NUT; BRKT FIX
M12 FLANGE
0-91180-112-0
04
1
1306-
●
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B)
8-98001-443-4
01
1
1306-
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B)
8-98001-444-2
01
1
1306-
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (A)
8-98036-883-0
02
1
1306-
●
●
199
BRACKET; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> (C)
8-98001-443-4
02
1
1306-
●
●
199
BRACKET; CAB RR MTG
(C)
8-98001-443-4
02
1
1306-
●
300
BOLT; MTG RUBBER
M10X20 FLANGE
0-28651-020-0
08
1
1306-
●
●
●
