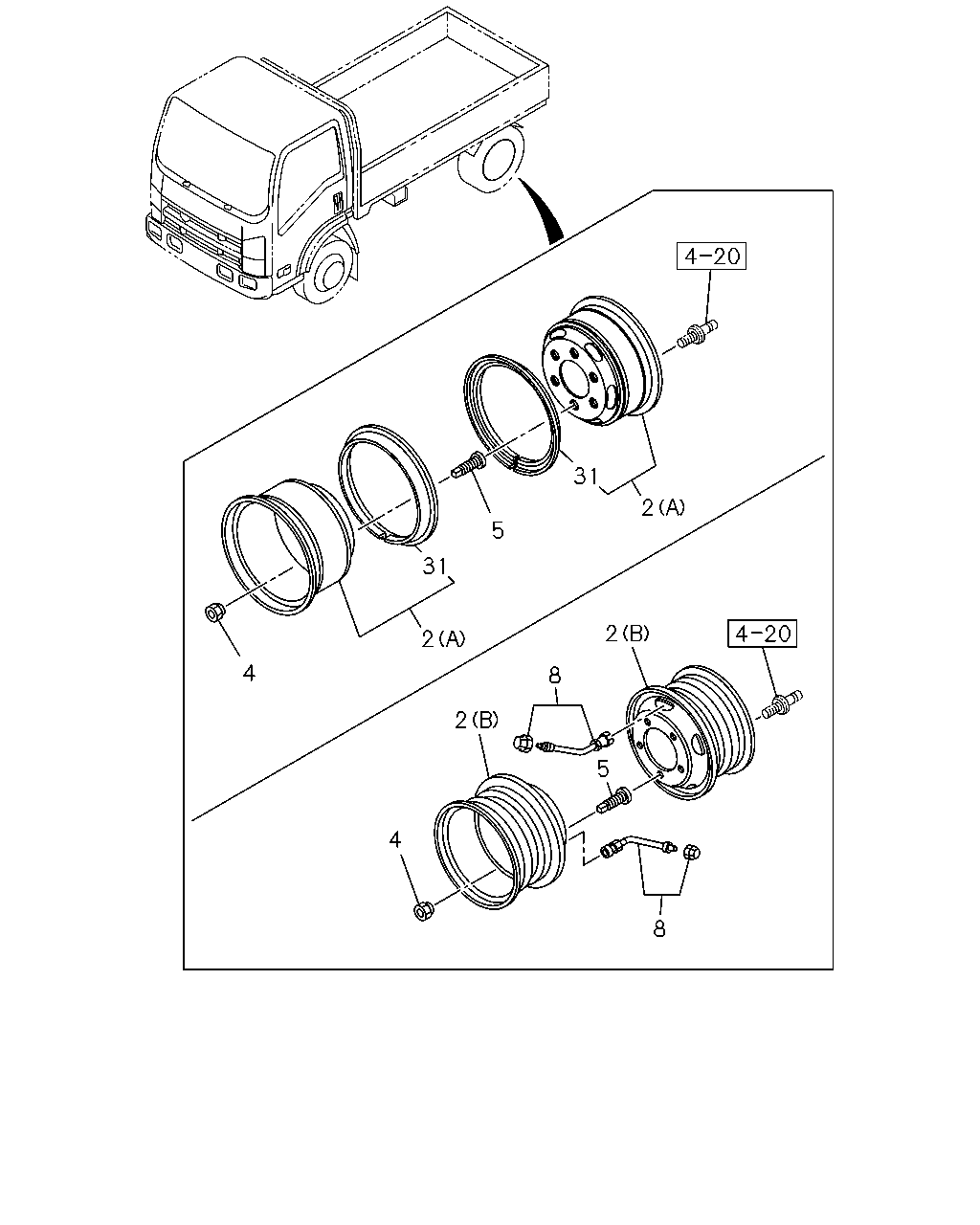

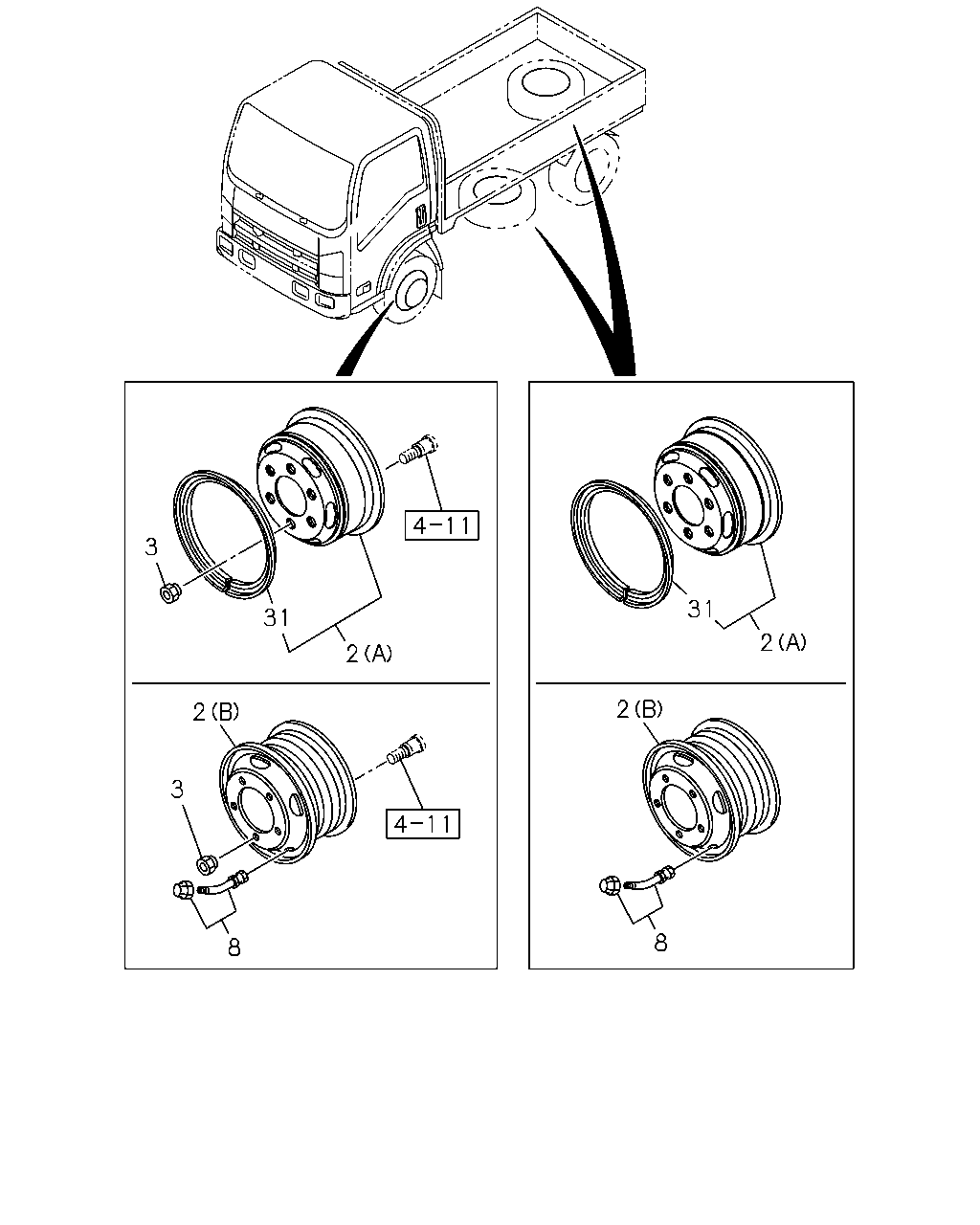

4-80 — ROAD WHEEL (#122544) — 46 parça

2 31 2 8 8 3 2 31 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1306-1507	●
2	WHEEL; DISC (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1508-	●
2	WHEEL; DISC FRT&RR TIRE 205R75R16C DISC 16X5.5J-116.5(CUD) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1508-		●	●
2	WHEEL; DISC (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1306-1507	●
2	WHEEL; DISC (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1508-	●
2	WHEEL; DISC FRT&RR TIRE 205R75R16C DISC 16X5.5J-116.5(CUD) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1508-		●	●
2	WHEEL; DISC (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE SOU	8-94378-330-1	01	1	1306-1507		●	●
2	WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE SOU	8-94378-330-1	01	1	1508-		●	●
2	WHEEL; DISC (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE SOU	8-94378-330-1	06	1	1306-1507		●	●
2	WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE SOU	8-94378-330-1	06	1	1508-		●	●
3	NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	1306-	●	●	●
3	NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	1306-	●	●	●
8	VALVE; TIRE SPARE SOU	8-98221-106-0	01	1	1306-1507	●
8	VALVE; TIRE SPARE SOU	8-98221-106-0	01	1	1508-	●
8	VALVE; TIRE FRT&RR TIRE 205R75R16C DISC 16X5.5J-116.5(CUD) SPARE SOU	8-98221-106-0	01	1	1508-		●	●
8	VALVE; TIRE FRONT,REAR SOU	8-98221-106-0	06	1	1306-1507	●
8	VALVE; TIRE FRONT,REAR SOU	8-98221-106-0	06	1	1508-	●
8	VALVE; TIRE FRT&RR TIRE 205R75R16C DISC 16X5.5J-116.5(CUD) FRONT,REAR SOU	8-98221-106-0	06	1	1508-		●	●
31	RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK SOU	8-94135-601-0	01	1	1306-1507		●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK SOU	8-94135-601-0	01	1	1508-		●	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK SOU	8-94135-601-0	06	1	1306-1507		●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK SOU	8-94135-601-0	06	1	1508-		●	●

2 31 5 31 4 2 2 4 8 5 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1306-1507	●
2	WHEEL; DISC (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1508-	●
2	WHEEL; DISC FRT&RR TIRE 205R75R16C DISC 16X5.5J-116.5(CUD) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1508-		●	●
2	WHEEL; DISC (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1306-1507	●
2	WHEEL; DISC (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1508-	●
2	WHEEL; DISC FRT&RR TIRE 205R75R16C DISC 16X5.5J-116.5(CUD) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1508-		●	●
2	WHEEL; DISC (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE SOU	8-94378-330-1	01	1	1306-1507		●	●
2	WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE SOU	8-94378-330-1	01	1	1508-		●	●
2	WHEEL; DISC (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE SOU	8-94378-330-1	06	1	1306-1507		●	●
2	WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE SOU	8-94378-330-1	06	1	1508-		●	●
4	NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1306-	●	●	●
4	NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1306-	●	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1306-	●	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1306-	●	●	●
8	VALVE; TIRE SPARE SOU	8-98221-106-0	01	1	1306-1507	●
8	VALVE; TIRE SPARE SOU	8-98221-106-0	01	1	1508-	●
8	VALVE; TIRE FRT&RR TIRE 205R75R16C DISC 16X5.5J-116.5(CUD) SPARE SOU	8-98221-106-0	01	1	1508-		●	●
8	VALVE; TIRE FRONT,REAR SOU	8-98221-106-0	06	1	1306-1507	●
8	VALVE; TIRE FRONT,REAR SOU	8-98221-106-0	06	1	1508-	●
8	VALVE; TIRE FRT&RR TIRE 205R75R16C DISC 16X5.5J-116.5(CUD) FRONT,REAR SOU	8-98221-106-0	06	1	1508-		●	●
31	RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK SOU	8-94135-601-0	01	1	1306-1507		●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK SOU	8-94135-601-0	01	1	1508-		●	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK SOU	8-94135-601-0	06	1	1306-1507		●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK SOU	8-94135-601-0	06	1	1508-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
