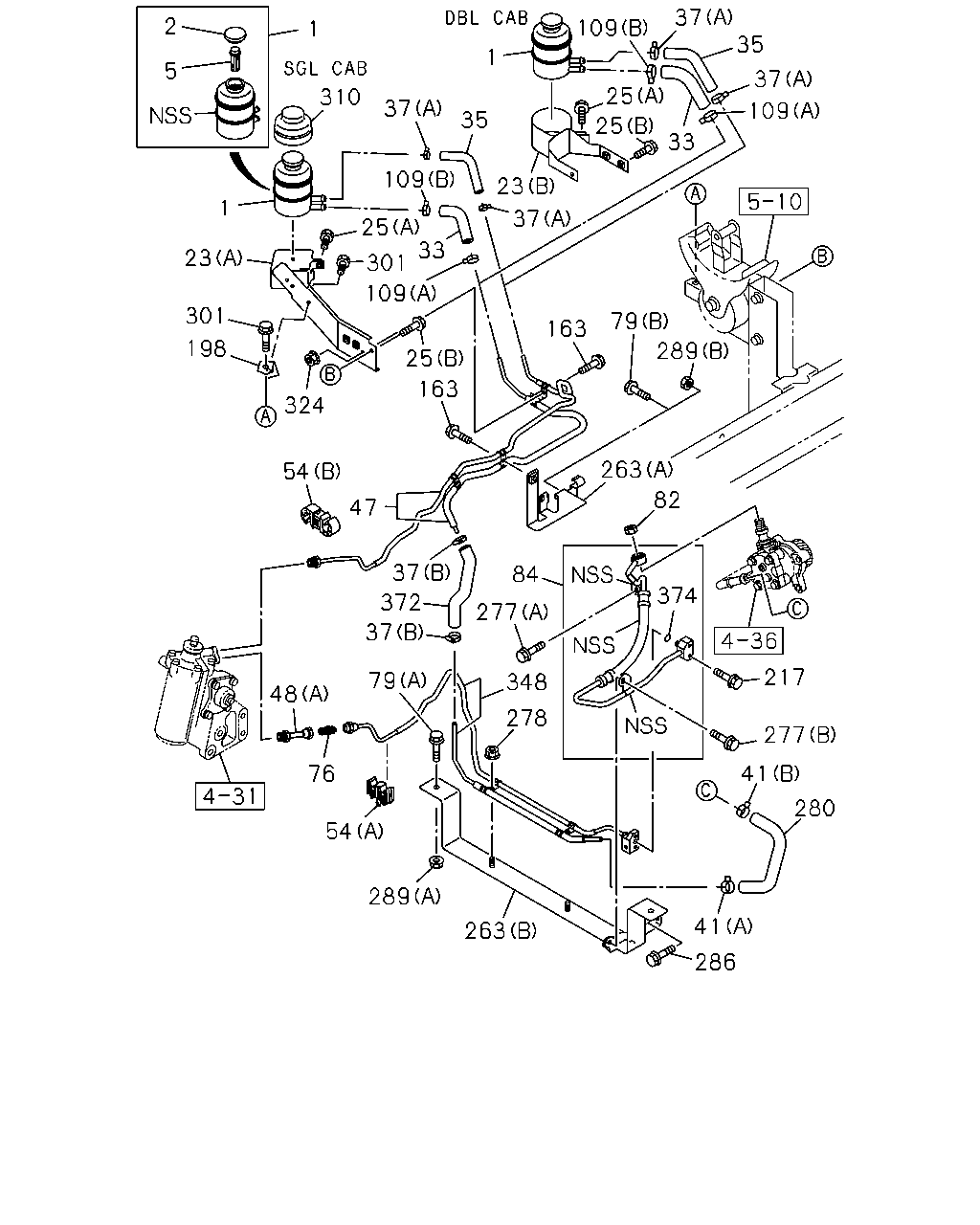

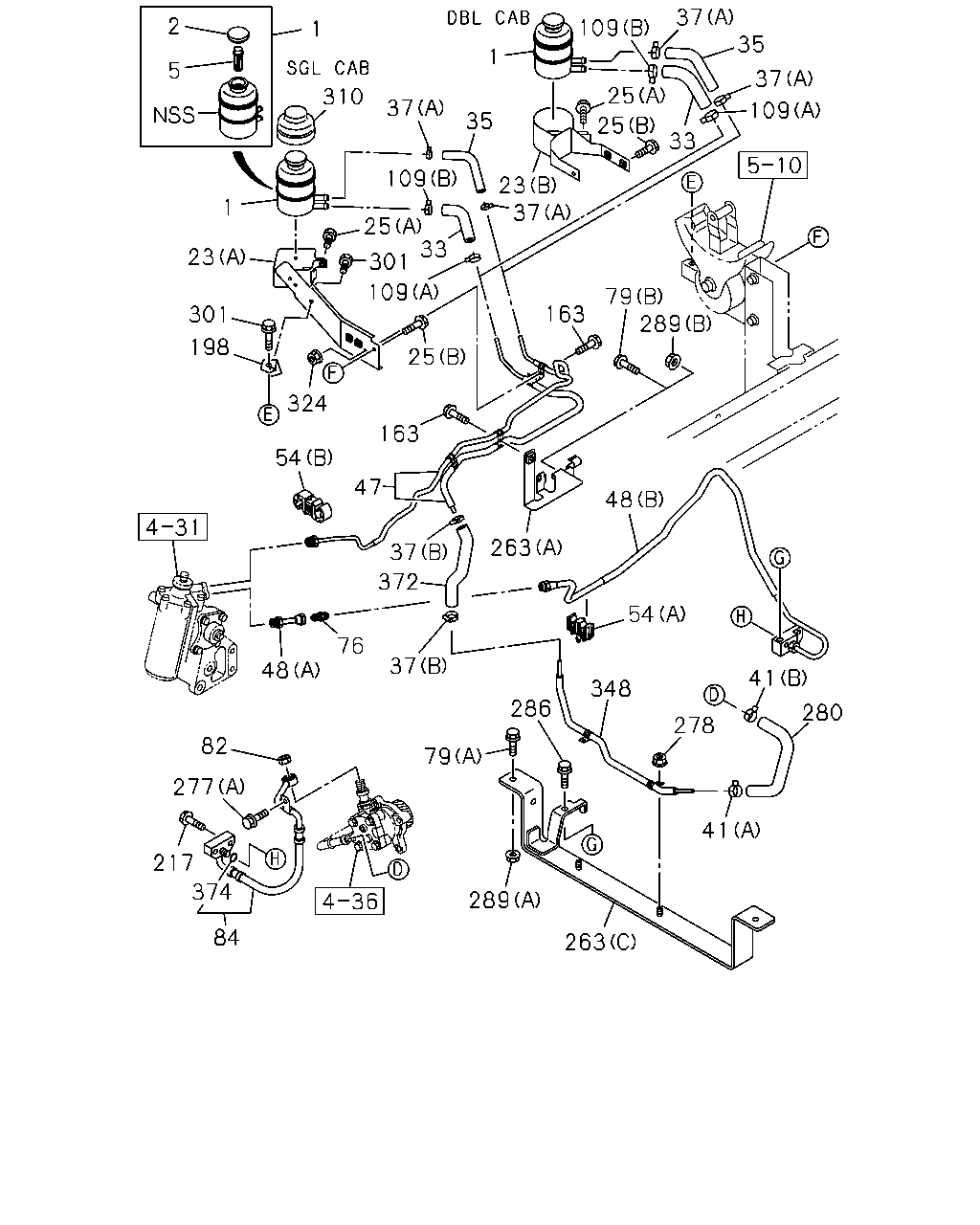

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#122534) — 104 parça

37 109 25 109 301 25 163 163 79 37 23 35 1 1 2 5 310 1 23 301 198 324 54 47 37 372 37 79 48 76 54 289 263 41 41 280 277 217 374 263 84 277 348 278 289 25 25 109 37 37 33 109 286 82 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1306-	●	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1306-	●	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1306-	●	●	●
23	BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	1306-	●	●
23	BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	1306-			●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	1306-	●	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	03	1	1306-			●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1306-	●	●
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1306-			●
35	HOSE; RETURN,P/S TANK	8-98054-265-0	01	1	1306-	●	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	1306-	●	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	1306-	●	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	1306-	●	●	●
47	PIPE; RETURN	8-98173-325-0	01	1	1306-	●	●
47	PIPE; RETURN	8-98054-228-0	01	1	1306-			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-105-0	01	1	1401-	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98041-027-0	01	1	1306-	●	●	●
54	CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	1306-	●	●	●
54	CLIP; OIL PIPE (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1306-	●	●	●
76	UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1306-	●	●	●
79	BOLT; BRKT (A) M12X30 FLANGE SOU	0-28651-230-0	02	1	1306-	●	●	●
79	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-		●	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	1306-	●	●	●
84	HOSE; FLEX,P/S	8-98032-376-4	01	1	1306-1312	●	●	●
84	HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-	●	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1306-	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1306-	●	●	●
163	BOLT; OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●	●	●
163	BOLT; OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●	●	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1306-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	1306-	●	●	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1306-	●	●	●
263	BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	1306-1312	●	●	●
263	BRACKET; P/S PIPE (C)	8-98250-108-0	01	1	1401-	●	●	●
277	BOLT; HOSE CLIP (A) M8X12 FLANGE	0-28050-812-0	01	1	1306-	●	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-1312	●	●	●
278	NUT; HOSE CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1306-	●	●	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●	●
289	NUT; BRKT,POWER STRG (A) M12 FLANGE	0-91180-112-0	01	1	1306-	●	●	●
289	NUT; BRKT,POWER STRG (B) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
289	NUT; BRKT,POWER STRG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	1306-	●	●
324	NUT; OIL PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●
348	PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	1306-1312	●	●	●
348	PIPE; OIL,P/S PRESS	8-98250-107-0	01	1	1401-	●	●	●
372	HOSE; RUBBER	8-98054-269-0	01	1	1306-1312	●	●	●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●	●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	1306-	●	●	●

37 37 35 25 25 109 33 1 35 37 310 1 2 5 23 25 109 109 33 301 23 1 301 198 324 163 54 47 37 372 76 37 79 289 263 41 278 280 41 54 348 286 48 82 277 217 374 84 25 163 79 289 48 263 109 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1306-	●	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1306-	●	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1306-	●	●	●
23	BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	1306-	●	●
23	BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	1306-			●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	1306-	●	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	03	1	1306-			●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1306-	●	●
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1306-			●
35	HOSE; RETURN,P/S TANK	8-98054-265-0	01	1	1306-	●	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	1306-	●	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	1306-	●	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	1306-	●	●	●
47	PIPE; RETURN	8-98173-325-0	01	1	1306-	●	●
47	PIPE; RETURN	8-98054-228-0	01	1	1306-			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-105-0	01	1	1401-	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98041-027-0	01	1	1306-	●	●	●
54	CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	1306-	●	●	●
54	CLIP; OIL PIPE (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1306-	●	●	●
76	UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1306-	●	●	●
79	BOLT; BRKT (A) M12X30 FLANGE SOU	0-28651-230-0	02	1	1306-	●	●	●
79	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-		●	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	1306-	●	●	●
84	HOSE; FLEX,P/S	8-98032-376-4	01	1	1306-1312	●	●	●
84	HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-	●	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1306-	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1306-	●	●	●
163	BOLT; OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●	●	●
163	BOLT; OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●	●	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1306-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	1306-	●	●	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1306-	●	●	●
263	BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	1306-1312	●	●	●
263	BRACKET; P/S PIPE (C)	8-98250-108-0	01	1	1401-	●	●	●
277	BOLT; HOSE CLIP (A) M8X12 FLANGE	0-28050-812-0	01	1	1306-	●	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-1312	●	●	●
278	NUT; HOSE CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1306-	●	●	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●	●
289	NUT; BRKT,POWER STRG (A) M12 FLANGE	0-91180-112-0	01	1	1306-	●	●	●
289	NUT; BRKT,POWER STRG (B) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
289	NUT; BRKT,POWER STRG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	1306-	●	●
324	NUT; OIL PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●
348	PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	1306-1312	●	●	●
348	PIPE; OIL,P/S PRESS	8-98250-107-0	01	1	1401-	●	●	●
372	HOSE; RUBBER	8-98054-269-0	01	1	1306-1312	●	●	●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●	●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	1306-	●	●	●
