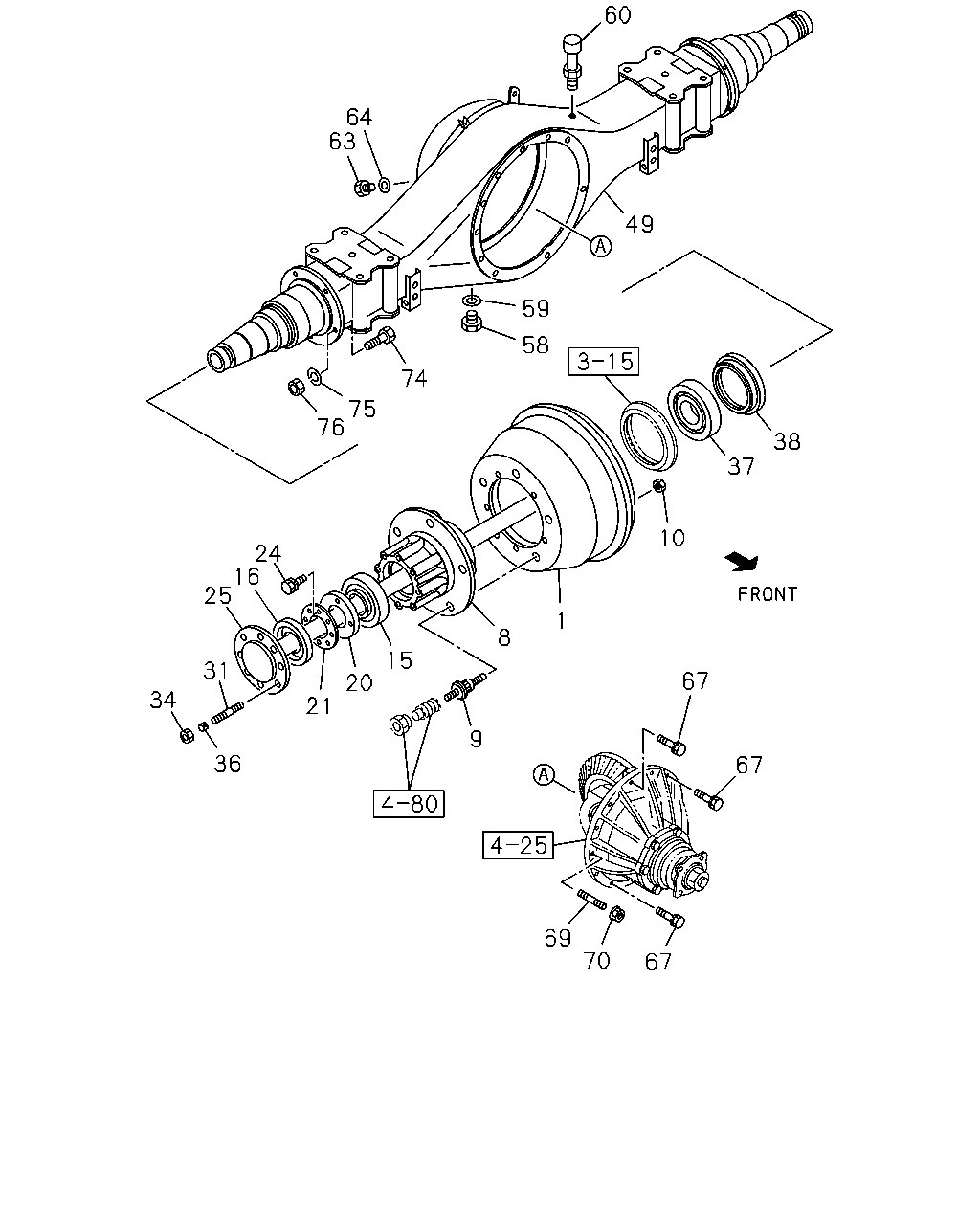

1 |
DRUM; BRK,RR
|
8-97034-770-3 |
02 |
1 |
1306-1310 |
● |
● |
● |
| |
1 |
DRUM; BRK,RR
|
8-98248-900-0 |
02 |
1 |
1311- |
● |
● |
● |
| |
8 |
HUB; RR AXLE
|
8-97034-406-4 |
02 |
1 |
1306- |
● |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
1306- |
● |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
1306- |
● |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M20
|
0-91110-520-0 |
10 |
1 |
1306- |
● |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-082-0 |
02 |
1 |
1306- |
● |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
5-87610-140-0 |
02 |
1 |
1306- |
● |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
NOK
|
8-98202-911-0 |
02 |
1 |
1306- |
● |
● |
● |
| |
20 |
NUT; BRG,RR HUB
M52
|
8-98236-850-0 |
02 |
1 |
1306- |
● |
● |
● |
| |
21 |
WASHER; LK,BRG NUT
ID=52
|
9-09853-214-1 |
02 |
1 |
1306- |
● |
● |
● |
| |
24 |
BOLT; LK WASHER
M6X10 FLANGE
SOU
|
0-28050-610-0 |
04 |
1 |
1306-1508 |
● |
● |
● |
| |
24 |
BOLT; LK WASHER
M6X12 FLANGE
SOU
|
0-28050-612-0 |
04 |
1 |
1509- |
● |
● |
● |
| |
25 |
SHAFT; AXLE,RR
|
8-97032-495-0 |
02 |
1 |
1306- |
● |
|
|
| |
25 |
SHAFT; AXLE,RR
|
8-97032-496-0 |
02 |
1 |
1306- |
|
● |
● |
| |
31 |
STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
16 |
1 |
1306- |
● |
● |
● |
| |
34 |
NUT; AXLE SHAFT
M10 FLANGE
SOU
|
0-91180-210-0 |
16 |
1 |
1306- |
● |
● |
● |
| |
36 |
WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
8-97360-004-0 |
16 |
1 |
1306- |
● |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-081-0 |
02 |
1 |
1306- |
● |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS
|
5-87610-142-0 |
02 |
1 |
1306- |
● |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-314-1 |
02 |
1 |
1306- |
● |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-959-0 |
02 |
1 |
1306- |
● |
● |
● |
| |
49 |
CASE; RR AXLE
|
8-97251-367-2 |
01 |
1 |
1306- |
● |
|
|
| |
49 |
CASE; RR AXLE
|
8-97251-368-3 |
01 |
1 |
1306- |
|
● |
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
M16X12.5
SOU
|
8-97307-060-0 |
01 |
1 |
1306- |
● |
● |
● |
| |
59 |
GASKET; DRAIN PLUG
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
1306- |
● |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
L=29
SOU
|
8-98006-960-0 |
01 |
1 |
1306- |
● |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M20X10.5
|
8-98009-333-0 |
01 |
1 |
1306- |
● |
● |
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
SOU
|
8-94462-734-0 |
01 |
1 |
1306- |
● |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
1306- |
● |
● |
● |
| |
69 |
STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
1306- |
● |
● |
● |
| |
70 |
NUT; CARRIER
M10 FLANGE
SOU
|
0-91180-210-0 |
02 |
1 |
1306- |
● |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
M12X32
|
8-97359-819-0 |
12 |
1 |
1306- |
● |
● |
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1306- |
● |
● |
● |
| |
76 |
NUT; RR BRK ASM SETTING
M12
SOU
|
0-91110-512-0 |
12 |
1 |
1306- |
● |
● |
● |
