◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51486 - NLR/NMR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#122527) — 56 parça

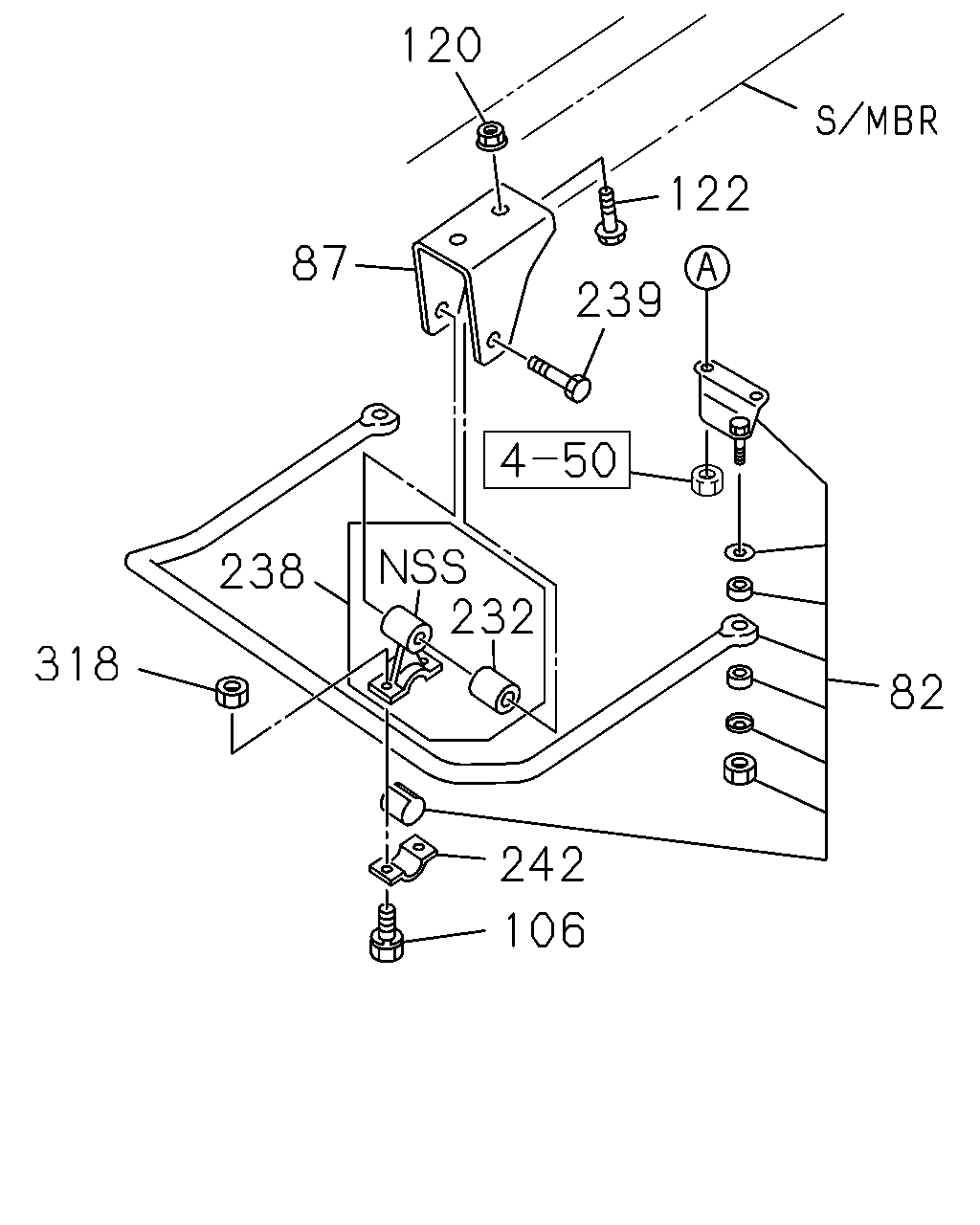

çizim 358133
122 239 242 106 82 238 318 120 87 232
BalonParca AdiParca NoAdetTipApplied Date A B C
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98002-084-2 01 1 1306- ● ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-98051-506-0 01 1 1306- ● ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-98051-507-0 01 1 1306- ● ● ●
106 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10X25 FLANGE SOU 		0-28651-025-0 04 1 1306- ● ● ●
120 NUT; STAB BAR BRKT
FRONT STABILIZER SHAFT<F59> M12 FLANGE SOU 		0-91180-212-0 04 1 1306- ● ● ●
122 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M12X30 FLANGE 		0-28661-230-0 04 1 1306- ● ● ●
232 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 1306- ● ● ●
238 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-908-0 02 1 1306- ● ● ●
239 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 1306- ● ● ●
242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 1306- ● ● ●
318 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10 FLANGE SOU 		0-91180-110-0 04 1 1306- ● ● ●

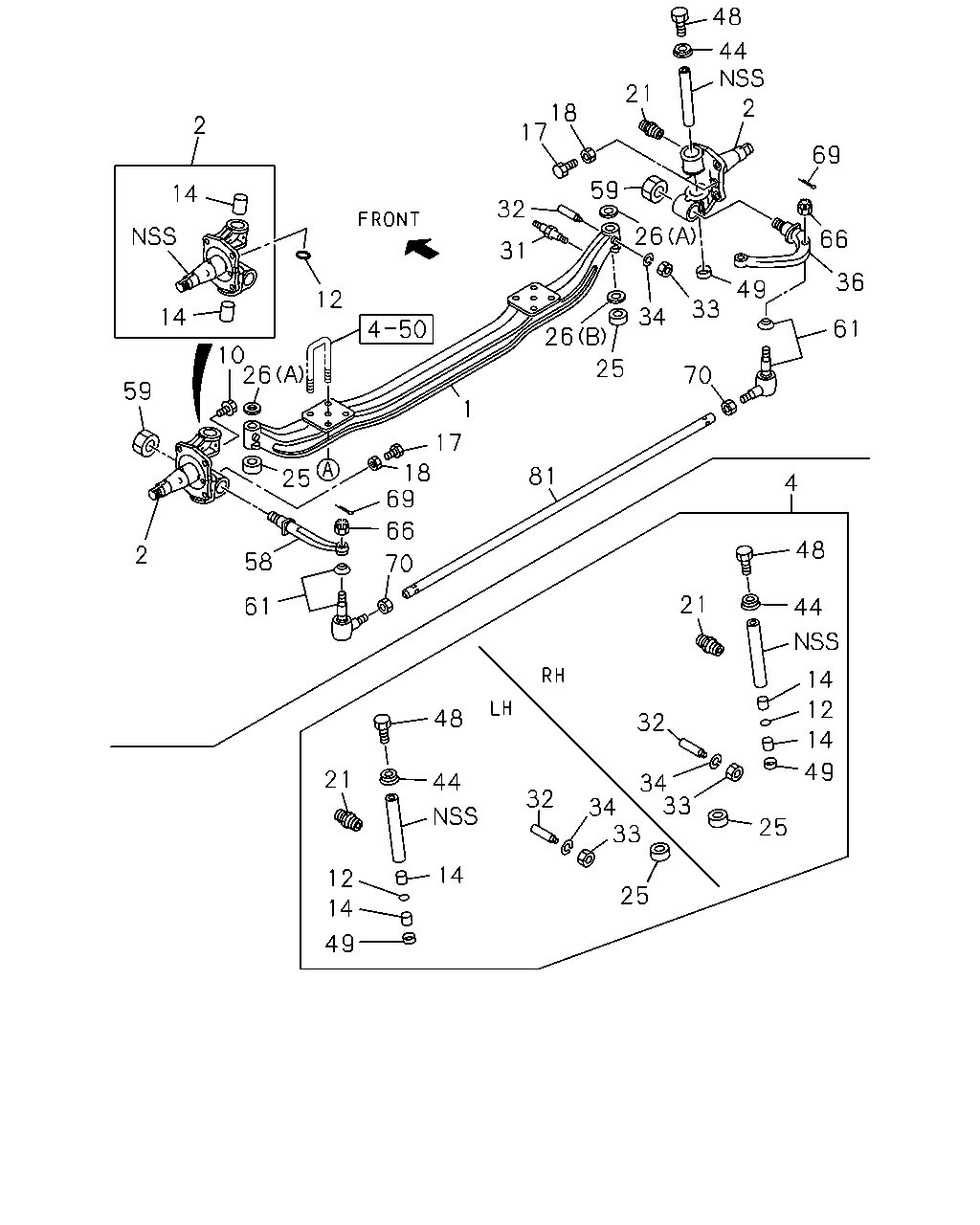

çizim 358830
2 14 14 12 26 10 59 2 25 58 61 70 66 69 18 17 1 81 48 44 21 12 14 14 49 32 34 33 25 33 34 32 21 48 44 14 12 14 49 25 70 26 34 33 25 49 66 69 36 61 26 59 18 17 32 31 21 48 44 2 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 AXLE; FRT 8-97262-000-4 01 1 1306- ● ● ●
2 KNUCKLE; FRT AXLE 8-97261-549-2 01 1 1306- ● ● ●
2 KNUCKLE; FRT AXLE 8-97261-550-2 01 1 1306- ● ● ●
4 KING PIN KIT 5-87832-220-2 01 1 1306- ● ● ●
10 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1306- ● ● ●
12 GASKET; KNUCKLE 8-98084-500-0 02 1 1306- ● ● ●
14 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1306- ● ● ●
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1306-1507 ●
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1508- ●
17 BOLT; STOPPER KNUCKLE
FRT&RR TIRE 205R75R16C DISC 16X5.5J-116.5(CUD) M12X24 EYE-BOLT 		8-97360-059-0 03 1 1508- ● ●
17 BOLT; STOPPER KNUCKLE
M12X27.5 		8-98016-968-0 03 1 1306-1507 ● ●
17 BOLT; STOPPER KNUCKLE
FRT&RR 7R-16-10 16X5.5F-115(07H) M12X27.5 		8-98016-968-0 03 1 1508- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M12 		0-91111-512-0 03 1 1306- ● ● ●
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT SOU 		0-90301-406-0 04 1 1306- ● ● ●
25 BEARING; THRUST,KING PIN
OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1306-1507 ● ● ●
25 BEARING; THRUST,KING PIN
OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1508- ● ● ●
25 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1306-1507 ● ● ●
25 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1508- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1306- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1306- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1306- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1306- ● ● ●
26 SHIM; KING PIN,BRG
(B) T=1.95 		8-94168-490-0 01 1 1306- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1306- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1306- ● ● ●
26 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1306- ● ● ●
31 PIN; S/ABS,LWR 8-97141-944-0 02 1 1306- ● ● ●
32 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1306- ● ● ●
33 NUT; KEY BOLT
M10 SOU 		0-91110-510-0 02 1 1306- ● ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 SOU 		0-91510-510-0 02 1 1306- ● ● ●
36 ARM; KNUCKLE 8-97253-712-4 01 1 1306- ● ● ●
44 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1306- ● ● ●
48 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1306- ● ● ●
49 CAP; KNUCKLE 8-97360-024-0 02 1 1306- ● ● ●
58 ARM; TIE ROD 8-97138-303-1 01 1 1306- ● ● ●
59 NUT; TIE ROD ARM 8-97360-123-0 02 1 1306- ● ● ●
61 ROD END; TIE ROD 8-97142-101-1 01 1 1306-1309 ● ● ●
61 ROD END; TIE ROD 8-97107-349-2 01 1 1310- ● ● ●
61 ROD END; TIE ROD 8-97255-705-0 01 1 1306-1309 ● ● ●
61 ROD END; TIE ROD 8-98251-954-0 01 1 1310- ● ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		8-98049-689-0 02 1 1306- ● ● ●
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1306- ● ● ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1306- ● ● ●
70 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 1306- ● ● ●
81 ROD; TIE 8-97142-024-0 01 1 1306- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
