Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#122525) — 293 parça

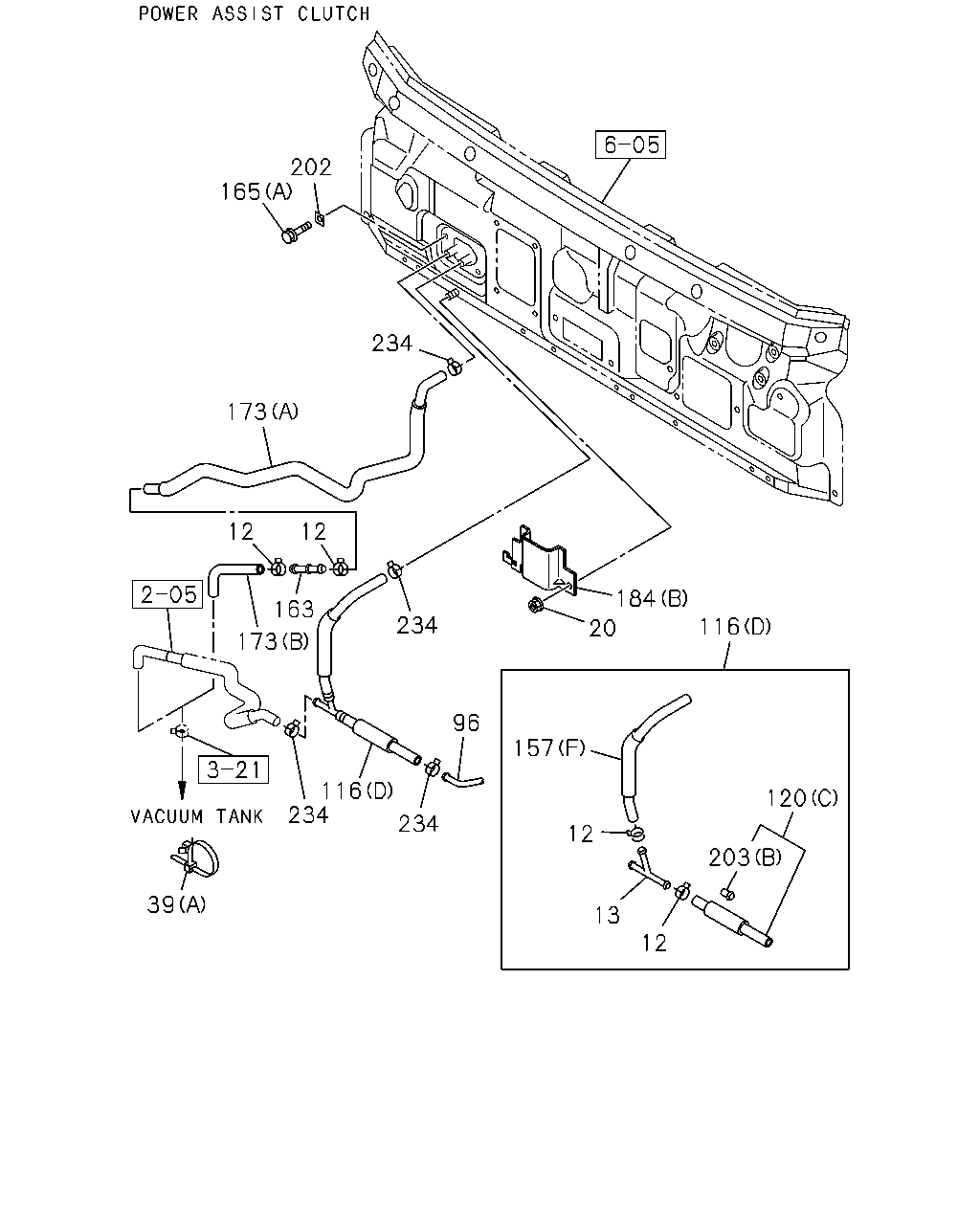

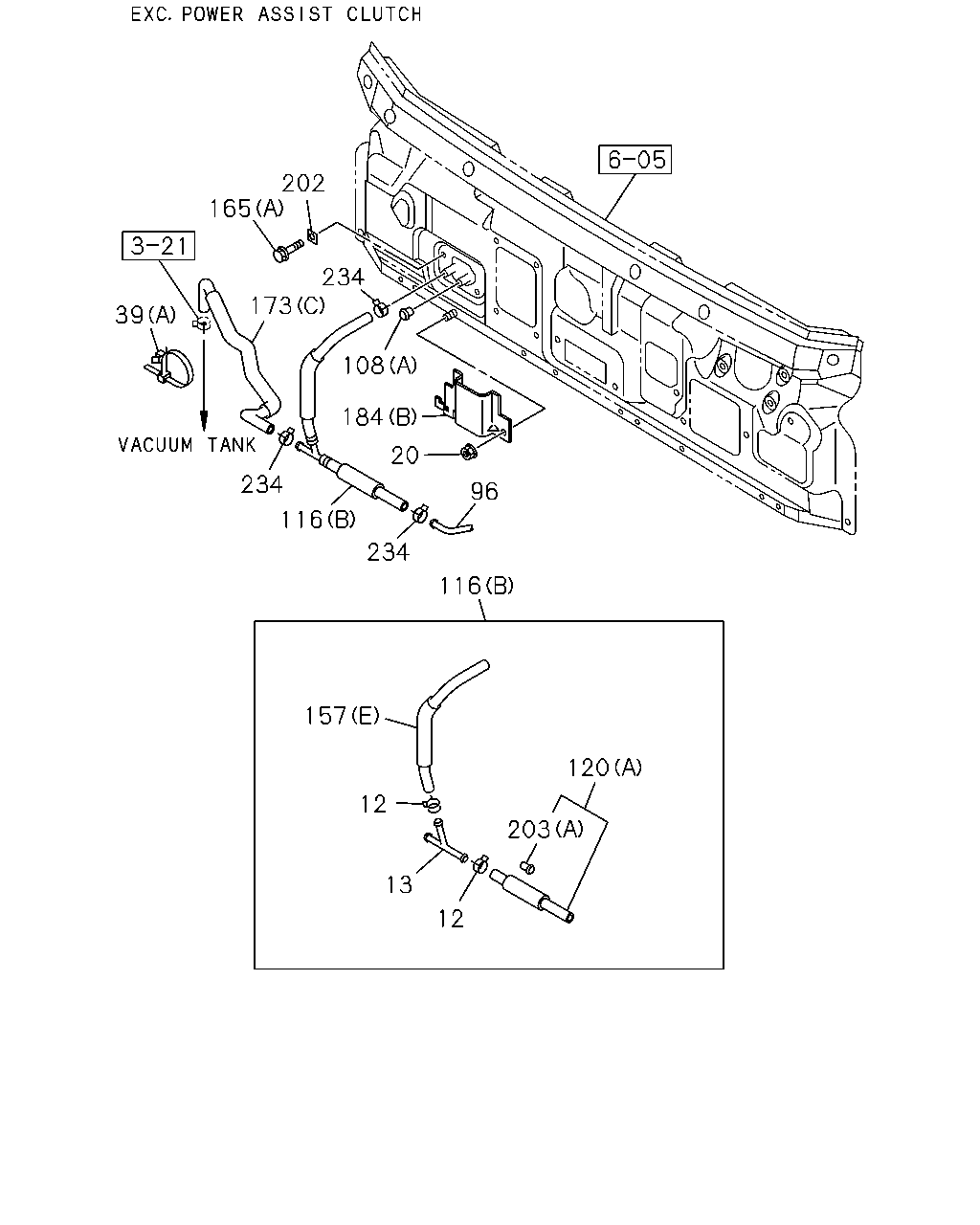

39 234 116 234 173 96 234 163 12 12 173 234 165 202 184 20 116 157 12 13 12 203 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	08	1	1306-	●	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1306-	●	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1306-	●	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1306-	●	●	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE SOU	0-91180-106-0	01	1	1306-	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-	●	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1306-	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-	●	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1306-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1306-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1306-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1306-	●	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1306-	●	●	●
163	JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T)	8-97353-668-0	01	1	1306-	●	●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1306-	●	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1306-	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1306-	●	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1306-	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1306-	●	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1306-	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1306-1311	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●	●
202	SEAL SOU	8-97856-616-0	02	1	1306-	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B) SOU	8-94104-021-0	01	1	1306-	●	●	●
203	VALVE; CHECK (A) SOU	8-94386-540-0	01	1	1306-	●	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	04	1	1306-	●	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	03	1	1306-	●	●	●

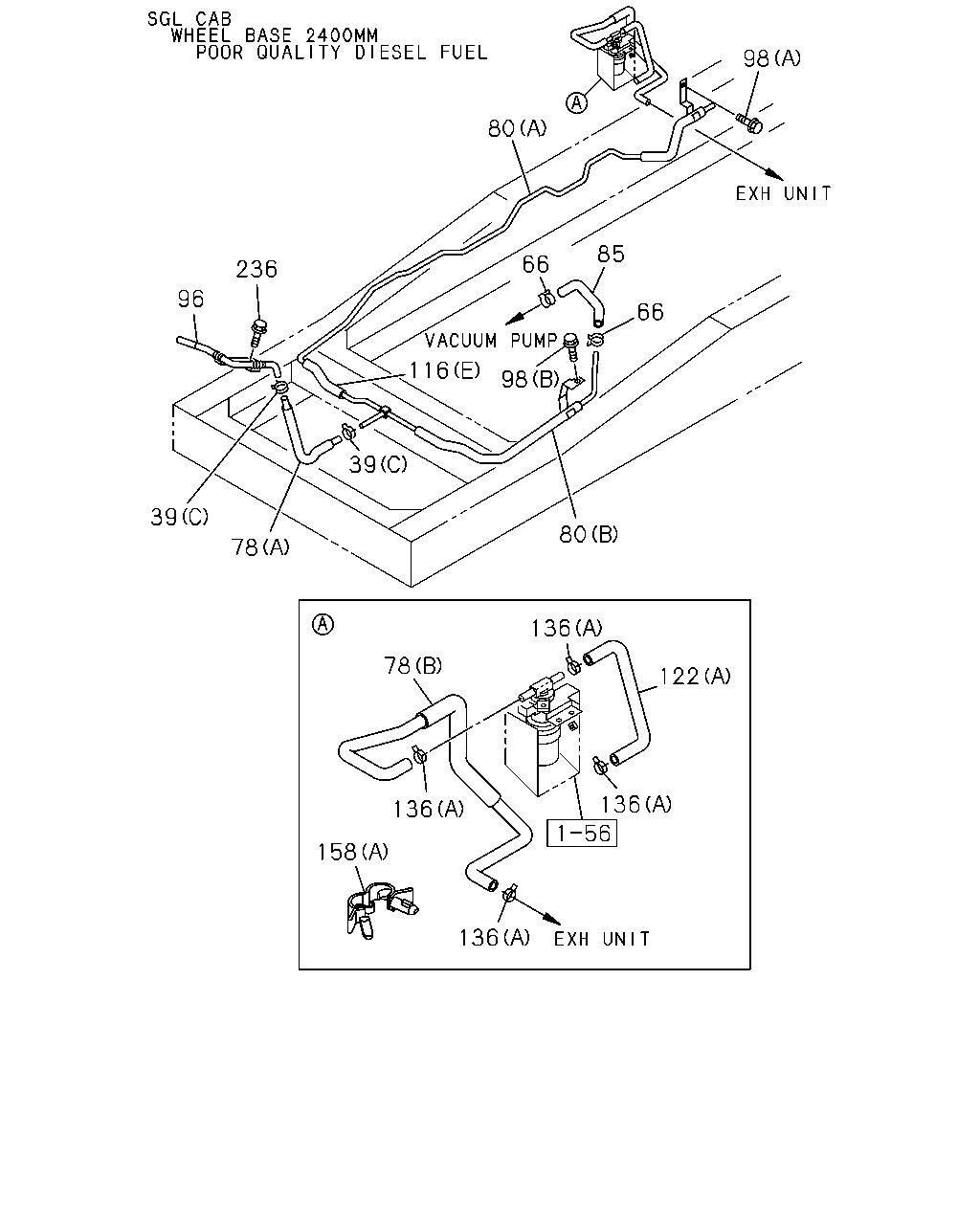

85 66 66 80 98 98 116 80 39 236 96 39 78 78 136 122 136 136 158 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-	●	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1306-	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-	●	●	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	02	1	1306-	●	●	●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98098-174-0	01	1	1306-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98098-174-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	1306-	●	●	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98189-223-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (E)	8-98189-223-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-224-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-224-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-283-0	01	1	1306-			●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1306-1309	●	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1306-1309		●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1310-	●	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1310-	●	●
80	PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	1306-	●	●	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98065-063-2	01	1	1306-1309	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1306-1309		●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1310-	●	●
80	PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	1306-	●	●	●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1306-1309			●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (A)	8-98071-771-0	01	1	1310-			●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1310-			●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98066-971-0	01	1	1306-1309			●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98066-971-0	01	1	1310-			●
85	HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1306-	●	●	●
85	HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	1306-	●	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1306-	●	●	●
98	BOLT; VAC PIPE FIX (A) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●	●
98	BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1306-	●	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98076-068-1	01	1	1306-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98076-068-1	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-222-0	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-222-0	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-226-0	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-226-0	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98064-717-1	01	1	1306-			●
136	CLIP; VAC HOSE (A) ID=16	8-98008-098-0	04	1	1306-	●	●	●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B) L=140 SOU	5-09707-031-1	01	1	1306-		●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=140 SOU	5-09707-031-1	01	1	1306-		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1306-		●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1306-		●
158	CLIP; HOSE (A) ID=18-24 L=14.5	1-09709-298-0	01	1	1306-	●
158	CLIP; HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A) ID=18-24 L=14.5	1-09709-298-0	01	1	1306-		●
158	CLIP; HOSE (B) ID=28 H=45 L=30	1-09700-707-0	01	1	1306-			●
236	BOLT; PIPE M6X12 FLANGE SOU	0-28050-612-0	01	1	1306-	●	●	●

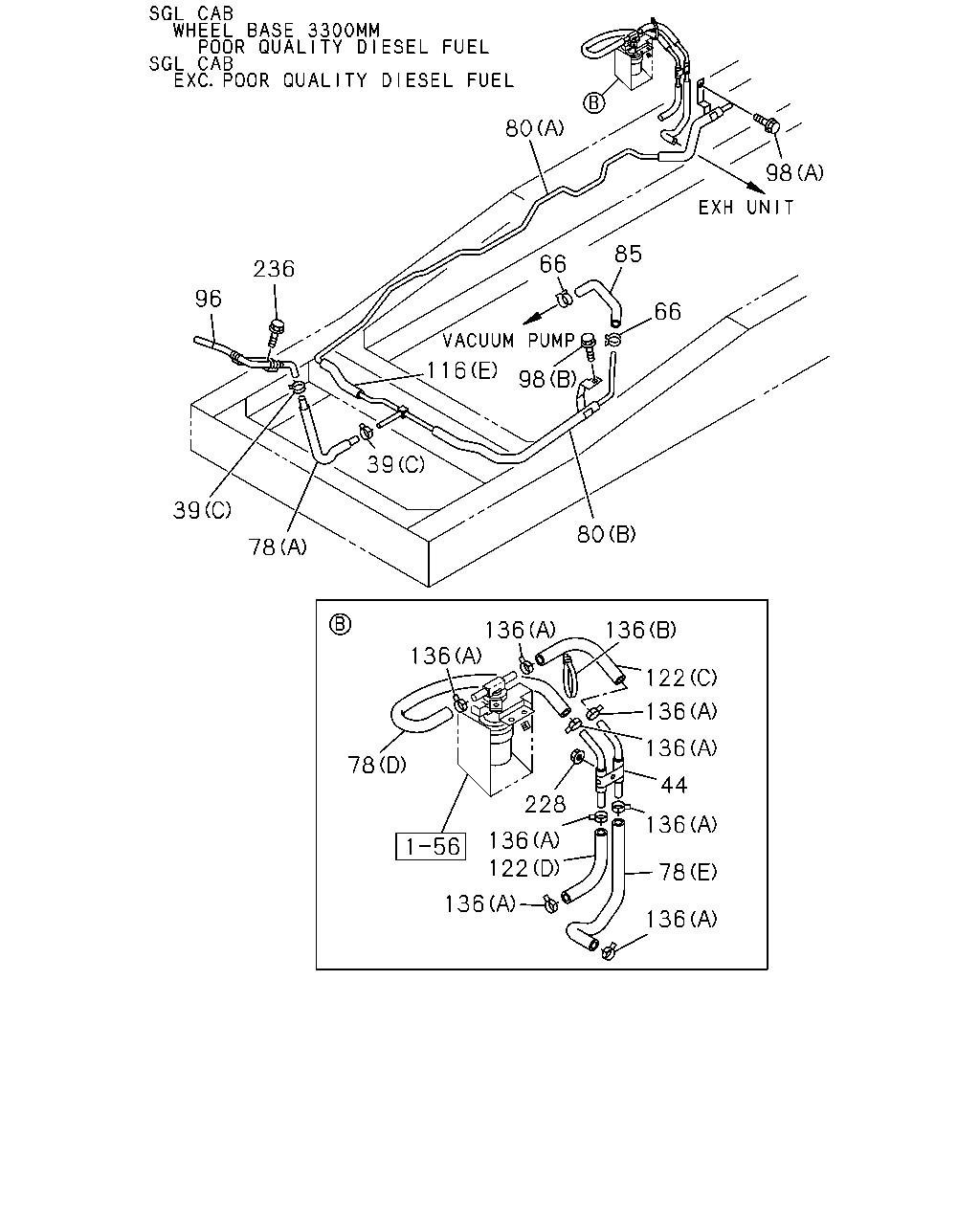

39 96 236 78 39 116 98 66 80 85 66 98 80 136 122 136 136 44 136 78 136 136 122 136 228 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-	●	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1306-	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-	●	●	●
44	PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0)	8-98042-654-0	01	1	1306-		●
44	PIPE; VAC,MAG VLV EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98042-654-0	01	1	1306-		●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	02	1	1306-	●	●	●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98098-174-0	01	1	1306-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98098-174-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	1306-	●	●	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98189-223-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (E)	8-98189-223-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-224-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-224-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-283-0	01	1	1306-			●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1306-1309	●	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1306-1309		●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1310-	●	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1310-	●	●
80	PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	1306-	●	●	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98065-063-2	01	1	1306-1309	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1306-1309		●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1310-	●	●
80	PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	1306-	●	●	●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1306-1309			●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (A)	8-98071-771-0	01	1	1310-			●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1310-			●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98066-971-0	01	1	1306-1309			●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98066-971-0	01	1	1310-			●
85	HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1306-	●	●	●
85	HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	1306-	●	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1306-	●	●	●
98	BOLT; VAC PIPE FIX (A) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●	●
98	BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1306-	●	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98076-068-1	01	1	1306-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98076-068-1	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-222-0	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-222-0	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-226-0	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-226-0	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98064-717-1	01	1	1306-			●
136	CLIP; VAC HOSE (A) ID=16	8-98008-098-0	04	1	1306-	●	●	●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B) L=140 SOU	5-09707-031-1	01	1	1306-		●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=140 SOU	5-09707-031-1	01	1	1306-		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1306-		●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1306-		●
228	NUT; PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) M6 FLANGE SOU	0-91180-106-0	01	1	1306-		●
228	NUT; PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) M6 FLANGE SOU	0-91180-106-0	01	1	1306-		●
236	BOLT; PIPE M6X12 FLANGE SOU	0-28050-612-0	01	1	1306-	●	●	●

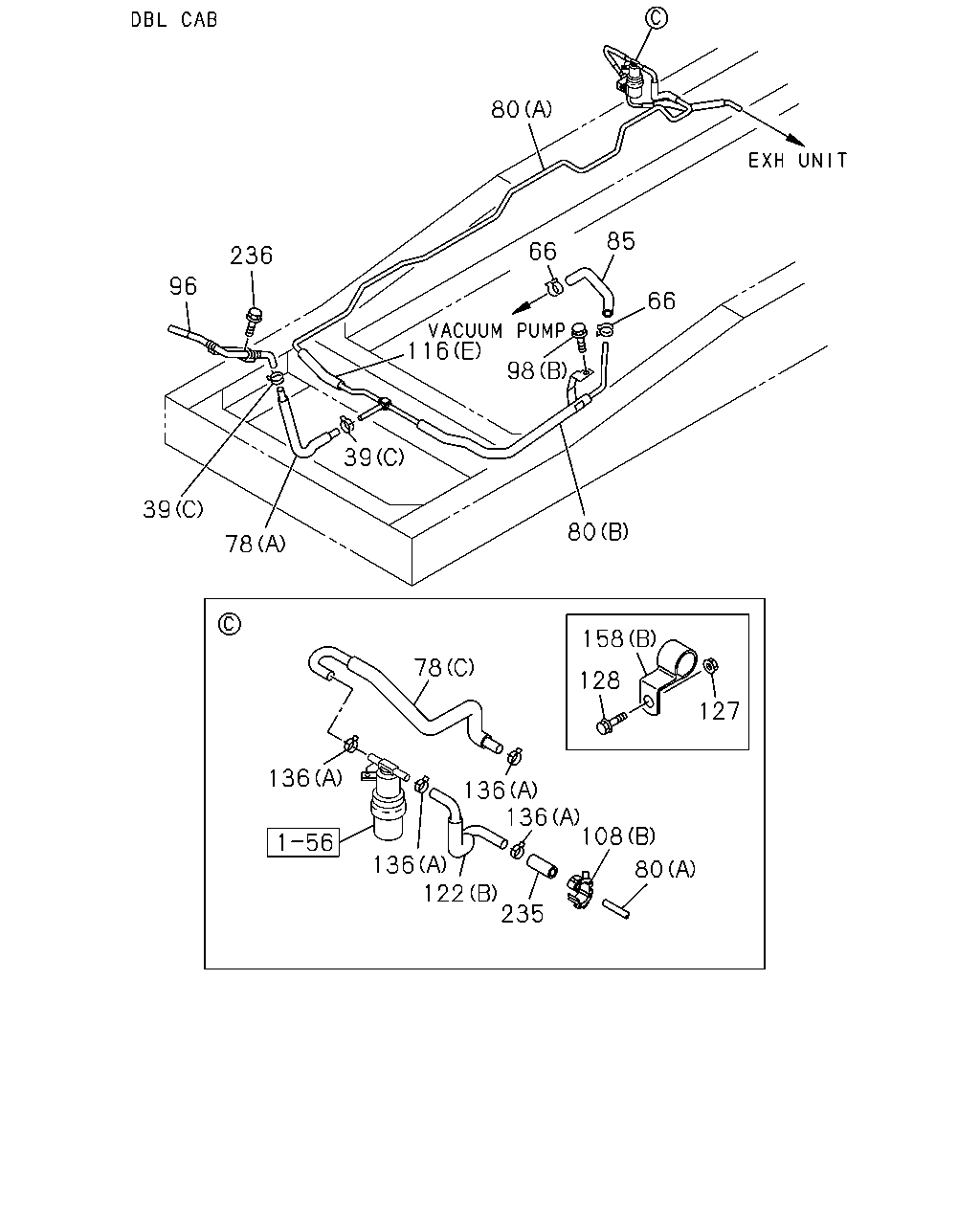

127 158 128 80 108 136 136 78 235 122 136 136 78 39 80 39 96 236 116 98 66 85 66 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-	●	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1306-	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-	●	●	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	02	1	1306-	●	●	●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98098-174-0	01	1	1306-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98098-174-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	1306-	●	●	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98189-223-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (E)	8-98189-223-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-224-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-224-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-283-0	01	1	1306-			●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1306-1309	●	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1306-1309		●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1310-	●	●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1310-	●	●
80	PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	1306-	●	●	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98065-063-2	01	1	1306-1309	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1306-1309		●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1310-	●	●
80	PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	1306-	●	●	●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1306-1309			●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (A)	8-98071-771-0	01	1	1310-			●
80	PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	1310-			●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98066-971-0	01	1	1306-1309			●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98066-971-0	01	1	1310-			●
85	HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1306-	●	●	●
85	HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	1306-	●	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1306-	●	●	●
98	BOLT; VAC PIPE FIX (A) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●	●
98	BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) SOU	9-09956-353-0	01	1	1306-	●	●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1306-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1306-	●	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98076-068-1	01	1	1306-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98076-068-1	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-222-0	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-222-0	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-226-0	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-226-0	01	1	1306-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98064-717-1	01	1	1306-			●
127	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-			●
128	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1306-			●
136	CLIP; VAC HOSE (A) ID=16	8-98008-098-0	04	1	1306-	●	●	●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B) L=140 SOU	5-09707-031-1	01	1	1306-		●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=140 SOU	5-09707-031-1	01	1	1306-		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1306-		●
136	CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1306-		●
158	CLIP; HOSE (A) ID=18-24 L=14.5	1-09709-298-0	01	1	1306-	●
158	CLIP; HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A) ID=18-24 L=14.5	1-09709-298-0	01	1	1306-		●
158	CLIP; HOSE (B) ID=28 H=45 L=30	1-09700-707-0	01	1	1306-			●
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	1306-			●
236	BOLT; PIPE M6X12 FLANGE SOU	0-28050-612-0	01	1	1306-	●	●	●

39 39 116 165 184 165 165 184 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-	●	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1306-	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1306-	●	●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1306-	●	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1306-	●	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1306-	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1306-1311	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●	●

39 116 39 39 39 165 184 165 184 165 184 184 120 12 13 12 12 157 203 12 13 12 157 157 12 157 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	08	1	1306-	●	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1306-	●	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1306-	●	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1306-	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-	●	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1306-	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1306-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1306-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1306-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1306-	●	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1306-	●	●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1306-	●	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1306-	●	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1306-	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1306-1311	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B) SOU	8-94104-021-0	01	1	1306-	●	●	●
203	VALVE; CHECK (A) SOU	8-94386-540-0	01	1	1306-	●	●	●

96 116 120 203 13 12 12 157 116 234 20 184 108 173 234 202 165 39 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	08	1	1306-	●	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1306-	●	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1306-	●	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1306-	●	●	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE SOU	0-91180-106-0	01	1	1306-	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-	●	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1306-	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-	●	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1306-	●	●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) SOU	9-09956-353-0	01	1	1306-	●	●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1306-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1306-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1306-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1306-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1306-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1306-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1306-	●	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1306-	●	●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1306-	●	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1306-	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1306-	●	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1306-	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1306-	●	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1306-	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1306-1311	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●	●
202	SEAL SOU	8-97856-616-0	02	1	1306-	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B) SOU	8-94104-021-0	01	1	1306-	●	●	●
203	VALVE; CHECK (A) SOU	8-94386-540-0	01	1	1306-	●	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	04	1	1306-	●	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	03	1	1306-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
