3-55 — BRAKE PIPING; OIL,REAR (#122523) — 15 parça

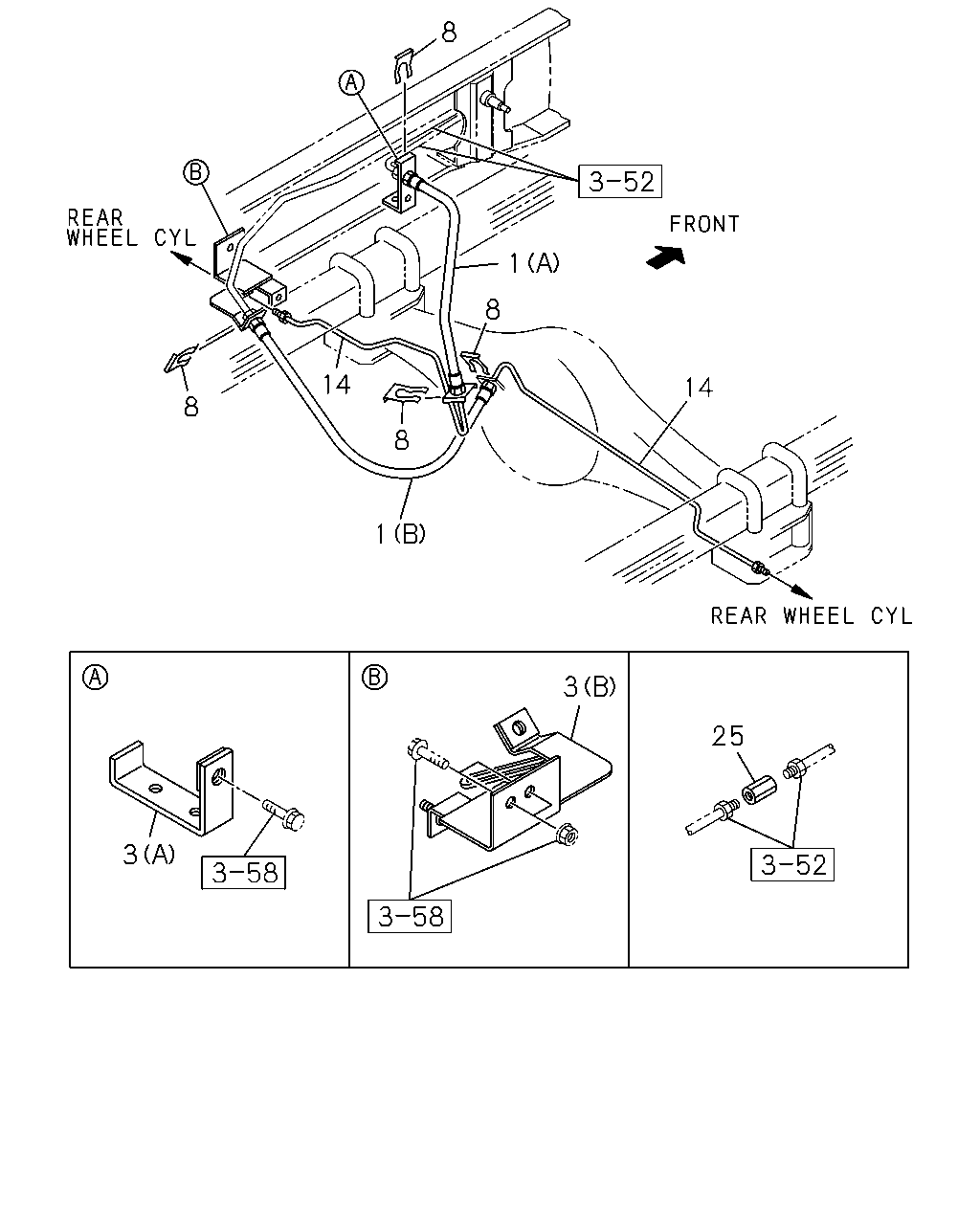

çizim 356273
8 1 8 14 8 8 1 14 25 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1306- ● ● ●
1 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 1306- ● ● ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 1306- ● ● ●
3 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98153-296-0 01 1 1306- ● ● ●
8 CLIP; RR BRK 8-97360-054-0 04 1 1306- ● ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98034-193-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98034-196-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-871-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-871-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-879-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-879-0 01 1 1306- ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1306- ● ● ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1306- ● ● ●
25 CONNECTOR
WHEEL BASE 3300MM(33W) M10 STRAIGHT 		0-92107-005-0 01 1 1306- ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1306- ●
