◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51486 - NLR/NMR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#122516) — 61 parça
çizim 355943
241 87 223 368 225 85 237 235 301 324 236 301 324 236
BalonParca AdiParca NoAdetTipApplied Date A B C
85 CLIP; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=14.5 L=20 		1-09701-012-0 01 1 1306- ● ● ●
87 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ● ●
87 NUT
(B) M6 		8-98034-313-1 01 1 1306- ● ● ●
87 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
223 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=13 L=20 		1-09701-138-1 01 1 1306- ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
225 NUT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
235 BRACKET; CONT CABLE TO FRAME 8-98034-352-0 01 1 1306- ●
235 BRACKET; CONT CABLE TO FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98034-352-0 01 1 1306- ● ●
236 BOLT; BRKT TO FRAME
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ● ●
237 NUT; BRKT TO FRAME
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
237 NUT; BRKT TO FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
241 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
301 NUT; BRKT,BRK & CLU PEDAL
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ● ●
324 BRACKET
(C) 		8-98026-099-2 01 1 1306- ●
324 BRACKET
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98026-099-2 01 1 1306- ● ●
324 BRACKET
(A) 		8-98003-642-1 01 1 1306- ● ● ●
324 BRACKET
(B) 		8-98034-115-0 01 1 1306- ● ● ●
324 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98038-563-0 01 1 1306- ● ●
368 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97372-863-1 01 1 1306- ● ●

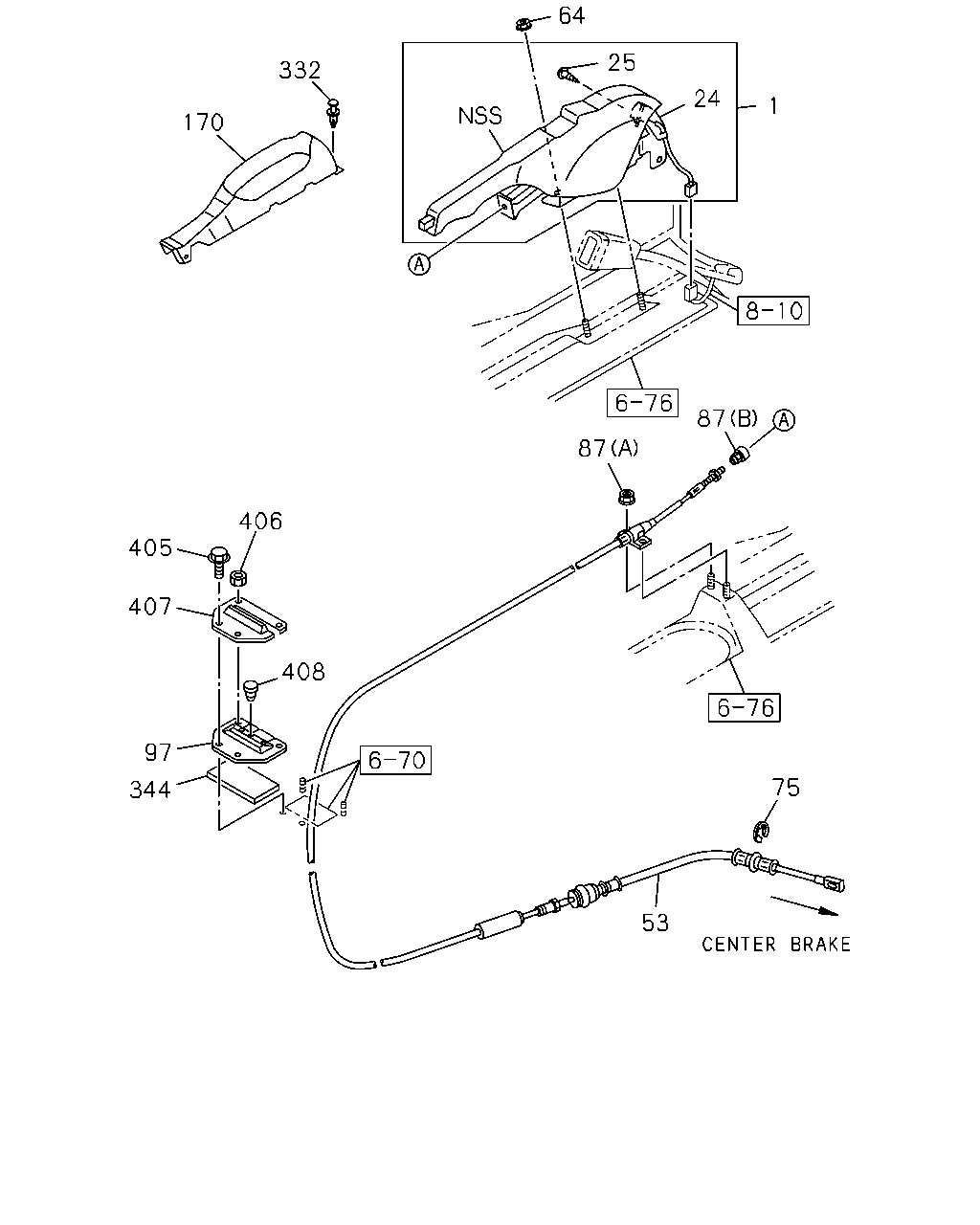

çizim 356176
332 170 64 24 25 1 87 87 75 53 344 97 408 406 405 407
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1306- ● ● ●
24 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1306- ● ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1306- ● ● ●
53 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) 		8-98102-912-0 01 1 1306- ●
53 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98102-912-0 01 1 1306- ● ●
53 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-834-3 01 1 1306- ● ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1306- ● ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1306- ● ● ●
87 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ● ●
87 NUT
(B) M6 		8-98034-313-1 01 1 1306- ● ● ●
87 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
97 GROMMET; PARKING BRK CABLE 8-97065-212-1 01 1 1306- ● ● ●
170 COVER; PARKING BRK LEVER
GRAY 		8-97406-170-1 01 1 1306- ● ● ●
332 CLIP; COVER
GRAY 		8-97406-171-0 01 1 1306- ● ● ●
344 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 1306- ● ●
405 BOLT; GROMMET
M6X20 FLANGE 		0-28450-620-0 02 1 1306- ● ● ●
406 NUT; GROMMET
M6 FLANGE SOU 		0-91180-106-0 02 1 1306- ● ● ●
407 RETAINER; GROMMET 1-33657-674-0 01 1 1306- ● ● ●
408 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-108-0 02 1 1306- ● ●

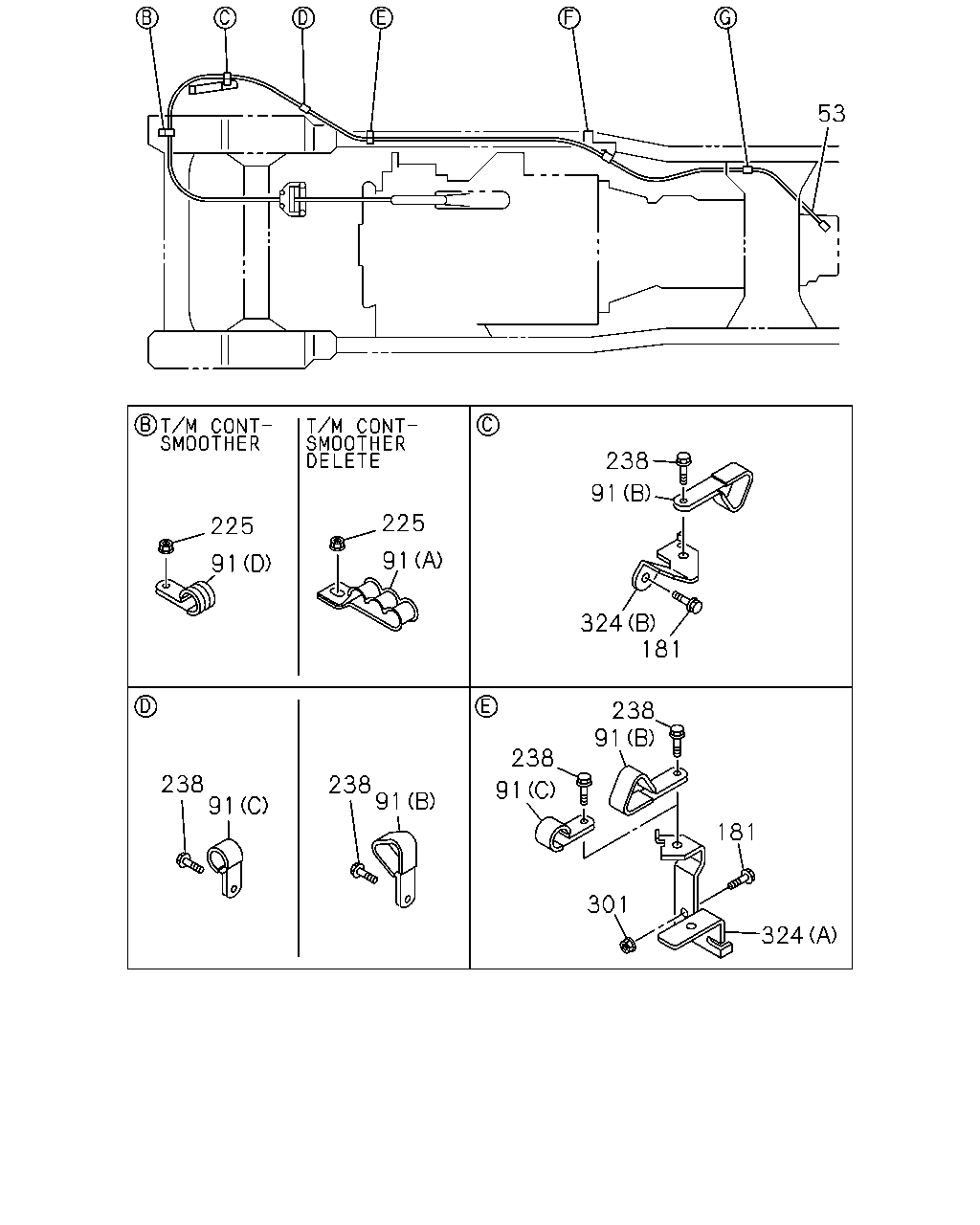

çizim 356293
53 238 91 324 238 181 238 91 181 324 301 91 91 238 91 238 91 225 225 91
BalonParca AdiParca NoAdetTipApplied Date A B C
53 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) 		8-98102-912-0 01 1 1306- ●
53 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98102-912-0 01 1 1306- ● ●
53 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-834-3 01 1 1306- ● ●
91 CLIP; PARKING BRK CABLE
(B) 		8-97036-333-1 03 1 1306- ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97036-333-1 03 1 1306- ● ●
91 CLIP; PARKING BRK CABLE
(A) 		8-98023-622-0 01 1 1306- ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98023-622-0 01 1 1306- ● ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=13 L=28 		0-95235-255-0 03 1 1306- ● ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=19 L=32 		1-09701-235-0 01 1 1306- ● ●
181 BOLT; BRKT
M8X16 FLANGE SOU 		0-28050-816-0 01 1 1306- ● ● ●
181 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
225 NUT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
238 BOLT; CLIP TO BRKT
M8X25 FLANGE SOU 		0-28650-825-0 03 1 1306- ● ● ●
301 NUT; BRKT,BRK & CLU PEDAL
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ● ●
324 BRACKET
(C) 		8-98026-099-2 01 1 1306- ●
324 BRACKET
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98026-099-2 01 1 1306- ● ●
324 BRACKET
(A) 		8-98003-642-1 01 1 1306- ● ● ●
324 BRACKET
(B) 		8-98034-115-0 01 1 1306- ● ● ●
324 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98038-563-0 01 1 1306- ● ●
