◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51486 - NLR/NMR(SOUTHAFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#122507) — 6 parça

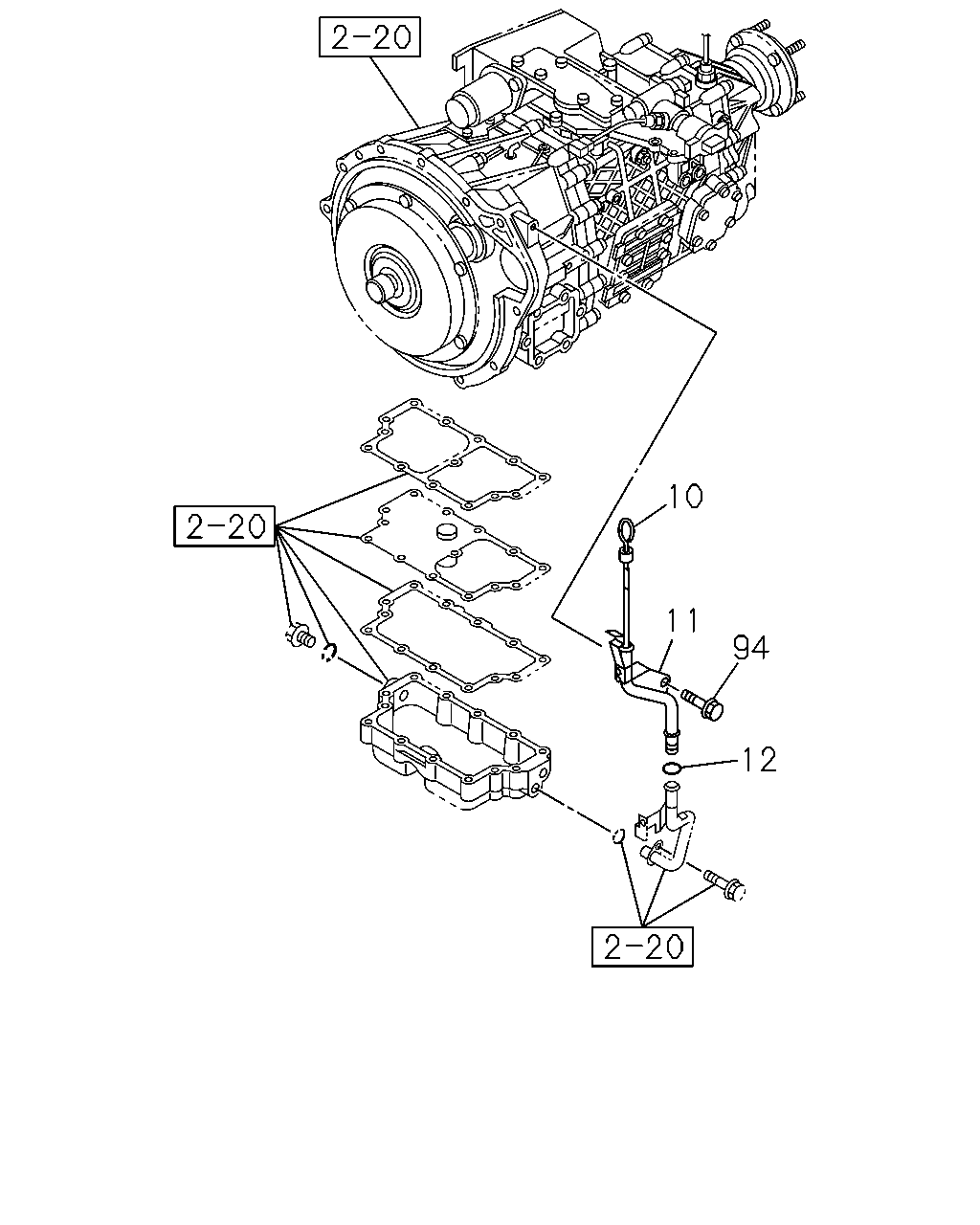

çizim 355970
10 11 94 12
BalonParca AdiParca NoAdetTipApplied Date A B
10 GAUGE; OIL LEVEL
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97325-010-1 01 1 1306- ● ●
10 GAUGE; OIL LEVEL
DBL CAB(NM**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97325-011-1 01 1 1306- ● ●
11 TUBE; OIL FILLER
SGL CAB(NM**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98050-297-0 01 1 1306- ● ●
11 TUBE; OIL FILLER
DBL CAB(NM**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98088-125-0 01 1 1306- ● ●
12 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.3 		8-97313-558-0 01 1 1306- ●
94 BOLT; OIL FILLER TUBE
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X12 FLANGE 		0-28151-012-0 01 1 1306- ●
