2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#122505) — 19 parça

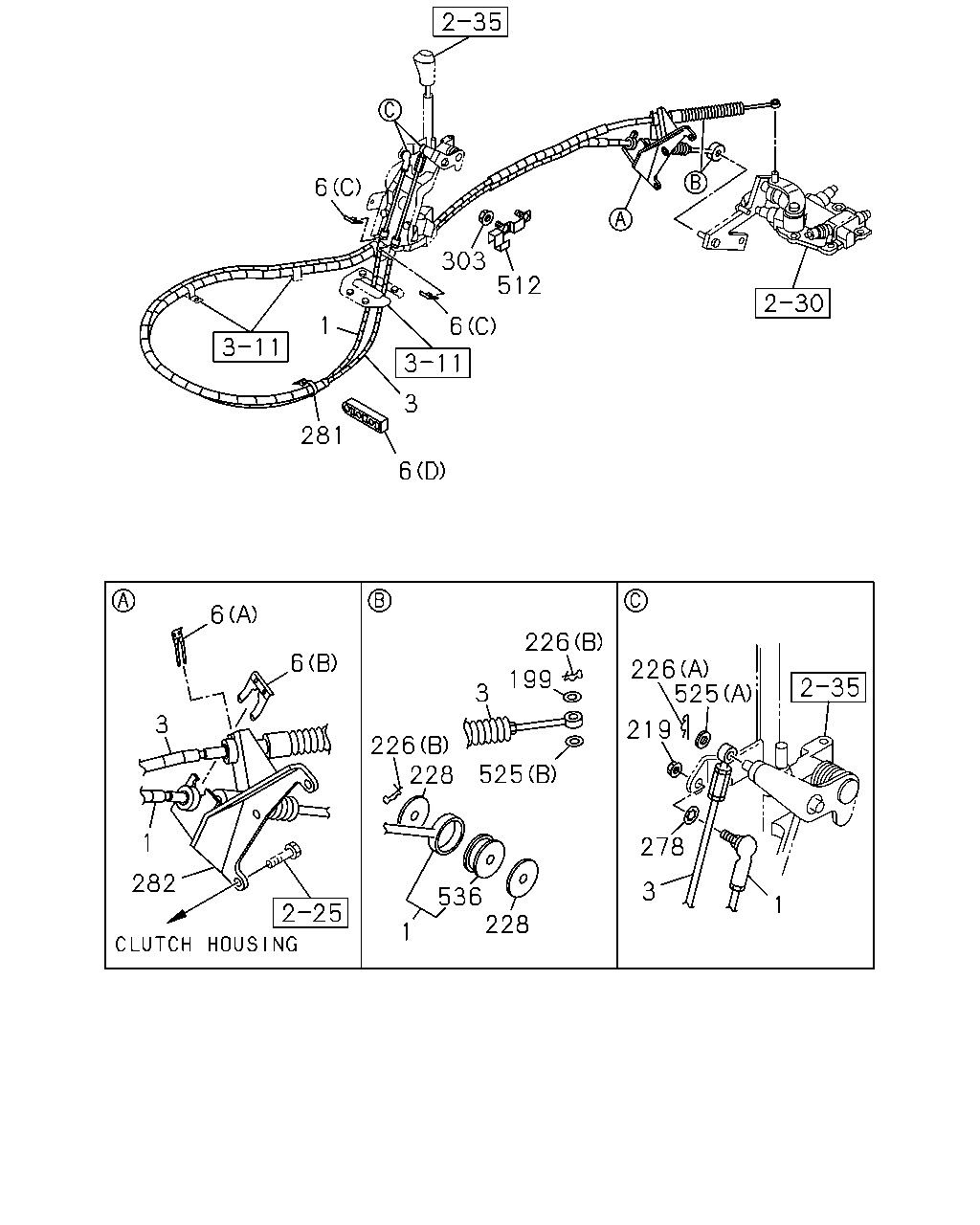

çizim 356104
6 303 1 281 3 6 512 6 6 3 6 1 282 226 228 3 226 199 525 536 1 228 3 278 1 219 226 525
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2955 		8-98164-353-1 01 1 1306- ● ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3035 		8-98164-362-1 01 1 1306- ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=22.2 		1-09701-209-1 01 1 1306- ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=19.2 		8-97211-011-0 01 1 1306- ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97011-448-0 02 1 1306- ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97093-491-1 01 1 1306- ● ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 SOU 		0-91610-508-0 01 1 1306- ● ●
219 NUT; FLANGE,SHAFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 T=8.0 SOU 		8-94363-045-0 01 1 1306- ● ●
226 PIN; SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=27.7 SOU 		8-94111-137-0 01 1 1306- ● ●
226 PIN; SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=23 		8-94170-378-0 02 1 1306- ● ●
228 WASHER; PL,SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2 OD=40 		8-97182-975-0 02 1 1306- ● ●
278 WASHER; LK,SHIFT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1306- ● ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=140 SOU 		5-09707-031-1 01 1 1306- ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97350-449-0 01 1 1306- ● ●
303 NUT; CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
512 GUIDE; CABLE,GEAR CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98111-916-0 01 1 1306- ● ●
525 WASHER; SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=8.4 OD=16 SOU 		0-91614-508-0 01 1 1306- ● ●
525 WASHER; SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1306- ● ●
536 DAMPER; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98097-681-0 01 1 1306- ● ●
