2-30 — GEAR SHIFTER AND QUADRANT BOX (#122503) — 208 parça

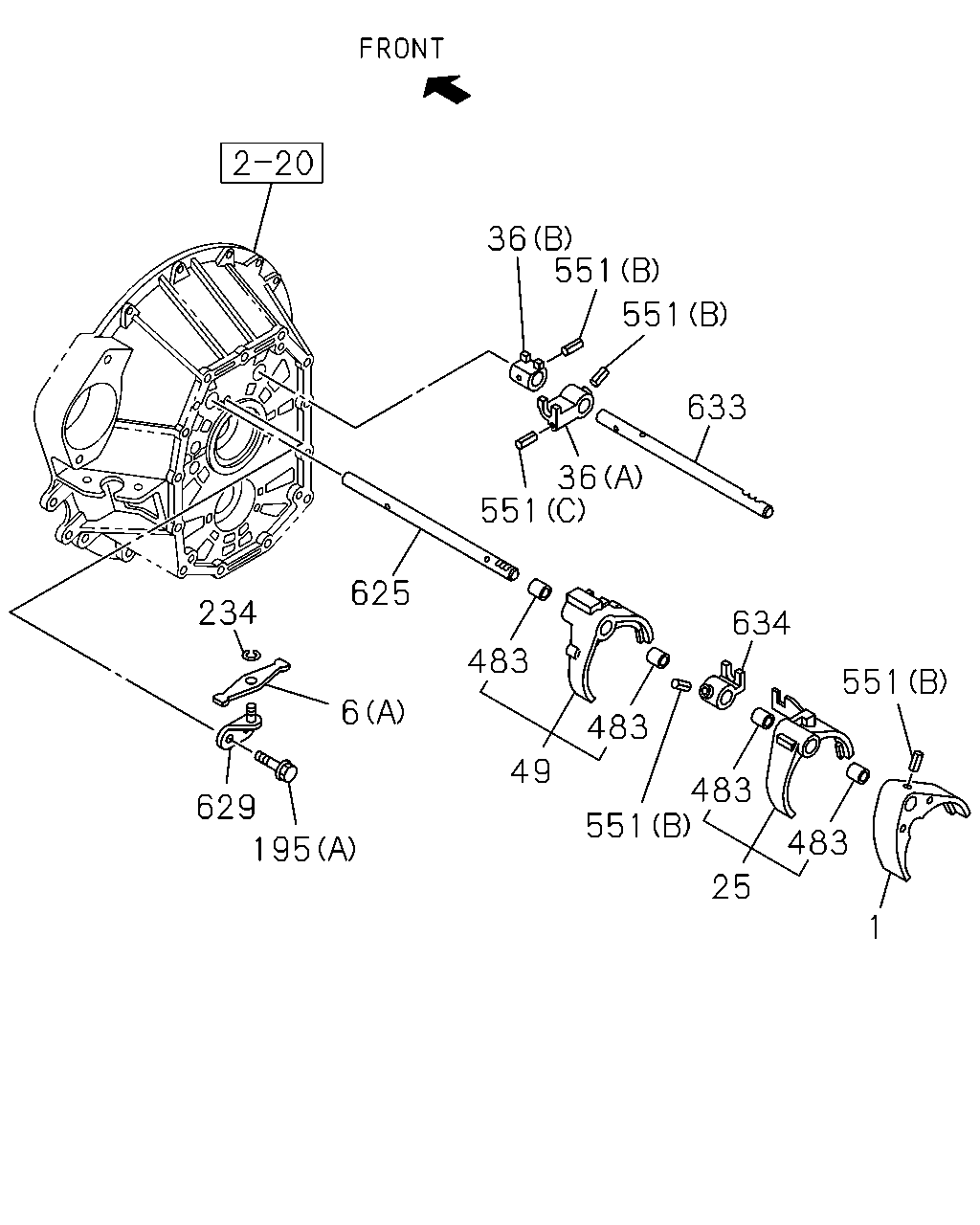

çizim 355779
1 483 483 25 551 551 634 483 49 483 6 625 234 629 195 551 36 633 551 551 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1306- ● ●
6 LEVER; RELAY
(A) 		8-97241-344-0 01 1 1306- ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 1306- ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1306-1407 ● ●
25 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ● ●
36 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1306- ●
36 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1306- ●
49 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1306- ●
49 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1306- ●
195 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1306- ● ●
195 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1306- ●
234 RING; SNAP
ID=12 		8-94460-357-0 01 1 1306- ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1306- ●
483 BUSHING; SHIFT ARM 8-97241-326-2 02 1 1306- ● ●
483 BUSHING; SHIFT ARM 8-97241-326-2 02 1 1306- ● ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1306- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1306- ● ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1306- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 1306- ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) OD=5 		8-97184-905-0 03 1 1306- ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 1306- ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 01 1 1306- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 1306- ● ●
629 BRIDGE; LEVER 8-97237-107-1 01 1 1306- ●
629 BRIDGE; LEVER 8-97241-345-1 01 1 1306- ●
633 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1306- ●
634 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1306- ●

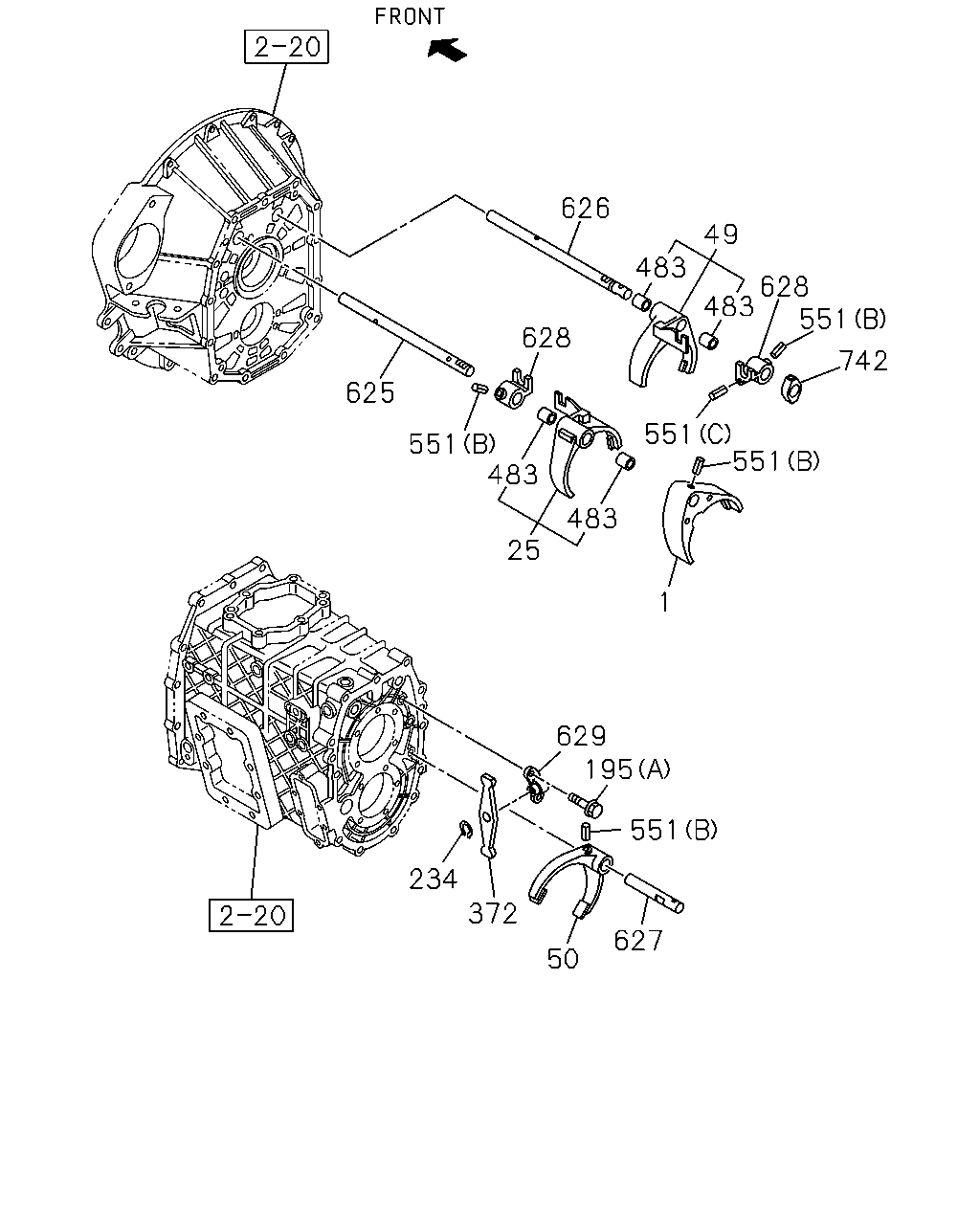

çizim 355904
627 50 372 234 551 195 629 1 551 742 551 628 483 49 483 626 628 551 483 25 483 551 625
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1306- ● ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1306-1407 ● ●
25 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ● ●
49 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1306- ●
49 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1306- ●
50 ARM; SHIFT,6TH 8-97241-325-1 01 1 1306- ●
195 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1306- ● ●
195 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1306- ●
234 RING; SNAP
ID=12 		8-94460-357-0 01 1 1306- ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1306- ●
372 LEVER; RELAY,6TH 8-97241-343-0 01 1 1306- ●
483 BUSHING; SHIFT ARM 8-97241-326-2 02 1 1306- ● ●
483 BUSHING; SHIFT ARM 8-97241-326-2 02 1 1306- ● ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1306- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1306- ● ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1306- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 1306- ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) OD=5 		8-97184-905-0 03 1 1306- ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 1306- ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 01 1 1306- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 1306- ● ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98331-689-0 01 1 1510- ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 1306-1509 ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97366-024-1 01 1 1510- ●
627 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1306- ●
628 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1306- ●
629 BRIDGE; LEVER 8-97237-107-1 01 1 1306- ●
629 BRIDGE; LEVER 8-97241-345-1 01 1 1306- ●
742 COLLAR; ROD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98331-722-0 01 1 1510- ●

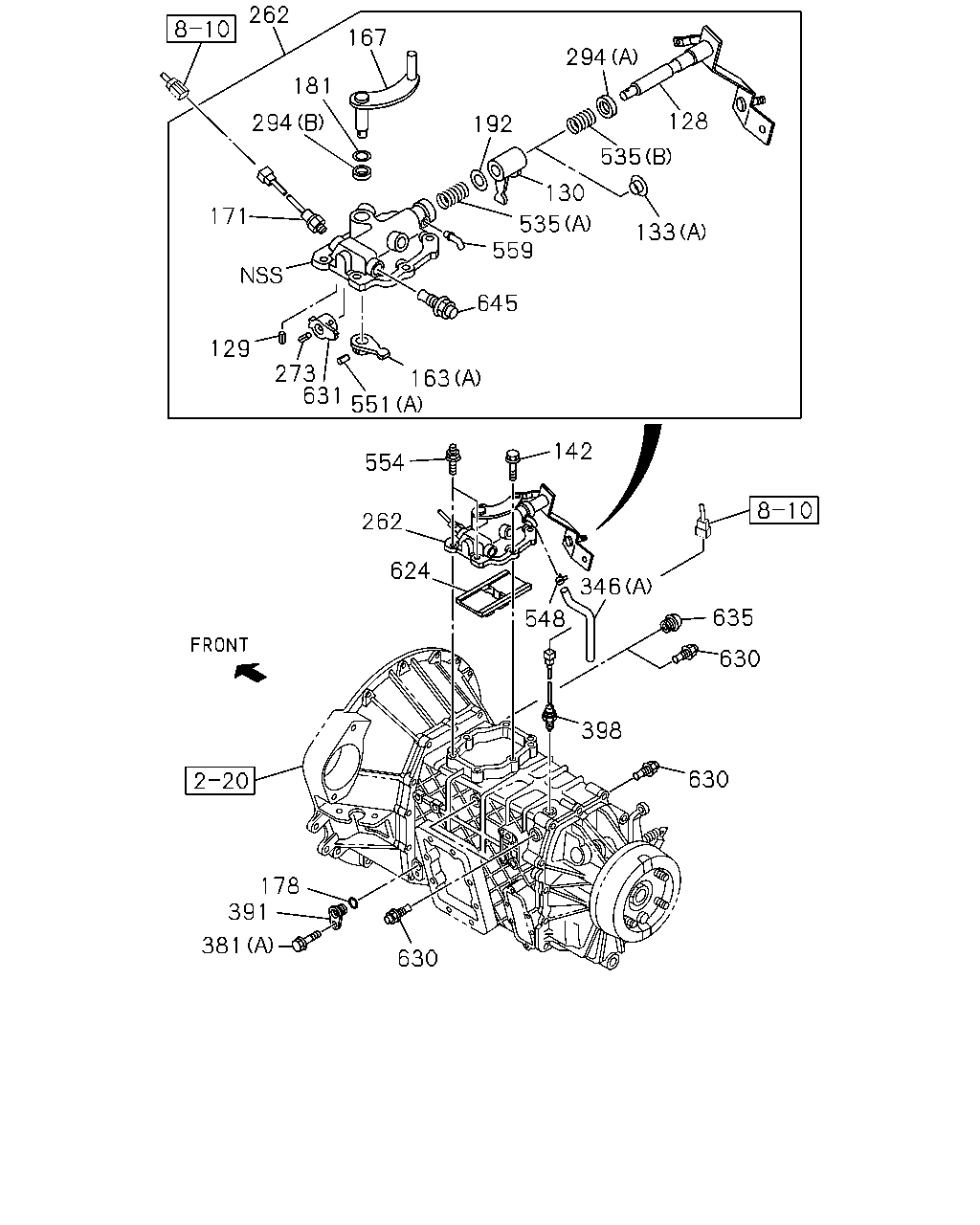

çizim 358143
262 181 167 294 171 129 631 273 551 163 645 559 535 130 535 133 128 294 192 554 262 624 142 346 548 635 630 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date A B
128 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 1306- ●
128 LEVER; SHIFT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97363-226-0 01 1 1306- ●
129 PIN; SPR,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4 		1-09748-031-0 01 1 1306- ● ●
130 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 1306- ● ●
133 SEAT; SPR
(A) 		8-97305-667-0 01 1 1306- ●
133 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-988-0 01 1 1306- ●
133 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-989-0 01 1 1306- ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X22 FLANGE 		8-97365-376-0 04 1 1306- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-98020-384-0 03 1 1306- ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-98020-385-0 03 1 1306- ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 1306- ● ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-979-0 01 1 1306- ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-990-0 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-436-0 01 1 1306- ● ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 1306- ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 1306-1312 ● ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ●
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09567-113-0 01 1 1306- ● ●
181 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 1306- ● ●
192 WASHER; PL 8-97305-661-0 01 1 1306- ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-09503-280-0 01 1 1306- ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 1306- ●
262 BOX ASM; SHIFT CONT 8-97362-753-2 01 1 1306-1312 ●
262 BOX ASM; SHIFT CONT 8-98241-002-2 01 1 1401- ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98109-435-1 01 1 1306-1312 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98241-121-1 01 1 1401-1411 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98296-529-0 01 1 1412-1509 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98331-685-0 01 1 1510- ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-591-1 01 1 1306-1312 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-993-2 01 1 1401- ●
273 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25 		8-97103-142-0 01 1 1306- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 1306- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 1306- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 1306- ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 1306- ● ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 1306- ●
381 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ● ●
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X20 FLANGE SOU 		0-28650-620-0 01 1 1306- ●
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE 		1-33739-842-0 04 1 1306- ●
391 PLUG; SW HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97300-273-1 01 1 1306- ● ●
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98186-003-0 01 1 1306-1311 ● ●
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1312- ● ●
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98023-050-0 01 1 1306-1312 ●
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98242-173-1 01 1 1401- ●
535 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1306- ●
535 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1306- ●
535 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-659-0 01 1 1306- ●
535 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-660-0 01 1 1306- ●
548 CLIP; HOSE 8-97031-674-0 01 1 1306- ● ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1306- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1306- ● ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1306- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 1306- ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) OD=5 		8-97184-905-0 03 1 1306- ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 1306- ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 01 1 1306- ●
554 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 1306- ● ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 1306- ● ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 1306- ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1306- ● ●
630 DETENT ASM 8-98019-536-0 03 1 1306- ●
630 DETENT ASM 8-98019-536-0 04 1 1306- ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 1306- ● ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 1306- ●
635 PLUG; DETENT 8-97380-892-0 01 1 1306- ●
645 DETENT ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98019-536-0 01 1 1306- ● ●

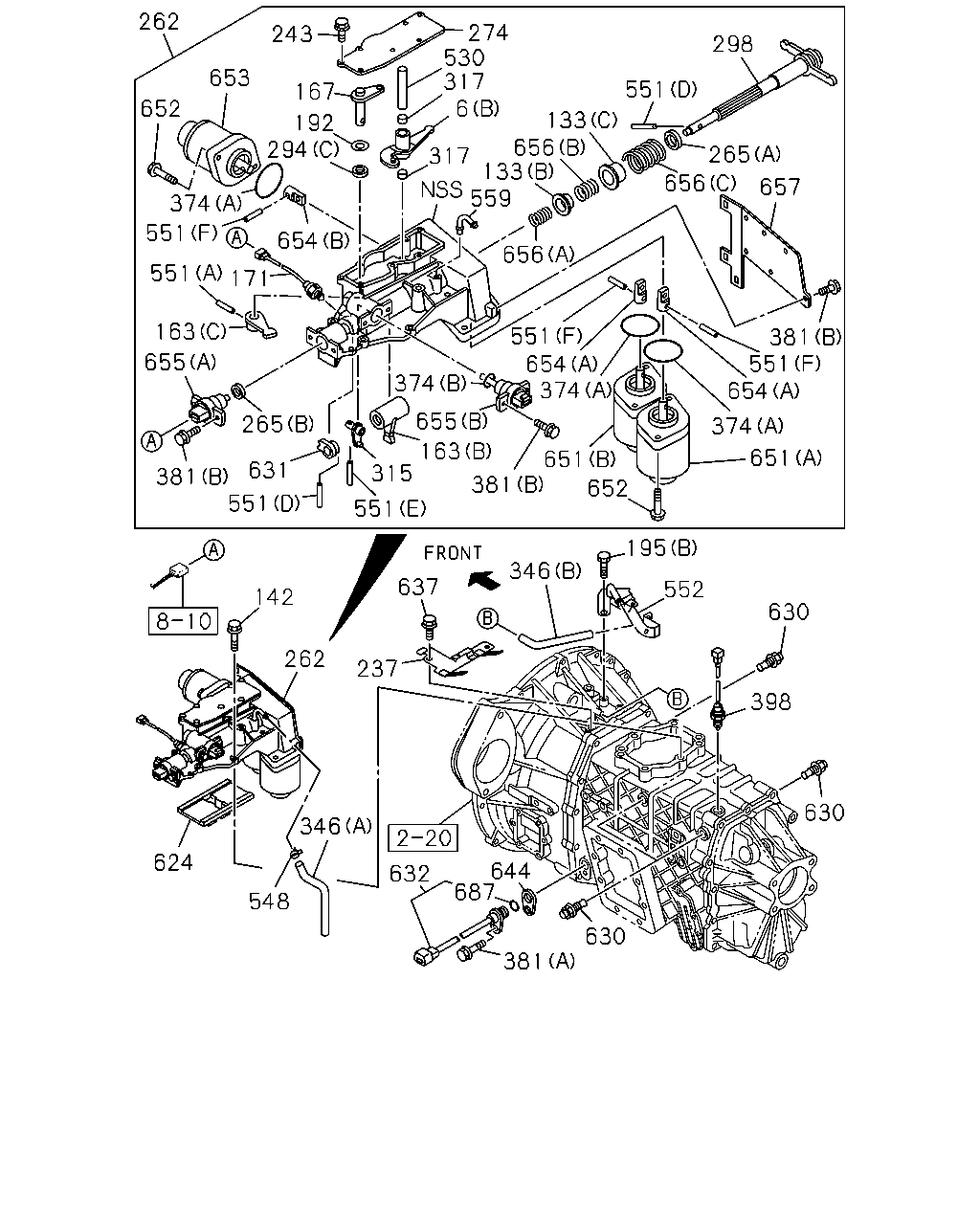

çizim 358454
262 653 652 374 551 551 171 654 163 655 265 631 551 381 551 315 163 655 374 551 654 374 651 381 652 374 651 654 551 381 656 559 133 656 133 656 657 265 551 298 6 317 317 530 274 243 167 192 294 195 552 630 398 630 630 381 644 687 632 346 548 624 237 262 142 637 346
BalonParca AdiParca NoAdetTipApplied Date A B
6 LEVER; RELAY
(A) 		8-97241-344-0 01 1 1306- ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 1306- ●
133 SEAT; SPR
(A) 		8-97305-667-0 01 1 1306- ●
133 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-988-0 01 1 1306- ●
133 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-989-0 01 1 1306- ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X22 FLANGE 		8-97365-376-0 04 1 1306- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-98020-384-0 03 1 1306- ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-98020-385-0 03 1 1306- ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 1306- ● ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-979-0 01 1 1306- ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-990-0 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-436-0 01 1 1306- ● ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 1306- ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 1306-1312 ● ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ●
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
192 WASHER; PL 8-97305-661-0 01 1 1306- ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-09503-280-0 01 1 1306- ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 1306- ●
195 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1306- ● ●
195 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1306- ●
237 BRACKET; CABLE,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98018-905-1 01 1 1306- ●
243 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE 		1-33739-842-0 11 1 1306- ●
262 BOX ASM; SHIFT CONT 8-97362-753-2 01 1 1306-1312 ●
262 BOX ASM; SHIFT CONT 8-98241-002-2 01 1 1401- ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98109-435-1 01 1 1306-1312 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98241-121-1 01 1 1401-1411 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98296-529-0 01 1 1412-1509 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98331-685-0 01 1 1510- ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-591-1 01 1 1306-1312 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-993-2 01 1 1401- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97363-225-0 01 1 1306- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-981-0 01 1 1306- ●
274 COVER; SHAFT,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-711-0 01 1 1306- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 1306- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 1306- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 1306- ●
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 1306- ●
315 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-998-0 01 1 1306-1411 ●
315 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98296-526-0 01 1 1412- ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 1306- ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 1306- ● ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 1306- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-571-0 03 1 1306- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97349-573-0 01 1 1306- ●
381 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ● ●
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X20 FLANGE SOU 		0-28650-620-0 01 1 1306- ●
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE 		1-33739-842-0 04 1 1306- ●
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98186-003-0 01 1 1306-1311 ● ●
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1312- ● ●
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98023-050-0 01 1 1306-1312 ●
398 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98242-173-1 01 1 1401- ●
530 SHAFT; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-996-0 01 1 1306- ●
548 CLIP; HOSE 8-97031-674-0 01 1 1306- ● ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1306- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1306- ● ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1306- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 1306- ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) OD=5 		8-97184-905-0 03 1 1306- ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 1306- ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 01 1 1306- ●
552 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97349-914-1 01 1 1306- ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 1306- ● ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 1306- ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1306- ● ●
630 DETENT ASM 8-98019-536-0 03 1 1306- ●
630 DETENT ASM 8-98019-536-0 04 1 1306- ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 1306- ● ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 1306- ●
632 SENSOR; TRANS,REV
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97315-604-1 01 1 1306- ●
637 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 1306- ●
644 SPACER; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-489-1 01 1 1306- ●
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98002-759-0 01 1 1306- ●
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98002-760-0 01 1 1306- ●
652 BOLT; SORENOID
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X25 FLANGE 		0-28151-025-0 06 1 1306- ●
653 SOLENOID ASM; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98002-761-0 01 1 1306- ●
654 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-473-0 02 1 1306- ●
654 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97380-419-0 01 1 1306- ●
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98107-823-0 01 1 1306- ●
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98107-824-0 01 1 1306- ●
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-985-0 01 1 1306- ●
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-986-0 01 1 1306- ●
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-987-0 01 1 1306- ●
657 PLATE; SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-712-0 01 1 1306- ●
687 GASKET; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09567-113-0 01 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
