2-26 — MANUAL TRANSMISSION GEAR (#122502) — 187 parça

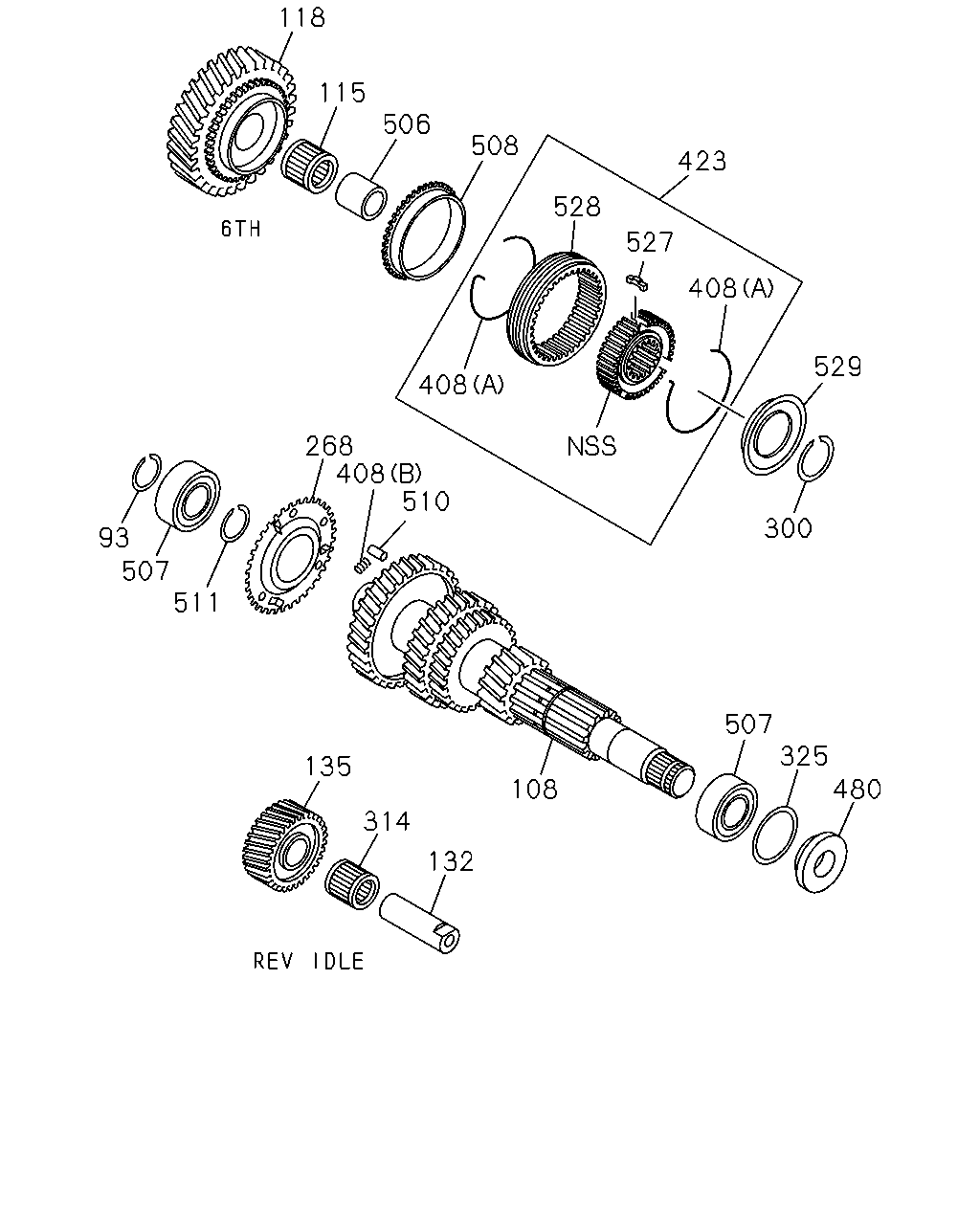

480 325 507 108 132 314 135 511 507 93 268 408 510 408 115 118 506 508 528 423 527 408 529 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1306-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1306-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1306-	●	●
108	SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1306-	●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	1306-		●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	1306-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1306-		●
118	GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1306-		●
132	SHAFT; REV	8-97252-655-0	01	1	1306-	●	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1306-	●	●
268	PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1306-	●
268	PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-684-1	01	1	1306-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1306-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.8	8-97254-728-0	01	1	1306-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1306-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1306-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1306-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-94148-196-0	03	1	1306-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1306-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1306-		●
423	SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	1306-		●
480	WASHER; THRUST,6TH	8-97253-123-1	01	1	1306-		●
506	COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1306-		●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1306-	●	●
508	RING; BLOCK,6TH Z=45	8-97309-532-0	01	1	1306-		●
510	PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-08160-825-0	03	1	1306-	●	●
511	RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-767-0	01	1	1306-	●	●
527	INSERT; 6TH	8-94448-202-2	03	1	1306-		●
528	SLEEVE; 6TH Z=45	8-94421-871-1	01	1	1306-		●
529	PLATE; STOPPER,6TH	8-97248-952-0	01	1	1306-		●

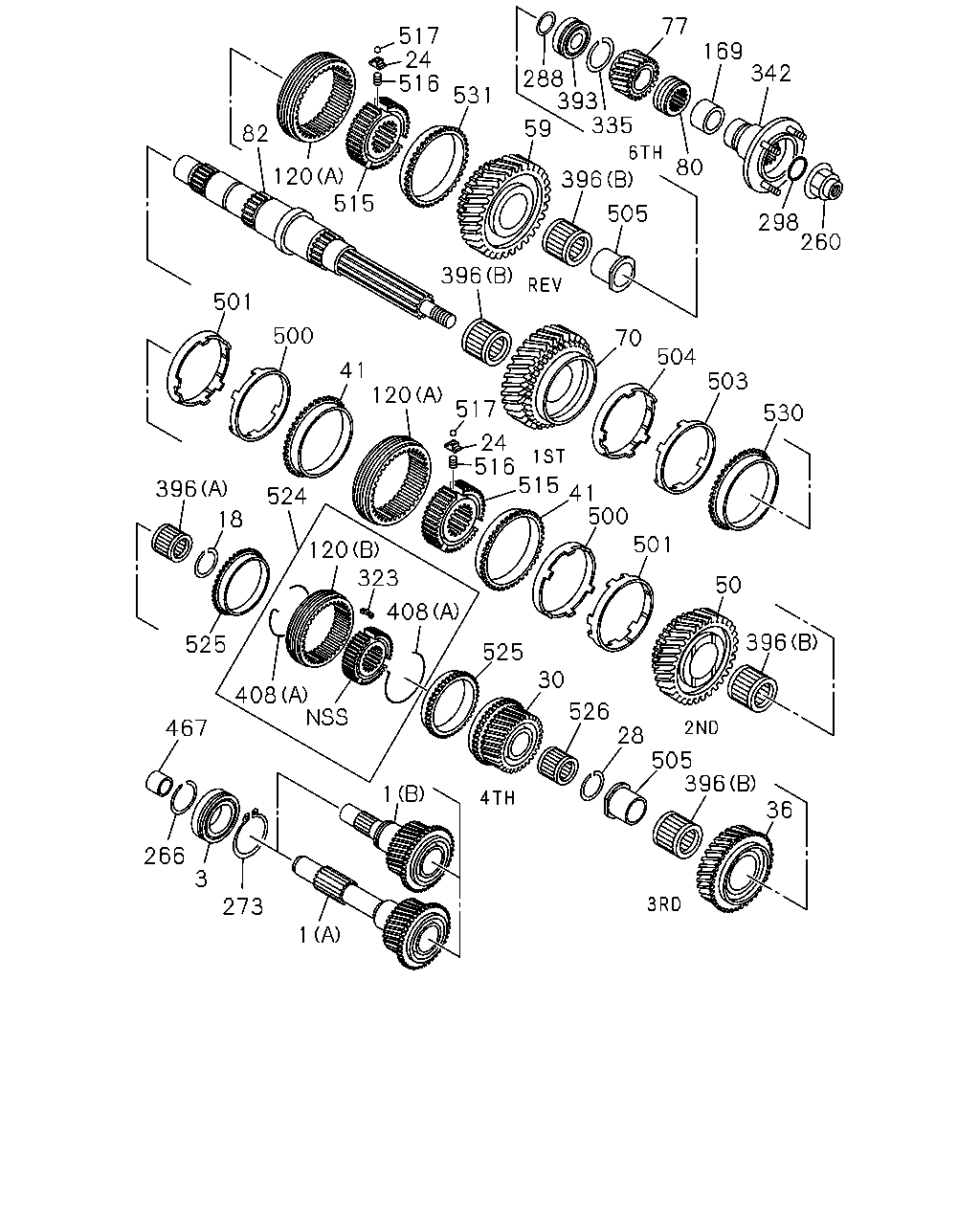

1 273 3 266 1 467 36 396 505 28 526 30 525 408 120 408 323 525 396 524 396 50 501 500 41 515 516 24 517 120 41 500 501 530 503 504 70 396 515 120 82 517 531 516 24 505 396 59 260 298 80 335 393 288 77 169 342 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS (A) Z=28	8-98031-848-0	01	1	1306-	●
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	1306-		●
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	1306-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1306-	●	●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1306-	●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	03	1	1306-	●	●
24	BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	1306-	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1306-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1306-		●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1306-	●	●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1306-	●	●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1306-	●	●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1306-	●	●
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	1306-	●	●
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	1306-		●
77	GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1306-		●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1306-	●	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1306-	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1306-		●
120	SLEEVE (B) Z=45	8-94421-871-1	01	1	1306-	●	●
120	SLEEVE (A) Z=45	8-97241-296-1	01	1	1306-1311	●	●
120	SLEEVE (A) Z=45	8-97241-296-1	01	1	1306-1311	●	●
120	SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
120	SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
169	COLLAR; MAINSHAFT	8-97252-937-1	01	1	1306-		●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1306-	●	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	1306-	●	●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1306-	●	●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1306-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1306-	●	●
323	INSERT	8-94448-202-2	03	1	1306-	●	●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	1306-	●	●
342	FLANGE; OUTPUT	8-98031-640-0	01	1	1306-	●	●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	1306-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1306-	●	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1306-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-94148-196-0	03	1	1306-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1306-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1306-		●
467	COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	1306-		●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1306-	●	●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1306-	●	●
503	RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1306-	●	●
504	RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1306-	●	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1306-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1306-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1306-	●	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	1306-	●	●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	1306-	●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	1306-	●	●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	1306-	●	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1306-	●	●
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1306-	●	●
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1306-	●	●
530	RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	1306-	●	●
531	RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1306-	●	●

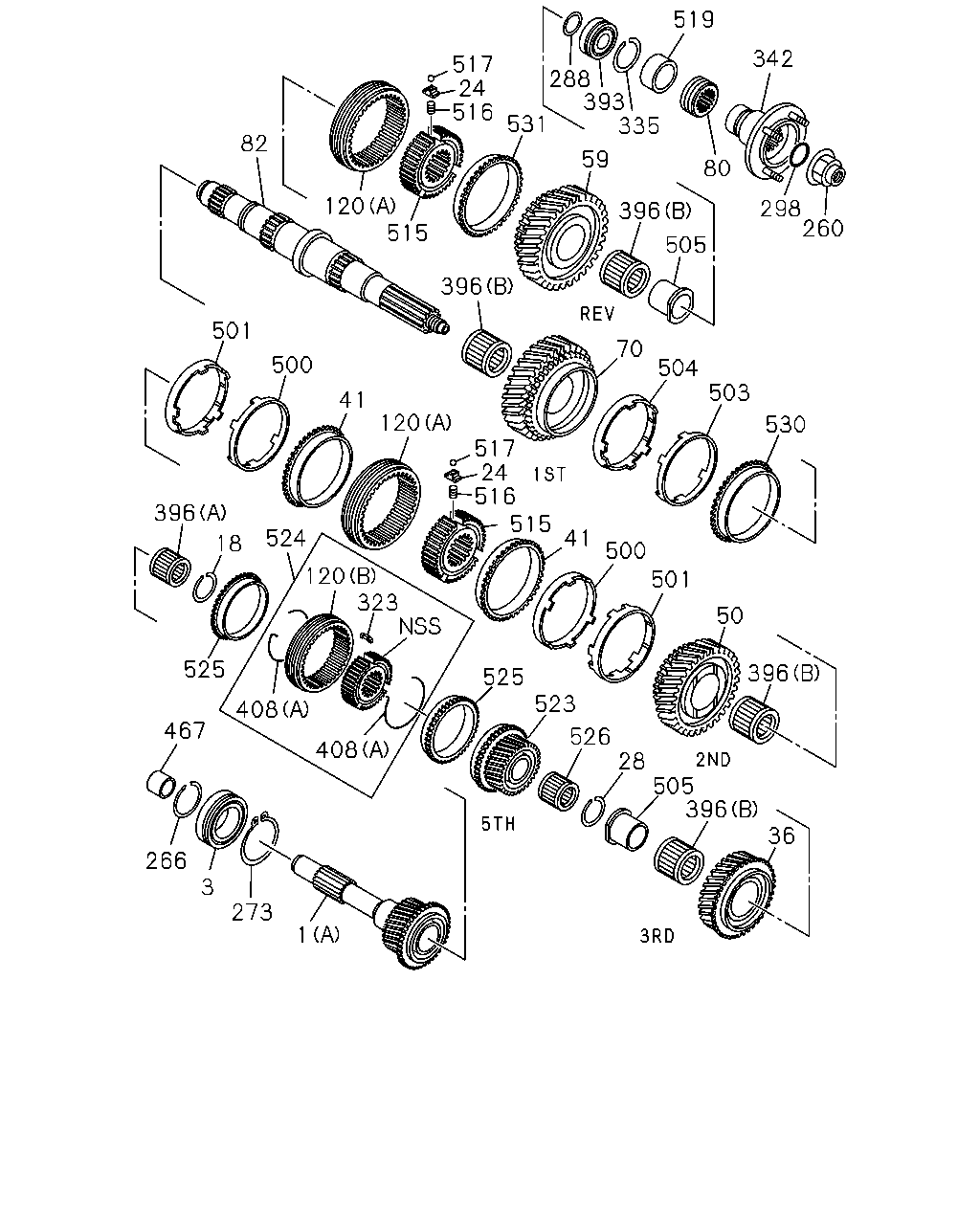

519 298 342 260 80 335 393 288 505 396 59 531 516 24 517 530 503 504 70 396 515 120 82 396 50 501 500 41 515 516 24 517 120 41 500 501 36 396 505 28 526 523 525 524 396 120 323 408 408 467 266 3 273 1 525 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS (A) Z=28	8-98031-848-0	01	1	1306-	●
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	1306-		●
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	1306-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1306-	●	●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1306-	●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	03	1	1306-	●	●
24	BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	1306-	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1306-	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1306-	●	●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1306-	●	●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1306-	●	●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1306-	●	●
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	1306-	●	●
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	1306-		●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1306-	●	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1306-	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1306-		●
120	SLEEVE (B) Z=45	8-94421-871-1	01	1	1306-	●	●
120	SLEEVE (A) Z=45	8-97241-296-1	01	1	1306-1311	●	●
120	SLEEVE (A) Z=45	8-97241-296-1	01	1	1306-1311	●	●
120	SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
120	SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1306-	●	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	1306-	●	●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1306-	●	●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1306-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1306-	●	●
323	INSERT	8-94448-202-2	03	1	1306-	●	●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	1306-	●	●
342	FLANGE; OUTPUT	8-98031-640-0	01	1	1306-	●	●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	1306-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1306-	●	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1306-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-94148-196-0	03	1	1306-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1306-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1306-		●
467	COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	1306-		●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1306-	●	●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1306-	●	●
503	RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1306-	●	●
504	RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1306-	●	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1306-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1306-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1306-	●	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	1306-	●	●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	1306-	●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	1306-	●	●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	1306-	●	●
519	COLLAR; MAINSHAFT END,5TH	8-97252-940-0	01	1	1306-	●
523	GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	1306-	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1306-	●	●
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1306-	●	●
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1306-	●	●
530	RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	1306-	●	●
531	RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1306-	●	●

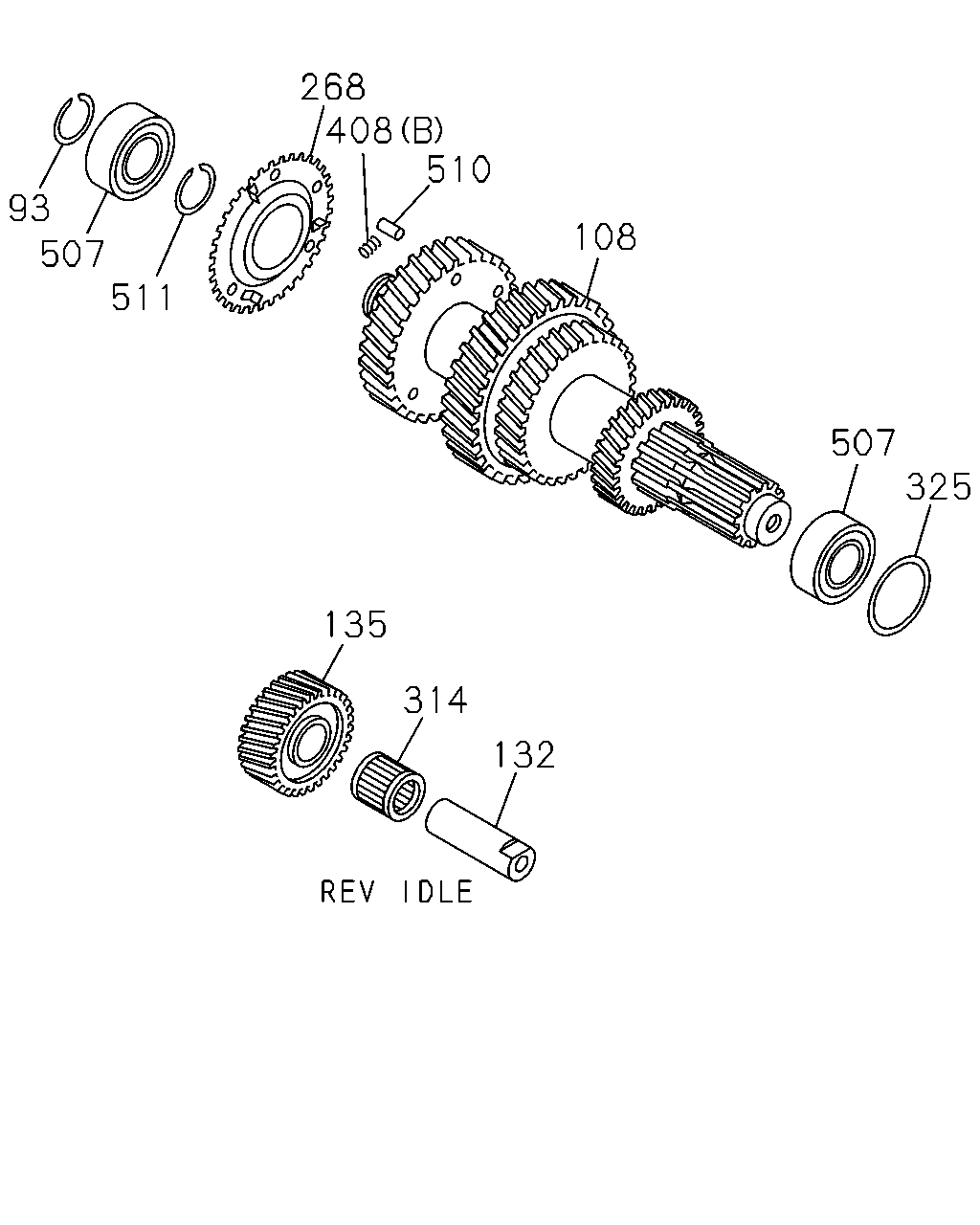

132 314 135 325 507 108 510 408 268 511 507 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1306-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1306-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1306-	●	●
108	SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1306-	●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	1306-		●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	1306-		●
132	SHAFT; REV	8-97252-655-0	01	1	1306-	●	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1306-	●	●
268	PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1306-	●
268	PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-684-1	01	1	1306-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1306-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1306-	●	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-94148-196-0	03	1	1306-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1306-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1306-		●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1306-	●	●
510	PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-08160-825-0	03	1	1306-	●	●
511	RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-767-0	01	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
