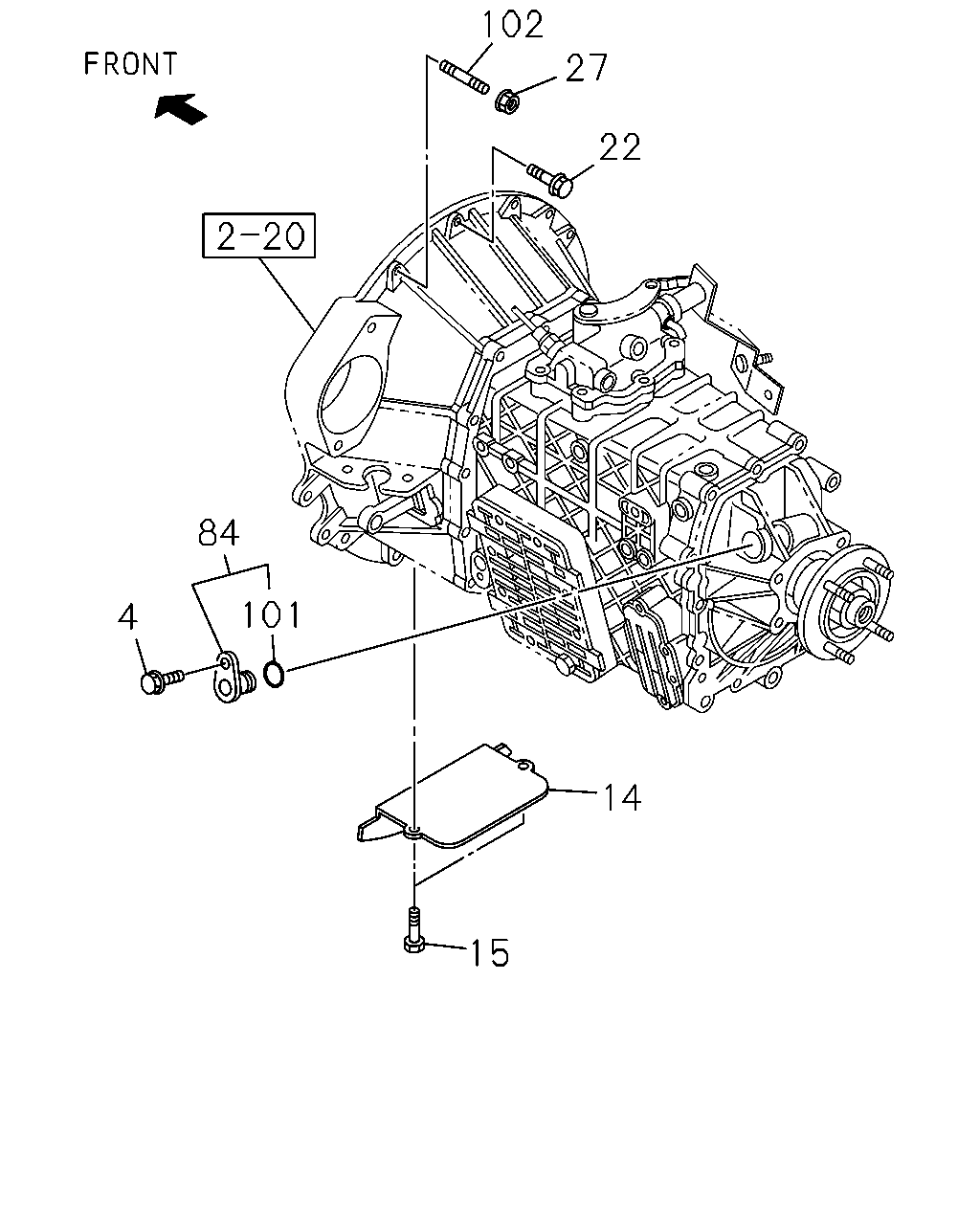

2-25 — SPEEDOMETER DRIVEN GEAR (#122501) — 23 parça

102 22 14 15 101 84 4 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●	●
14	COVER; UNDER,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97308-233-0	01	1	1306-		●	●
15	BOLT; UNDER COVER TO TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE SOU	0-28650-616-0	02	1	1306-		●	●
22	BOLT; TRANS CASE TO ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X140 FLANGE	0-28156-014-0	01	1	1306-	●	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X140 FLANGE	0-28156-014-0	01	1	1306-	●	●	●
22	BOLT; TRANS CASE TO ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X50 FLANGE	0-28151-050-0	01	1	1306-	●	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE	0-28151-030-0	02	1	1306-	●	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X35 FLANGE	0-28151-035-0	04	1	1306-	●	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X130 FLANGE	0-28156-013-0	01	1	1306-	●	●	●
22	BOLT; TRANS CASE TO ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	03	1	1306-	●	●	●
22	BOLT; TRANS CASE TO ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	03	1	1306-	●	●	●
22	BOLT; TRANS CASE TO ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X120 FLANGE	0-28156-012-0	01	1	1306-	●	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 FLANGE	0-28151-050-0	04	1	1306-		●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X150 FLANGE	0-28156-015-0	01	1	1306-		●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	01	1	1306-		●	●
22	BOLT; TRANS CASE TO ENG TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X50 FLANGE	0-28151-050-0	05	1	1306-		●	●
22	BOLT; TRANS CASE TO ENG TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X140 FLANGE	0-28156-014-0	02	1	1306-		●	●
27	NUT; CLU HSG TO TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU	0-91180-210-0	02	1	1306-		●	●
84	CAP; BUSH,SPEEDOMETER GEAR M/T MYY5T(RSM)	8-98035-151-1	01	1	1306-	●
84	CAP; BUSH,SPEEDOMETER GEAR	8-98035-151-1	01	1	1306-		●	●
101	GASKET; CAP M/T MYY5T(RSM)	9-09561-324-0	01	1	1306-	●
101	GASKET; CAP	9-09561-324-0	01	1	1306-		●	●
102	STUD; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 L=99	0-49241-050-0	02	1	1306-		●	●
