2-20 — MANUAL TRANSMISSION ASM AND CASE (#122500) — 93 parça

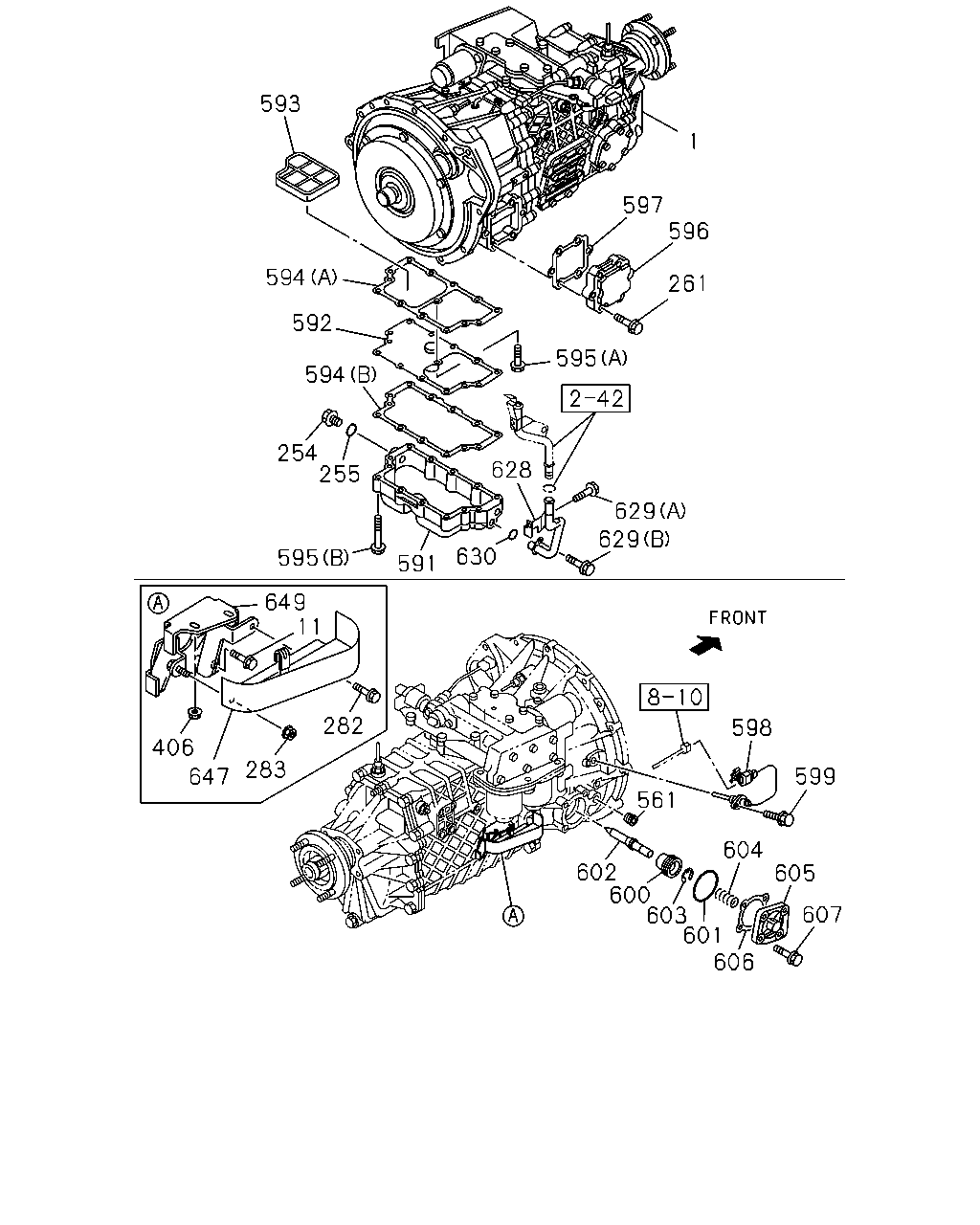

593 594 592 594 254 255 595 591 630 628 595 629 629 261 596 597 1 649 11 282 283 647 406 598 599 561 602 600 603 601 606 604 605 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-623-0	01	1	1306-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1306-	●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-660-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98067-660-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-656-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-660-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO MANUAL CONTROL(6WC)	8-98067-660-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-656-0	01	1	1306-		●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	1306-		●
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97365-374-0	01	1	1306-		●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	1306-		●
261	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X35 FLANGE	0-28650-635-0	06	1	1306-		●
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1306-		●
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●
406	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU	0-91180-210-0	02	1	1306-		●
561	PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	1306-		●
591	PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	1306-		●
592	COVER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	1306-		●
593	FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	1306-		●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	1306-		●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	1306-		●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-		●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X35 FLANGE	0-28650-635-0	13	1	1306-		●
596	COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	1306-		●
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	1306-		●
598	SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	1306-		●
599	BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-		●
600	PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	1306-		●
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	1306-		●
602	PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-653-0	01	1	1306-		●
603	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	9-09185-008-0	01	1	1306-		●
604	SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-752-0	01	1	1306-		●
605	COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	1306-		●
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	1306-		●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	04	1	1306-		●
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98017-101-1	01	1	1306-		●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10X16 FLANGE	0-28151-016-0	01	1	1306-		●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-		●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15.8	8-97305-656-0	01	1	1306-		●
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	1306-		●
649	BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-237-0	01	1	1306-		●

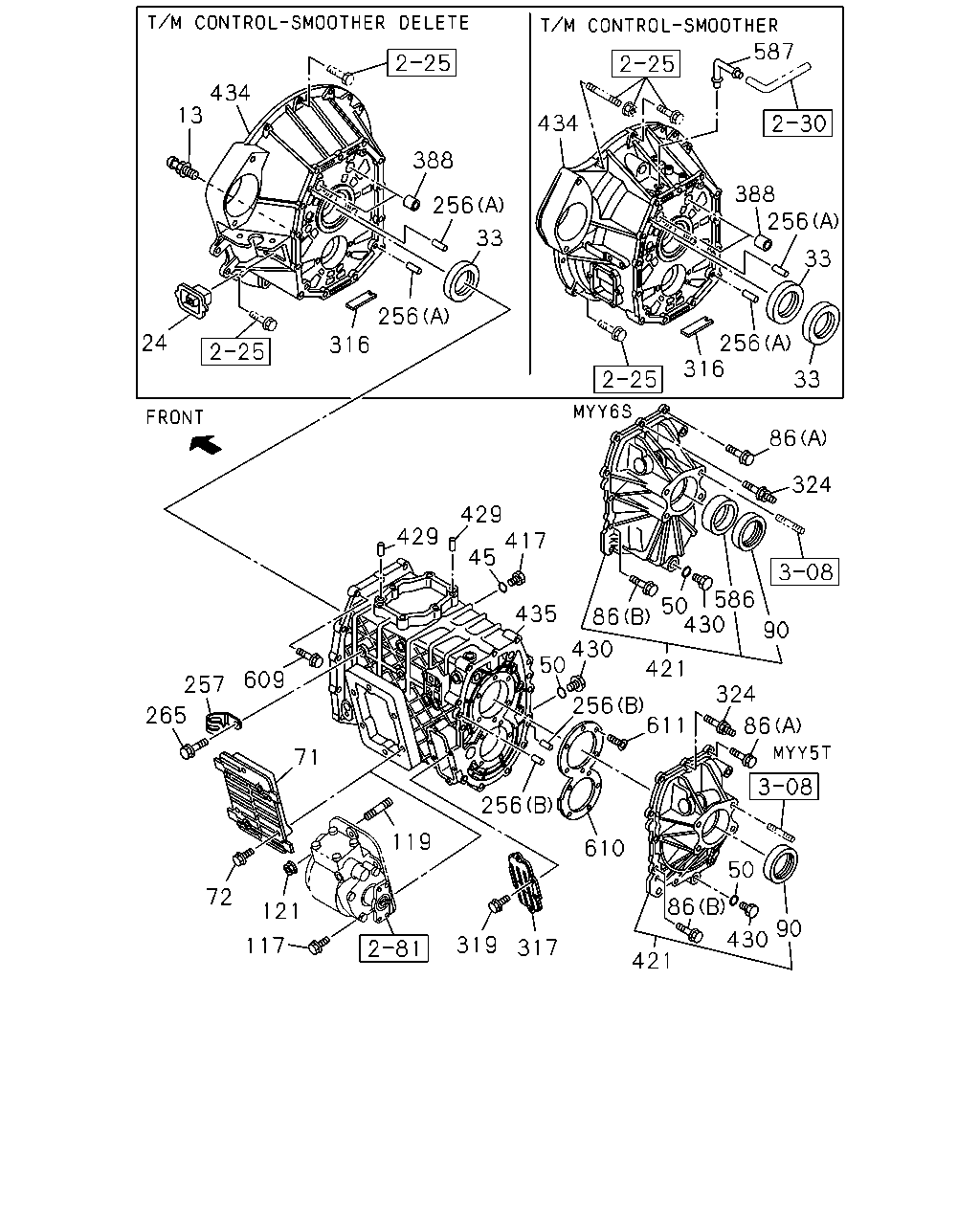

117 121 71 119 319 317 610 256 256 50 435 417 45 72 609 429 429 86 430 50 430 586 90 324 421 611 86 50 90 430 86 421 257 265 316 33 256 86 324 256 33 388 587 434 388 256 33 256 316 24 13 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	SUPPORT; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-384-1	01	1	1306-	●	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-201-0	01	1	1306-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-550-0	01	1	1306-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	1306-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1306-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1306-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1306-		●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-97252-625-0	01	1	1306-	●	●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X20 FLANGE	8-98014-142-0	06	1	1306-	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-		●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	1306-1405	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	1306-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1306-	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28751-030-0	02	1	1306-	●	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X25 L=40	0-44011-025-0	02	1	1306-	●	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 L=45	0-44011-030-0	02	1	1306-	●	●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10 FLANGE SOU	0-91180-210-0	04	1	1306-	●	●
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	1306-	●	●
256	PIN; KNOCK (B) ID=6 L=12	9-08160-612-0	02	1	1306-	●	●
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1306-		●
265	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X12 FLANGE	0-28050-812-0	01	1	1306-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1306-	●	●
317	COVER; CASE	8-97252-626-0	01	1	1306-	●	●
319	BOLT; COVER M8X20 FLANGE	0-28050-820-0	06	1	1306-	●	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-		●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1306-1405	●	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-	●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	1306-	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1306-	●	●
421	COVER; RR,TRANS	8-98020-029-0	01	1	1306-	●
421	COVER; RR,TRANS	8-98020-028-0	01	1	1306-		●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1306-	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1306-	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1306-		●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97237-099-5	01	1	1306-	●	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-978-0	01	1	1306-		●
435	CASE; TRANS	8-97379-375-0	01	1	1306-	●
435	CASE; TRANS	8-97379-374-0	01	1	1306-		●
586	BEARING; NEEDLE	8-97253-109-0	01	1	1306-		●
587	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-318-0	01	1	1306-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1306-	●	●
610	RETAINER; BRG	8-97241-315-1	01	1	1306-	●	●
611	SCREW M10X27 TORQUES	8-97365-354-0	11	1	1306-	●	●

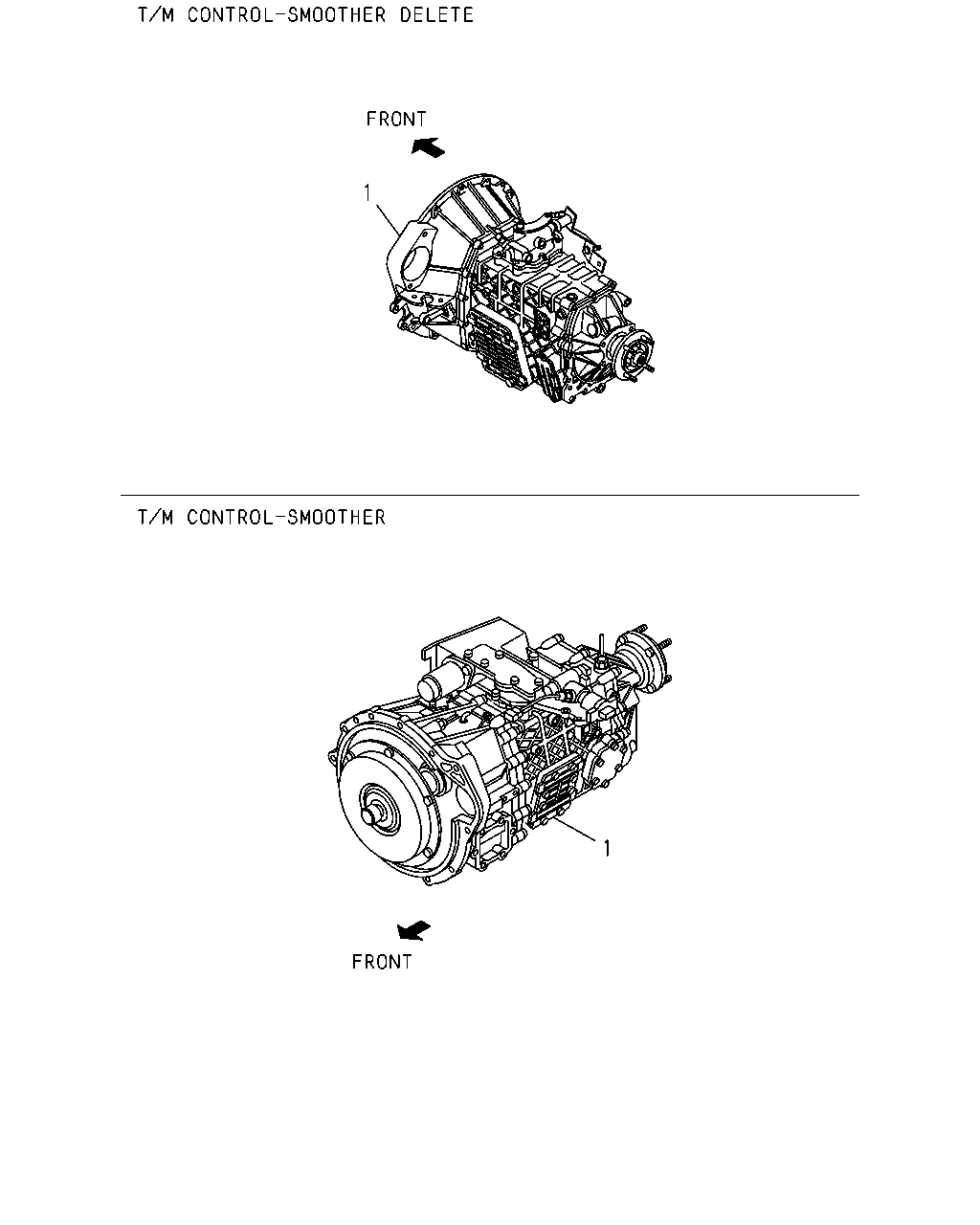

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-623-0	01	1	1306-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1306-	●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-660-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98067-660-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-656-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-660-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO MANUAL CONTROL(6WC)	8-98067-660-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-656-0	01	1	1306-		●
