2-01 — CLUTCH (#1225) — 143 parça

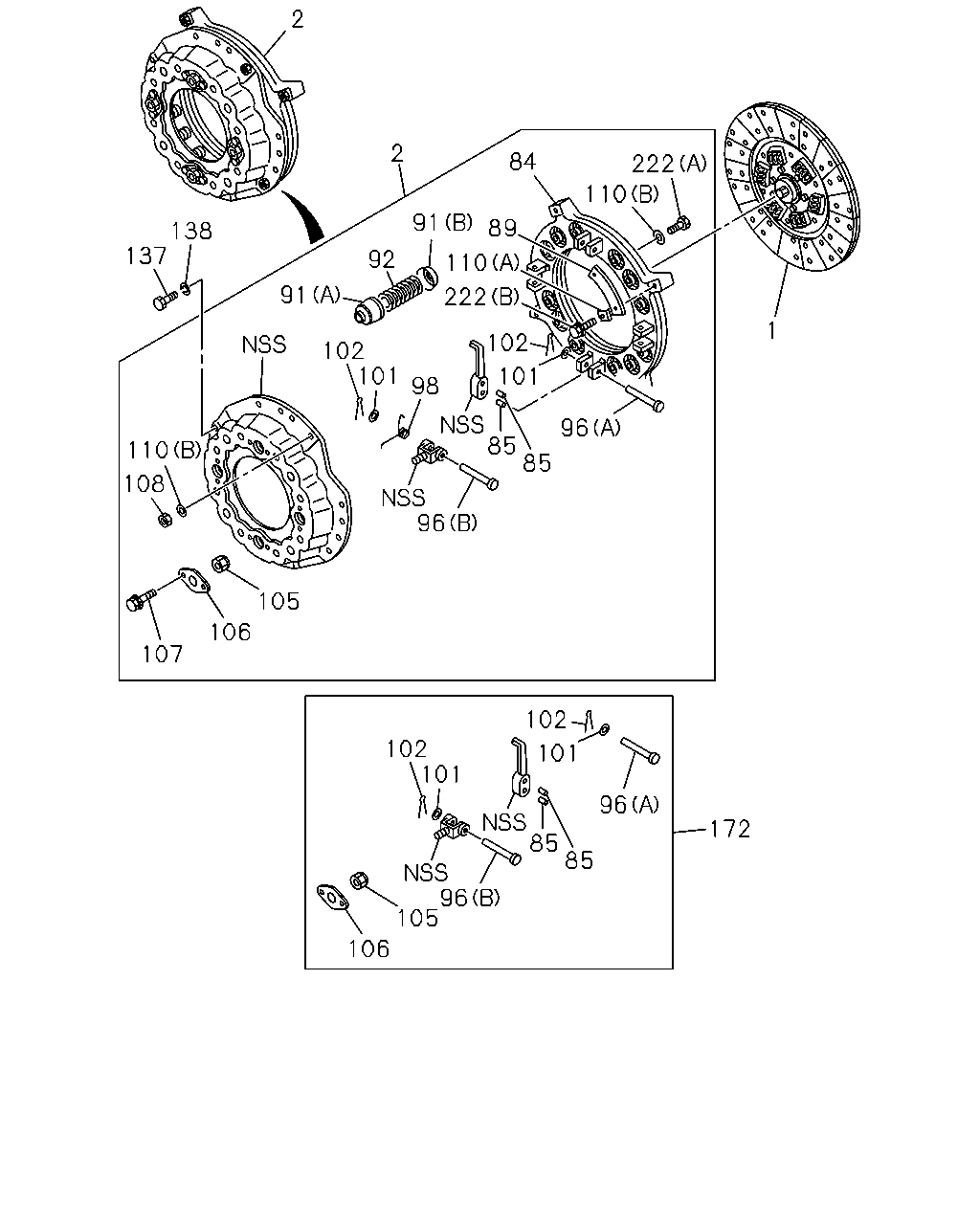

2 2 84 222 110 91 89 138 137 92 110 91 222 1 102 102 101 101 98 110 85 85 96 108 96 105 106 107 102 102 101 101 96 85 85 172 96 105 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DISC; CLUTCH 6HE1 STD ENG(46L) 14"	1-31240-515-0	01	1	9202-9309	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) 14"	1-31240-671-0	01	1	9310-	●	●
1	DISC; CLUTCH 6SA1 STD ENG(06L) 15"	1-31240-585-0	01	1	9202-9309	●		●
1	DISC; CLUTCH 6SA1 STD ENG(06L) 15"	1-31240-676-0	01	1	9310-	●		●
1	DISC; CLUTCH 15"	1-31240-547-0	01	1	9212-9309				●
1	DISC; CLUTCH 15"	1-31240-657-0	01	1	9310-				●
2	PLATE ASM; PRESSURE,CLU 6HE1 STD ENG(46L) 14"	1-31220-168-1	01	1	9202-	●	●
2	PLATE ASM; PRESSURE,CLU 6SA1 STD ENG(06L) 15"	1-31220-170-1	01	1	9202-9211	●		●
2	PLATE ASM; PRESSURE,CLU 6SA1 STD ENG(06L) 15"	1-31220-285-0	01	1	9212-	●		●
2	PLATE ASM; PRESSURE,CLU 15"	1-31220-207-1	01	1	9212-				●
84	PLATE; PRESSURE 6HE1 STD ENG(46L) 14"	1-31221-044-0	01	1	9202-	●	●
84	PLATE; PRESSURE 6SA1 STD ENG(06L) 15"	1-31221-051-0	01	1	9202-	●		●
84	PLATE; PRESSURE 15"	1-31221-067-0	01	1	9212-				●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9202-	●	●	●	●
89	PLATE; STRAP 6HE1 STD ENG(46L)	1-31229-001-0	08	1	9202-	●	●
89	PLATE; STRAP 6SA1 STD ENG(06L)	1-31229-001-0	12	1	9202-	●		●
89	PLATE; STRAP	1-31229-001-0	12	1	9202-				●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9202-	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9202-	●	●	●	●
92	SPRING; CLU 6HE1 STD ENG(46L) 14"	1-09580-234-0	12	1	9202-	●	●
92	SPRING; CLU 6SA1 STD ENG(06L) 15"	1-09580-239-0	12	1	9202-9211	●		●
92	SPRING; CLU 6SA1 STD ENG(06L) 15"	1-31214-050-0	12	1	9212-	●		●
92	SPRING; CLU 15"	1-31214-019-0	12	1	9212-				●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9202-	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 STD ENG(46L) (A) L=57.0	1-31232-008-0	04	1	9202-	●	●
96	PIN; RELEASE LEVER 6SA1 STD ENG(06L) (A) L=57	1-31232-004-0	04	1	9202-	●		●
96	PIN; RELEASE LEVER (A) L=57	1-31232-004-0	04	1	9202-				●
98	SPRING; RETURN	1-31233-003-0	04	1	9202-	●	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9202-	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 6HE1 STD ENG(46L) OD=2.7 L=22	9-08113-022-0	08	1	9202-	●	●
102	PIN; SPLIT,RELEASE LEVER 6SA1 STD ENG(06L) OD=2.7 L=22	9-08103-022-0	08	1	9202-	●		●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9202-				●
105	NUT; SUPPORT	9-31235-061-0	04	1	9202-	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9202-	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9202-	●	●	●	●
108	NUT; STRAP 14",15" CLUCH	1-09449-036-0	04	1	9202-	●	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9202-	●	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9202-	●	●	●	●
137	BOLT; CLU COVER 6HE1 STD ENG(46L) M10X22	0-23801-022-0	12	1	9202-9504	●	●
137	BOLT; CLU COVER 6SA1 STD ENG(06L) M10X25	0-23801-025-0	12	1	9202-9504	●		●
137	BOLT; CLU COVER M10X25	0-23801-025-0	12	1	9202-9504				●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●	●
138	WASHER; LK,CLU COVER ID=10.2	9-09150-510-0	12	1	9202-9504	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6HE1 STD ENG(46L)	1-87830-620-0	01	1	9202-	●	●
172	LEVER KIT; RELEASE,CLU 6SA1 STD ENG(06L) 15"	1-87410-042-0	01	1	9202-9412	●		●
172	LEVER KIT; RELEASE,CLU 6SA1 STD ENG(06L)	1-87830-808-0	01	1	9501-	●		●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-0	01	1	9212-				●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9202-	●	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9202-	●	●	●	●

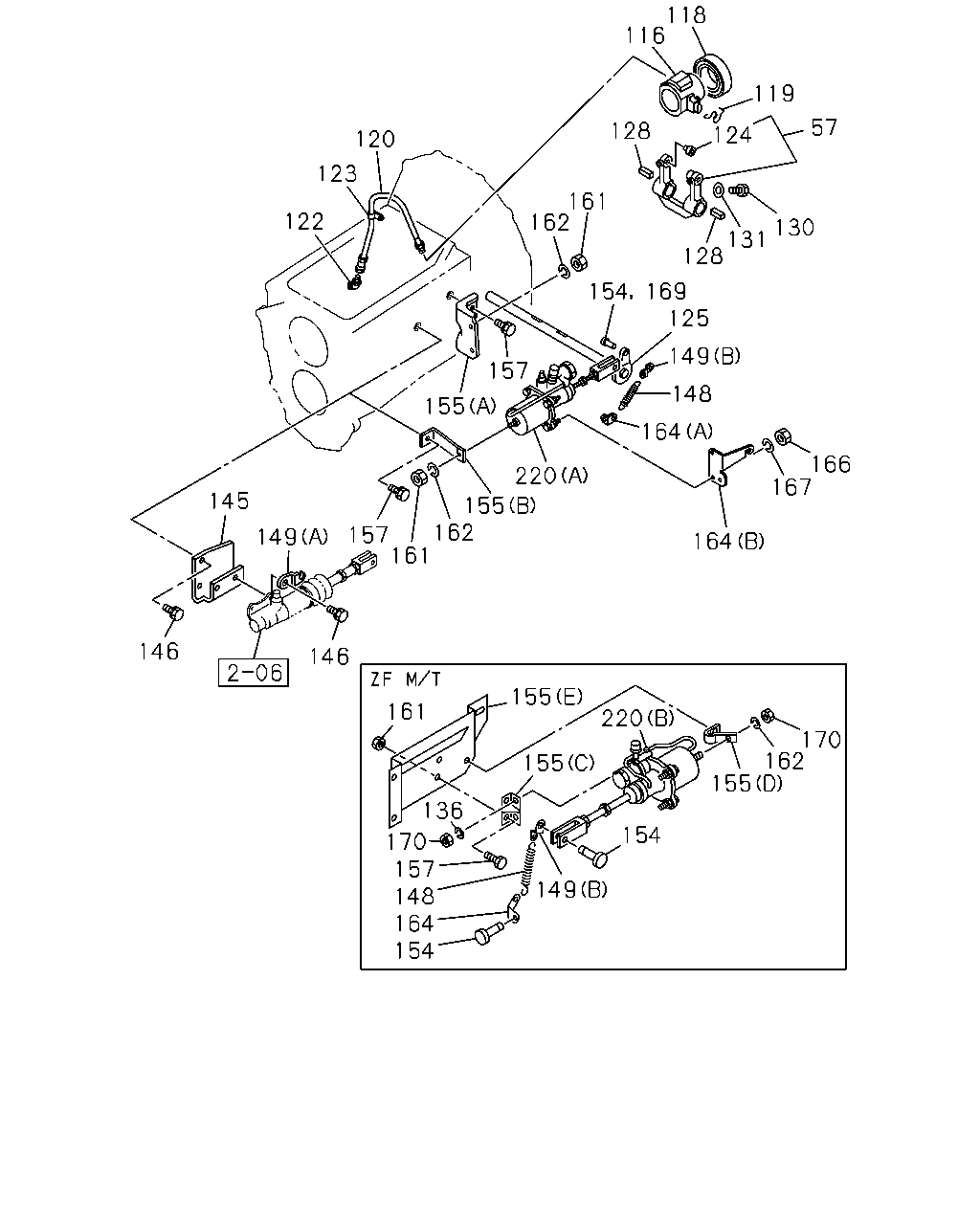

118 116 119 57 128 124 120 123 161 162 122 130 131 128 154 169 125 149 157 148 155 164 166 167 220 145 155 157 162 161 149 164 146 146 155 161 220 170 162 155 155 136 170 157 148 164 154 149 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9202-	●	●	●
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	9306-				●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9202-	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-077-0	01	1	9306-				●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9202-	●	●	●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	9306-				●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9202-	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9202-	●	●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9306-				●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9306-				●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9202-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=170	1-09364-769-0	01	1	9306-9306				●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=170	1-09364-869-0	01	1	9307-				●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9202-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK	9-09902-299-0	01	1	9306-9306				●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 L=23	1-09660-710-0	01	1	9307-				●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=22	1-09700-644-1	01	1	9202-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=15.5	1-09700-814-1	01	1	9202-	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9202-	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9202-	●	●	●
125	SHAFT; CLU	1-31342-233-1	01	1	9306-				●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9202-	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9202-	●	●	●
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	9306-				●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9202-	●	●	●	●
136	WASHER; PL ID=17	9-09164-516-0	01	1	9306-				●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-044-0	01	1	9202-9206		●
145	BRACKET; SLAVE CYL,OIL CLU EXC. AIR ASSIST CLUTCH<PK1>	1-47579-044-0	01	1	9202-9206	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-051-0	01	1	9207-		●
145	BRACKET; SLAVE CYL,OIL CLU EXC. AIR ASSIST CLUTCH<PK1>	1-47579-051-0	01	1	9207-	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 W/LK WASHER	0-50051-025-0	04	1	9202-9205		●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. AIR ASSIST CLUTCH<PK1> M10X25 W/LK WASHER	0-50051-025-0	04	1	9202-9205	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9206-		●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. AIR ASSIST CLUTCH<PK1> M10X25 FLANGE	0-28181-025-0	04	1	9206-	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9202-		●
148	SPRING; CLU RETURN EXC. AIR ASSIST CLUTCH<PK1>	1-09583-249-0	01	1	9202-	●
148	SPRING; CLU RETURN	9-09942-530-1	01	1	9202-			●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1>	9-09942-530-1	01	1	9202-	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9306-				●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9202-		●
149	EYE; SPRING,RETURN SPRING EXC. AIR ASSIST CLUTCH<PK1> (A) T=2.3	1-47324-005-1	01	1	9202-	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9202-		●		●
149	EYE; SPRING,RETURN SPRING EXC. AIR ASSIST CLUTCH<PK1> (B)	1-31426-019-1	01	1	9202-	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	9202-9312		●
154	PIN; JAW JOINT EXC. AIR ASSIST CLUTCH<PK1>	1-31424-001-1	01	1	9202-9312	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9401-		●		●
154	PIN; JAW JOINT EXC. AIR ASSIST CLUTCH<PK1>	1-31424-009-0	01	1	9401-	●
155	BRACKET; MINIPACK ASSISTER SHIFT CONTROL<WX8> (A)	1-31429-175-2	01	1	9202-			●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> ASSISTER SHIFT CONTROL<WX8> (A)	1-31429-175-2	01	1	9202-	●
155	BRACKET; MINIPACK ASSISTER SHIFT CONTROL<WX8> (B)	1-31429-176-0	01	1	9202-			●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> ASSISTER SHIFT CONTROL<WX8> (B)	1-31429-176-0	01	1	9202-	●
155	BRACKET; MINIPACK EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-31429-174-0	01	1	9202-			●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-31429-174-0	01	1	9202-	●
155	BRACKET; MINIPACK EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-31429-217-0	01	1	9202-			●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-31429-217-0	01	1	9202-	●
155	BRACKET; MINIPACK (C)	1-31429-066-0	01	1	9306-				●
155	BRACKET; MINIPACK (D)	1-31429-322-0	01	1	9306-				●
155	BRACKET; MINIPACK (E)	1-31429-340-0	01	1	9306-9504				●
155	BRACKET; MINIPACK (E)	1-31429-377-1	01	1	9505-				●
157	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	03	1	9202-9205			●
157	BOLT; BRKT AIR ASSIST CLUTCH<PK1> M10X20 W/LK WASHER	0-50051-020-0	03	1	9202-9205	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9206-			●
157	BOLT; BRKT AIR ASSIST CLUTCH<PK1> M10X18 FLANGE	0-28181-018-0	03	1	9206-	●
157	BOLT; BRKT M16X30	0-23801-630-0	01	1	9306-				●
157	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	03	1	9306-				●
157	BOLT; BRKT M12X20 FLANGE	0-28181-220-0	02	1	9306-				●
161	NUT; BRKT M8	9-09110-408-0	03	1	9202-9205			●
161	NUT; BRKT AIR ASSIST CLUTCH<PK1> M8	9-09110-408-0	03	1	9202-9205	●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	9206-			●
161	NUT; BRKT AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	03	1	9206-	●
161	NUT; BRKT M10 FLANGE	0-91150-110-0	03	1	9306-				●
162	WASHER; LK,BRKT ID=8.2	9-09150-508-0	03	1	9202-9205			●
162	WASHER; LK,BRKT AIR ASSIST CLUTCH<PK1> ID=8.2	9-09150-508-0	03	1	9202-9205	●
162	WASHER; LK,BRKT ID=16.2	9-09150-516-0	01	1	9306-				●
164	EYE; SPRING (A)	1-31426-019-1	01	1	9202-			●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> (A)	1-31426-019-1	01	1	9202-	●
164	EYE; SPRING (B) ID=9X2 & 13	1-47475-658-0	01	1	9202-			●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> (B) ID=9X2 & 13	1-47475-658-0	01	1	9202-	●
164	EYE; SPRING	1-31426-016-1	01	1	9306-				●
166	NUT; SPRING EYE M8	9-09110-408-0	02	1	9202-9205			●
166	NUT; SPRING EYE AIR ASSIST CLUTCH<PK1> M8	9-09110-408-0	02	1	9202-9205	●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	9206-			●
166	NUT; SPRING EYE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	02	1	9206-	●
167	WASHER; LK,SPRING EYE ID=8.2	9-09150-508-0	02	1	9202-9205			●
167	WASHER; LK,SPRING EYE AIR ASSIST CLUTCH<PK1> ID=8.2	9-09150-508-0	02	1	9202-9205	●
169	PIN; JOINT,MINIPACK	1-31424-001-1	01	1	9202-9312			●
169	PIN; JOINT,MINIPACK AIR ASSIST CLUTCH<PK1>	1-31424-001-1	01	1	9202-9312	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9401-			●
169	PIN; JOINT,MINIPACK AIR ASSIST CLUTCH<PK1>	1-31424-009-0	01	1	9401-	●
170	NUT; BOOSTER FIX M8 FLANGE	0-91150-108-0	03	1	9306-				●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-364-0	01	1	9202-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-31800-364-0	01	1	9202-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-31800-349-2	01	1	9202-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. (B)	1-31800-350-0	01	1	9306-				●
