2-05 — CLUTCH PIPING (#122495) — 15 parça

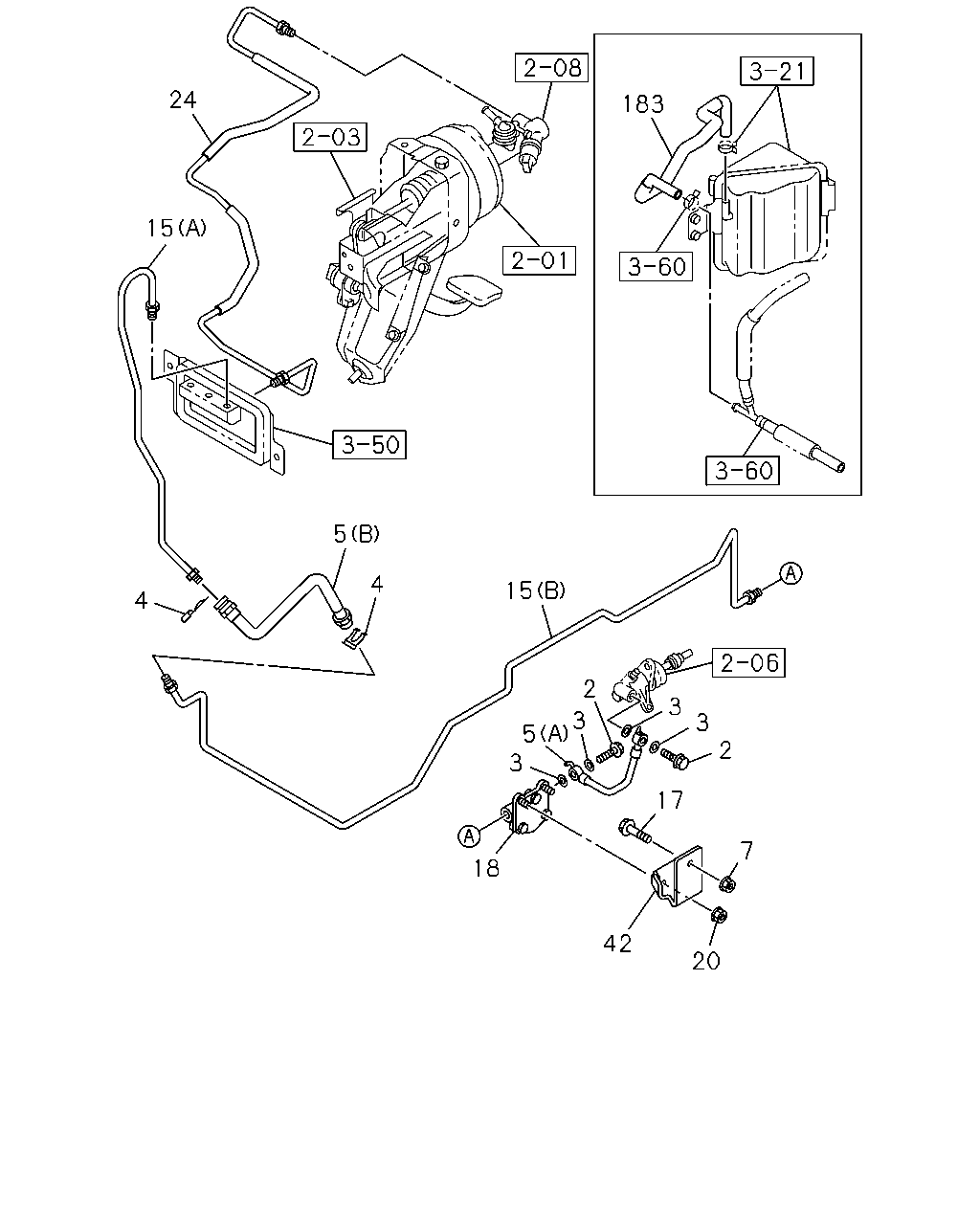

çizim 355750
24 15 5 4 15 4 3 5 3 2 3 3 2 17 7 20 42 18 183
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X22 		8-98014-005-0 02 1 1306- ● ●
3 GASKET; FLEX HOSE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 04 1 1306- ● ●
4 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97365-304-0 02 1 1306- ● ●
5 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98077-611-2 01 1 1306- ● ●
5 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 1306- ● ●
7 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
15 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97389-642-1 01 1 1306- ● ●
15 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98051-538-0 01 1 1306- ● ●
17 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1306- ● ●
18 DAMPER ASM; CLU OIL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-610-1 01 1 1306- ● ●
20 NUT; CLU OIL DAMPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97389-356-1 01 1 1306- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98077-617-0 01 1 1306- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98041-335-1 01 1 1306- ● ●
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98121-942-0 01 1 1306- ● ●
