◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51486 - NLR/NMR(SOUTHAFRICA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶

1-50 — EXHAUST PIPE AND SILENCER (#122490) — 127 parça

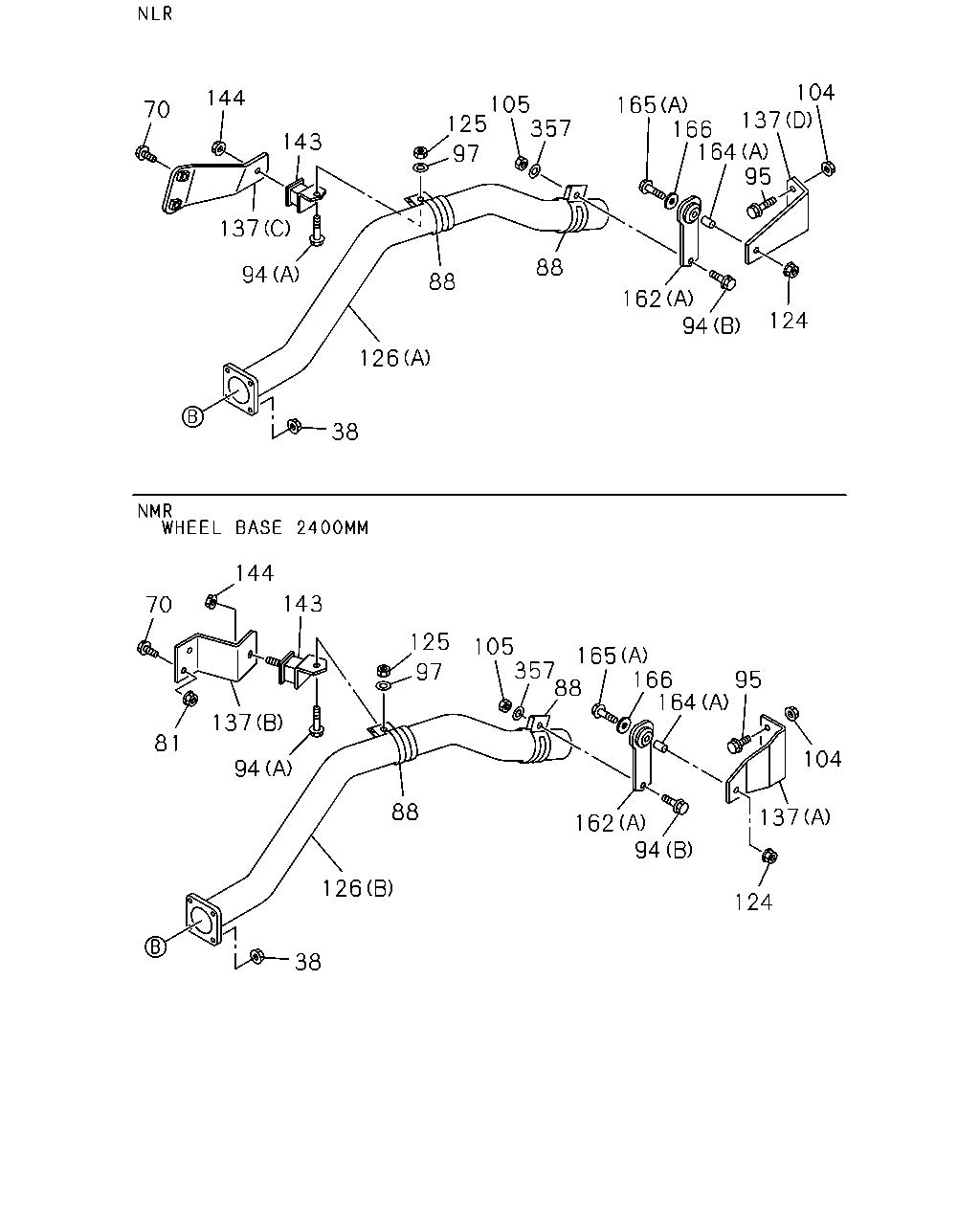

38 126 94 143 144 81 137 70 88 97 165 137 162 104 94 166 95 125 105 357 88 164 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	NUT; SILENCER M8 FLANGE SOU	0-91180-108-0	04	1	1306-	●	●	●
70	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10 FLANGE SOU	0-91180-110-0	02	1	1306-		●
81	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE SOU	0-91180-110-0	01	1	1306-		●
81	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE SOU	0-91180-110-0	01	1	1306-		●
81	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	01	1	1306-			●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	1306-	●	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	1306-	●	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE SOU	0-28051-045-0	01	1	1306-	●	●	●
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	1306-	●	●	●
95	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●	●	●
104	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●		●
104	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE SOU	0-91180-110-0	02	1	1306-		●
104	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE SOU	0-91180-110-0	02	1	1306-		●
105	NUT; CLAMP M10 SOU	0-91110-510-0	01	1	1306-	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
125	NUT; CLAMP M10 SOU	0-91110-510-0	01	1	1306-	●	●	●
126	PIPE; EXH,RR (A)	8-98072-136-0	01	1	1306-	●
126	PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98072-138-0	01	1	1306-		●
126	PIPE; EXH,RR WHEEL BASE 3300MM(33W) (C)	8-98116-727-0	01	1	1306-		●
126	PIPE; EXH,RR (C)	8-98116-727-0	01	1	1306-			●
137	BRACKET; TAIL PIPE (C)	8-98001-896-1	01	1	1306-	●
137	BRACKET; TAIL PIPE (D)	8-98072-153-0	01	1	1306-	●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98038-762-1	01	1	1306-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98075-678-0	01	1	1306-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (E)	8-98075-674-0	01	1	1306-		●
137	BRACKET; TAIL PIPE (E)	8-98075-674-0	01	1	1306-			●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (F)	8-98075-675-1	01	1	1306-		●
137	BRACKET; TAIL PIPE (F)	8-98075-675-1	01	1	1306-			●
143	RUBBER; SUPPORT	8-98034-767-0	01	1	1306-	●	●	●
144	NUT; MTG RUBBER M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE (A)	8-98032-150-0	01	1	1306-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	1306-		●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	1306-		●
162	RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-98034-765-0	01	1	1306-			●
164	COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	1306-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	1306-		●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=37.5 SOU	9-22151-217-0	01	1	1306-		●
164	COLLAR; DIST,TAIL PIPE (B) L=37.5 SOU	9-22151-217-0	01	1	1306-			●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE SOU	0-28051-045-0	01	1	1306-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) (A) M10X45 FLANGE SOU	0-28051-045-0	01	1	1306-		●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE SOU	0-28051-070-0	01	1	1306-		●
165	BOLT; SUPPORT RUBBER (B) M10X70 FLANGE SOU	0-28051-070-0	01	1	1306-			●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	1306-	●	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●	●	●

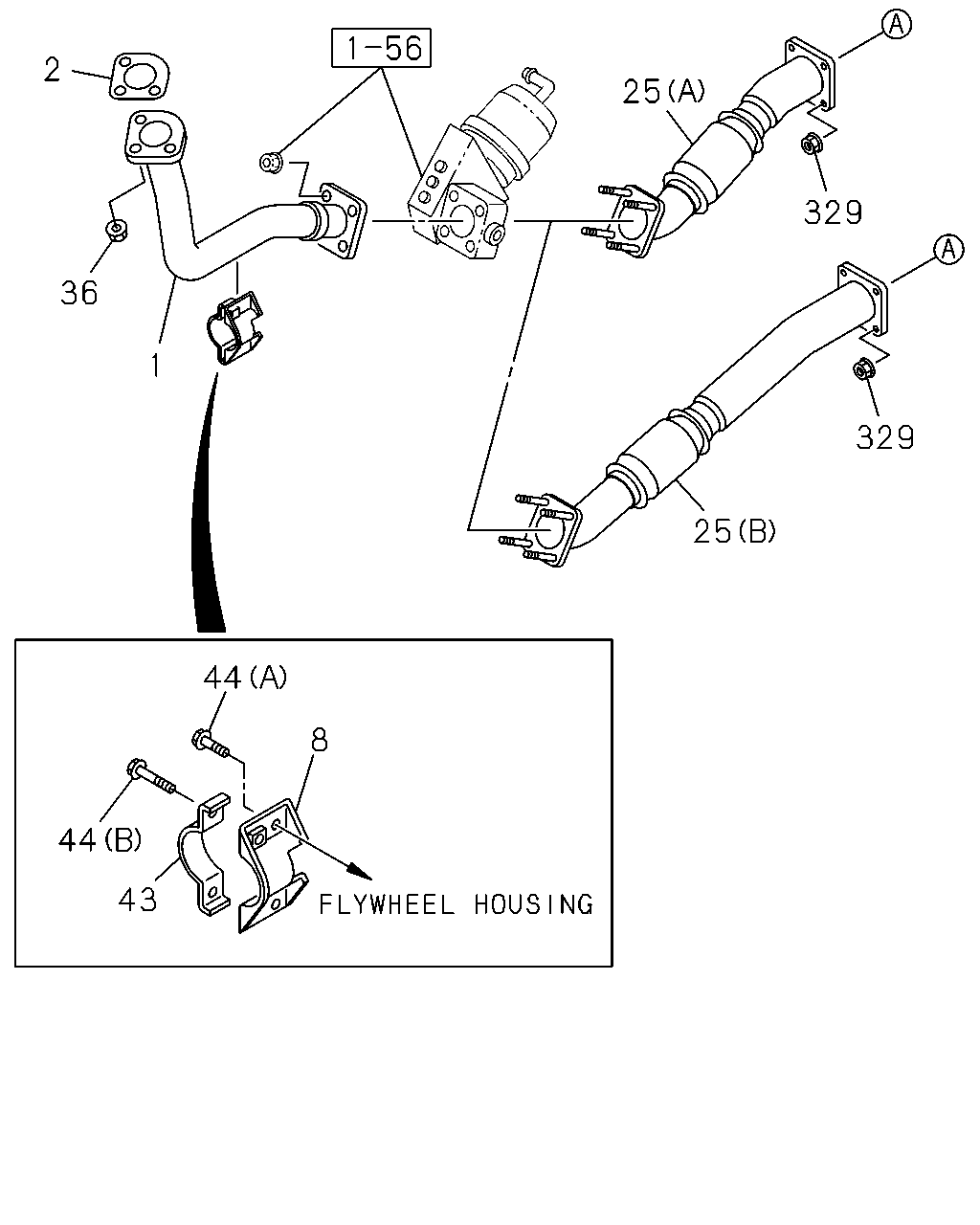

329 329 25 25 2 36 1 44 8 43 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH	8-98075-966-0	01	1	1306-	●	●	●
2	GASKET; PIPE TO MANIF	8-97384-590-0	01	1	1306-	●	●	●
8	BRACKET; EXH PIPE	8-98026-063-0	01	1	1306-	●	●	●
25	PIPE; EXH,BRK VLV TO SILENCER (A)	8-98072-121-1	01	1	1306-	●
25	PIPE; EXH,BRK VLV TO SILENCER (B)	8-98027-805-1	01	1	1306-		●	●
36	NUT; EXH PIPE M10 FLANGE SOU	8-97096-192-1	03	1	1306-	●	●	●
43	CLAMP; EXH PIPE	8-97351-200-1	01	1	1306-	●	●	●
44	BOLT; BRKT (A) M10X25 FLANGE	0-28151-025-0	02	1	1306-	●	●	●
44	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●	●	●
329	NUT; EXH PIPE TO PIPE M8 FLANGE SOU	0-91180-108-0	04	1	1306-	●	●	●

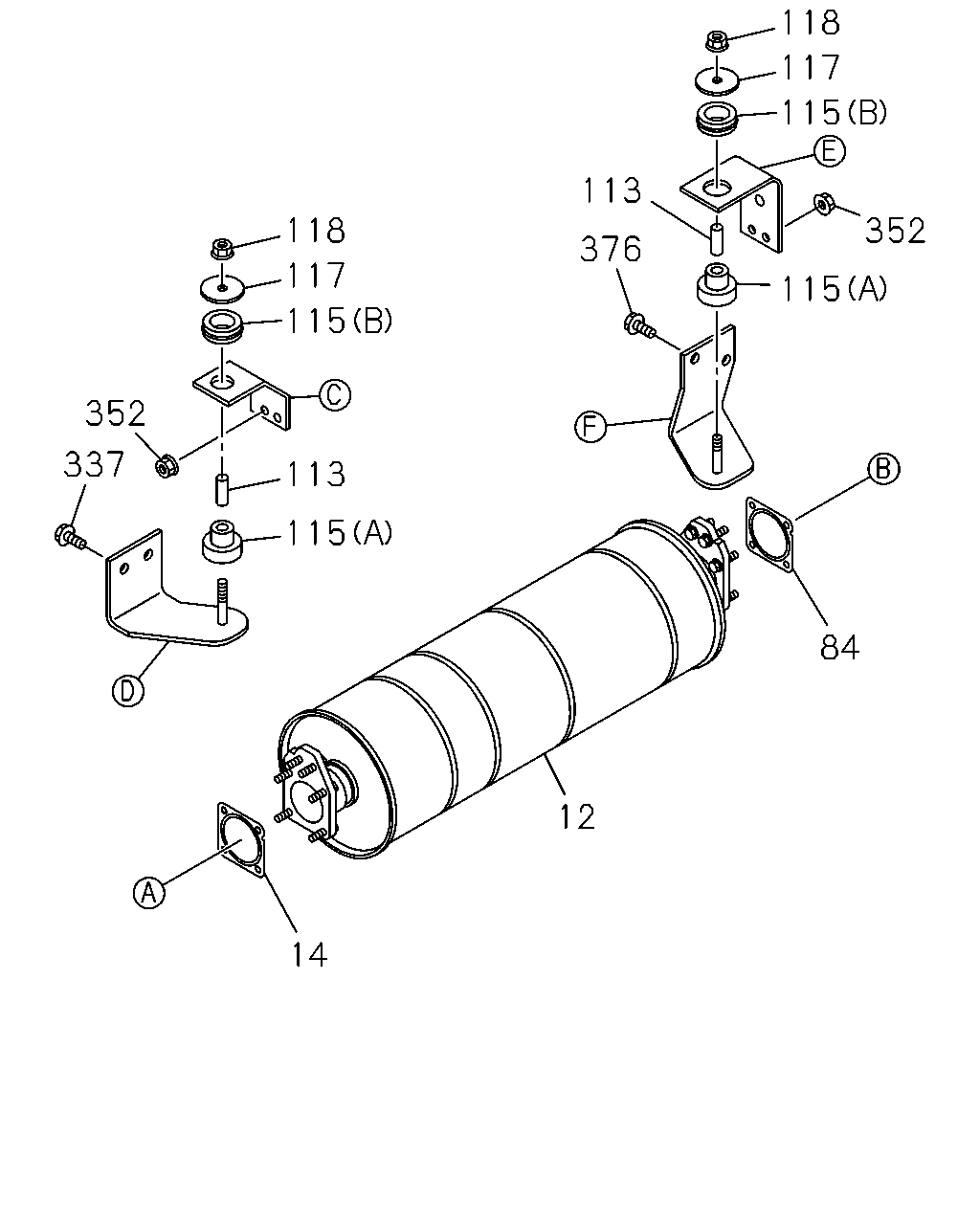

118 117 115 352 115 84 376 113 118 117 115 113 115 12 14 337 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	SILENCER ASM; EXH	8-98027-813-1	01	1	1306-	●	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64	8-97373-108-0	01	1	1306-	●	●	●
84	GASKET; EXH PIPE ID=64	8-97373-108-0	01	1	1306-	●	●	●
113	COLLAR; DIST,MTG BRKT L=37.5 SOU	9-22151-217-0	02	1	1306-	●	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1306-	●	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1306-	●	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1306-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	02	1	1306-	●	●	●
337	BOLT; RUBBER,SUPPORT M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●	●	●
352	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
352	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	04	1	1306-	●	●	●
376	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●
376	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-		●	●

70 144 143 137 94 126 88 97 125 105 357 165 166 164 137 104 124 94 162 88 38 144 70 81 137 94 143 126 38 88 97 125 105 357 88 165 166 164 162 94 124 137 104 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	NUT; SILENCER M8 FLANGE SOU	0-91180-108-0	04	1	1306-	●	●	●
70	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10 FLANGE SOU	0-91180-110-0	02	1	1306-		●
81	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE SOU	0-91180-110-0	01	1	1306-		●
81	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE SOU	0-91180-110-0	01	1	1306-		●
81	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	01	1	1306-			●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	1306-	●	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	1306-	●	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE SOU	0-28051-045-0	01	1	1306-	●	●	●
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	1306-	●	●	●
95	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●	●	●
104	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●		●
104	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE SOU	0-91180-110-0	02	1	1306-		●
104	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE SOU	0-91180-110-0	02	1	1306-		●
105	NUT; CLAMP M10 SOU	0-91110-510-0	01	1	1306-	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
125	NUT; CLAMP M10 SOU	0-91110-510-0	01	1	1306-	●	●	●
126	PIPE; EXH,RR (A)	8-98072-136-0	01	1	1306-	●
126	PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98072-138-0	01	1	1306-		●
126	PIPE; EXH,RR WHEEL BASE 3300MM(33W) (C)	8-98116-727-0	01	1	1306-		●
126	PIPE; EXH,RR (C)	8-98116-727-0	01	1	1306-			●
137	BRACKET; TAIL PIPE (C)	8-98001-896-1	01	1	1306-	●
137	BRACKET; TAIL PIPE (D)	8-98072-153-0	01	1	1306-	●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98038-762-1	01	1	1306-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98075-678-0	01	1	1306-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (E)	8-98075-674-0	01	1	1306-		●
137	BRACKET; TAIL PIPE (E)	8-98075-674-0	01	1	1306-			●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (F)	8-98075-675-1	01	1	1306-		●
137	BRACKET; TAIL PIPE (F)	8-98075-675-1	01	1	1306-			●
143	RUBBER; SUPPORT	8-98034-767-0	01	1	1306-	●	●	●
144	NUT; MTG RUBBER M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE (A)	8-98032-150-0	01	1	1306-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	1306-		●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	1306-		●
162	RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-98034-765-0	01	1	1306-			●
164	COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	1306-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	1306-		●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=37.5 SOU	9-22151-217-0	01	1	1306-		●
164	COLLAR; DIST,TAIL PIPE (B) L=37.5 SOU	9-22151-217-0	01	1	1306-			●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE SOU	0-28051-045-0	01	1	1306-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) (A) M10X45 FLANGE SOU	0-28051-045-0	01	1	1306-		●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE SOU	0-28051-070-0	01	1	1306-		●
165	BOLT; SUPPORT RUBBER (B) M10X70 FLANGE SOU	0-28051-070-0	01	1	1306-			●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	1306-	●	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●	●	●

59 59 576 576 345 345 577 577 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
59	BRACKET; EXH SILENCER,FRT (B)	8-98072-144-0	01	1	1306-	●
59	BRACKET; EXH SILENCER,FRT (A)	8-98082-156-0	01	1	1306-		●	●
345	BRACKET; EXH SILENCER,RR (B)	8-98072-146-0	01	1	1306-	●
345	BRACKET; EXH SILENCER,RR (A)	8-98027-822-0	01	1	1306-		●	●
576	BRACKET; DPD FRT TO FRAME (B)	8-98072-140-0	01	1	1306-	●
576	BRACKET; DPD FRT TO FRAME (A)	8-98067-992-0	01	1	1306-		●	●
577	BRACKET; DPD RR TO FRAME (A)	8-98072-142-0	01	1	1306-	●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) (B)	8-98107-265-0	01	1	1306-		●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (C)	8-98107-266-0	01	1	1306-		●
577	BRACKET; DPD RR TO FRAME (C)	8-98107-266-0	01	1	1306-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
