Sayfa 1-41 - Isuzu EPC

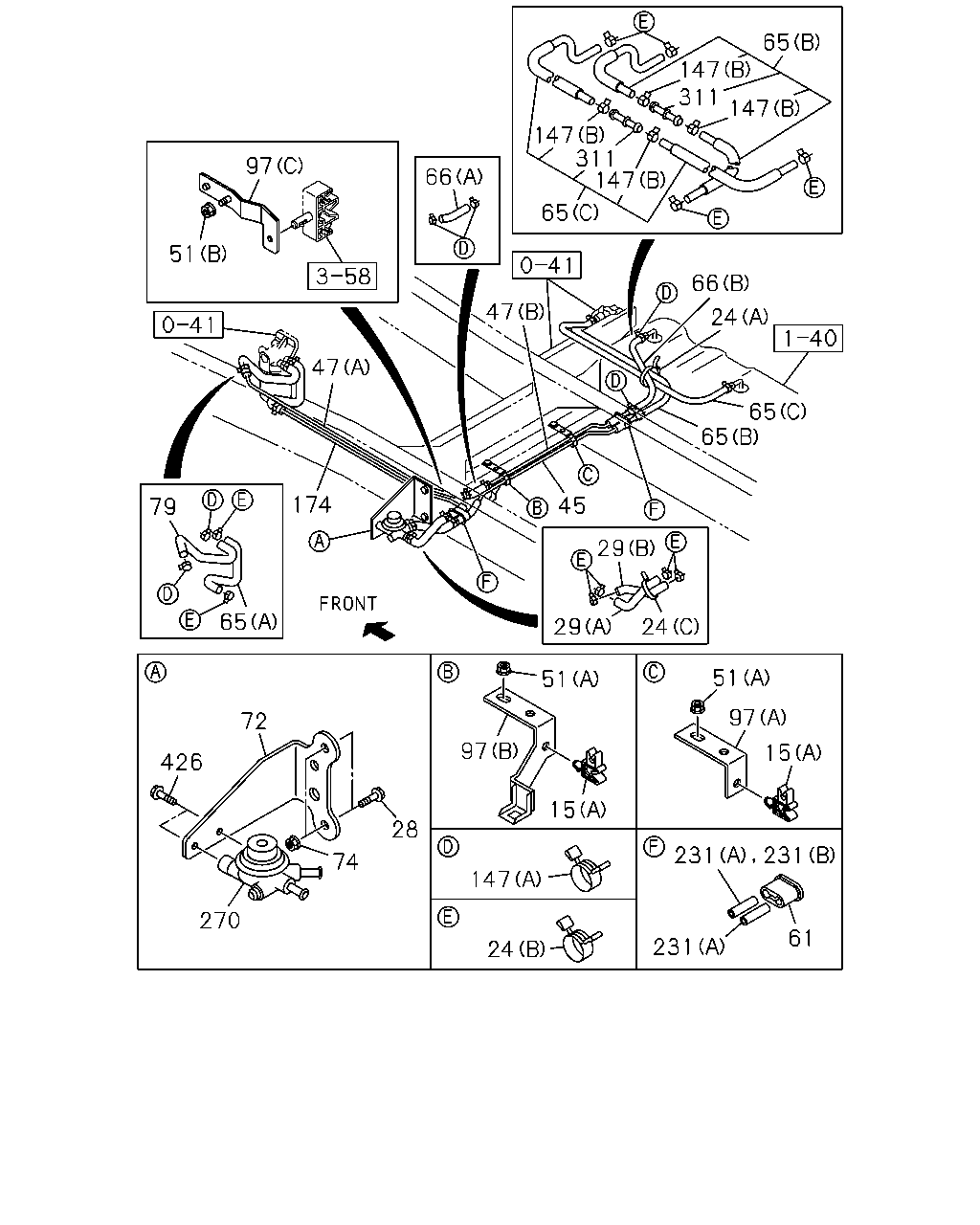

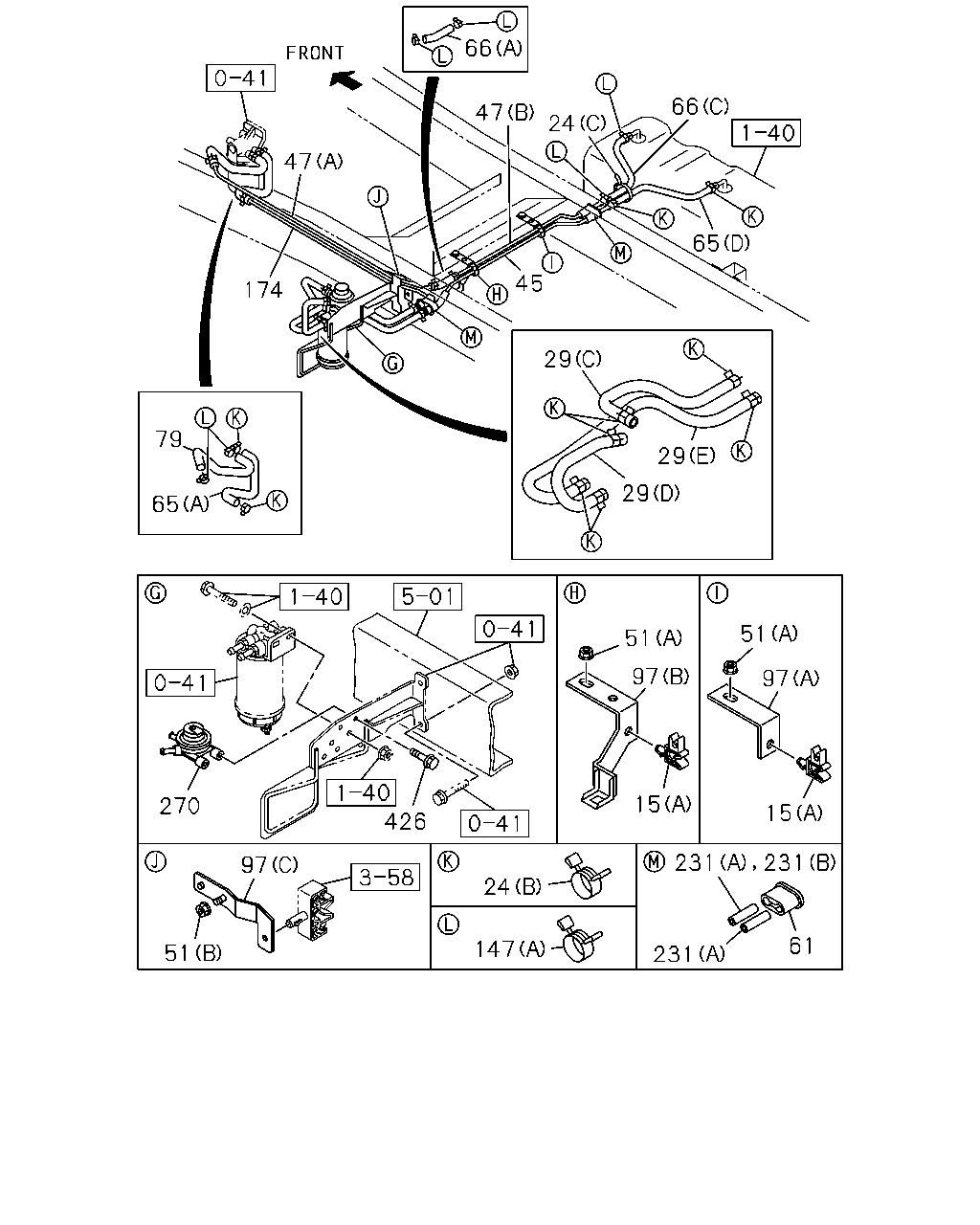

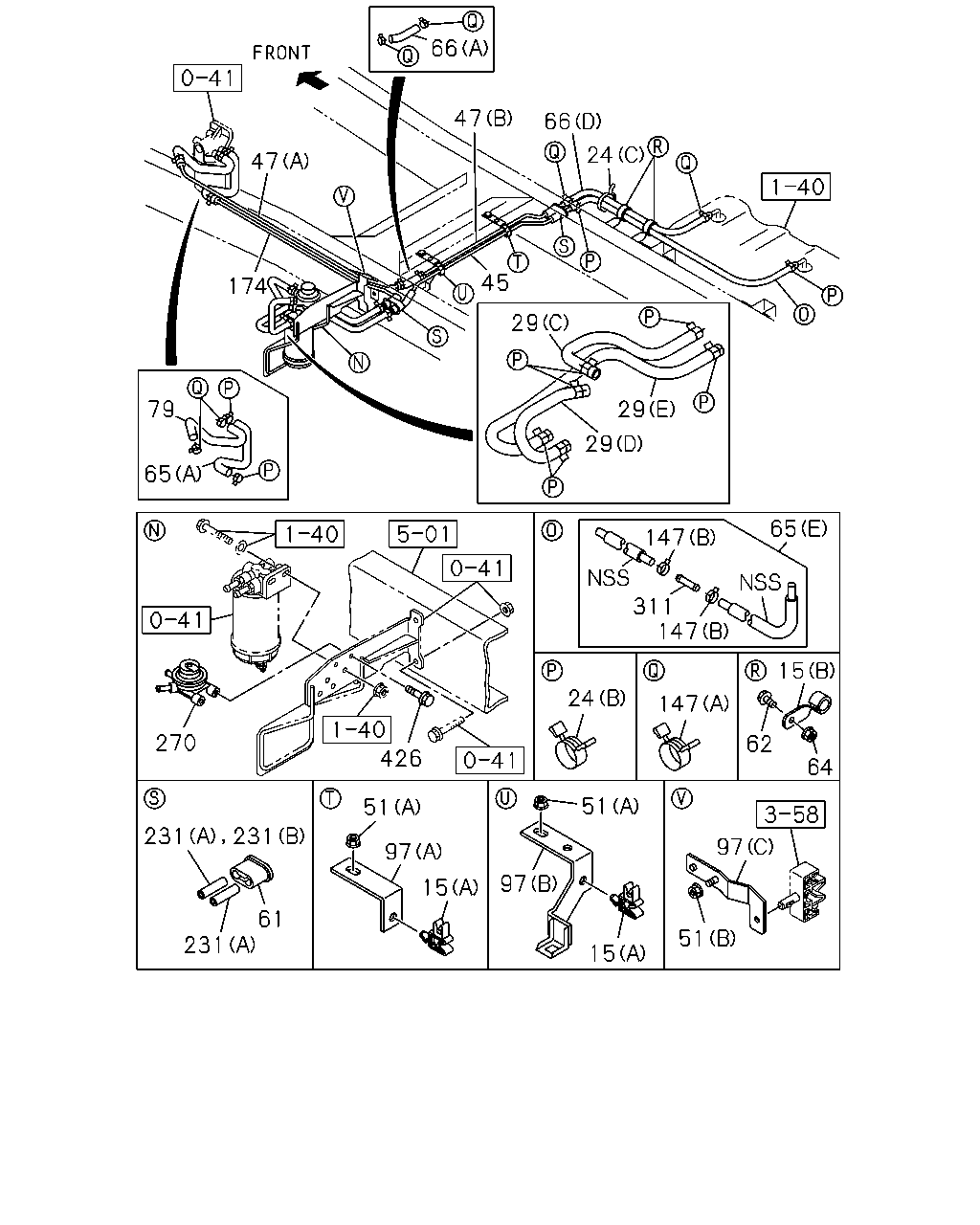

1-41 — FUEL PIPING; CHASSIS (#122489) — 290 parça

66 47 174 45 47 24 66 65 79 65 29 29 29 270 426 51 97 15 51 97 15 97 51 24 231 231 231 61 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	1306-	●	●	●
15	CLIP; FUEL PIPE (B) ID=28 L=60	1-09700-585-1	02	1	1306-			●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1306-	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	1306-		●	●
24	CLIP; FUEL HOSE (A) L=250 SOU	5-09707-030-1	01	1	1306-	●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A) L=250 SOU	5-09707-030-1	01	1	1306-		●
24	CLIP; FUEL HOSE (C) L=140 SOU	5-09707-031-1	01	1	1306-	●	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C) L=140 SOU	5-09707-031-1	01	1	1306-		●
24	CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (C) L=140 SOU	5-09707-031-1	01	1	1306-		●
24	CLIP; FUEL HOSE (C) L=140 SOU	5-09707-031-1	01	1	1306-			●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1306-	●	●	●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1306-		●	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1306-		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	1306-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	1306-		●	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	1306-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1306-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1306-			●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98099-503-0	01	1	1306-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (E)	8-98099-503-0	01	1	1306-			●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98105-710-0	01	1	1306-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (D)	8-98105-710-0	01	1	1306-			●
45	PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1306-	●
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-579-3	01	1	1306-		●	●
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	1306-		●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1306-1309	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1306-1309		●	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1310-	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1310-	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	1306-	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=679	8-98020-778-3	01	1	1306-		●	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1306-1309	●		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1306-1309	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1306-1309			●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1310-	●	●	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1310-	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-839-0	01	1	1306-1309		●	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-839-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-839-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-839-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=638.3	8-98021-484-2	01	1	1306-		●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-295-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-295-0	01	1	1306-1309			●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-295-0	01	1	1310-		●	●
51	NUT; CLIP,PIPE (A) M10	0-91111-510-0	02	1	1306-	●	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1306-	●	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1306-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	1306-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98098-175-1	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	1306-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98098-176-1	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1306-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-97389-796-0	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE (E)	8-98077-174-4	01	1	1306-			●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1306-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1306-	●	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=500	8-98057-029-0	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE (D) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	1306-			●
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1306-	●	●	●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1306-	●	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1306-	●	●	●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1306-	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	04	1	1306-		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	04	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	1306-			●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1306-1309	●	●	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1306-1309		●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1310-	●	●	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1310-	●	●	●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	1306-1309	●		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1306-1309		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50 SOU	8-94157-054-1	01	1	1306-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	1306-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	1306-	●	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	1306-1408	●	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●
426	BOLT; FUEL PUMP M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●	●

97 51 47 79 65 174 66 47 45 29 29 24 66 65 65 24 147 65 311 147 147 311 65 147 426 72 270 74 28 97 51 15 51 97 15 147 24 231 231 231 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	1306-	●	●	●
15	CLIP; FUEL PIPE (B) ID=28 L=60	1-09700-585-1	02	1	1306-			●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1306-	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	1306-		●	●
24	CLIP; FUEL HOSE (A) L=250 SOU	5-09707-030-1	01	1	1306-	●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A) L=250 SOU	5-09707-030-1	01	1	1306-		●
24	CLIP; FUEL HOSE (C) L=140 SOU	5-09707-031-1	01	1	1306-	●	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C) L=140 SOU	5-09707-031-1	01	1	1306-		●
24	CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (C) L=140 SOU	5-09707-031-1	01	1	1306-		●
24	CLIP; FUEL HOSE (C) L=140 SOU	5-09707-031-1	01	1	1306-			●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1306-	●	●	●
28	BOLT; BRKT,FUEL PUMP M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●
28	BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-		●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1306-		●	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1306-		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	1306-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	1306-		●	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	1306-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1306-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1306-			●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98099-503-0	01	1	1306-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (E)	8-98099-503-0	01	1	1306-			●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98105-710-0	01	1	1306-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (D)	8-98105-710-0	01	1	1306-			●
45	PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1306-	●
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-579-3	01	1	1306-		●	●
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	1306-		●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1306-1309	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1306-1309		●	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1310-	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1310-	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	1306-	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=679	8-98020-778-3	01	1	1306-		●	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1306-1309	●		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1306-1309	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1306-1309			●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1310-	●	●	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1310-	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-839-0	01	1	1306-1309		●	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-839-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-839-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-839-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=638.3	8-98021-484-2	01	1	1306-		●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-295-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-295-0	01	1	1306-1309			●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-295-0	01	1	1310-		●	●
51	NUT; CLIP,PIPE (A) M10	0-91111-510-0	02	1	1306-	●	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1306-	●	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1306-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	1306-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98098-175-1	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	1306-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98098-176-1	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1306-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-97389-796-0	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE (E)	8-98077-174-4	01	1	1306-			●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1306-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1306-	●	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=500	8-98057-029-0	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE (D) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	1306-			●
72	BRACKET; FUEL PUMP & FILTER	8-98107-370-0	01	1	1306-	●
72	BRACKET; FUEL PUMP & FILTER EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98107-370-0	01	1	1306-		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0)	8-98107-370-0	01	1	1306-		●
74	NUT; BRKT,FUEL PUMP M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
74	NUT; BRKT,FUEL PUMP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE SOU	0-91180-110-0	02	1	1306-		●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE SOU	0-91180-110-0	02	1	1306-		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1306-	●	●	●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1306-	●	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1306-	●	●	●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1306-	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	04	1	1306-		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	04	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	1306-			●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1306-1309	●	●	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1306-1309		●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1310-	●	●	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1310-	●	●	●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	1306-1309	●		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1306-1309		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50 SOU	8-94157-054-1	01	1	1306-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	1306-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	1306-	●	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	1306-1408	●	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●
311	JOINT; HOSE	8-97353-668-0	02	1	1306-	●
311	JOINT; HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0)	8-97353-668-0	02	1	1306-		●
311	JOINT; HOSE	8-97353-668-0	01	1	1306-			●
426	BOLT; FUEL PUMP M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●	●

147 65 147 311 15 62 64 97 51 15 51 24 147 29 29 29 24 66 47 66 47 174 97 15 97 51 426 231 61 231 231 270 65 79 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	1306-	●	●	●
15	CLIP; FUEL PIPE (B) ID=28 L=60	1-09700-585-1	02	1	1306-			●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1306-	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	1306-		●	●
24	CLIP; FUEL HOSE (A) L=250 SOU	5-09707-030-1	01	1	1306-	●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A) L=250 SOU	5-09707-030-1	01	1	1306-		●
24	CLIP; FUEL HOSE (C) L=140 SOU	5-09707-031-1	01	1	1306-	●	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C) L=140 SOU	5-09707-031-1	01	1	1306-		●
24	CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (C) L=140 SOU	5-09707-031-1	01	1	1306-		●
24	CLIP; FUEL HOSE (C) L=140 SOU	5-09707-031-1	01	1	1306-			●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1306-	●	●	●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1306-		●	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1306-		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	1306-	●
29	HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	1306-		●	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	1306-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1306-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1306-			●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98099-503-0	01	1	1306-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (E)	8-98099-503-0	01	1	1306-			●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98105-710-0	01	1	1306-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (D)	8-98105-710-0	01	1	1306-			●
45	PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1306-	●
45	PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-579-3	01	1	1306-		●	●
45	PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	1306-		●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1306-1309	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1306-1309		●	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1310-	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1310-	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	1306-	●
47	PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=679	8-98020-778-3	01	1	1306-		●	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1306-1309	●		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1306-1309	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1306-1309			●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1310-	●	●	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1310-	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-839-0	01	1	1306-1309		●	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-839-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-839-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-839-0	01	1	1310-		●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=638.3	8-98021-484-2	01	1	1306-		●	●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-295-0	01	1	1306-1309		●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-295-0	01	1	1306-1309			●
47	PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98163-295-0	01	1	1310-		●	●
51	NUT; CLIP,PIPE (A) M10	0-91111-510-0	02	1	1306-	●	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1306-	●	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1306-	●	●	●
62	BOLT; CLIP FIX M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-			●
64	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1306-			●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	1306-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98098-175-1	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	1306-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98098-176-1	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1306-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-97389-796-0	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE (E)	8-98077-174-4	01	1	1306-			●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1306-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1306-	●	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=500	8-98057-029-0	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE (D) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	1306-			●
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1306-	●	●	●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1306-	●	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1306-	●	●	●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1306-	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	04	1	1306-		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	04	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	1306-			●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1306-1309	●	●	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1306-1309		●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1310-	●	●	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1310-	●	●	●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	1306-1309	●		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1306-1309		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50 SOU	8-94157-054-1	01	1	1306-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	1306-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	1306-	●	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	1306-1408	●	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●
311	JOINT; HOSE	8-97353-668-0	02	1	1306-	●
311	JOINT; HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0)	8-97353-668-0	02	1	1306-		●
311	JOINT; HOSE	8-97353-668-0	01	1	1306-			●
426	BOLT; FUEL PUMP M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
