Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#122488) — 82 parça

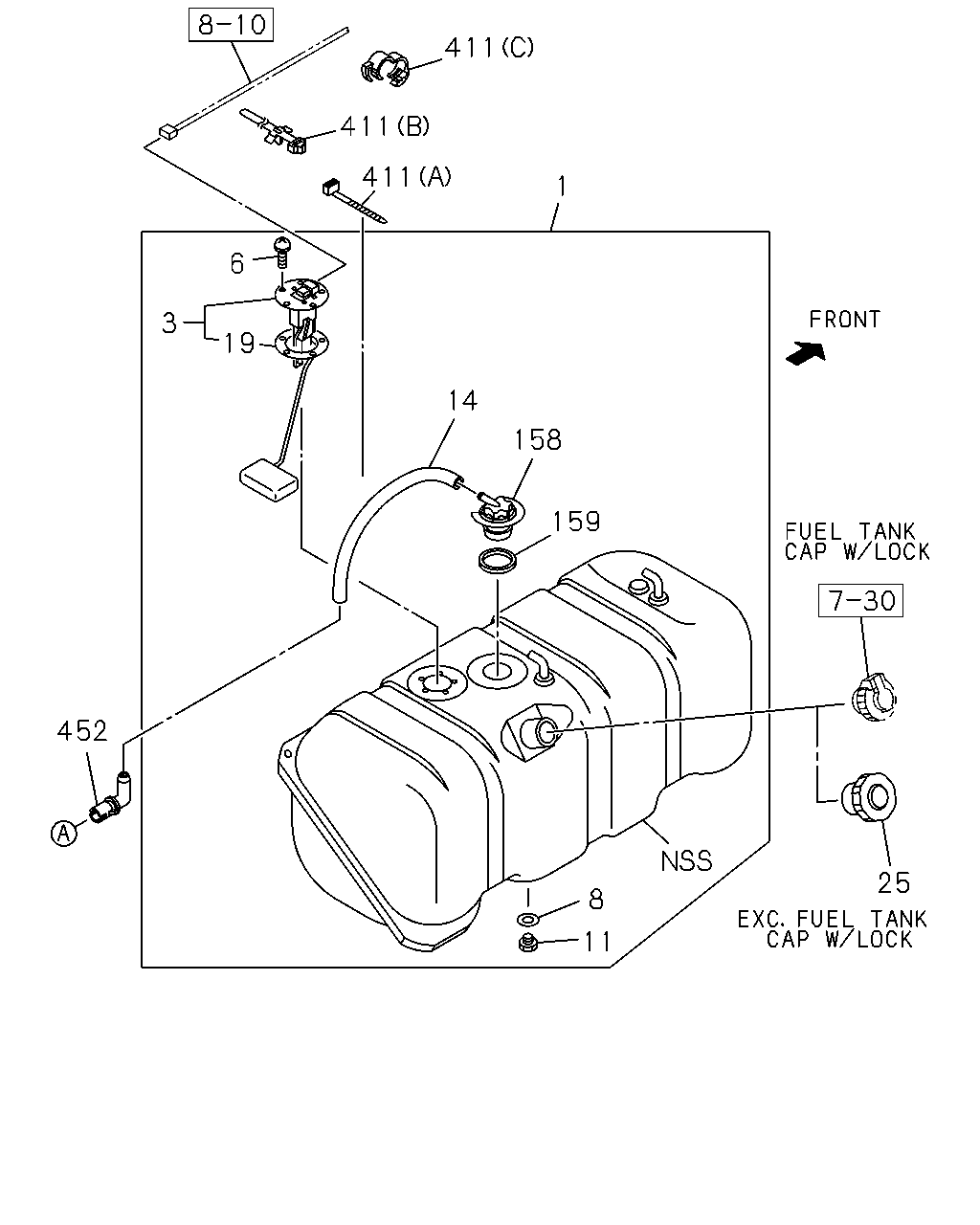

411 411 411 6 3 1 14 158 159 8 11 452 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL 756X375X323 63L	8-98218-966-1	01	1	1306-1507	●
1	TANK; FUEL FUEL TANK 63L<6EF> 756X375X323 63L	8-98218-966-1	01	1	1508-	●
1	TANK; FUEL FUEL TANK 100L<N02> 1003X375X380 100L	8-98021-295-6	01	1	1306-		●
1	TANK; FUEL FUEL TANK 75L<7GX> 756X375X375 75L	8-98021-294-5	01	1	1306-1507		●
1	TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	1306-1507			●
1	TANK; FUEL FUEL TANK 75L<7GX> 756X375X375 75L	8-98021-294-5	01	1	1508-	●	●
1	TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	1508-			●
3	UNIT; FUEL TANK,SUB	8-98213-753-0	01	1	1306-1507	●
3	UNIT; FUEL TANK,SUB FUEL TANK 63L<6EF>	8-98213-753-0	01	1	1508-	●
3	UNIT; FUEL TANK,SUB FUEL TANK 100L<N02>	8-98056-704-0	01	1	1306-		●
3	UNIT; FUEL TANK,SUB FUEL TANK 75L<7GX>	8-98056-703-0	01	1	1306-1507		●
3	UNIT; FUEL TANK,SUB	8-98056-703-0	01	1	1306-1507			●
3	UNIT; FUEL TANK,SUB FUEL TANK 75L<7GX>	8-98056-703-0	01	1	1508-	●	●
3	UNIT; FUEL TANK,SUB	8-98056-703-0	01	1	1508-			●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X12 W/LK WASHER	0-36220-512-0	05	1	1306-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	1306-	●	●	●
11	PLUG; DRAIN,FUEL TANK M8X12 FLANGE	0-28050-812-0	01	1	1306-	●	●	●
14	HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	1306-1507	●		●
14	HOSE; BREATHER,OUTLET FUEL TANK 75L<7GX> L=320	8-98157-805-0	01	1	1306-1507		●
14	HOSE; BREATHER,OUTLET FUEL TANK 63L<6EF>,FUEL TANK 75L<7GX> L=320	8-98157-805-0	01	1	1508-	●
14	HOSE; BREATHER,OUTLET FUEL TANK 75L<7GX> L=320	8-98157-805-0	01	1	1508-		●
14	HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	1508-			●
14	HOSE; BREATHER,OUTLET FUEL TANK 100L<N02> L=420	8-98157-809-0	01	1	1306-		●
19	GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1306-	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1306-1507		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1306-1507			●
25	CAP; FILLER,FUEL TANK FUEL TANK 75L<7GX> EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1508-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1508-		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1508-			●
158	VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1306-	●	●	●
159	SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1306-	●	●	●
411	CLIP; FUEL TANK UNIT HARNESS (C) ID=20	8-94241-972-0	02	1	1306-	●	●
411	CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1306-	●	●
411	CLIP; FUEL TANK UNIT HARNESS (A) L=140 SOU	5-09707-031-1	02	1	1306-	●	●	●
452	BREATHER; FUEL TANK	8-97357-261-0	01	1	1306-	●	●	●

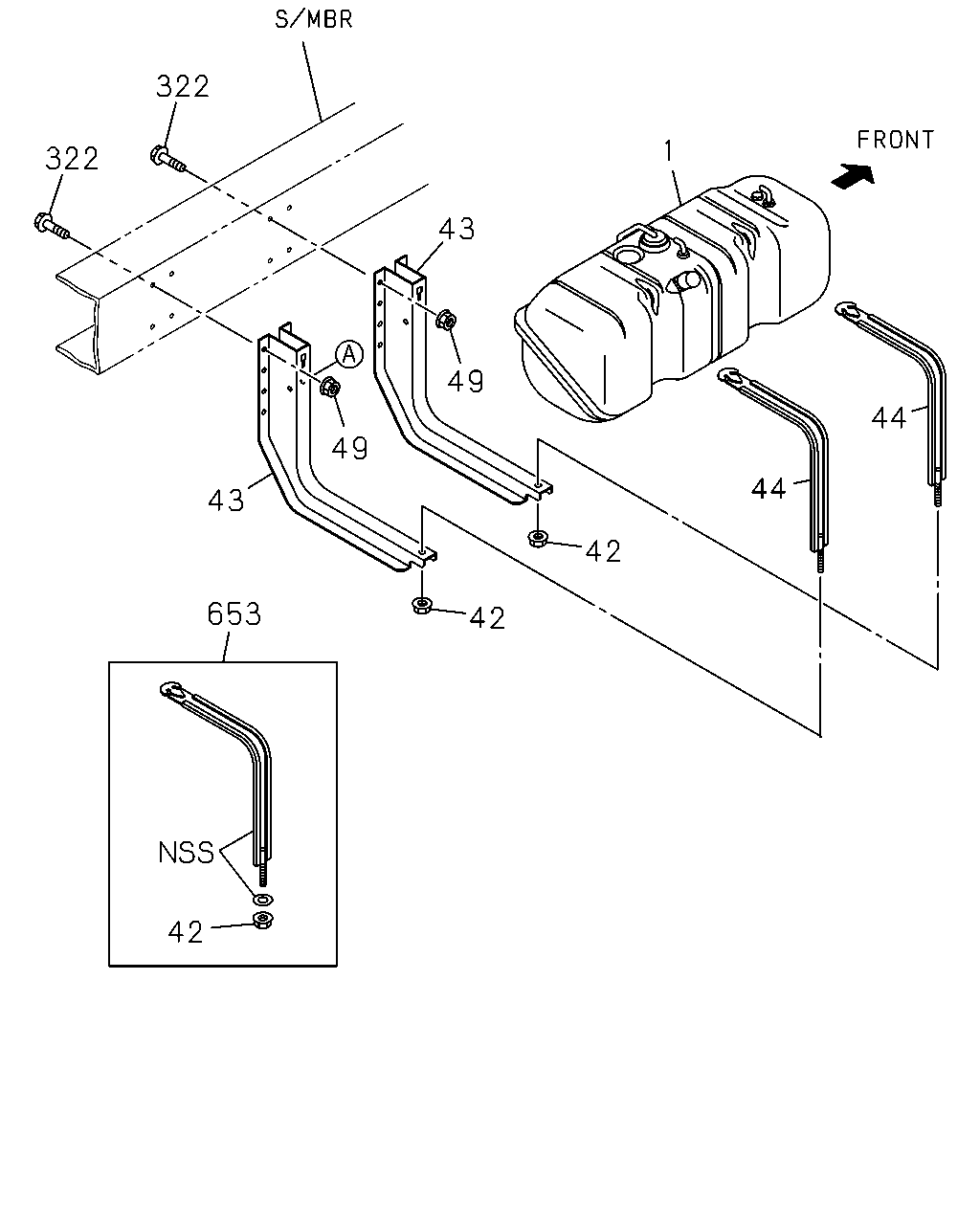

322 322 43 49 49 43 653 42 42 44 44 1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL 756X375X323 63L	8-98218-966-1	01	1	1306-1507	●
1	TANK; FUEL FUEL TANK 63L<6EF> 756X375X323 63L	8-98218-966-1	01	1	1508-	●
1	TANK; FUEL FUEL TANK 100L<N02> 1003X375X380 100L	8-98021-295-6	01	1	1306-		●
1	TANK; FUEL FUEL TANK 75L<7GX> 756X375X375 75L	8-98021-294-5	01	1	1306-1507		●
1	TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	1306-1507			●
1	TANK; FUEL FUEL TANK 75L<7GX> 756X375X375 75L	8-98021-294-5	01	1	1508-	●	●
1	TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	1508-			●
19	GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1306-	●	●	●
42	NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1306-	●	●	●
43	BRACKET; FUEL TANK FRONT	8-97384-055-1	01	1	1306-1507	●
43	BRACKET; FUEL TANK FUEL TANK 63L<6EF>	8-97384-055-1	01	1	1508-	●
43	BRACKET; FUEL TANK REAR	8-97384-061-2	01	1	1306-1507	●
43	BRACKET; FUEL TANK FUEL TANK 63L<6EF>	8-97384-061-2	01	1	1508-	●
43	BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02> FRONT	8-97384-056-1	01	1	1306-1507		●
43	BRACKET; FUEL TANK WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> FRONT	8-97384-056-1	01	1	1306-1507		●
43	BRACKET; FUEL TANK FRONT	8-97384-056-1	01	1	1306-1507			●
43	BRACKET; FUEL TANK FUEL TANK 75L<7GX>	8-97384-056-1	01	1	1508-	●
43	BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02>	8-97384-056-1	01	1	1508-		●
43	BRACKET; FUEL TANK WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX>	8-97384-056-1	01	1	1508-		●
43	BRACKET; FUEL TANK	8-97384-056-1	01	1	1508-			●
43	BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02> REAR	8-97384-081-1	01	1	1306-1507		●
43	BRACKET; FUEL TANK WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX> REAR	8-97384-081-1	01	1	1306-1507		●
43	BRACKET; FUEL TANK REAR	8-97384-081-1	01	1	1306-1507			●
43	BRACKET; FUEL TANK FUEL TANK 75L<7GX>	8-97384-081-1	01	1	1508-	●
43	BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02>	8-97384-081-1	01	1	1508-		●
43	BRACKET; FUEL TANK WHEEL BASE 2400MM(24W) FUEL TANK 75L<7GX>	8-97384-081-1	01	1	1508-		●
43	BRACKET; FUEL TANK	8-97384-081-1	01	1	1508-			●
43	BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT	8-98061-738-1	01	1	1306-		●
43	BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) FUEL TANK 100L<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR	8-98061-739-1	01	1	1306-		●
44	BAND; FUEL TANK L=613	8-97169-230-2	02	1	1306-1312	●
44	BAND; FUEL TANK L=613	8-98245-202-0	02	1	1401-1507	●
44	BAND; FUEL TANK FUEL TANK 63L<6EF> L=613	8-98245-202-0	02	1	1508-	●
49	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	08	1	1306-	●	●	●
322	BOLT; BRKT FIX M10X30 FLANGE SOU	0-28661-030-0	08	1	1306-	●	●	●
653	BAND KIT; FUEL TANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	5-87411-970-0	02	1	1306-1507		●
653	BAND KIT; FUEL TANK	5-87411-970-0	02	1	1306-1507			●
653	BAND KIT; FUEL TANK FUEL TANK 75L<7GX>	5-87411-970-0	02	1	1508-	●
653	BAND KIT; FUEL TANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	5-87411-970-0	02	1	1508-		●
653	BAND KIT; FUEL TANK	5-87411-970-0	02	1	1508-			●

300 303 302 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1306-	●	●	●
300	BOLT; BRKT TO BODY (B) M10X40 FLANGE SOU	0-28651-040-0	02	1	1306-	●
300	BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) (B) M10X40 FLANGE SOU	0-28651-040-0	02	1	1306-		●	●
300	BOLT; BRKT TO BODY (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
302	WASHER; PL,SEDIMENTER ID=10.5 OD=26	0-91614-710-0	02	1	1306-	●
302	WASHER; PL,SEDIMENTER POOR QUALITY DIESEL FUEL(KF0) ID=10.5 OD=26	0-91614-710-0	02	1	1306-		●	●
303	NUT; SEDIMENTER BRKT M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
303	NUT; SEDIMENTER BRKT POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE SOU	0-91180-110-0	02	1	1306-		●	●
