1-11 — RADIATOR HOSE AND SUB TANK (#122484) — 32 parça

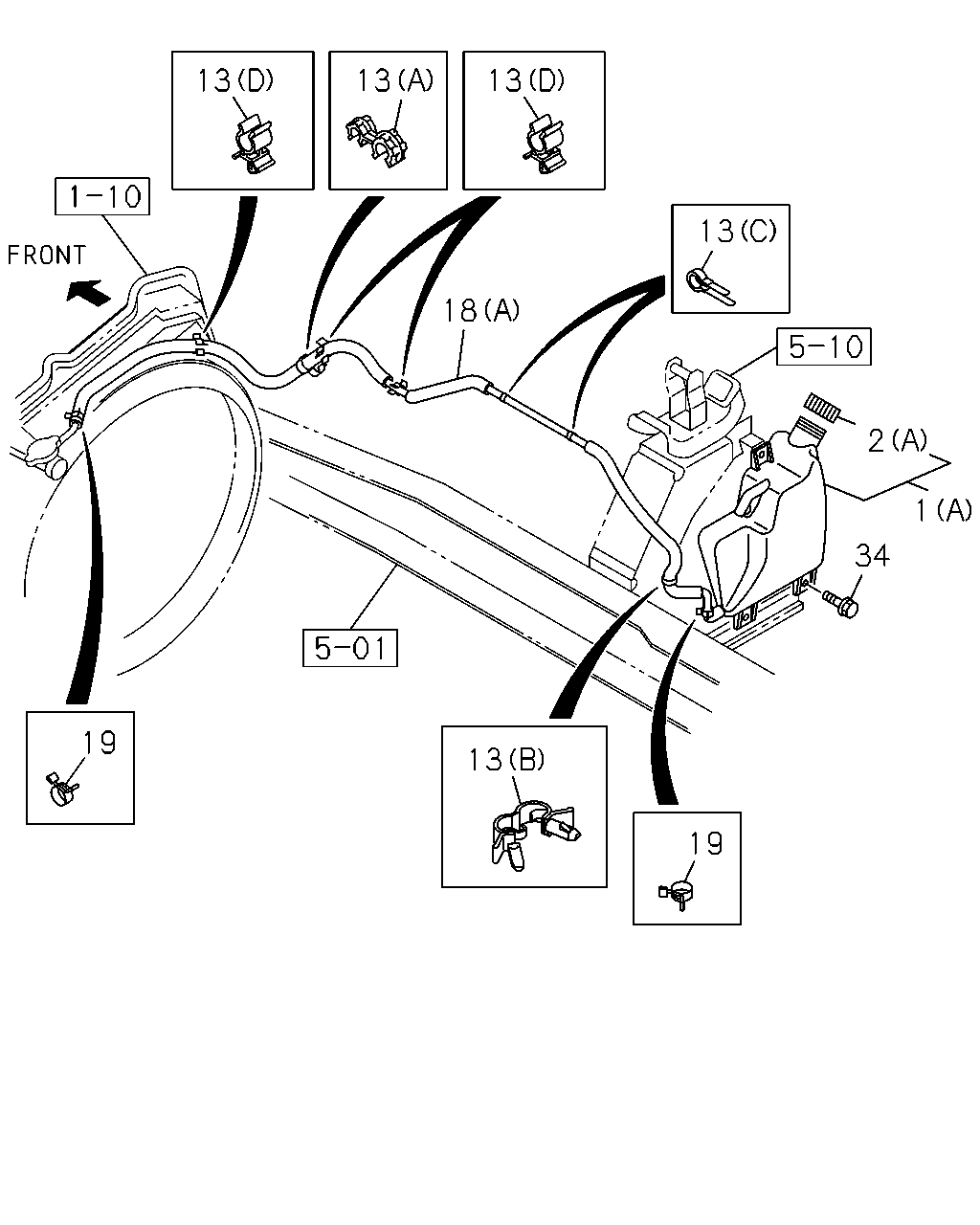

13 13 18 19 13 18 33 23 33 1 2 23 19 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1306-	●	●
1	TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1306-			●
2	CAP; SURGE TANK (A)	8-98178-074-0	01	1	1306-	●	●
2	CAP; SURGE TANK (B) SOU	8-97130-964-0	01	1	1306-			●
13	CLIP; HOSE,SURGE TANK (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1306-	●	●
13	CLIP; HOSE,SURGE TANK (C) ID=14 L=47 SOU	5-09700-319-0	02	1	1306-	●	●	●
13	CLIP; HOSE,SURGE TANK (A) ID=10 & 12	8-94416-613-0	01	1	1306-	●	●	●
13	CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	03	1	1306-	●	●	●
18	HOSE; RAD TO SURGE TANK (A)	8-98065-255-0	01	1	1306-	●	●
18	HOSE; RAD TO SURGE TANK (B)	8-98037-221-4	01	1	1306-			●
19	CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1306-	●	●	●
23	BRACKET; RESERVE TANK (A)	8-98001-742-1	01	1	1306-			●
23	BRACKET; RESERVE TANK (B)	8-98010-501-2	01	1	1306-			●
33	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	03	1	1306-			●
33	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	1306-			●
34	BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1306-	●	●	●

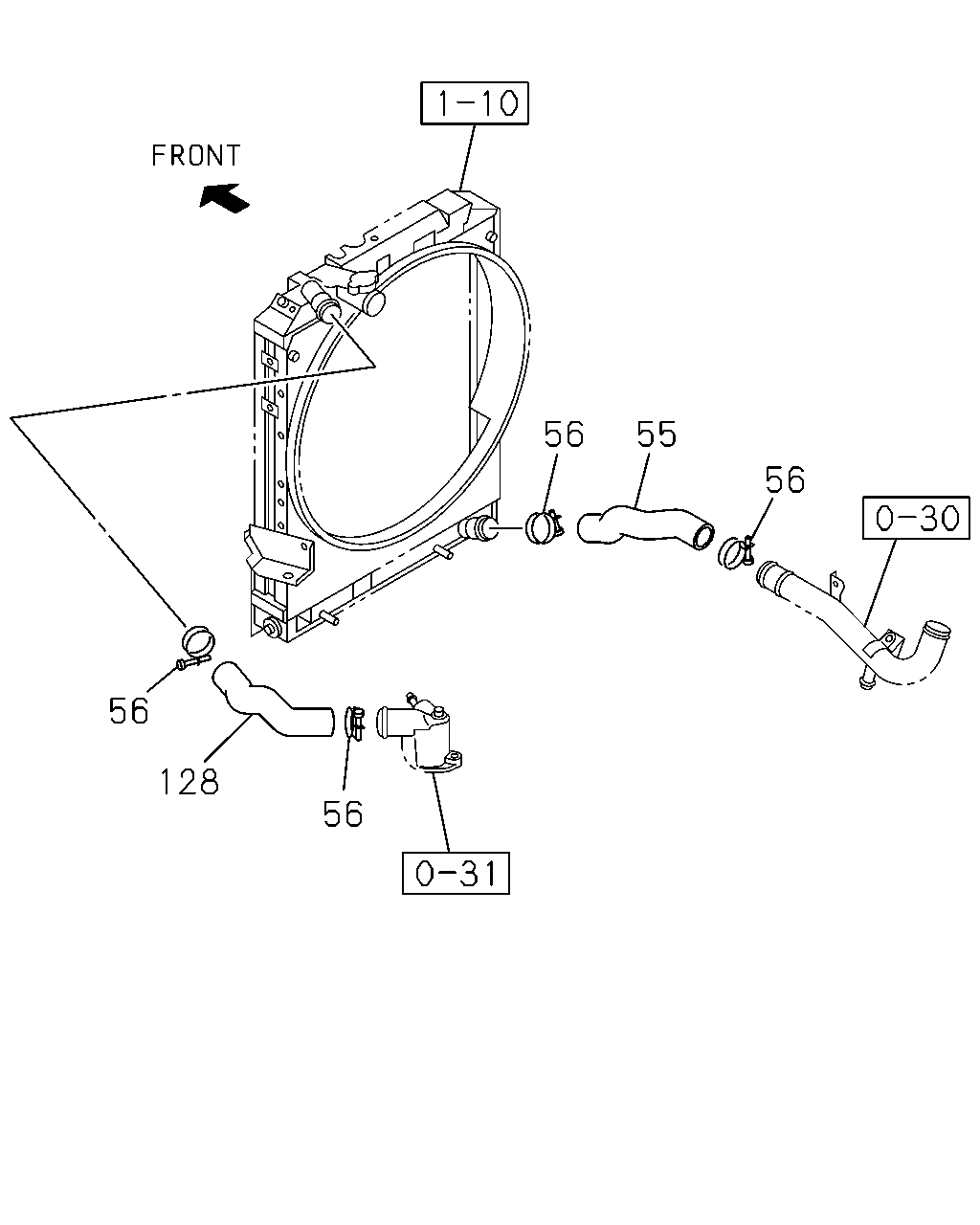

56 55 56 56 128 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
55	HOSE; WATER,RAD OUTLET	8-97383-814-1	01	1	1306-	●	●	●
56	CLIP; WATER HOSE,RAD ID=48	8-98133-956-0	02	1	1306-	●	●	●
56	CLIP; WATER HOSE,RAD ID=48	8-98133-956-0	02	1	1306-	●	●	●
128	HOSE; WATER,RAD INL	8-97383-812-1	01	1	1306-	●	●	●

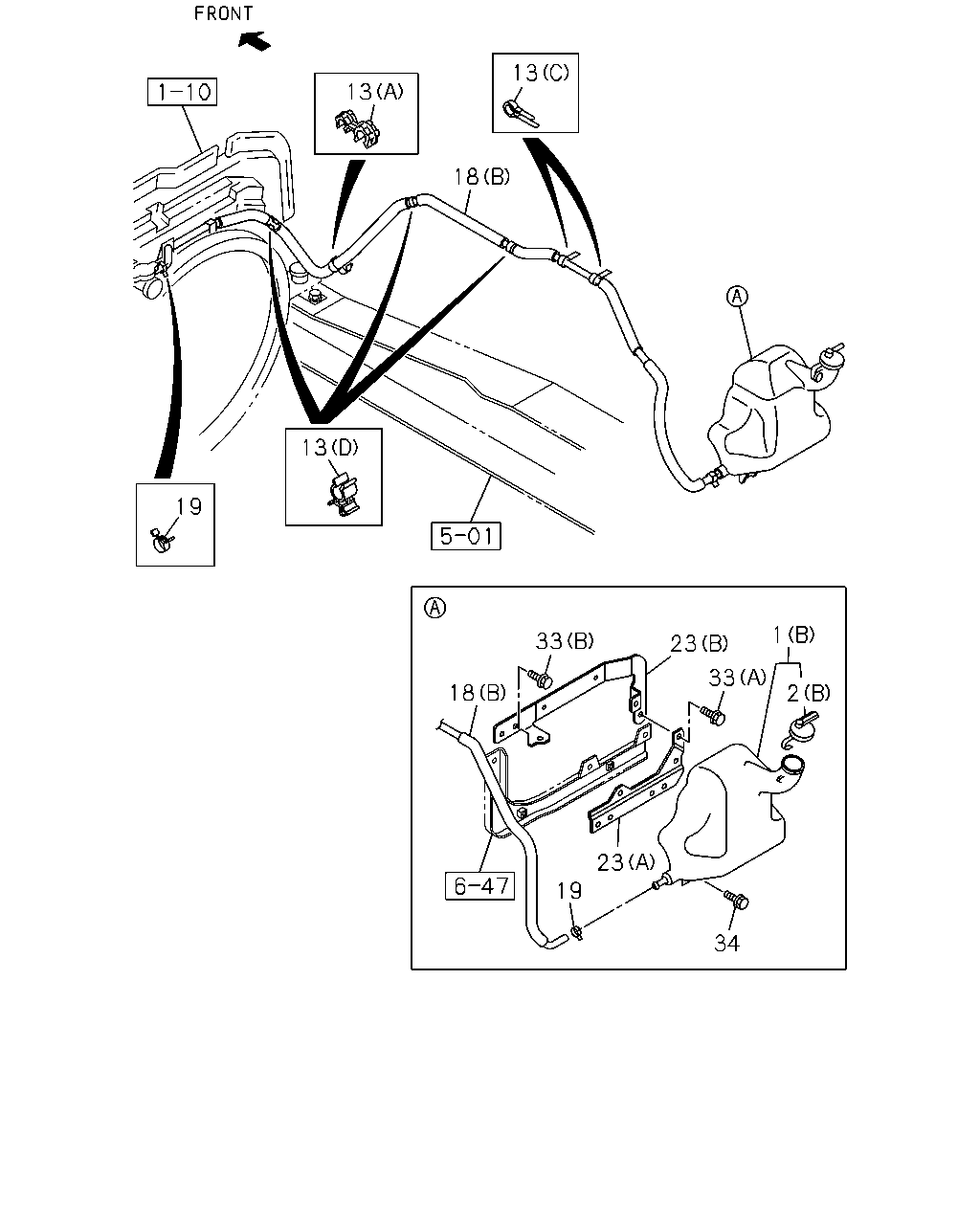

19 13 19 34 1 2 18 13 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1306-	●	●
1	TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1306-			●
2	CAP; SURGE TANK (A)	8-98178-074-0	01	1	1306-	●	●
2	CAP; SURGE TANK (B) SOU	8-97130-964-0	01	1	1306-			●
13	CLIP; HOSE,SURGE TANK (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1306-	●	●
13	CLIP; HOSE,SURGE TANK (C) ID=14 L=47 SOU	5-09700-319-0	02	1	1306-	●	●	●
13	CLIP; HOSE,SURGE TANK (A) ID=10 & 12	8-94416-613-0	01	1	1306-	●	●	●
13	CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	03	1	1306-	●	●	●
18	HOSE; RAD TO SURGE TANK (A)	8-98065-255-0	01	1	1306-	●	●
18	HOSE; RAD TO SURGE TANK (B)	8-98037-221-4	01	1	1306-			●
19	CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1306-	●	●	●
34	BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1306-	●	●	●
