1-10 — RADIATOR (#122483) — 69 parça

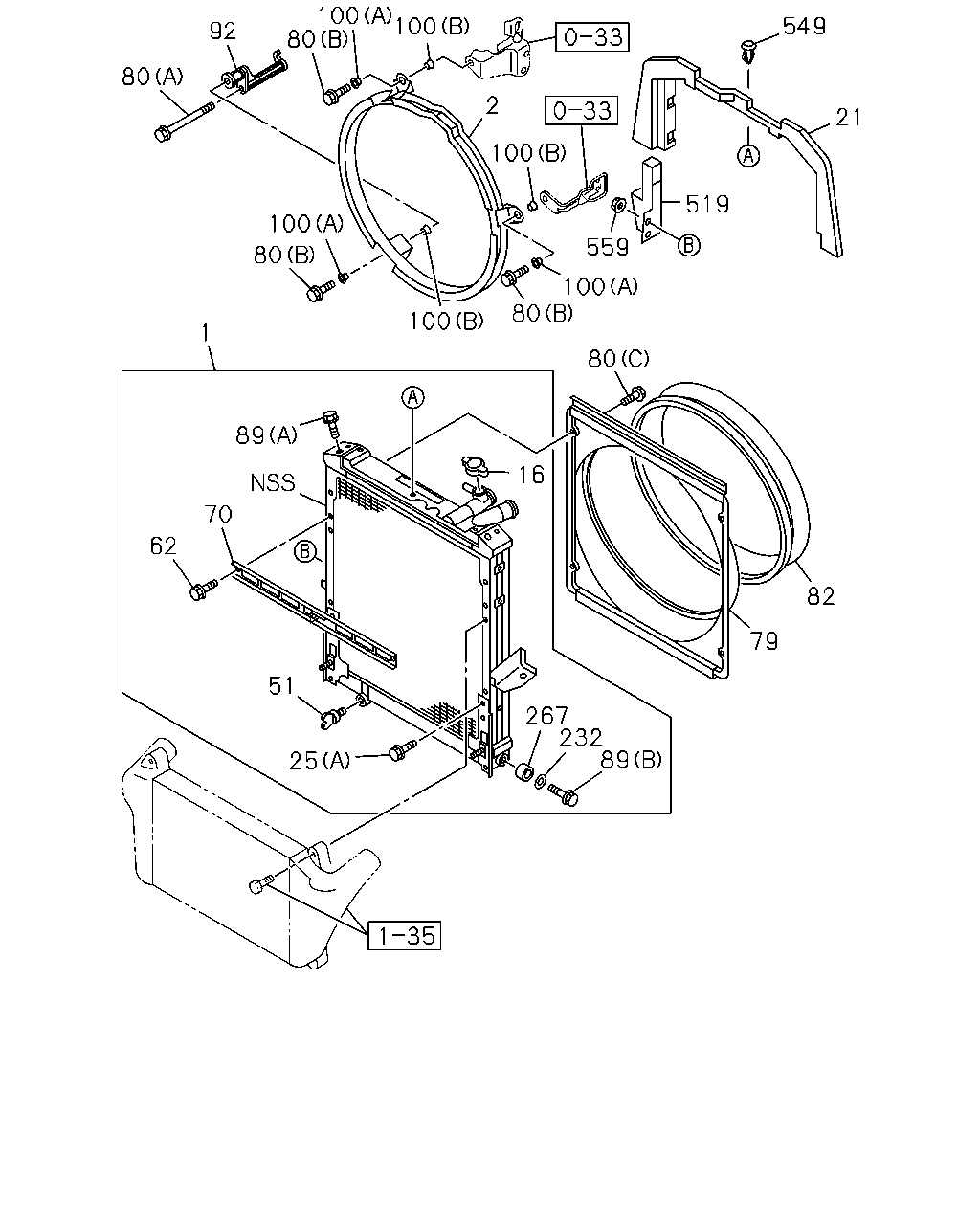

92 80 100 80 100 80 100 559 100 2 100 100 80 549 21 519 80 16 89 70 62 1 51 25 267 232 89 79 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	8-98172-907-0	01	1	1306-	●
1	RADIATOR ASM EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98172-907-0	01	1	1306-		●	●
1	RADIATOR ASM EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98240-295-0	01	1	1306-		●	●
1	RADIATOR ASM EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97387-468-1	01	1	1306-1312		●	●
1	RADIATOR ASM EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98253-684-0	02	1	1401-		●	●
2	GUIDE; FAN EURO3 SPECIFICATION(NT3)	8-98054-659-0	01	1	1306-		●	●
16	CAP; RAD	8-98096-226-0	01	1	1306-	●
16	CAP; RAD EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98096-226-0	01	1	1306-		●	●
16	CAP; RAD EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98096-226-0	01	1	1306-		●	●
16	CAP; RAD EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-97239-187-0	01	1	1306-		●	●
21	SEAL; RAD	8-98000-816-0	01	1	1306-	●	●	●
25	BOLT; BRKT (A) M6X12 FLANGE SOU	0-28050-612-0	04	1	1306-	●	●	●
25	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	04	1	1306-	●	●	●
51	PLUG; DRAIN W/GASKET SOU	8-97171-437-0	01	1	1306-	●	●	●
62	BOLT; STAY M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●	●
70	STAY; RAD	8-98018-940-0	01	1	1306-	●
70	STAY; RAD EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98018-940-0	01	1	1306-		●	●
70	STAY; RAD EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98114-297-0	01	1	1306-		●	●
79	GUIDE; FAN,RAD EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98234-712-0	01	1	1401-1410		●	●
79	GUIDE; FAN,RAD EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98234-712-0	01	1	1411-		●	●
79	GUIDE; FAN,RAD	8-98172-923-0	01	1	1306-	●
79	GUIDE; FAN,RAD EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98172-923-0	01	1	1306-		●	●
79	GUIDE; FAN,RAD EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97387-081-1	01	1	1306-1312		●	●
79	GUIDE; FAN,RAD EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-081-1	01	1	1401-1410		●	●
80	BOLT; FAN GUIDE EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M6X12	8-98039-672-0	04	1	1401-1410		●	●
80	BOLT; FAN GUIDE EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M6X12	8-98039-672-0	04	1	1411-		●	●
80	BOLT; FAN GUIDE (C) M6X12	8-98039-672-0	02	1	1306-1312	●	●	●
80	BOLT; FAN GUIDE (C) M6X12	8-98039-672-0	02	1	1401-1410	●
80	BOLT; FAN GUIDE EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M6X12	8-98039-672-0	02	1	1401-1410		●	●
80	BOLT; FAN GUIDE EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X12	8-98039-672-0	02	1	1401-1410		●	●
80	BOLT; FAN GUIDE (C) M6X12	8-98039-672-0	02	1	1411-	●
80	BOLT; FAN GUIDE EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M6X12	8-98039-672-0	02	1	1411-		●	●
80	BOLT; FAN GUIDE EURO3 SPECIFICATION(NT3) (A) M8X130 FLANGE	0-28055-813-0	01	1	1306-		●	●
80	BOLT; FAN GUIDE EURO3 SPECIFICATION(NT3) (B) M8X30 FLANGE	0-28650-830-0	03	1	1306-		●	●
82	COVER; FAN,RAD EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97387-085-1	01	1	1306-		●	●
89	BOLT (A) M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●	●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1306-	●	●	●
92	BRACKET; FAN GUIDE EURO3 SPECIFICATION(NT3)	8-98237-770-0	01	1	1306-		●	●
100	RUBBER; MTG EURO3 SPECIFICATION(NT3) (B) OD=32	8-94395-766-0	03	1	1306-		●	●
100	RUBBER; MTG EURO3 SPECIFICATION(NT3) (A) OD=32	8-98058-502-1	03	1	1306-		●	●
232	COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	1306-1312	●
232	COLLAR; DIST,CUSHION RUBBER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-87410-723-0	02	1	1306-1312		●	●
232	COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	1401-	●
232	COLLAR; DIST,CUSHION RUBBER EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-87410-723-0	02	1	1401-		●	●
232	COLLAR; DIST,CUSHION RUBBER EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98141-232-0	02	1	1306-1312		●	●
232	COLLAR; DIST,CUSHION RUBBER EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98141-232-0	02	1	1401-		●	●
267	RUBBER; CUSHION	1-21467-023-0	02	1	1306-	●	●	●
519	SEAL; RAD SIDE	8-98038-591-0	01	1	1306-	●	●	●
549	CLIP; SEAL,RAD	8-97228-568-0	05	1	1306-	●	●	●
559	NUT; RAD SIDE M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●	●	●

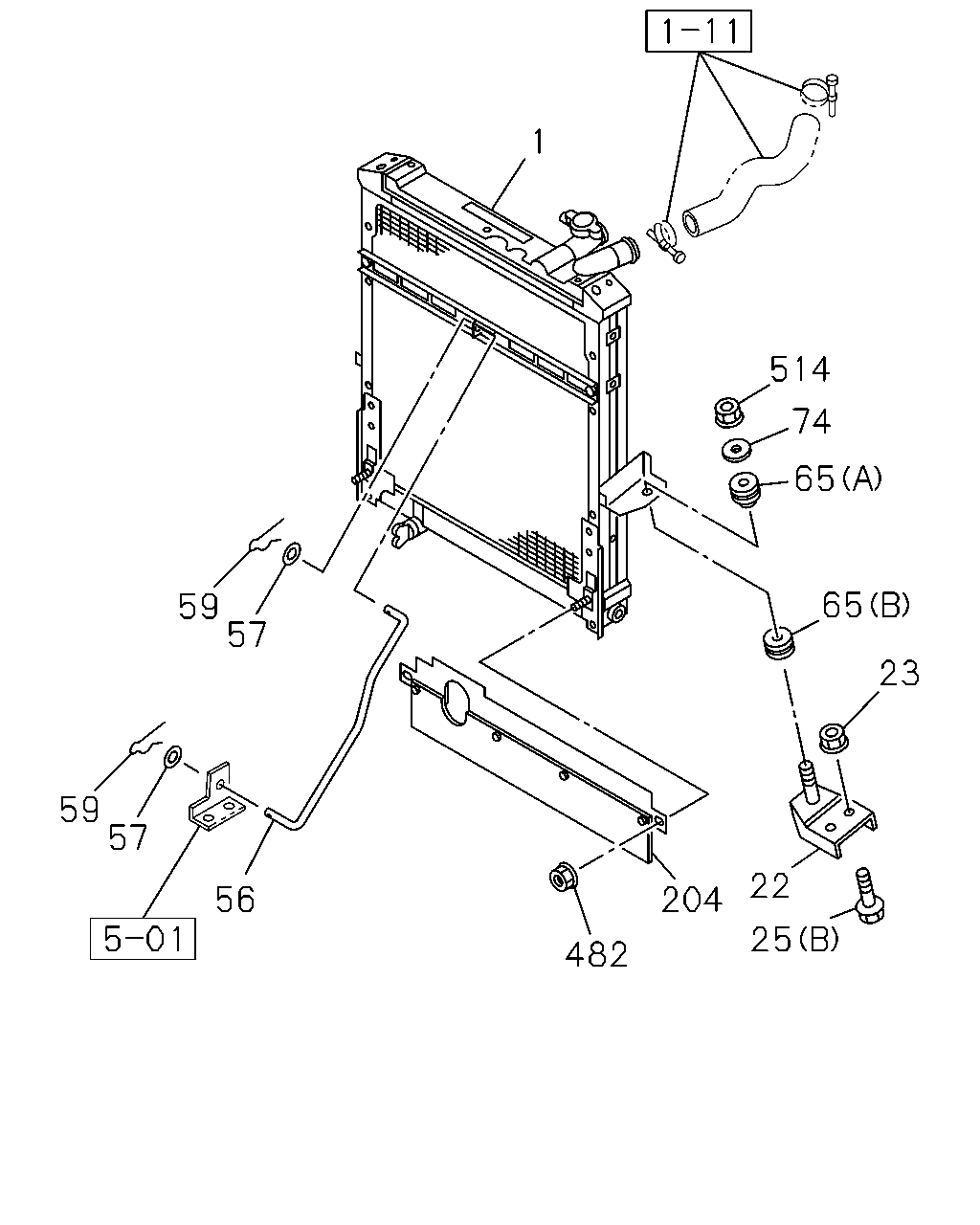

1 514 74 65 65 23 22 25 204 482 56 57 59 59 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	8-98172-907-0	01	1	1306-	●
1	RADIATOR ASM EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98172-907-0	01	1	1306-		●	●
1	RADIATOR ASM EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98240-295-0	01	1	1306-		●	●
1	RADIATOR ASM EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97387-468-1	01	1	1306-1312		●	●
1	RADIATOR ASM EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98253-684-0	02	1	1401-		●	●
22	BRACKET; RAD MTG	8-97383-951-0	01	1	1306-	●	●	●
22	BRACKET; RAD MTG	8-97383-952-0	01	1	1306-	●	●	●
23	NUT; RAD MTG M10 FLANGE SOU	0-91180-110-0	04	1	1306-	●	●	●
25	BOLT; BRKT (A) M6X12 FLANGE SOU	0-28050-612-0	04	1	1306-	●	●	●
25	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	04	1	1306-	●	●	●
56	STAY; RAD	8-97383-947-1	01	1	1306-	●	●	●
57	WASHER; PL,STAY ID=10.5 SOU	0-91610-510-0	02	1	1306-	●	●	●
59	PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1306-	●	●	●
65	INSULATOR; RAD (A)	8-94249-346-0	02	1	1306-	●	●	●
65	INSULATOR; RAD (B)	8-94249-347-0	02	1	1306-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1306-	●	●	●
204	GUIDE ASM; AIR	8-97383-928-1	01	1	1306-	●	●	●
482	NUT; AIR GUIDE M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
514	NUT; RAD M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
