◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51486 - NLR/NMR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#122472) — 59 parça

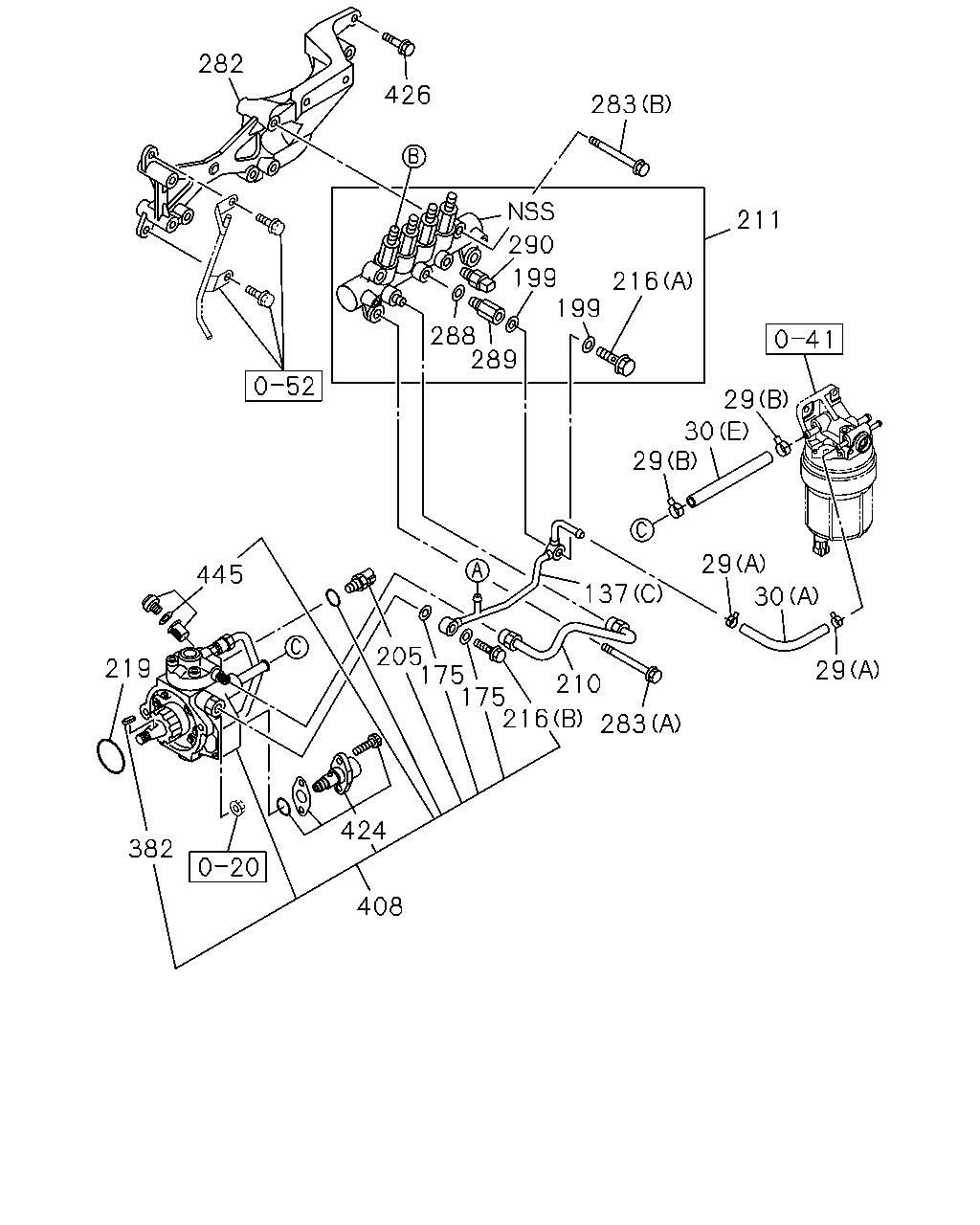

çizim 355380
282 426 283 211 216 199 289 288 199 290 29 30 29 29 30 29 283 216 137 175 175 205 445 219 382 210 424 408
BalonParca AdiParca NoAdetTipApplied Date
29 CLIP; HOSE
(A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1306-
29 CLIP; HOSE
(B) ID=16 		8-94392-924-0 02 1 1306-
29 CLIP; HOSE
(C) ID=10.5 		8-97019-473-0 10 1 1306-
30 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1306-
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1306-
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1306-
30 HOSE; RUBBER,FUEL LEAK
(A) L=110 		8-97377-894-0 01 1 1306-
30 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1306-
137 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1306-
137 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1306-
137 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1306-
137 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1306-
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 		1-09630-083-0 02 1 1306-
199 GASKET; EYE BOLT 8-97602-218-0 02 1 1306-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1306-
210 PIPE; INJ,C/R 8-97388-902-0 01 1 1306-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1306-
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1306-
216 BOLT; EYE
(B) SOU 		9-88130-088-0 01 1 1306-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1306-
282 BRACKET; COMMON RAIL 8-98147-694-0 01 1 1306-
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE SOU 		0-28050-870-0 02 1 1306-
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1306-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1306-
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1306-
290 SENSOR; PRESS 8-98119-790-0 01 1 1306-
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1306-
408 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 1306-
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1306-
426 BOLT; BRACKET
M8X60 FLANGE SOU 		0-28050-860-0 01 1 1306-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1306-

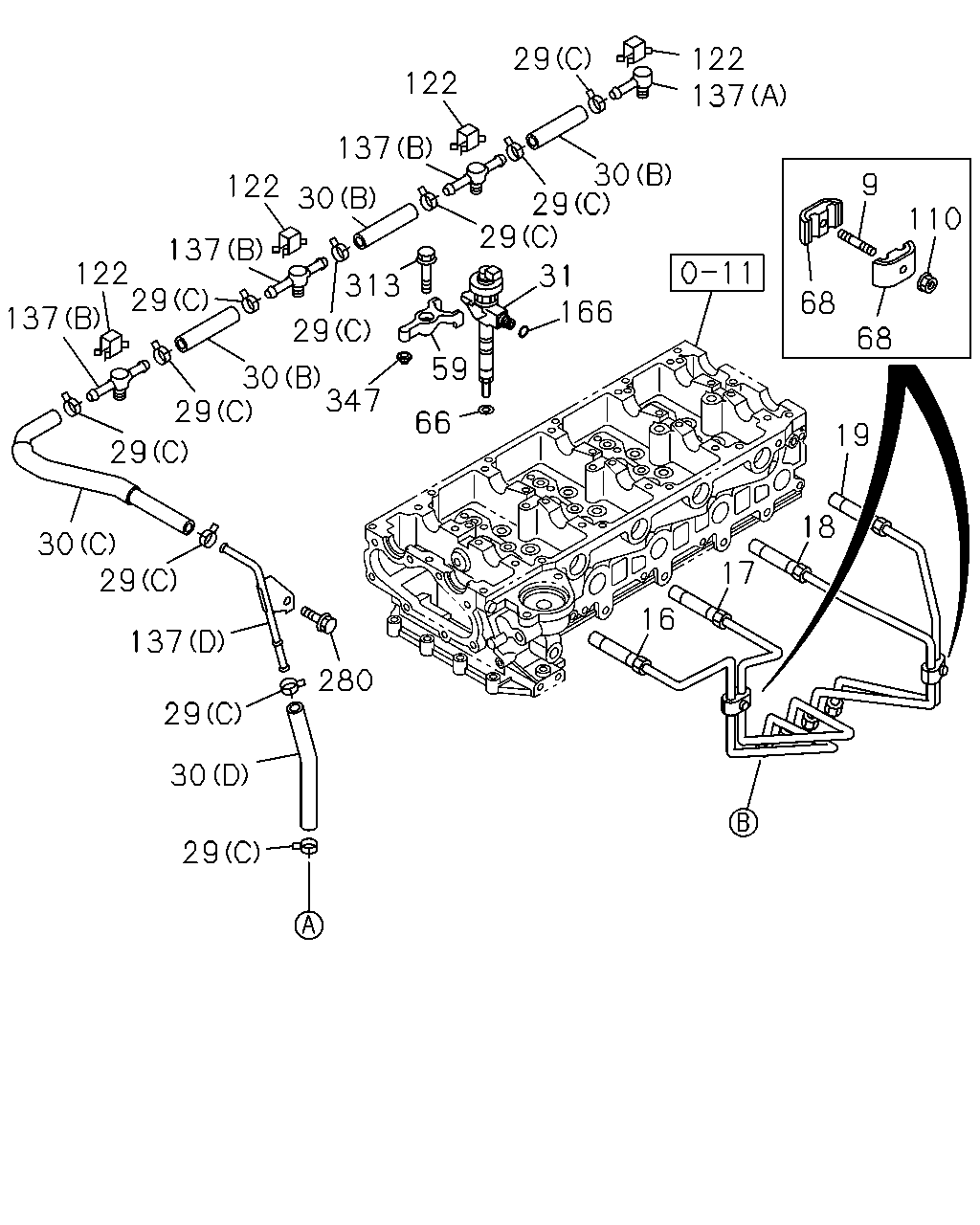

çizim 358082
29 30 29 280 137 29 30 29 29 137 122 137 122 29 30 29 347 313 30 137 122 29 122 137 9 68 110 68 19 18 17 16 29 29 30 31 59 66 166
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 02 1 1306-
16 PIPE; INJ NO.1 8-98203-719-0 01 1 1306-
17 PIPE; INJ NO.2 8-98203-720-0 01 1 1306-
18 PIPE; INJ NO.3 8-98203-721-0 01 1 1306-
19 PIPE; INJ NO.4 8-98203-722-0 01 1 1306-
29 CLIP; HOSE
(A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1306-
29 CLIP; HOSE
(B) ID=16 		8-94392-924-0 02 1 1306-
29 CLIP; HOSE
(C) ID=10.5 		8-97019-473-0 10 1 1306-
30 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1306-
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1306-
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1306-
30 HOSE; RUBBER,FUEL LEAK
(A) L=110 		8-97377-894-0 01 1 1306-
30 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1306-
31 NOZZLE ASM; INJ 8-98011-604-5 04 1 1306-
59 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1306-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1306-
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 04 1 1306-1405
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 04 1 1406-
110 NUT; CLIP
M6 FLANGE SOU 		0-91180-106-0 02 1 1306-
122 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1306-
137 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1306-
137 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1306-
137 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1306-
137 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1306-
166 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11 OD=14.8 		9-09566-111-0 04 1 1306-
280 BOLT; CLIP,FUEL HOSE
M8X12 FLANGE 		0-28050-812-0 01 1 1306-
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 1306-
347 PIN 8-98165-035-0 04 1 1306-
