Isuzu WW
▶
TRUCKS
▶
NLR
▶
51486 - NLR/NMR(SOUTHAFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

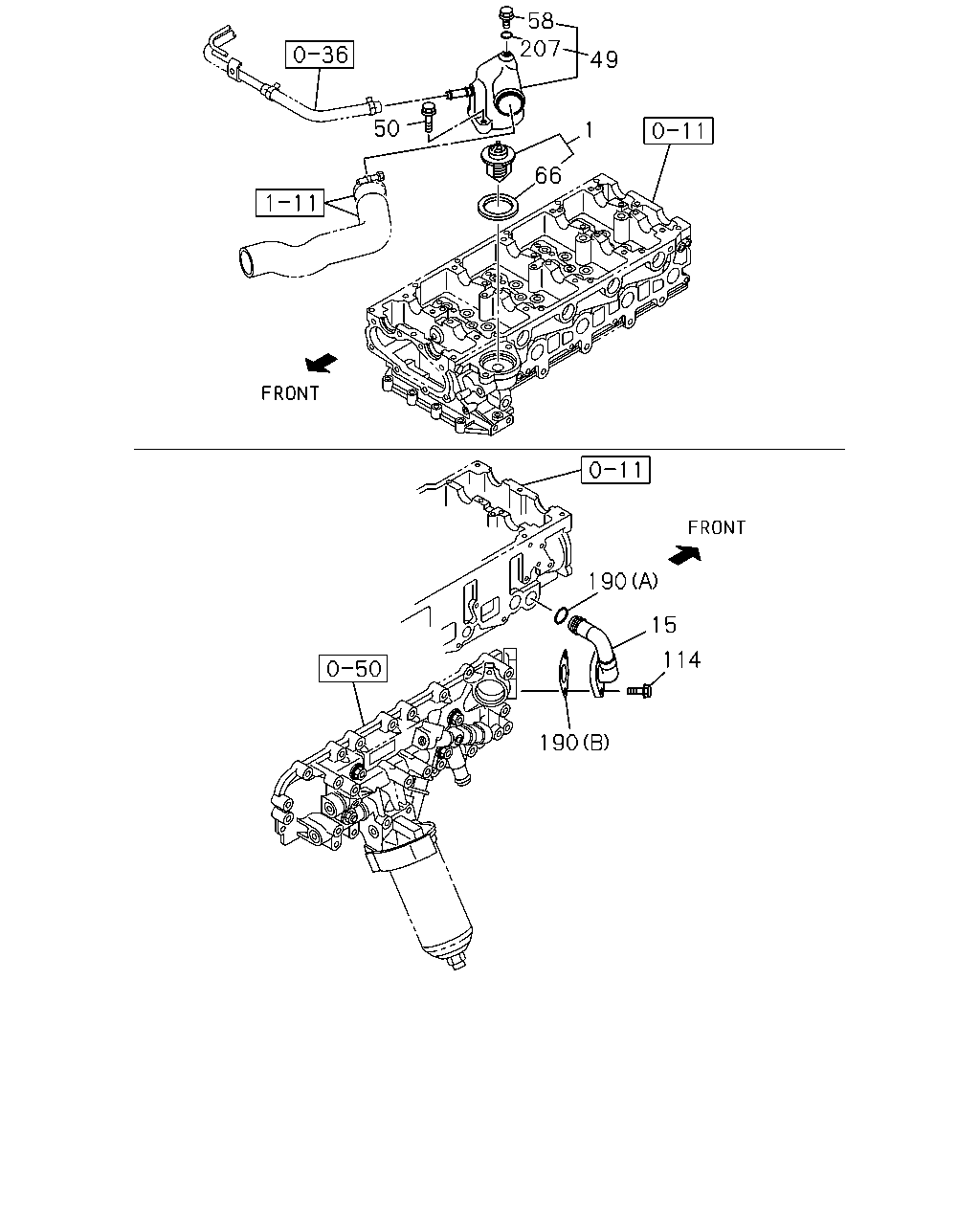

0-31 — THERMOSTAT AND HOUSING
(#122467) — 10 parça
190
114
15
190
50
66
1
49
207
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
85 CELSIUS
8-98017-027-2
01
1
1306-
15
PIPE; BYPASS
8-97318-732-2
01
1
1306-
49
PIPE; WATER OUTLET
8-98028-252-1
01
1
1306-
50
BOLT; OUTLET PIPE
M8X30 FLANGE
0-28650-830-0
02
1
1306-
58
PLUG; WATER OUTLET PIPE
M8X12 FLANGE
0-28050-812-0
01
1
1306-
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98114-587-0
01
1
1306-
114
BOLT; BYPASS PIPE
M8X25 FLANGE SOU
0-28650-825-0
02
1
1306-
190
GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
0-95690-226-0
01
1
1306-
190
GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-98009-322-0
01
1
1306-
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2
1-09630-082-0
01
1
1306-
