Isuzu WW
▶
TRUCKS
▶
NLR
▶
51486 - NLR/NMR(SOUTHAFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

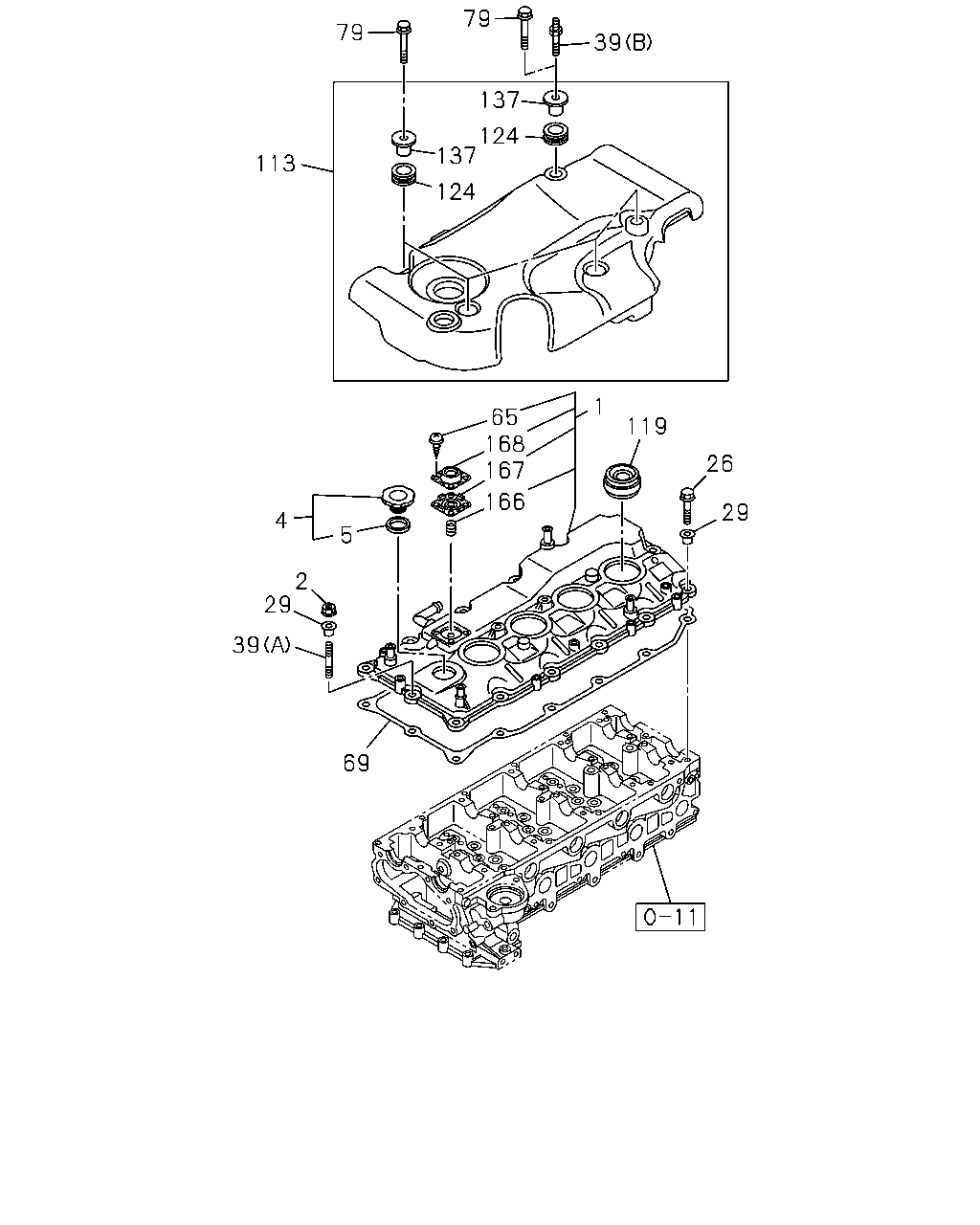

0-10 — CYLINDER HEAD COVER
(#122456) — 30 parça
4
2
5
29
39
69
1
65
168
167
166
113
79
79
39
137
124
137
124
119
26
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-98051-197-1
01
1
1306-1306
1
COVER; CYL HD
8-98226-103-0
01
1
1306-1505
1
COVER; CYL HD
8-98051-197-1
01
1
1506-
2
NUT; COVER,HD
M6 FLANGE
0-91180-206-0
01
1
1306-
4
CAP; OIL FILLER
8-94133-207-5
01
1
1306-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 SOU
8-94123-623-1
01
1
1306-
26
BOLT; CYL HD COVER
M6X30 FLANGE
0-28650-630-0
13
1
1306-
29
RUBBER; MTG,HD COVER
8-97381-524-0
14
1
1306-1408
29
RUBBER; MTG,HD COVER
8-97168-200-1
14
1
1409-
39
STUD; COVER,HD
EURO2 SPECIFICATION(NT2) (B) M8X11,M8X25 L=45
8-97220-552-2
01
1
1306-1509
39
STUD; COVER,HD
(B) M8X11,M8X25 L=45
8-97220-552-2
01
1
1510-
39
STUD; COVER,HD
(A) M6X30 L=38
8-97372-795-0
01
1
1306-
65
SCREW; ADAPTER
M5X10 W/LK WASHER
8-97366-592-0
04
1
1306-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97945-338-0
01
1
1306-
79
BOLT; COVER
EURO2 SPECIFICATION(NT2) M8X20 FLANGE
0-28050-820-0
04
1
1306-1509
79
BOLT; COVER
M8X20 FLANGE
0-28050-820-0
04
1
1510-
79
BOLT; COVER
EURO3 SPECIFICATION(NT3) M8X20 FLANGE
0-28050-820-0
05
1
1306-
113
COVER; CYL HEAD COVER
EURO2 SPECIFICATION(NT2)
8-98158-904-1
01
1
1306-1509
113
COVER; CYL HEAD COVER
EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>
8-98158-904-1
01
1
1306-1509
113
COVER; CYL HEAD COVER
EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98158-904-1
01
1
1306-1509
113
COVER; CYL HEAD COVER
8-98158-904-1
01
1
1510-
113
COVER; CYL HEAD COVER
EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98039-090-4
01
1
1306-1509
119
COVER; SEAL,NOZZLE
8-98037-543-0
04
1
1306-
124
RUBBER; MTG,COVER
8-98036-119-0
05
1
1306-
137
BUSHING; MTG RUBBER,COVER
8-98036-120-0
05
1
1306-
166
SPRING; VENTILATOR
8-97365-998-0
01
1
1306-
167
DIAPHRAGM; VENTILATOR
8-98003-164-0
01
1
1306-1306
167
DIAPHRAGM; VENTILATOR
8-98226-101-0
01
1
1306-1505
167
DIAPHRAGM; VENTILATOR
8-98003-164-0
01
1
1506-
168
COVER; VENTILATOR
8-97365-992-0
01
1
1306-
