◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51486 - NLR/NMR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#122455) — 12 parça

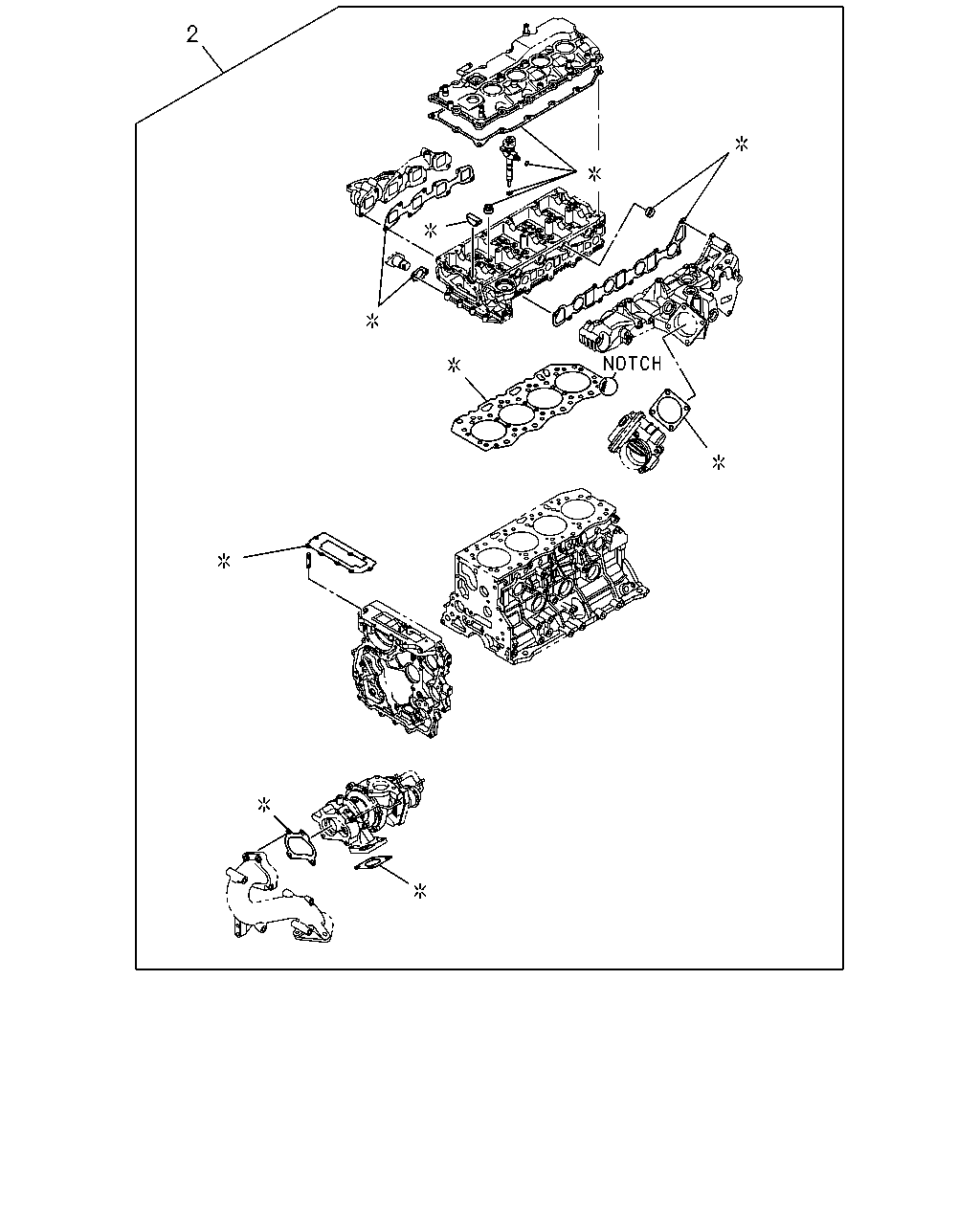

çizim 358180
2
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-886-1 01 1 1306-1411
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412-
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-887-1 01 1 1306-1411
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412-
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-888-1 01 1 1306-1411
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412-

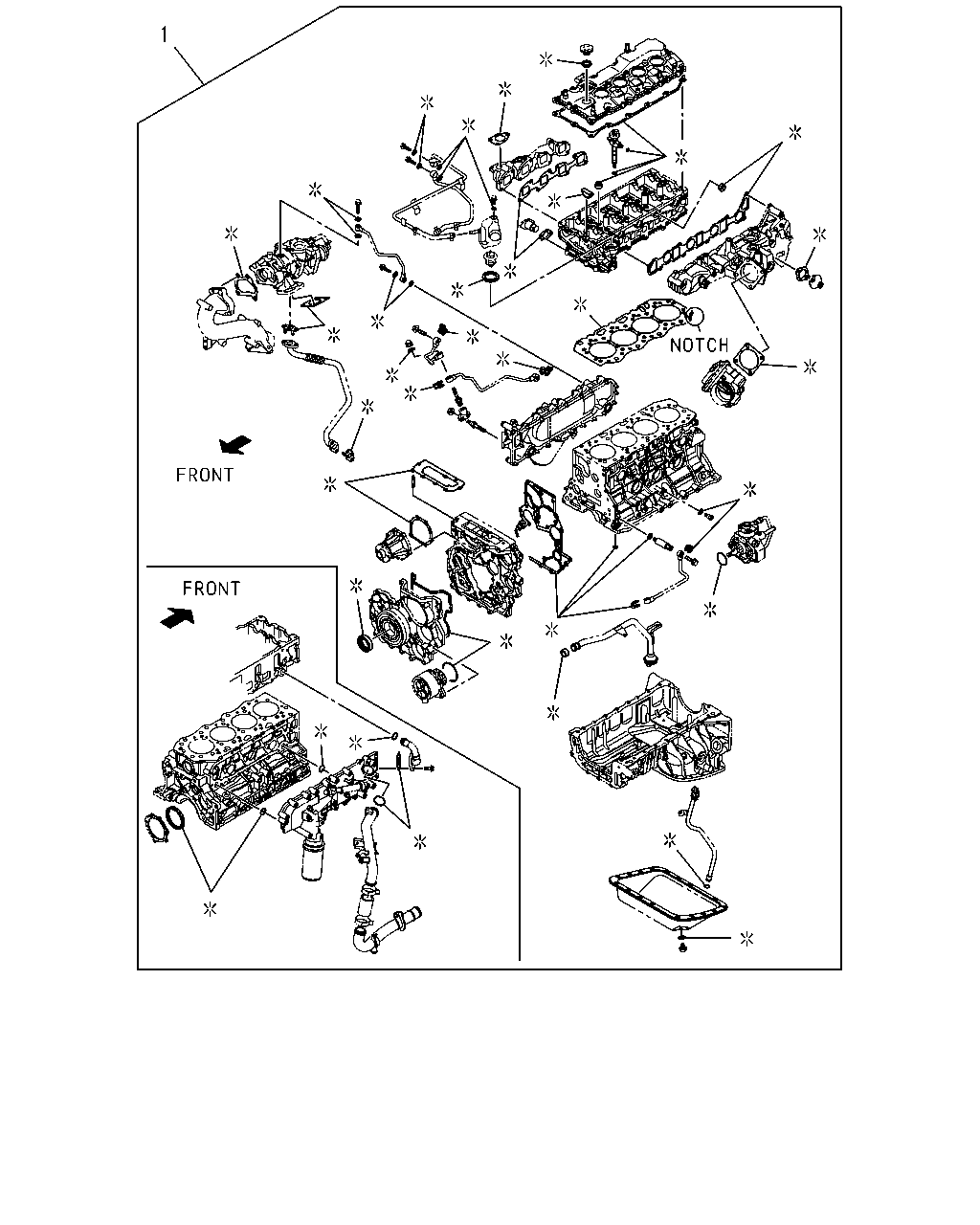

çizim 358579
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-877-1 01 1 1306-1411
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412-
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-878-1 01 1 1306-1411
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412-
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-879-1 01 1 1306-1411
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
