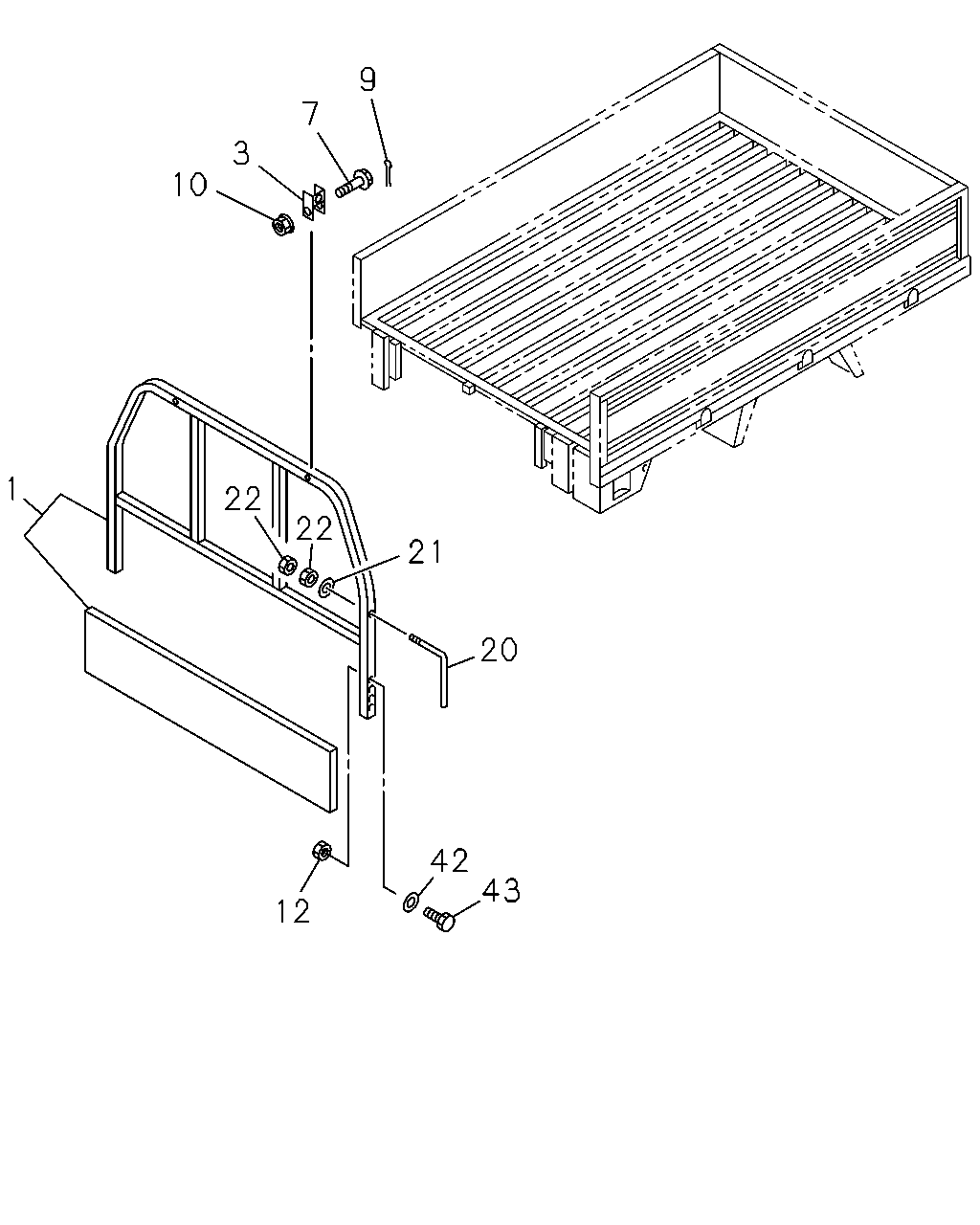

9-32 — REAR BODY; GUARD FRAME (#122452) — 24 parça

10 3 7 9 21 20 42 43 22 22 12 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FRAME; GUARD,RR BODY REAR BODY FLAT BED<E39> THA	8-98165-735-0	01	1	1307-1409
1	FRAME; GUARD,RR BODY REAR BODY FLAT BED<E39> THA	8-98165-735-0	01	1	1410-
3	STOPPER; GUARD FRAME,RR BODY REAR BODY FLAT BED<E39> THA	8-97354-208-0	02	1	1307-1409
3	STOPPER; GUARD FRAME,RR BODY REAR BODY FLAT BED<E39> THA	8-97354-208-0	02	1	1410-
7	BOLT; GUARD FRAME STOPPER,RR BODY REAR BODY FLAT BED<E39> THA	8-98171-953-0	02	1	1307-1409
7	BOLT; GUARD FRAME STOPPER,RR BODY REAR BODY FLAT BED<E39> THA	8-98171-953-0	02	1	1410-
9	PIN; SPLIT,GUARD FRAME REAR BODY FLAT BED<E39> OD=1.8 L=20 THA	0-81122-020-0	02	1	1307-1409
9	PIN; SPLIT,GUARD FRAME REAR BODY FLAT BED<E39> OD=1.8 L=20 THA	0-81122-020-0	02	1	1410-
10	NUT; GUARD FRAME STOPPER REAR BODY FLAT BED<E39> THA	8-98171-950-0	02	1	1307-1409
10	NUT; GUARD FRAME STOPPER REAR BODY FLAT BED<E39> THA	8-98171-950-0	02	1	1410-
12	NUT; GUARD FRAME REAR BODY FLAT BED<E39> THA	8-98171-952-0	08	1	1307-1409
12	NUT; GUARD FRAME REAR BODY FLAT BED<E39> THA	8-98171-952-0	08	1	1410-
20	HANDLE; FRT,RR BODY REAR BODY FLAT BED<E39> THA	8-98171-168-0	02	1	1307-1409
20	HANDLE; FRT,RR BODY REAR BODY FLAT BED<E39> THA	8-98171-168-0	02	1	1410-
21	WASHER; LK,FRT HANDLE REAR BODY FLAT BED<E39> ID=12.5 IMA	0-91614-512-0	02	1	1307-1409
21	WASHER; LK,FRT HANDLE REAR BODY FLAT BED<E39> ID=12.5 IMA	0-91614-512-0	02	1	1410-
22	NUT; FRT HANDLE REAR BODY FLAT BED<E39> M12 IMA	0-91111-512-0	04	1	1307-1409
22	NUT; FRT HANDLE REAR BODY FLAT BED<E39> M12 IMA	0-91111-512-0	04	1	1410-
42	WASHER; PL REAR BODY FLAT BED<E39> THA	8-98171-955-0	12	1	1307-1409
42	WASHER; PL REAR BODY FLAT BED<E39> THA	8-98171-955-0	12	1	1410-
43	BOLT; GUARD FRAME,RR BODY REAR BODY FLAT BED<E39> M8X25 FLANGE THA	0-28650-825-0	07	1	1307-1409
43	BOLT; GUARD FRAME,RR BODY REAR BODY FLAT BED<E39> M8X25 FLANGE THA	0-28650-825-0	07	1	1410-
43	BOLT; GUARD FRAME,RR BODY REAR BODY FLAT BED<E39> M10X22 FLANGE THA	8-98171-954-0	12	1	1307-1409
43	BOLT; GUARD FRAME,RR BODY REAR BODY FLAT BED<E39> M10X22 FLANGE THA	8-98171-954-0	12	1	1410-
